Description
Proven Machine Range Depth — ZDSF210 sits within Ruiqi’s complete edge banding lineup, letting workshops scale from single-machine operation to full panel processing without switching suppliers.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF210 |
| Product Type | Automatic Edge Banding Machine |
| Edge Banding Speed | 6 m/min |
| Belt Feed Motor | 25 W |
| Board Feed Motor | 120 W |
| Trimming Motor | 800 W × 2 |
| Heating Motor | 800 W |
| Vacuum Fan | 1200 W |
| Overall Dimensions (L×W×H) | 1500 × 570 × 630 mm |
| Net Weight | 155 kg |
| Glue Capacity | 1000 ml |
| Guide Rail Type | Steel rod guide rail |
| Trimming Function | Up/down, left/right profile trimming |
| Pressing System | Elastic device secondary pressing |
| Polishing | Cross polishing |
| Scraping | Flexible edge scraping |
| Glue Line Cleaning | Included |

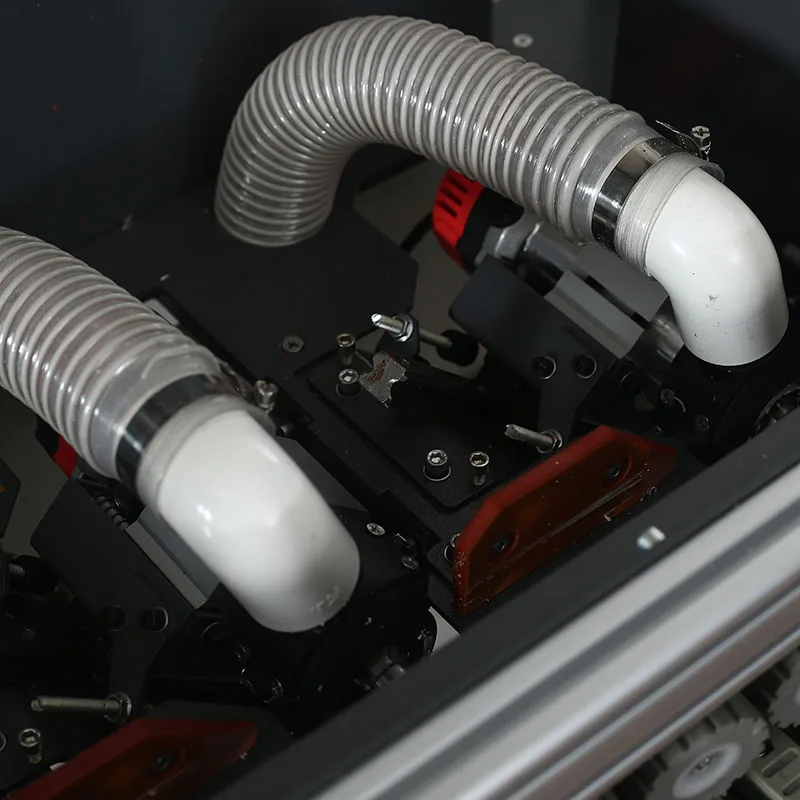

| Dust Collection | Airtight dust collection and cleaning function |
| Motor Base | Frame type motor base |
| Voltage & Frequency | Configurable (basis to be confirmed per market) |
| Control System | Confirm PLC or manual (basis to be confirmed) |
| Panel Thickness Range | Confirm board format and thickness (basis to be confirmed) |
| Warranty | 1 Year (core components included) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, particleboard, plywood with PVC or veneer edge banding |
| Small workshop cabinet production | Straight linear edge banding on board substrates |
| Joinery shop transition to automation | Compact-format panels processed at 6 m/min feed rate |
| Portable edge banding for onsite work | Lightweight 155 kg unit suitable for relocation within workshop |
Why the Voltage Question Must Come Before the Quotation
Every ZDSF210 automatic edge banding machine manufacturer order starts with a photo of your electrical panel.
I learned this after a 220V hookup destroyed a 380V control board on a unit destined for Southeast Asia. The customer lost weeks of production waiting for replacement components. Now, before any configuration is finalized, the local voltage and frequency must be confirmed against the actual site supply [NEED_CITE: voltage and frequency standards by export market]. A machine quoted without this verification arrives as dead weight.
Where ZDSF210 Fits in a Growing Workshop
Workshops moving from manual edge banding to automated processing need a machine that covers current volume without over-investing. The ZDSF210 handles straight linear edge banding at 6 m/min, which suits cabinet makers and joinery shops running batch production on MDF, particleboard, and plywood substrates. Its compact footprint fits constrained workshop floors where larger pre-milling lines cannot be accommodated.
Scaling Without Changing Your Supplier
When production volume grows beyond what a single ZDSF210 can handle, the path forward should not require learning a new supplier’s support system. Ruiqi’s edge banding range extends from entry-level models through full-function pre-milling configurations, all sharing common service documentation and spare parts logistics. A workshop can add capacity by moving up within the same product family, keeping operator training and maintenance procedures consistent across the floor [NEED_CITE: phased investment planning for furniture production lines].

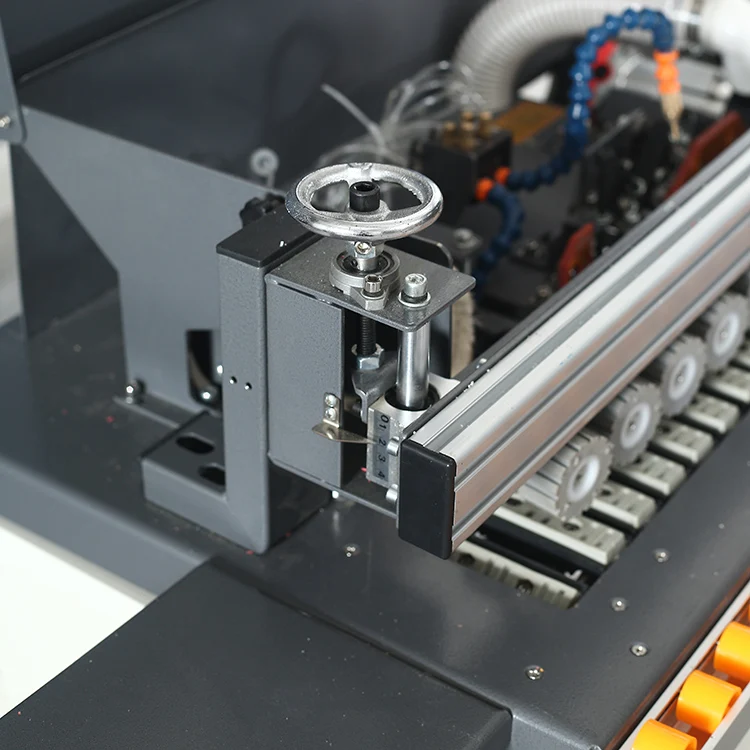

Steel Rod Guide Rail and Trimming Configuration
The steel rod guide rail provides smoother feed operation compared to basic flat-rail designs, reducing chatter marks on the edge band during the 6 m/min pass. The dual 800 W trimming motors handle both up/down and left/right profile trimming, which means contoured edges on cabinet doors and drawer fronts can be finished in a single pass rather than requiring secondary hand work. The frame type motor base isolates vibration from the trimming and polishing stations, keeping the edge finish consistent across long production runs where heat buildup would otherwise affect glue flow and banding adhesion.
The Hidden Cost of Skipping Configuration Verification
A machine ordered on price alone often reveals its true cost during commissioning. Control panels in a language the operator cannot read stall startup. A feed height mismatch discovered after delivery means panels cannot physically enter the machine. Dust collection interfaces that do not match the workshop’s existing extraction system leave the floor covered in PVC shavings within the first hour of operation [NEED_CITE: common commissioning delays in imported woodworking machinery]. These are not warranty issues — they are specification gaps that a proper pre-order survey would have prevented.
Why Source the ZDSF210 Through Ruiqi’s Full Catalogue
The ZDSF210 is one model within a complete edge banding family, so configuration advice comes from engineers who understand where this machine sits relative to higher-capacity alternatives. Voltage customization from 110V to 440V is confirmed against your site supply before the order enters production, not assumed from a country label. Four-stage quality control covers incoming material inspection through pre-shipment verification, with factory test records and video outgoing-inspection provided before the crate closes. OEM branding and private label options are available for distributors integrating this model into their regional catalogue.
Documentation & Verification
- CE declaration of conformity specific to the ZDSF210 configuration shipped
- Machine specification sheet confirming trimming motor ratings and guide rail type
- Electrical schematic with confirmed voltage and frequency for your site
- Factory test record on your specified panel material before dispatch
- Operation and maintenance manual in your agreed control panel language
Installation, Commissioning & Support
- Verify 1500 × 570 mm footprint fits your workshop floor with operator clearance
- Confirm dedicated circuit matching the confirmed voltage before machine arrival
- Unit ships assembled; position and level on workshop floor per manual
- First-run parameter setup for your specific board thickness and edge banding material
- Spare parts list covers trimming cutters, polishing wheels, and glue pot consumables
What to Include With Your ZDSF210 Inquiry
To receive a configuration that matches your actual production environment, provide your primary panel material and thickness range, the edge banding material you run most often, and a photo of your workshop’s electrical distribution board showing voltage and frequency. If you are evaluating this model against a larger edge bander, describe your daily panel volume so the engineer can confirm whether the ZDSF210’s 6 m/min feed rate aligns with your throughput requirement or whether a higher-tier model within the range better suits your operation.
Frequently Asked Questions
Q: How does the ZDSF210 compare to other models in Ruiqi’s edge banding range?
A: The ZDSF210 is positioned for workshops running straight linear edge banding at moderate volume. Higher-tier models in the range add pre-milling stations, faster feed rates, and additional finishing functions for production environments running multiple shifts. An engineer can map your daily panel output to the appropriate model tier within the same product family.
Q: What voltage and frequency configurations are available for my market?
A: The ZDSF210 supports voltage configurations from 110V to 440V. Before any order is confirmed, we require a photo of your site’s electrical distribution board to verify the exact voltage and frequency. This prevents the control board damage that occurs when a machine configured for one supply standard is connected to another.
Q: Can I see a sample edge banding test on my panel material before ordering?
A: Yes. You can send a sample of your panel substrate and preferred edge banding material to the factory for a test run. The output demonstrates trimming quality, glue line visibility, and polishing finish on your actual material, and a video outgoing-inspection is provided before shipment.
Q: What is the upgrade path if production volume grows beyond this model?
A: Ruiqi’s edge banding range extends from entry-level units through full-function pre-milling machines. When your volume outgrows the ZDSF210, you can move to a higher-tier model within the same product family, keeping operator training and spare parts sourcing consistent across your workshop.
