JT160 Wood Cutting Table Saw Woodworking Portable Folding Panel Saw 45/90 Degree Wood Cutting Machine
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Saw Machines Woodworking Machinery

JT160 Wood Cutting Table Saw Woodworking Portable Folding Panel Saw 45/90 Degree Wood Cutting Machine

This product is currently out of stock and unavailable. SKU: JT160 Wood Cutting Table Saw Woodworking P-36309798 Categories: Wood Saw Machines, Woodworking Machinery Description Additional information Description Products Description JT160 wood cutting table saw woodworking portable folding panel saw 45/90 degree wood cutting machine Portable Folding Woodworking Table Saw1. High efficiency:Aluminum alloy flip plate. no […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Description

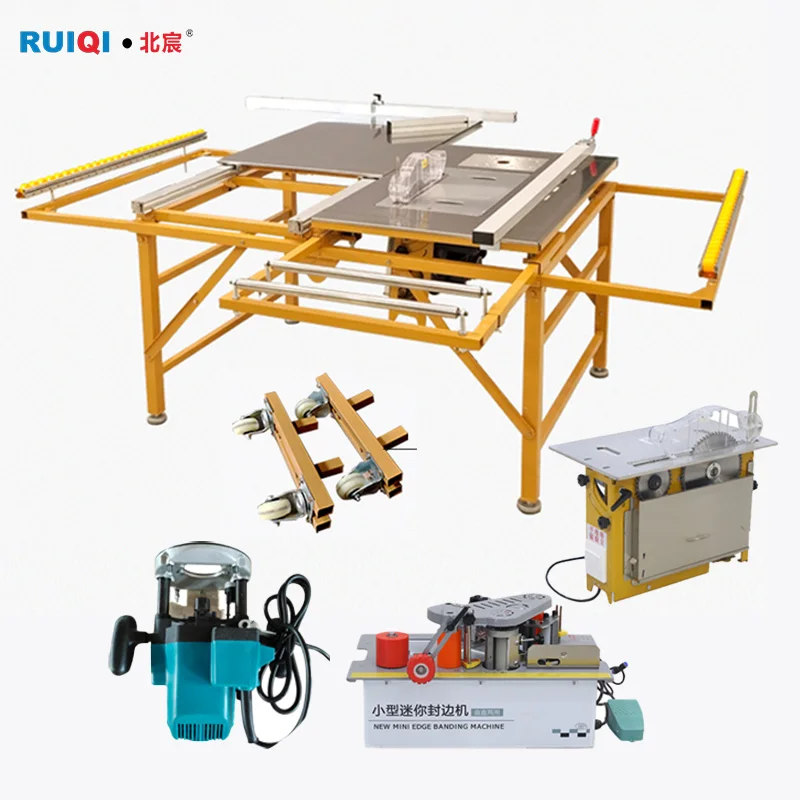

JT160 wood cutting table saw woodworking portable folding panel saw 45/90 degree wood cutting machine


Portable Folding Woodworking Table Saw
1. High efficiency:Aluminum alloy flip plate. no adjustment 45/90 degrees. independent switch. with aluminum alloy chip integrated
sub and master saw. good dust absorption effect. 2. Dust protection cover:The protective cover can provide safety protection and
prevent dust from flying out of the table.
3. Imported bearing high power low energy consumption:Copper wire motor. surging power. stable motor. ensure work efficiency.
4. Arbitrary adjustment:Aluminum alloy flip-flop board. the flip-flop board can be mitered. the saw blade can be adjusted(size).
Product Paramenters
Model
JT160
J2 Non dust Male and Female Saw
Total power
6200W
Maximum plank cutting length and thickness
2.44M.4CM
Main saw power and speed
3000W.3800r/min
Main saw diameter
20CM
Sub saw power and speed
2000W.13000r/min
Vacuum cleaner power
1200W
Product weight
55KG+22KG
Track width. length
8CM.100CM .double track
Product Size
Folded size of saw table 100*72*30CM Expanded size of saw table250*205*75CM Male and Female Sawsize50*30*38CM
Package Size
Saw table wooden box 137*97*95CM (heightened bottom corner
Male and Female Saw wooden case
57*37*45CM(Elevated bottom corner)
Model
JT160 PRO
Equipped with J2 Dust-free Male and Female Saw+Saw Table Edge Banding Machine
Total power
Male and Female Saw Power 6200W
Edge banding machine power 1000W
Maximum plank cutting length and thickness
2.44M.4CM
Standard features
Curved and straight edge banding. manual push plate
Voltage
220V/380V/
customization

Main saw power and speed
3000W.3800r/min
Minimum length of sheet
25CM
Minimum width of sheet
5CM
Main saw diameter
20CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Sub saw power and speed
2000W.13000r/min
Edge power/speed
20W
Air source pressure
0.5-0.8Mpa
Vacuum cleaner power
1200W
Glue pot capacity
1000ml
Product weight
55KG+22KG+15KG
Track width. length
8CM.100CM .double track
Product Size
folding saw table size100*72*30CM Saw table unfoldedsize250*205*75CM Male and Female Sawsize50*30*38CM Banding Machine
size54*35*33CM
Package Size
Saw table wooden box 137*97*95CM (heightened bottom corner
Male and Female Saw wooden box 57*37*45CM (heightened bottom corner) edge banding machine size carton 54*35*33CM
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement
