Products Description

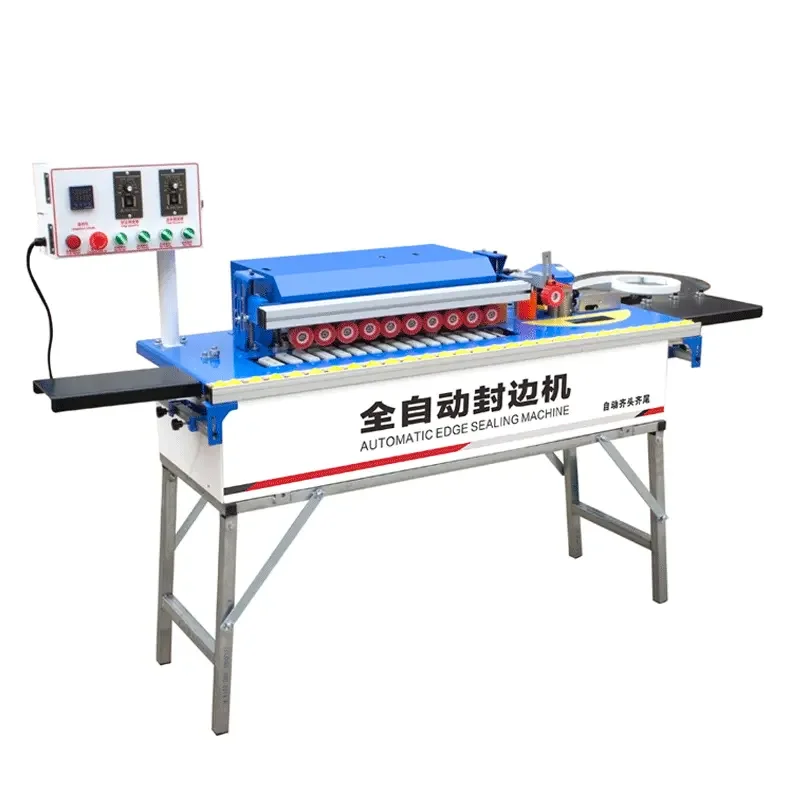

Beichen DW102 edge banding machine with auto gluing and trimming buffing and automatic end cutting
DW102 automatic mini MDF double pvc edge
Trimmer manual edge banding machine wood edge bander
This machine is suitable for medium density fiber board. blockboard. wood panels. particleboard. plywood and other polymer doors.straight edge trimming. disposable with double-sided adhesive tape cutting edge bonding edge pressing. block. chamfer.
Tinker.finishing. polishing and other functions of scraping edge. edge smooth. smooth. feel good sealing wire. flat and smooth.
Theequipment operation is stable. reliable and durable. is especially suitable for large and medium-sized furniture. cabinets and other furniture manufacturers plate using.
Product Paramenters
Model
DW102


Total power
3800W


Standard features
Curved and straight edge banding. edge trimming. polishing. automatic head and tail. with vacuum
Voltage
220V/380V/customization
Minimum length of sheet
25CM
Minimum width of sheet
5CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Edge power/speed
20W
Air source pressure
0.5-0.8Mpa
Transmission power/speed
60W
Glue pot capacity
1000ml
Trimming power/speed
650W*2
Vacuum power
1200W
Polishing power/speed
180W*2


Product Size
128*47*69CM
Product weight
75KG
Package Size
134*51*58CM


Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products. Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ? We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality. Q2:Can I choose the Plug? Yes.we have EU.USA.AU.UK plug for your country use Q3:Is it OK to print my logo on the product? Yes.Please inform us formally before our production and confirm the design firstly for the mass production. Q4.I do not know Chinese.will the operation panel in English or French or other? Yes.all our machine are with Chinese and English.If you want only English or Spanish or other. we also can customize to you Q5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world. also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries. Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe. Q7.What to do if l have any other specifications for the current? lf you have any different requirements.just contact us and we will meet you. Q8.lf I need a sample for pretest. do you sale sample for this inquiry ? Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation. Q9.Can you produce the products according to my own drawings? Yes. we can do OEM according to your requirement
