Description
Voltage-ready configuration — ZDS802 ships with confirmed electrical schematics and adaptable voltage from 110V to 440V, eliminating the most common reason imported edge banders sit idle on arrival.
Technical Specifications
| Parameter | Value |
|---|---|

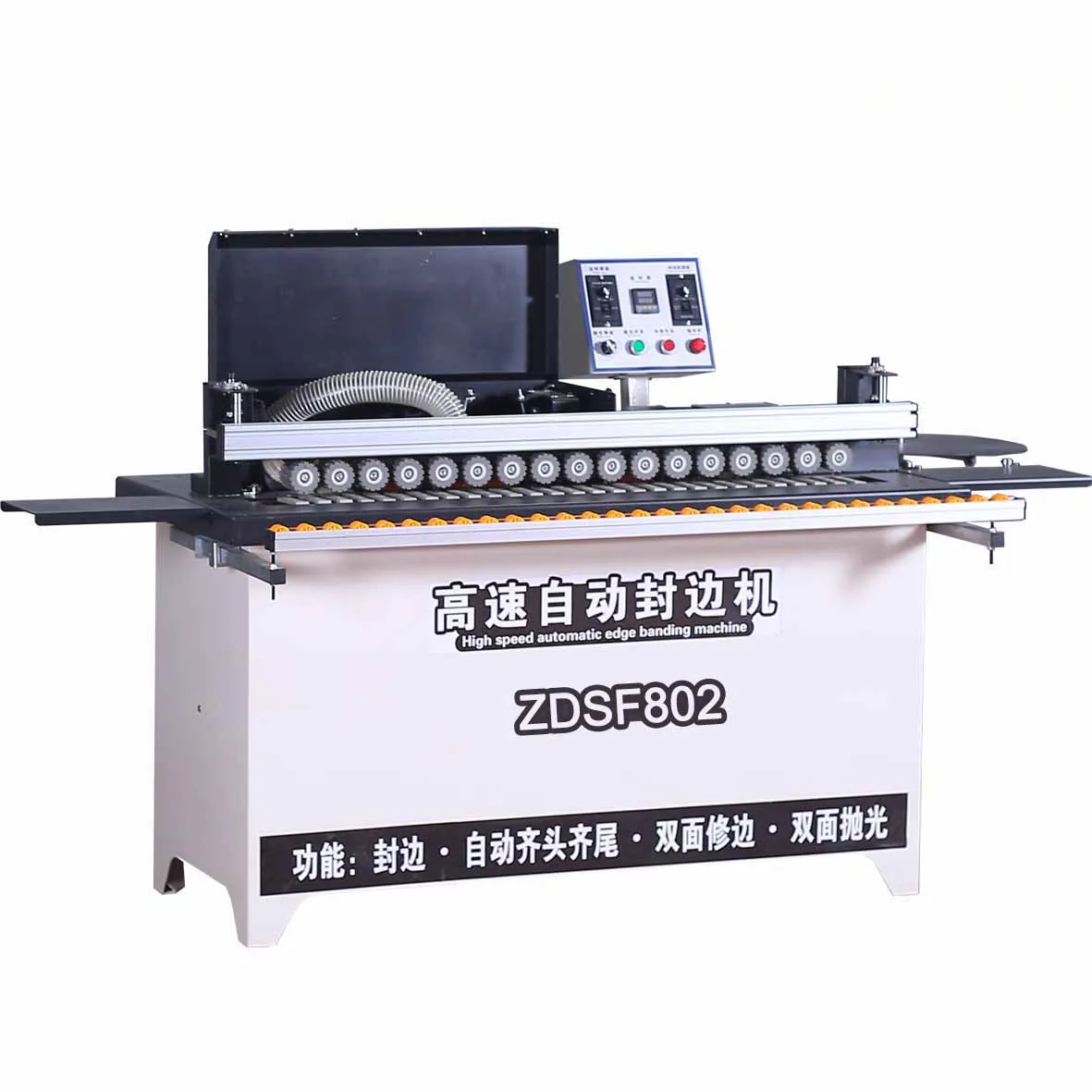

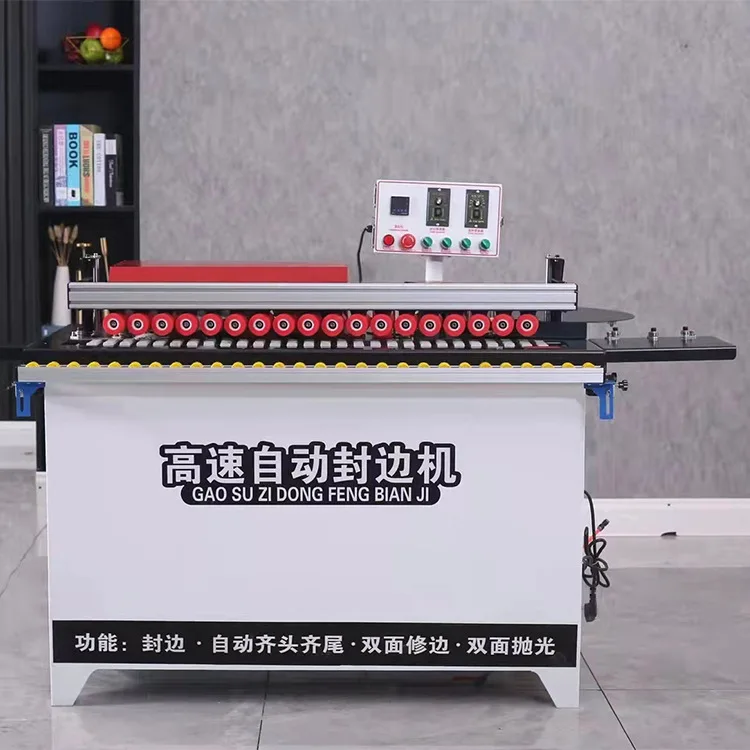

| Model | ZDS802 |
| Product Type | Automatic Edge Banding Machine |
| Edge Type | Straight line |
| Rated Voltage | 220V (configurable 110V–440V) |
| Rated Power | 4 kW |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Suction Power | 1200W |
| Heating Power | 1000W (heat-up 5–10 min) |
| Feed Speed | 0–10 m/min |
| Strip Thickness Range | 0.5–2.5 mm |
| Panel Thickness Range | 10–50 mm |
| Glue Pot Capacity | 4000 ml |
| Gluing Method | Double-sided gluing |
| Air Pressure Requirement | 0.4–0.6 MPa |
| Overall Dimensions | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
| Control Panel | Digital display, independent switches |

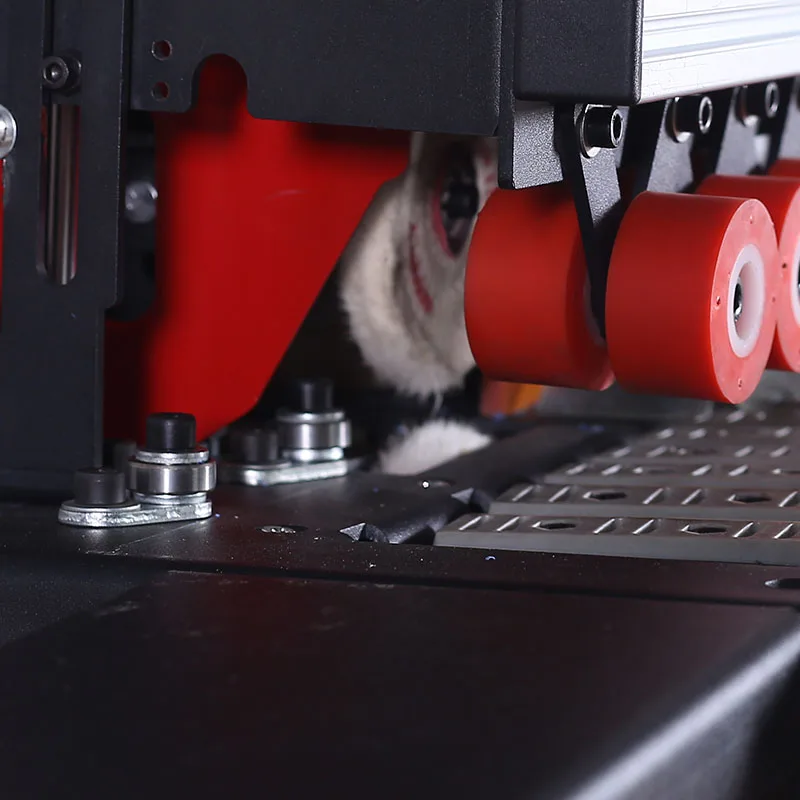

| Pressure Beam | Integrated, double-row pressure wheels |
| Conveyor Belt Material | Silicone |
| Belt Breaking Method | Pneumatically controlled |
| Key Features | Automatic plate feeding, end cutting, upper/lower trimming, upper/lower polishing, integrated dust collector |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and carcass edge finishing | PVC edge banding on 18 mm particleboard |
| Custom furniture panel processing | Melamine and veneer strips on MDF substrates |
| Small-batch joinery production | Solid wood edging on plywood shelving panels |
| Workshop upgrade from manual banding | Straight-line PVC on 10–50 mm panel thickness range |
Why the Voltage Question Should Come Before the Price
The ZDS802 Automatic Edge Banding Machine for sale is only production-ready when its electrical configuration matches your workshop supply exactly.
I once quoted a cabinet maker who had already lost three weeks with a previous supplier’s machine. The unit arrived configured for a voltage standard his facility did not support, and rewiring the control cabinet voided the warranty. The machine sat under a tarp while he sourced a step-down transformer that never quite stabilized the heating element. That delay cost him more than the transformer itself — it stalled an entire kitchen run [NEED_CITE: voltage and frequency standards by export market].
With the ZDS802, voltage confirmation is part of the specification stage, not an afterthought at the loading dock. We document the agreed voltage and frequency on the electrical schematic before production begins.
Catalogue Placement Within the Edge Bander Family
The ZDS802 occupies the compact, full-function tier of the Ruiqi edge banding range. It carries trimming and polishing stations that entry-level portable banders omit, yet its 130 cm footprint fits workshops where a six-station industrial line would never clear the door. Buyers surveying the complete catalogue can position this Automatic Edge Banding Machine for sale against larger pre-milling models to decide whether their panel volume justifies the next tier up.
Scaling Without Changing Supplier
Because the ZDS802 shares a product family with both simpler and more automated Ruiqi edge banders, a workshop that starts here can add a pre-milling unit or a contour bander later without renegotiating spare parts logistics or learning a second control philosophy. The glue pot, pressure beam geometry, and conveyor belt material carry across the family, so operator training transfers directly when the line grows [NEED_CITE: CE machinery directive requirements for industrial equipment].
What the Spec Sheet Actually Means on the Shop Floor

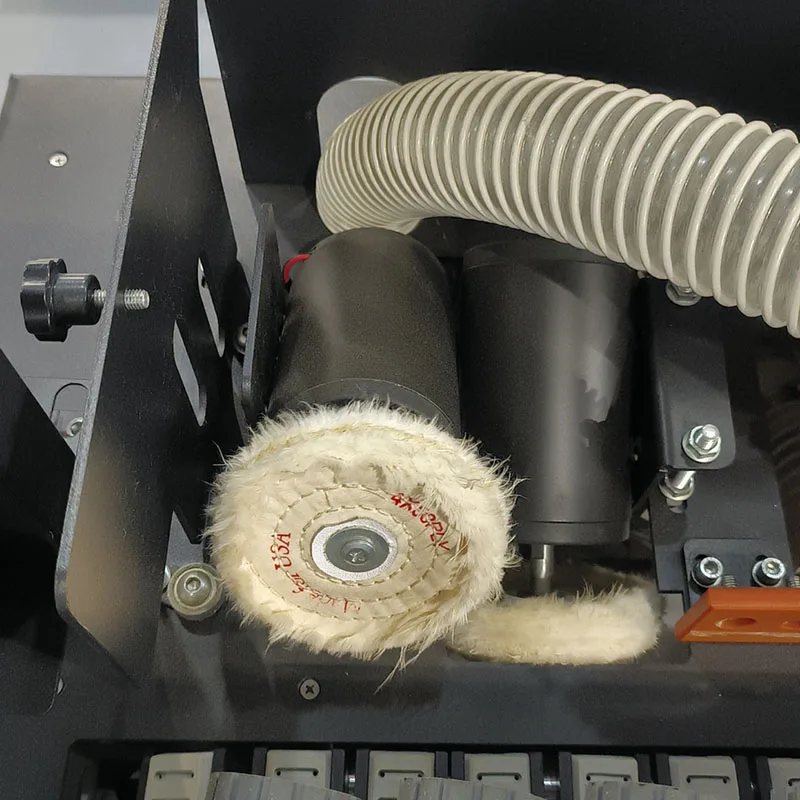

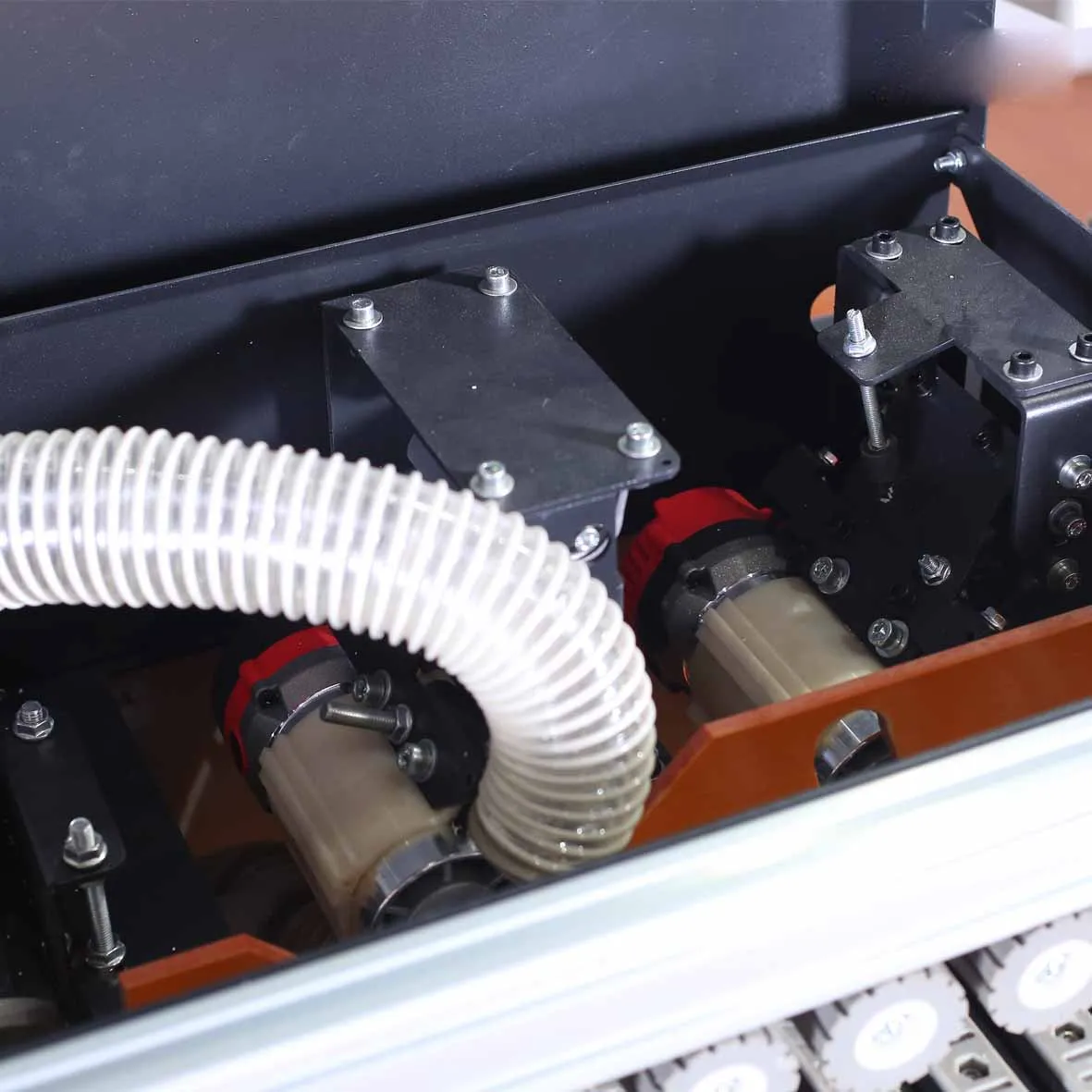

The 10–50 mm panel thickness range covers the full span from thin MDF drawer sides to thick particleboard worktops, but the practical sweet spot sits between 16 and 25 mm where the double-row pressure wheels maintain even contact. Feed speed reaches 10 m/min, which suits batch runs of twenty to fifty panels rather than continuous high-volume shifts — pushing past that tempo risks glue starvation on porous substrates like low-density particleboard. The 4000 ml glue pot holds enough adhesive for a sustained morning session without refill interruption, and the double-sided gluing method ensures bond coverage on both the strip and the panel edge. Upper and lower trimming motors at 800W each handle 2.5 mm PVC without chatter, while the 180W polishing stations remove the residual haze that trimming leaves behind. Pneumatic belt breaking cuts the strip cleanly without the operator reaching for a knife mid-cycle, which matters when you are running fifty cabinet sides before lunch.
When a Compact Bander Costs More Than Expected
A small workshop buys a machine like this expecting plug-and-play simplicity, then discovers the control panel labels are in a language the operator cannot read. Commissioning stalls while someone translates each switch function, and mis-set glue temperature scorches the adhesive on the first batch [NEED_CITE: multilingual operator documentation standards for exported machinery]. The ZDS802 addresses this by offering multilingual control panel options confirmed during the specification stage — but only if the buyer raises it before the crate is nailed shut.
What This Purchase Includes Beyond the Machine
The ZDS802 ships with a formal factory test record run on panel thicknesses matching your order specification, not a generic bench test. Voltage and frequency are locked in writing on the electrical schematic before assembly starts. The four-stage QC process — incoming material, in-process, finished product, pre-shipment — means the unit you receive has been verified against its own build sheet, not just a catalogue average. Multilingual operation manuals are prepared in the language you confirm at order, and the spare parts list identifies every wearable component with reorder references so your first maintenance cycle does not require an international phone call.
Documentation & Verification
- Electrical schematic confirming agreed voltage and frequency before assembly
- Factory test record on your specified panel thickness and strip material
- Operation manual written in your confirmed operator language
- Spare parts list with reorder codes for every wearable component
- Packing photographs documenting machine condition at crating
- CE declaration and ISO 9001 documentation at company level
Installation, Commissioning & Support
- Requires a dedicated 4 kW circuit matching the confirmed voltage and frequency
- Air supply must deliver 0.4–0.6 MPa clean dry air via a 10 mm hose
- Allow 5–10 minutes for the 1000W heating element to reach set temperature
- Silicone conveyor belt tension checked at first power-on and again after 48 hours
- Glue pot flush procedure documented in the manual for adhesive changeover
- Dust collector ducting sized to the 1200W suction port for chip extraction
What to Include With Your Inquiry
Share the panel materials you run most often — MDF, particleboard, plywood, or solid wood — along with the typical thickness and the edge strip type. Confirm your workshop voltage and frequency so the electrical configuration is locked before production. Let us know your daily panel count and whether you need the manual in a specific language.
Frequently Asked Questions
Q: How do I decide between the ZDS802 and a larger pre-milling model in the same range?
A: The decision depends on your panel volume and edge quality requirement. The ZDS802 handles straight-line PVC and veneer on panels up to 50 mm thick at feed speeds to 10 m/min. If your daily output exceeds sustained batch runs or you mill high-pressure laminate that demands pre-scoring, the next tier in the catalogue adds stations for those demands.
Q: What voltage options are available for export markets?
A: The ZDS802 is configurable from 110V to 440V. We confirm your local voltage and frequency during the specification stage and document the agreed configuration on the electrical schematic shipped with the machine, so there is no mismatch when the unit arrives at your facility.
Q: Can I see a sample edge banding test before placing an order?
A: Yes. We run test pieces on your specified panel material and strip type, then share the results and photographs before you commit. Factory visits are also welcomed if you want to observe the machine operating under production conditions.
Q: What documentation ships with the ZDS802?
A: Each unit ships with an electrical schematic, factory test record, operation manual in your confirmed language, spare parts list with reorder references, packing photographs, and customs documentation support. CE and ISO 9001 certificates are available at company level.
