Description
In-house manufacturing with verified tolerance — every portable edge banding unit in this range is built on our own floor with patented cutting mechanisms and confirmed ±0.02mm precision before it ships.
Technical Specifications
| Parameter | Value |
|---|---|

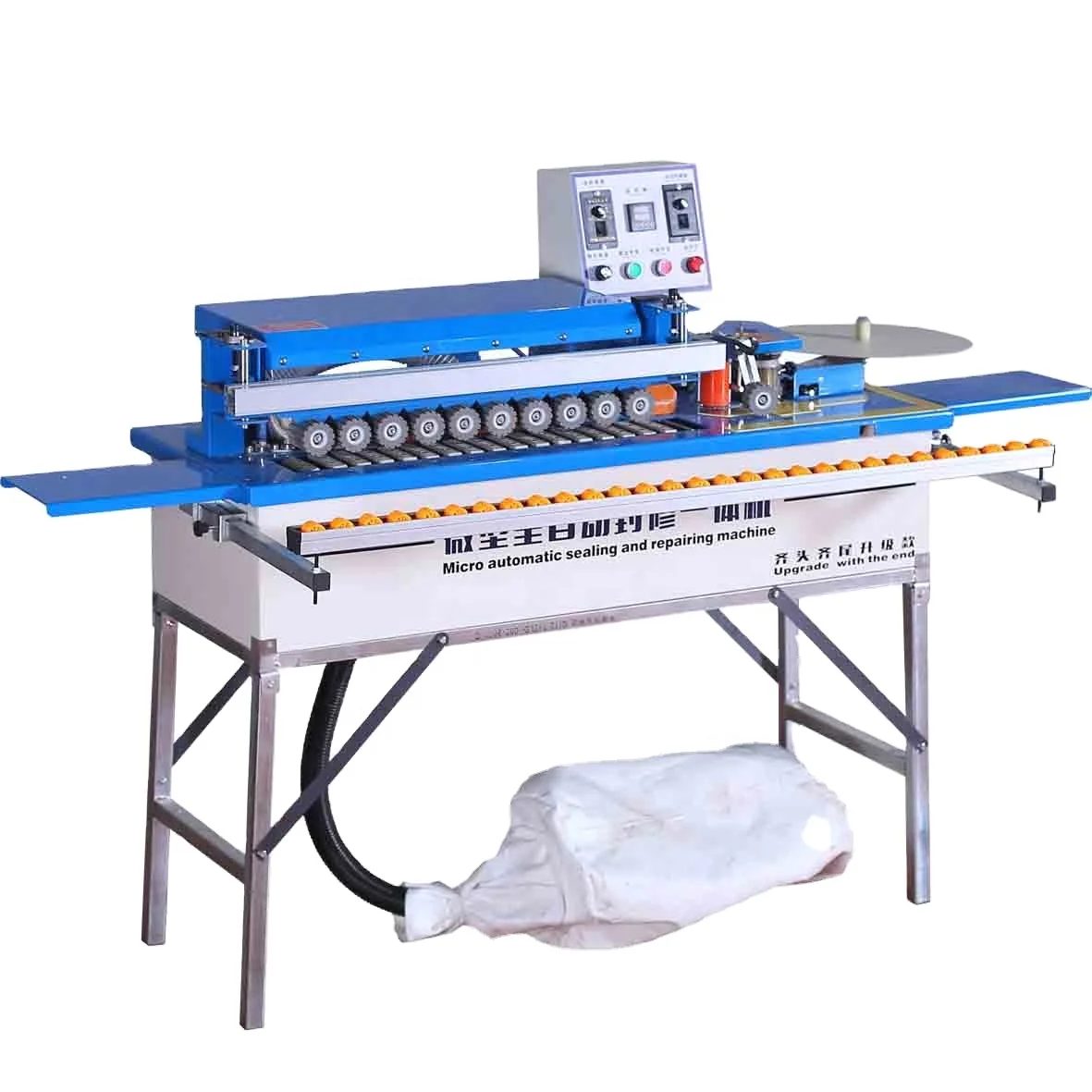

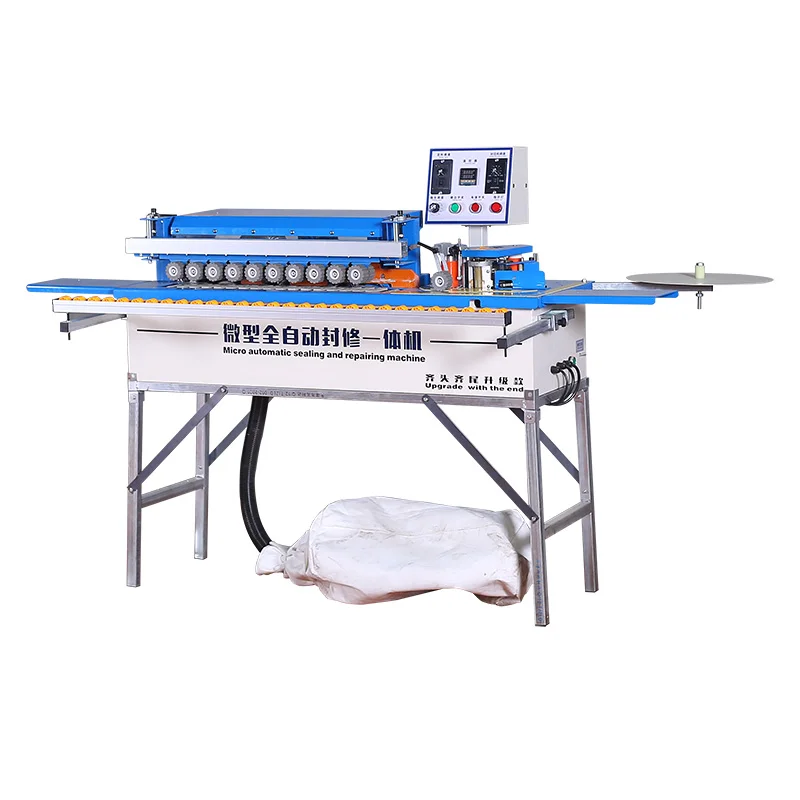

| Product Type | Portable Edge Banding Machine |
| Rated Power | Trimming 800W×2, Polishing 180W×2, Suction 1200W, Belt 25W, Transmission 60W |
| Voltage & Frequency | 220V (50/60Hz availability to be confirmed) |
| Control System | Individual function control panel |
| Feed Speed | 0–15 m/min (conveying); 0–6 m/min (edging) |
| Panel Thickness Range | 10–60 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Trimming Stations | Up and down trimming (2× 800W motors) |
| Polishing Stations | Up and down cross polishing (2× 180W motors) |
| Glue Application | Double-sided adhesive; gluing device rotatable 180° for curved edge banding |
| Dust Extraction Port | Integrated suction device, 1200W |

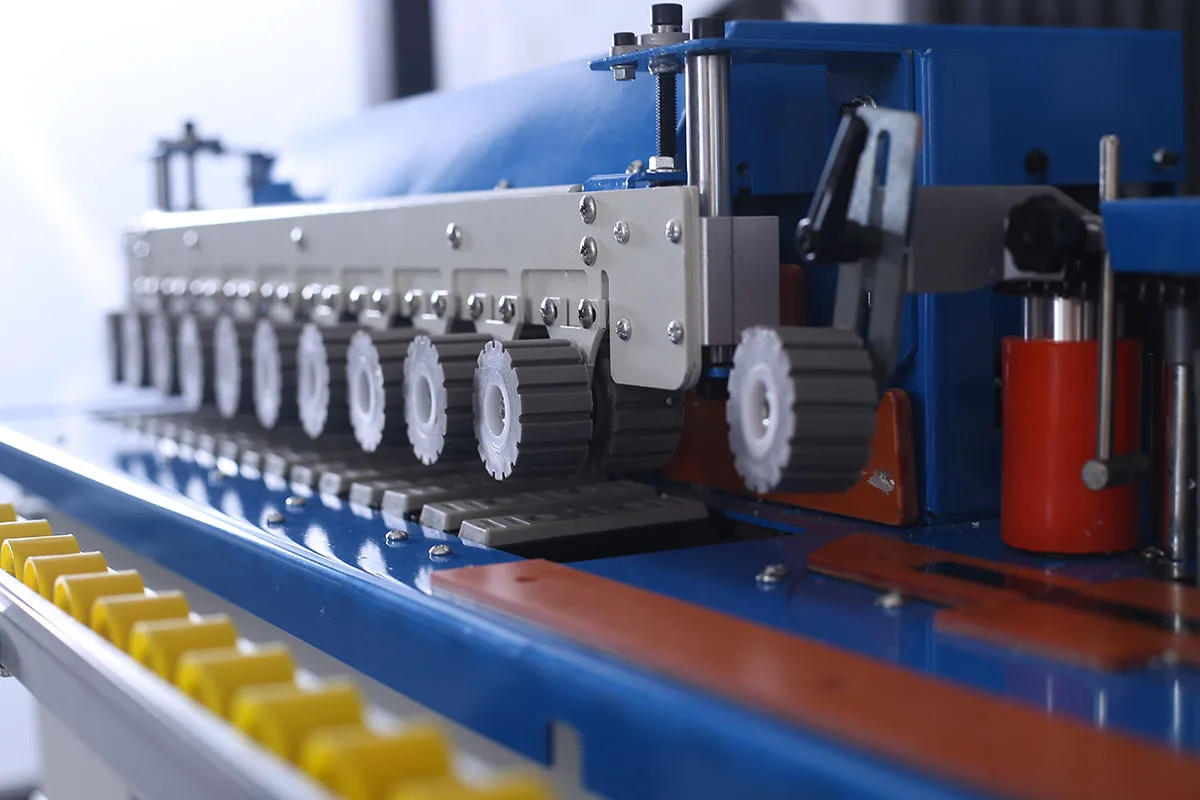

| Board Feeding | Automatic board feeding with double-row rubber pressure wheels |
| Functional Modes | Automatic head and tail cutting; curved line dual purpose |
| Overall Dimensions (L×W×H) | 120×54×72 cm |
| Net Weight | 81 kg |
Application Suitability
| Application | Material or Output |
|---|---|

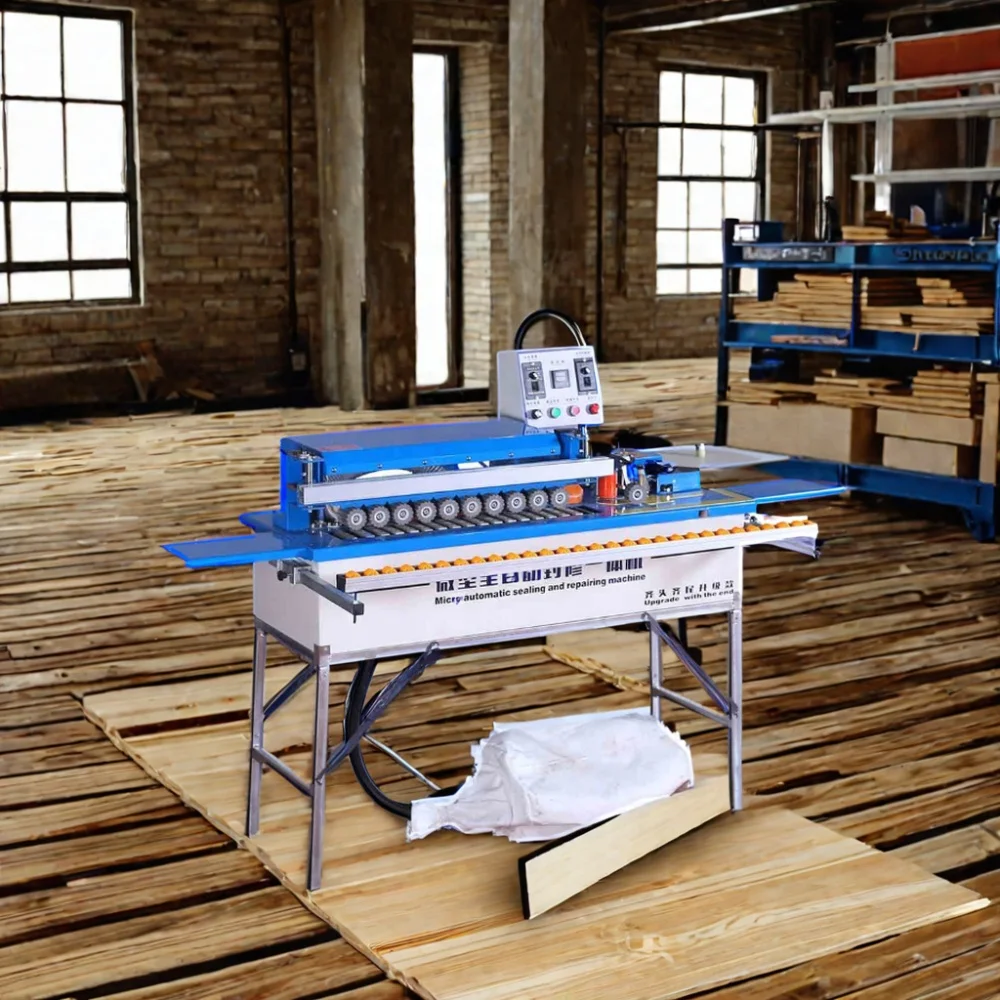

| Small workshop and on-site portable edge banding | MDF, particleboard, plywood, solid wood panels |
| PVC and veneer edge banding application | 0.3–3 mm edge banding material |
| Straight and curved panel edge sealing and trimming | Custom furniture and cabinet components |
| Low-to-medium volume edge finishing | Joinery workshops transitioning from manual to machine-assisted operation |
Why the Voltage Question Must Come Before the Price Quote
A portable edge banding machine that cannot start on arrival is not a machine — it is a crate of expensive iron sitting on your shop floor.
I spent years answering emergency calls from workshops where the Automatic Edge Banding Machine for sale they had just received was wired for a supply that did not exist in their building. The electrician arrives, opens the cabinet, and finds a fixed-frequency motor paired with a control transformer rated for the wrong input. Production stalls while panels pile up unedged against the wall. This is not a rare event; it is one of the most common avoidable failures in cross-border machinery procurement [NEED_CITE: voltage and frequency mismatch incidents in imported industrial equipment].
Mapping the Ruiqi Edge Banding Range to Your Actual Throughput
This compact portable unit occupies the entry tier of a complete product family that extends upward through full-function pre-milling automatic models. A workshop doing low-volume curved edge work on site, or supplementing a main line with a flexible secondary station, is exactly where this machine belongs. The Portable Edge Banding Machine manufacturer range is structured so that when your throughput demands grow, you step up within the same family rather than switching suppliers and learning a new control philosophy from scratch.
Curved and Straight Edge Work From One Station

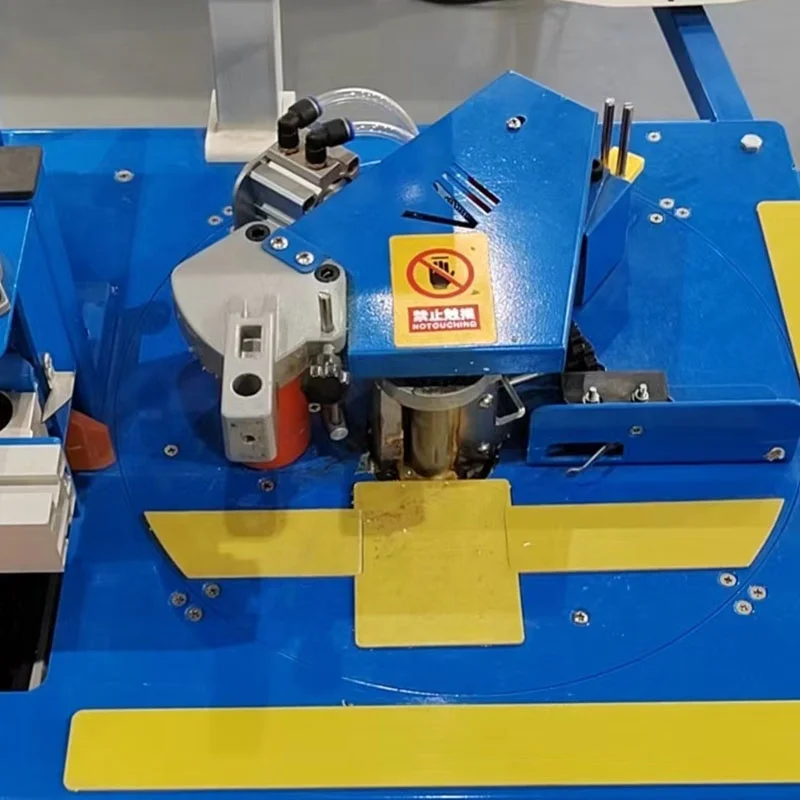

The gluing device rotates through 180°, allowing the operator to switch between straight panel edges and curved contours without changing machines or reconfiguring the feed path. Double-sided adhesive application means the banding material bonds to the substrate on both contact faces simultaneously, which matters when you are working with thinner PVC or veneer strips that can lift at the edges if adhesion is uneven. This dual-purpose configuration is what makes the unit viable for custom furniture workshops where panel shapes vary from job to job [NEED_CITE: edge banding adhesion requirements for curved panel profiles].
What the Trimming and Polishing Stations Actually Do for Your Edge Quality

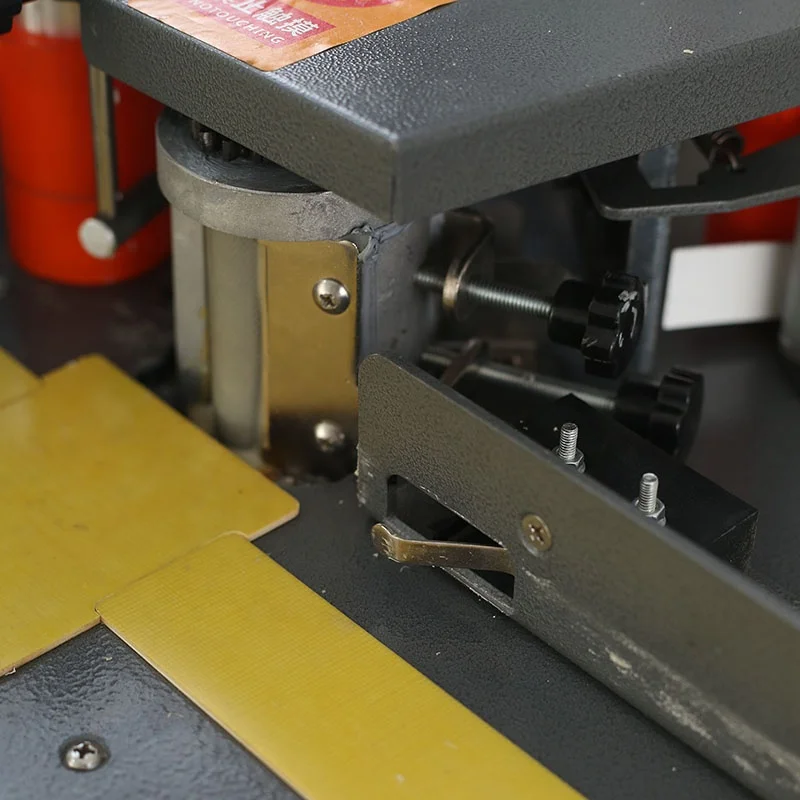

The independent up-and-down trimming stations, each driven by an 800W motor, remove the excess banding material above and below the panel surface in a single pass. This is distinct from machines that use a single trimming head and require the operator to flip the panel. The cross polishing stations at 180W each then smooth the trimmed edge to remove any micro-roughness left by the cutting tools. For panels that will be visible in finished furniture — cabinet sides, shelving, desk tops — this sequence directly determines whether the edge feels finished to the touch or whether it catches light and reveals the glue line underneath.
The Cost of Buying Below Your Actual Production Tier
A portable machine pushed into sustained high-volume daily operation will show wear on its feeding wheels and trimming bearings long before a full-function automatic model would. The double-row rubber pressure wheels on this unit are designed for stability at its rated feed speed, not for continuous eight-hour production shifts processing hundreds of panels. Workshops that discover this mismatch after purchase end up replacing consumable components at intervals the machine was never engineered for, and the edge finish degrades gradually until a customer rejects a batch [NEED_CITE: equipment tier mismatch and premature component wear in woodworking machinery].
Why Procure This Range From Ruiqi
Voltage customization from 110V to 440V is available as standard across the product family, so the machine that arrives on your floor matches the supply in your building without requiring an external transformer.
Control panel language and operation manuals are configurable to your local language before dispatch, eliminating the commissioning delay that occurs when operators cannot read the interface.
Four-stage quality control covers incoming material inspection, in-process verification, finished product testing, and pre-shipment validation with documented records.
Engineer-led configuration recommendations are provided within 24 hours of receiving your factory scale, processing requirements, and budget, so you receive a formal quotation matched to your actual production need rather than a generic catalog price.
Documentation & Verification
- CE declaration of conformity applicable to this portable edge banding unit
- ISO 9001 certificate covering the manufacturing process for the full range
- Machine specification sheet with confirmed voltage and frequency for your destination market
- Electrical schematic showing control cabinet wiring for local electrician reference
- Factory test record run on your specified panel thickness and edge banding material before dispatch
Installation, Commissioning & Support
- Overall footprint of 120×54×72 cm requires a level floor area with clearance for panel infeed and outfeed on both sides
- 220V single-phase supply with dedicated circuit breaker rated for the total connected load including the 1200W suction device
- Unit ships partially assembled with KD-packed spare parts; operator manual and video teaching guide included for first-time setup
- Trimming and polishing station parameters should be calibrated on your actual panel material during first commissioning before running production panels
- Double-row rubber pressure wheels and trimming bearings are the primary wear items; spare parts list provided with recommended replacement intervals
What We Need From You to Recommend the Right Configuration
Send us your primary panel material and thickness range, the edge banding material type and thickness you intend to run, and your typical daily volume of edged panels. Include your local voltage and frequency, the language you need on the control panel and in the operation manual, and whether this unit will operate as a standalone station or alongside existing machinery. If you have a specific panel profile or curved component you need to edge, share a drawing or sample so we can confirm the machine handles the contour before you commit to an order.
Frequently Asked Questions
Q: How does this portable model fit within the full Ruiqi edge banding range, and when should I step up to a full-function automatic machine?
A: This portable unit is the entry tier for workshops doing low-to-medium volume straight and curved edge work. When your daily panel count requires sustained high-speed feed, pre-milling for heavy stock removal, or continuous multi-station processing without operator intervention, the range extends upward through full-function automatic models within the same product family, so you scale without changing supplier.
Q: What voltage and frequency options are available for my target market?
A: The range supports voltage customization from 110V to 440V as standard. Before we issue a formal quotation, we confirm your local supply voltage and frequency so the machine is built and wired for your facility from the factory, eliminating the need for external transformers or on-site electrical rework upon arrival.
Q: Can the control panel and operation manual be provided in my local language?
A: Yes. Multilingual control panels and operation and maintenance manuals in your agreed language are part of the standard configuration process. We confirm the language requirement during the specification stage before production begins, so the machine arrives ready for your operators to commission without translation delays.
Q: How do I verify edge banding quality on my specific panel material before placing an order?
A: You can request a sample processing test using your actual panel substrate and edge banding material, or arrange a factory visit to observe the machine running your specification. We provide a factory test record documenting the edge finish and tolerance achieved on your material before the machine is released for shipment.
