Description
Seven Integrated Stations — DW-3600GF covers gluing through polishing in a single pass, eliminating mid-line handoffs for workshops scaling up panel output.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW-3600GF |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4.9 kW |
| Voltage & Frequency | 380V, Three-Phase Four-Wire (50Hz or 60Hz to be confirmed) |
| Feed Speed | 0–14 m/min |
| Edge Band Thickness Range | 0.3–3 mm |
| Edge Band Height Range | 0–50 mm |
| Minimum Panel Length | 200 mm |
| Trimming Motor Power | 800 W × 2 (24,000 r/min) |
| Polishing Motor Power | 400 W × 2 |
| Air Pressure Requirement | 0.4–0.6 MPa |
| Standard Functions | Gluing, Trimming, Front/Rear Trimming, Scraping, Polishing, Vacuuming |
| Overall Dimensions (L×W×H) | 2200 × 650 × 1250 mm |
| Net Weight | 320 kg |
| Language Options | Chinese, English standard; other languages available |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Straight edge finishing for custom cabinet doors | MDF and particleboard with PVC banding |
| Wardrobe and shelving panel edging | Plywood panels with melamine or veneer strips |
| Small-batch furniture component finishing | Boards meeting the 200 mm minimum length |
| Workshop transitioning from manual to mechanized | Standard panel substrates up to 3 mm band thickness |
Why the Voltage Question Should Come Before the Price
Confirming your facility’s supply before ordering prevents a machine that literally cannot start.
I have watched entire container shipments sit on factory floors because the edge banding machine manufacturer never asked whether the buyer’s grid runs 50Hz or 60Hz. A motor rated for one frequency on the wrong supply overheats within hours, and the warranty discussion that follows helps nobody. The DW-3600GF ships configurable from 110V to 440V, but that flexibility only works when the conversation happens before production begins, not after the crate arrives. [NEED_CITE: voltage and frequency standards by export market]
Positioning the DW-3600GF Within a Scalable Range
This model sits in the middle tier of a full edge banding machine manufacturer lineup, flanked by simpler glue-and-trim units below and pre-milling contour machines above. A workshop starting with straight panel work can deploy the DW-3600GF now and move to a higher-tier unit later without retraining operators on a different control philosophy. Every model in the range shares the same engineering platform, so the transition involves added stations rather than an entirely new learning curve.
Seven Stations in One Continuous Pass
The DW-3600GF handles gluing, front and rear trimming, scraping, polishing, and vacuuming without manual intervention between stages. For a small to medium furniture shop producing cabinet carcasses or shelving units, that integration means one operator manages the complete straight edge finishing cycle. The 0–14 m/min variable feed lets you slow down for delicate veneer work or speed up when running standard PVC on particleboard. [NEED_CITE: edge banding quality standards for panel furniture]
How the Numbers Translate to the Workshop Floor

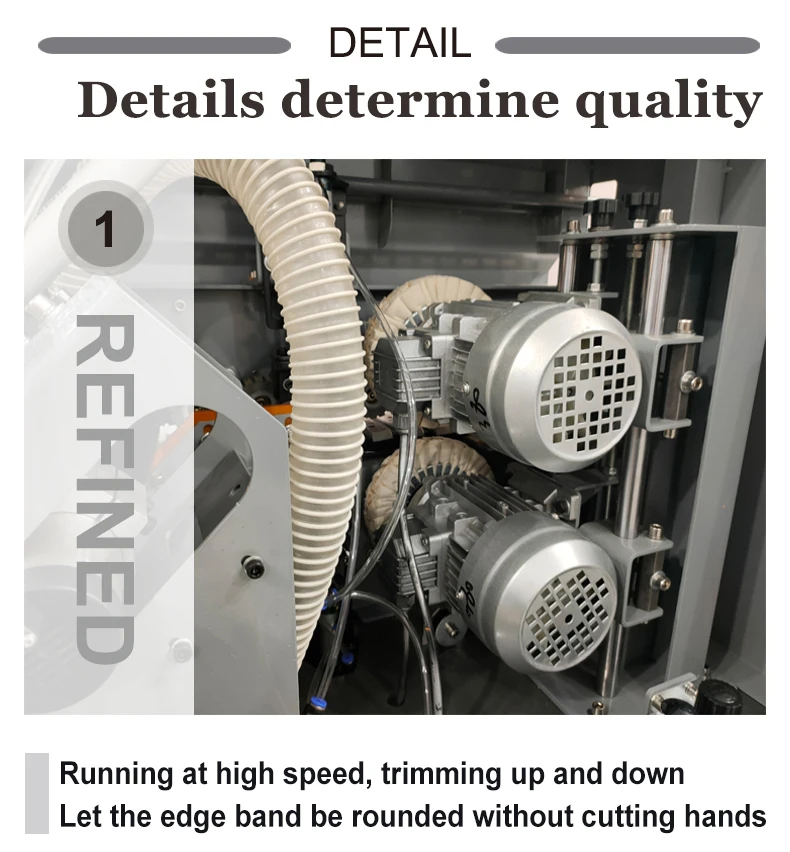

The dual 800 W trimming motors running at 24,000 r/min produce a clean cut on PVC and melamine banding without the chatter marks that lower-speed heads leave on harder substrates. The 0.3–3 mm band thickness range covers the majority of PVC and veneer materials used in panel furniture, while the 50 mm band height capacity handles standard and thicker decorative profiles. Air pressure at 0.4–0.6 MPa drives the pneumatic actuators for trimming and scraping — confirm your compressor can sustain that range continuously before commissioning. The 4.9 kW total draw means this edge banding machine can share a workshop circuit with other small equipment, though a dedicated breaker is recommended for stable glue pot heating.
The Hidden Cost of Buying Stations Separately
When a workshop buys a glue pot here and a trimmer there, the feed heights and throughput rates rarely align. Panels jam at the transfer point, operators hand-feed between stations, and the theoretical output never materializes. I have seen shops lose entire shifts to misalignment between piecemeal machines. A single-pass unit like the DW-3600GF eliminates that transfer gap entirely because every station shares one conveyor and one control logic. [NEED_CITE: common integration failures in piecemeal woodworking lines]
Why Procure From This Product Family
The DW-3600GF benefits from an in-house manufacturing platform with patented cutting mechanisms and verified assembly tolerances, not a rebadged unit from a third-party assembler. Voltage, plug type, and control panel language are configured to your market before dispatch — the machine arrives commissioning-ready, not as a generic export. A four-stage QC process covers incoming material, in-process build, finished product, and pre-shipment verification with documented test records. Engineer-led configuration means the quotation you receive accounts for your actual panel sizes and substrate mix, not a one-size-fits-all catalog entry. Factory visits are welcomed so you can inspect the build process and run sample panels yourself.
Documentation & Verification
- Machine specification sheet with confirmed panel thickness range and tolerance value for DW-3600GF
- Electrical schematic showing your ordered voltage and frequency before production begins
- Factory test record on your specified edge banding material run before dispatch
- Operation and maintenance manual in your agreed language with illustrated station diagrams
- Spare parts list identifying wear items for trimming, scraping, and polishing stations
Installation, Commissioning & Support
- Allow floor space for the 2200 × 650 mm footprint plus infeed and outfeed clearance on both ends
- Provide a dedicated 380V three-phase circuit rated above 4.9 kW to ensure stable glue pot temperature
- Machine ships fully assembled; position and level on a flat concrete surface before first power-on
- First-run calibration covers feed speed, trimming depth, and glue temperature for your specific banding material
- Trimming cutters and polishing wheels are standard wear items stocked locally or shipped with the order
- Maintain daily cleaning of the vacuum extraction ports to prevent glue and chip buildup in the stations
What to Include in Your Inquiry
Send your typical panel dimensions, the edge banding material you run most often, and your daily volume target so the engineer can confirm whether the DW-3600GF’s throughput matches your line or whether a higher-tier model fits better. State your local voltage and frequency, preferred control language, and whether you need a sample test on your own substrate before placing the order.
Frequently Asked Questions
Q: Where does the DW-3600GF sit in the Ruiqi range, and what is the upgrade path?
A: The DW-3600GF is a mid-tier straight edge bander with seven integrated stations. Below it are simpler glue-and-trim models for low-volume shops; above it are pre-milling and contour models for high-output factories. You can move up within the same product family as your volume grows, keeping operator familiarity and spare parts commonality intact.
Q: What panel thickness and tolerance can I expect, and how is it verified?
A: Panel thickness range and exact tolerance for the DW-3600GF are confirmed on the specification sheet before order. The four-stage QC process includes a pre-shipment test run using panels matching your requirements, and the factory test record ships with the machine so you have a documented baseline for comparison on arrival.
Q: Can the voltage, plug, and control language be set for my country before shipping?
A: Yes. The DW-3600GF supports voltage configuration across a wide range and plug types for EU, USA, AU, and UK markets. Control panel language defaults to Chinese and English but can be set to other languages. All three are confirmed in the quotation stage so the machine is ready for local commissioning on arrival.
Q: Which edge banding materials and thicknesses is this machine rated for?
A: The DW-3600GF handles PVC, veneer, and melamine banding from 0.3 mm to 3 mm thick and up to 50 mm in height. If you run specialty materials like ABS or high-gloss acrylic, confirm compatibility during the configuration discussion so glue temperature and feed speed are set accordingly.
Q: If I later need pre-milling, can I stay within the same product family?
A: Yes. Higher-tier models in the same range add pre-milling and contour stations while sharing the same manufacturing platform and control philosophy. Your edge banding machine manufacturer can recommend the correct upgrade model based on your evolving production requirements without forcing a supplier change.
