Description
Dual-Purpose Engineering — one machine frame engineered to handle both straight and curved profiles through 180° rotation, eliminating the need for separate dedicated stations in compact workshops.
Technical Specifications
| Parameter | Value |
|---|---|

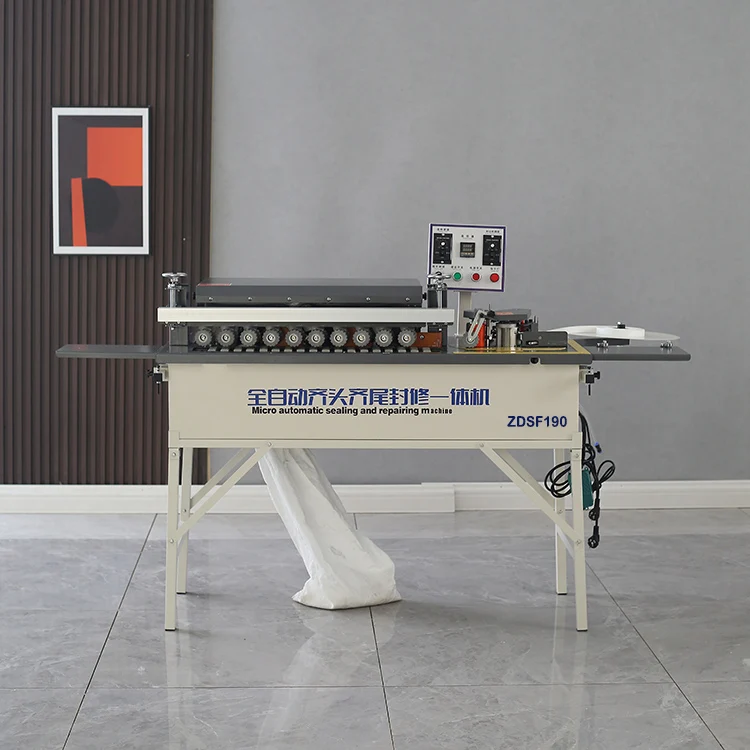

| Model | ZDSF190 |
| Product Type | Automatic Curved and Straight Edge Banding Machine |
| Function | Automatic plate feeding, belt breaking, double-sided gluing, trimming and polishing |
| Voltage & Frequency | 220V 50Hz (configurable from 110V to 440V) |
| Rated Power | 4 kW |
| Rated Air Pressure | 0.4–0.6 MPa |
| Suction Power | 1200 W |
| Heating Power | 800 W |
| Polishing Power | 180 W × 2 |
| Trimming Power | 800 W × 2 |
| Feed Speed | 0–14 m/min |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |

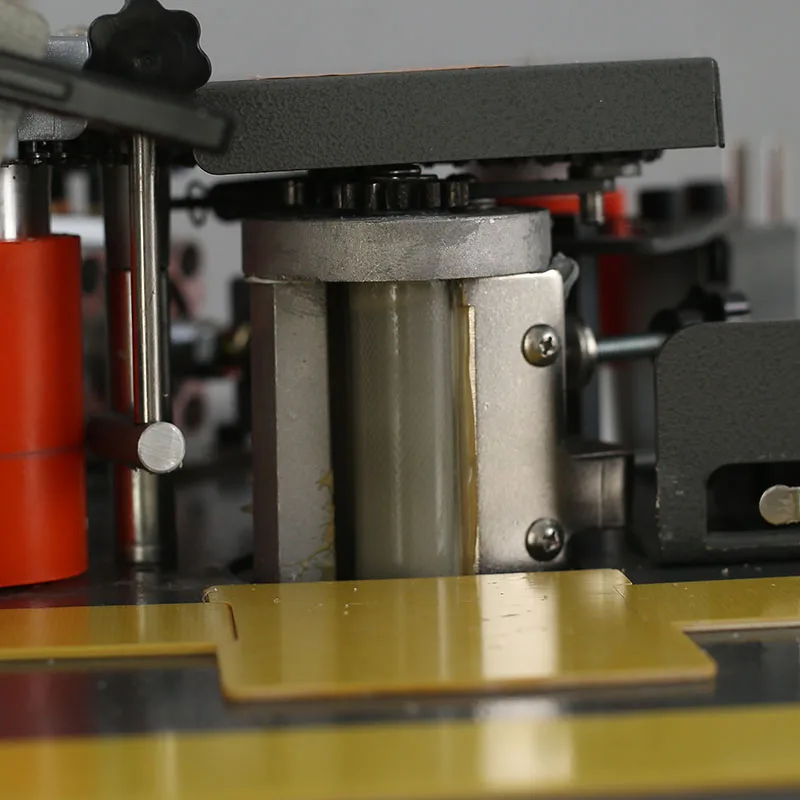

| Glue Pot Capacity | 1000 ml |
| Overall Dimensions (L×W×H) | 1900 × 560 × 1300 mm |

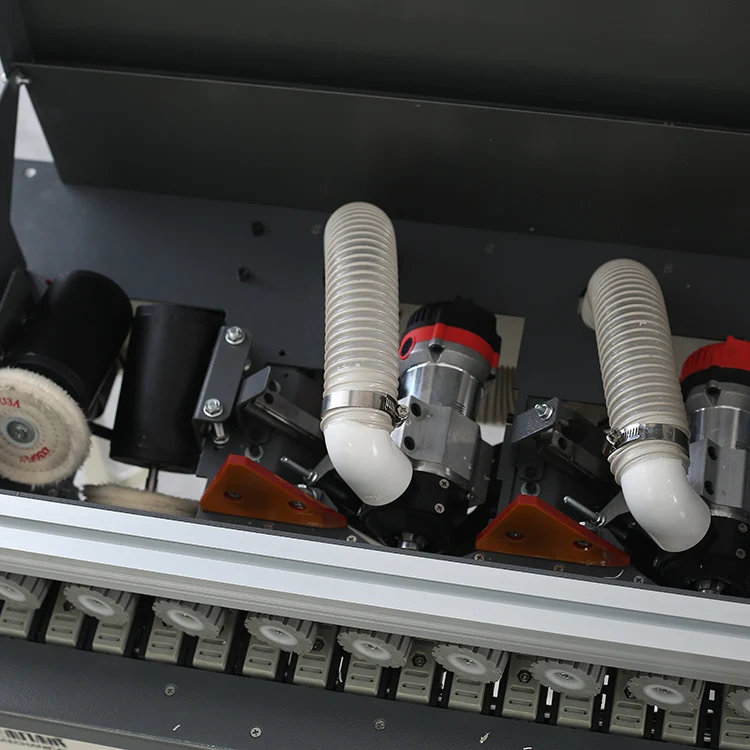

| Trimming Stations | Upper and lower trimming with 4-blade alloy arc knife |
| Polishing Stations | Cross polishing up and down |
| Transmission Type | Crawler transmission with steel rod slide rails |
| Feed Mechanism | Double-row rubber pressure wheels |

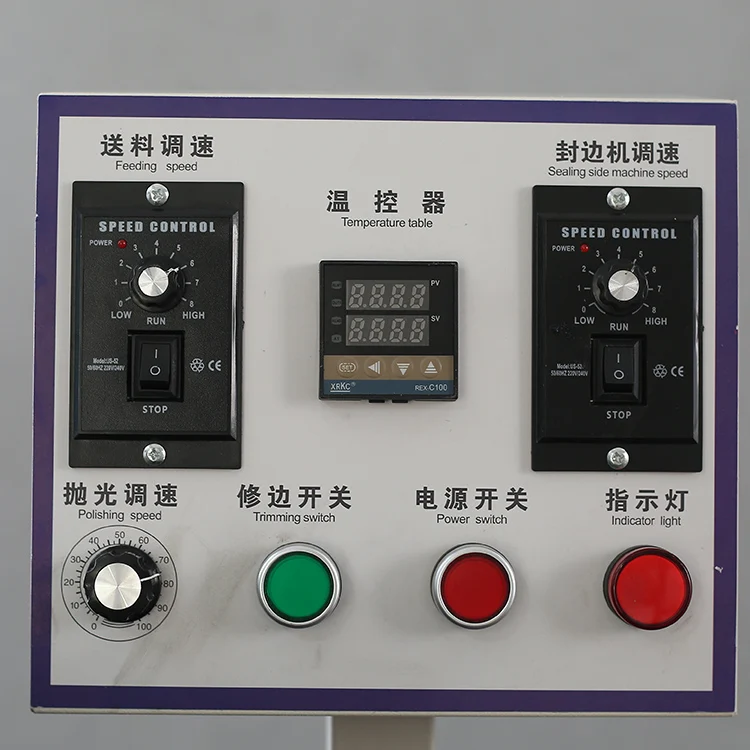

| Control Panel | Multi-function button operation |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door production | MDF and plywood panels with PVC or ABS edge banding |
| Curved furniture component finishing | Solid wood panels and shaped particleboard with veneer strips |
| Small-batch joinery and sample rooms | Mixed substrates requiring frequent straight-to-curved changeovers |
| Starter workshop automation | Board stock up to 50 mm thickness with 0.5–2.5 mm strip profiles |
Why the Voltage Question Must Come Before the Quotation
Ordering a 220V 50Hz Automatic Edge Banding Machine for sale into a 60Hz market means the motor runs 20% faster than designed, burning out the trimming station within weeks.
I spent years in the Pearl River Delta running between workshops after breakdown calls, and a surprising number of those calls traced back to a frequency mismatch nobody caught before the crate was opened. The ZDSF190 ships at 220V 50Hz as standard, but the platform supports voltage configuration from 110V to 440V — provided you confirm local standards before the production order is locked [NEED_CITE: voltage and frequency standards by export market]. Locking in the electrical specification during the quotation stage avoids a machine that arrives looking correct but cannot legally or safely connect to the workshop’s panel board.
Mapping the ZDSF190 Across the Full Machine Range
Within the broader catalogue of edge banding equipment, the ZDSF190 occupies a specific tier. It serves workshops that have outgrown manual edge application but do not yet justify a multi-station inline system with pre-milling, corner rounding and buffing stations all in sequence. When a buyer surveys the complete range on this site, the ZDSF190 answers a clear question: can one compact frame handle both straight panels and curved components without a second machine? For small custom furniture operations, the answer reduces floor-space demands and capital allocation during the early scaling phase.
Straight-to-Curved Changeover Without Reconfiguration Downtime

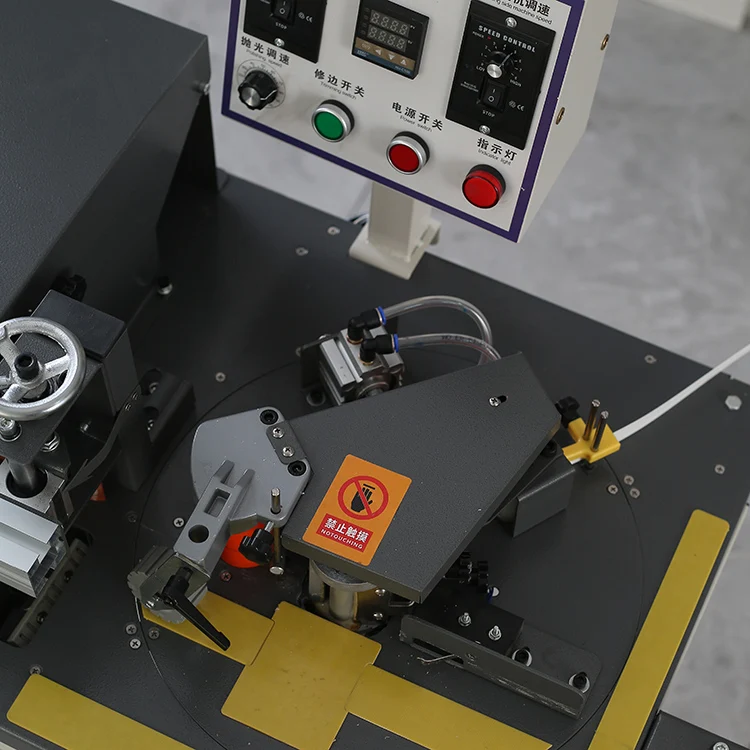

The 180° rotation mechanism lets an operator switch between straight-line and curved-edge profiles by physically pivoting the working head. This means a morning run of wardrobe side panels in straight PVC can be followed by an afternoon batch of rounded cabinet fronts in veneer without dismantling tooling or recalibrating the entire feed path [NEED_CITE: edge banding process parameters for curved substrates]. For a small Automatic Edge Banding Machine for sale to a workshop running varied custom orders, that flexibility defines daily throughput far more than raw feed speed ever could.
Reading the Specs Against Your Actual Panel Stock
The 10–50 mm sheet thickness range covers the bulk of furniture-grade MDF, plywood and particleboard, but operators must match feed speed to material density — pushing 14 m/min on soft particleboard with a 2.5 mm ABS strip produces different edge quality than the same speed on hardwood plywood with 0.5 mm veneer. The 4 kW rated power is distributed across trimming, polishing, heating and suction systems simultaneously, meaning the machine is designed for intermittent production rather than continuous multi-shift operation. The 1000 ml glue pot capacity supports roughly one production run before replenishment, which aligns with small-batch workflows but would bottleneck a high-volume line.
The Cost of Specifying Below Your Production Reality
When a buyer selects an entry-level curved and straight machine for daily volumes it was never intended to sustain, the consequences surface gradually — trimming blades dull faster, the glue pot struggles to maintain temperature consistency, and the crawler transmission shows wear on the steel rod slide rails ahead of schedule [NEED_CITE: machinery wear patterns under continuous duty cycles]. I have watched workshops double their consumable spend simply because the machine tier was mismatched to the order book. The ZDSF190 is built for defined batch work, and recognizing that boundary during selection prevents the silent erosion of margin.
Why Procurement Through This Catalogue Differs
Every model listed here shares a common engineering lineage, meaning a workshop can start with the ZDSF190 and later add a higher-tier straight-line machine from the same product family without retraining operators on a foreign control logic. Voltage customization from 110V to 440V is handled as a standard specification input, not a special request. The four-stage quality control process covers incoming material inspection through pre-shipment verification, so the Automatic Edge Banding Machine for sale you receive has been tested against your specified panel thickness before crating. Factory visits are welcomed for buyers who want to witness the production environment and sample processing firsthand.
Documentation & Verification
- CE declaration of conformity specific to this curved and straight edge banding configuration
- ISO 9001 certificate covering manufacturing process control
- Machine specification sheet confirming voltage, frequency and power distribution
- Electrical schematic with voltage confirmation matching destination market
- Factory test record using buyer-supplied panel thickness and strip material
- Operation and maintenance manual in agreed language with spare parts list
Installation, Commissioning & Support
- Requires a dedicated circuit rated for 4 kW with stable 220V or confirmed local voltage
- Overall footprint of 1900 × 560 mm fits standard workshop layouts with rear clearance for dust extraction
- Pneumatic connection must deliver 0.4–0.6 MPa clean dry air to the edge strip cutting system
- First commissioning includes glue pot temperature calibration for your specific PVC, ABS or veneer strip
- Operator training covers the 180° rotation procedure for curved-to-straight changeover
- Spare parts list identifies trimming blades, rubber pressure wheels and scraper consumables
Requesting a Formal Configuration Proposal
To receive an engineer-led quotation within 24 hours, share your primary panel materials, typical sheet dimensions, edge strip types and thicknesses, daily batch volume, and workshop electrical supply specifications. If your production includes a significant proportion of curved components, specify the minimum radius you need to band. Buyers planning a phased line investment should indicate existing cutting and boring equipment so the ZDSF190 can be positioned within the overall workflow.
Frequently Asked Questions
Q: Where does the ZDSF190 sit in the full product range?
A: The ZDSF190 is positioned as a compact dual-purpose model for workshops transitioning from manual edge application to semi-automatic production. It covers both straight and curved profiles in one frame, filling the gap between purely manual processes and larger multi-station inline systems designed for continuous high-volume panel processing.
Q: How does the straight-to-curved changeover work on this machine?
A: The working head rotates 180° to switch between straight-line and curved-edge modes. The operator physically pivots the assembly and adjusts the feed mechanism accordingly. This allows both profile types on PVC, ABS and veneer strips from 0.5 to 2.5 mm thick without requiring a separate dedicated machine.
Q: Can the voltage be customized for our local grid?
A: Yes. The platform supports voltage configuration from 110V to 440V with appropriate frequency matching. You must confirm your workshop supply voltage and Hz before the production order is finalized so the motor windings, heating element and control transformer are built to your specification from the start.
Q: How does this machine fit with upstream saws and downstream boring stations?
A: With a feed speed of 0–14 m/min and batch-oriented glue pot capacity, the ZDSF190 pairs with sliding table saws and single-head boring machines typical in small custom furniture workshops. Throughput matching should account for manual loading and unloading cycles rather than continuous feed assumptions.
Q: Can we visit the factory to test our own materials before ordering?
A: Factory visits are welcomed at the Ningjin production facility. You can bring or ship sample panels and edge strips for a processing test, allowing you to evaluate trimming quality, glue adhesion and edge finish on your actual materials before confirming the purchase configuration.
