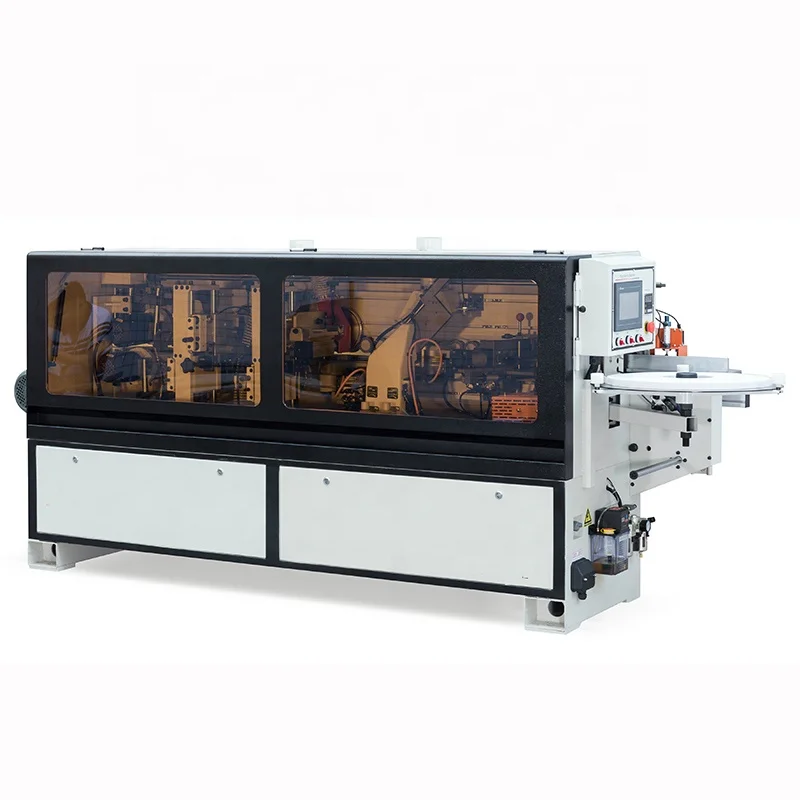

Furniture Cabinet Automatic Straight Edge Banding Machine Edge Bander Woodworking Machinery Edging Machine
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

Furniture Cabinet Automatic Straight Edge Banding Machine Edge Bander Woodworking Machinery Edging Machine

This product is currently out of stock and unavailable. SKU: Furniture Cabinet Automatic Straight Edge-36310646 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply ModelZDS-280 Edge Banding MachineThe main functionGluing. End trimming. Fine trimming. Scraping. Cleaning.BuffingWorking pressure0.65MpaVoltage380V-3HPConveyor belt speed9-12m/minPower9kwMin. panel width60mmMin. panel length120mmPanel thickness10-60mmEdge thickness0.3-3mmWeight860kgDimensions3000*750*1270mm Product details The touch screen. frequency […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply
Model
ZDS-280 Edge Banding Machine
The main function
Gluing. End trimming. Fine trimming. Scraping. Cleaning.Buffing
Working pressure
0.65Mpa
Voltage
380V-3HP
Conveyor belt speed
9-12m/min
Power
9kw
Min. panel width
60mm
Min. panel length
120mm
Panel thickness
10-60mm
Edge thickness
0.3-3mm
Weight
860kg
Dimensions
3000*750*1270mm
Product details
The touch screen. frequency converter and PLC all adopt Taiwan Delta. which is stable in operation and easy to operate.
Gluing
It adopts Teflon spraying process and scientific glue back design. It can make the temperature of the glue in the glue pot uniform without carbonization. and maintain good fluidity.
Pressing
The pneumatic design with double-wheel adjustable stroke makes the pressure adjustment easier. It can be adjusted according to the thickness of the edge banding. Improved bonding properties of glue and sidebands.
End Trimming
The air pressure balance device is adopted. which is more stable and easier to adjust. And optimize the gas path design. reduce the noise. and improve the efficiency of the equipment.
Fine Trimming
The stable frame design reduces the vibration of the tool during high-speed cutting. The design of the cutting edge is optimized to make the workpiece more perfect after edge sealing.
Scraping
Small and compact edge scraping. solve the problem of uneven trimming. At the same time. trim the excess sideband to make the sideband more beautiful.
Buffing
Up and down polishing. motor 0.37kw*2.
Contactors produced by Schneider Electric. UFC high speed motor
