DW702 High-Speed Automatic Edge Banding Woodworking Machine Double-Sided Trimming Micro Veneer Splicing Plywood Production CE
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

DW702 High-Speed Automatic Edge Banding Woodworking Machine Double-Sided Trimming Micro Veneer Splicing Plywood Production CE

This product is currently out of stock and unavailable. SKU: DW702 High-Speed Automatic Edge Banding Wo-36309869 Categories: Woodworking Machinery, Wood Based Panels Machinery Description Additional information Table of ContentsDescriptionBeichen DW702 High speed automatic double side trimming micro automatic edge banding machine woodworkingAdditional informationRelated productsStraight Pvc Curve Manual Woodworking Mini Edge Banding Making MachineHandheld Edge Banding […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Description

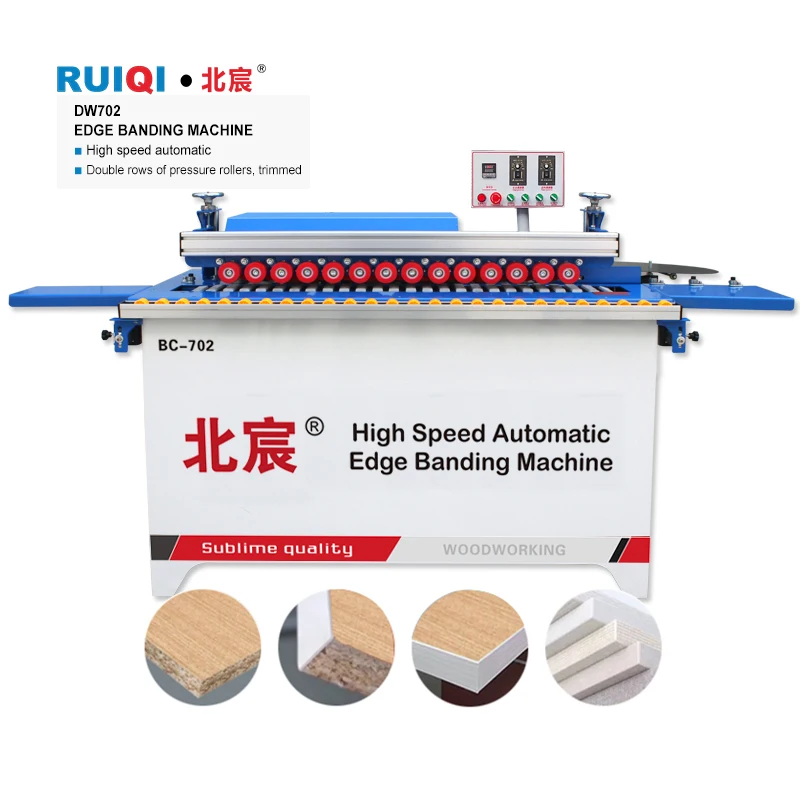

Beichen DW702 High speed automatic double side trimming micro automatic edge banding machine woodworking

DW702 High speed automatic edge banding machine is suitable for medium density fiber board. blockboard. wood panels. particleboard. plywood and other polymer doors.
straight edge trimming. disposable with double-sided adhesive tape cutting edge bonding edge pressing. block. chamfer. Tinker.
finishing. polishing and other functions . edge smooth. smooth. feel good sealing wire. flat and smooth. The
equipment operation is stable. reliable and durable. is especially suitable for large and medium-sized furniture. cabinets and
1. High quality electrical component and high power.big glue pot. 2. MINI.all in one function.Product serialization and
diversification is easy for the
customer to choose.
3. High precision and work efficiency.easy operate
4. Automatic and precise gluing procedure as well as integrated doublefinish.
5. High strength frame structure. durable
6. Glue evenly. conveying stability
Product Paramenters
Model
DW702
Total power
3800W
Standard features
Edge banding. trimming. polishing. automatic head and tail. with vacuum
Voltage
220V/380V/customization
Minimum length of sheet
25CM
Minimum width of sheet
10CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Edge power/speed
20W
Air source pressure
0.4-0.8Mpa
Transmission power/speed
140W
Glue pot capacity
1000ml
Trimming power/speed
800W*2
Vacuum power
1200W
Polishing power/speed
180W*2
Product Size
120*55*110CM
Product weight
105KG
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement
