Made Pvc Lipping Double Side Factory Supply in Trimming for Edge Banding Machine

This product is currently out of stock and unavailable. SKU: Made Pvc Lipping Double Side Factory Suppl-36309990 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Table of ContentsDescriptionAdditional informationRelated productsWoodworking Portable Panel Saws Wood Cutting Saw Slide SawingJT160 Wood Cutting Table Saw Woodworking Portable Folding Panel Saw 45/90 Degree Wood Cutting MachineHandheld Edge […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Description

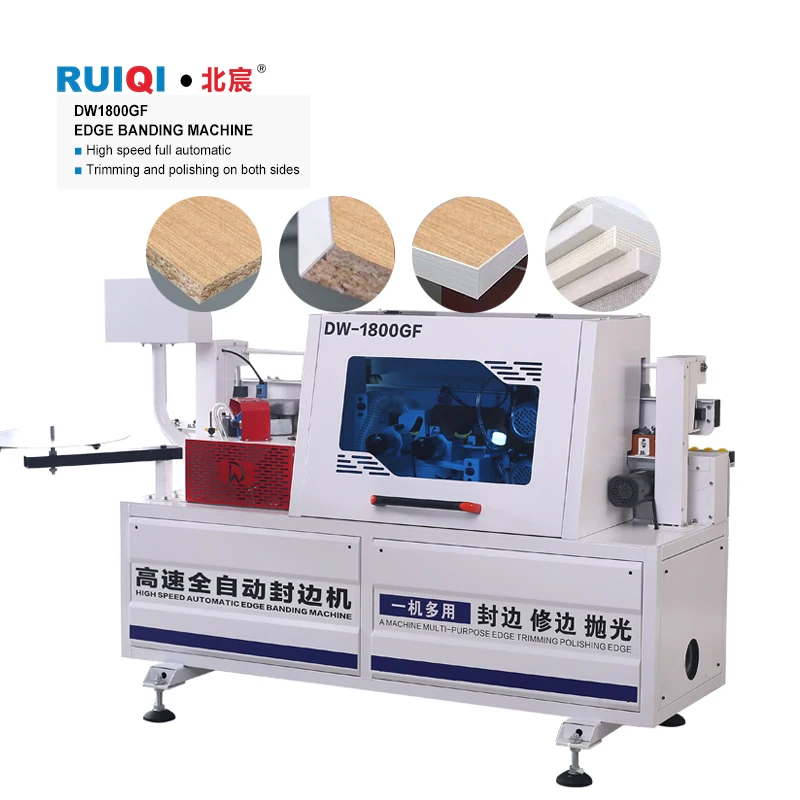

High quality DW1800 wood working cnc edge banding machine with pre-milling Gluing bander for plywood for sale
DW1800 automatic edge banding machine advantages?? Adopt imported motor and high quality electrical component. High precision and work efficiency. Automatic and precise gluing procedure as well as integrated double finish. Glue evenly. conveying stability. All the working area and specifications can be customized according to your requests.1. It can achieve the gluing. end cutting. rough trimming. fine trimming. tracking. scraping and polishing functionsautomatically. 2.It applies glue in a stable and uniform way. 3. Profile tracking function rounds the four corners. making them more smooth and safer. 4. Automatic operation greatly improves edge banding efficiency and saves labor costs.5. Suitable for processing all kinds of MDF. particleboard. plywood. ABB boards. PVC panels. organic glass plates and solid wood and other wood structure. and hardness of a similar plate.6. Mobile table guide for the roll-ball differential structure. high positioning accuracy.7. Mobile workstations with high-strength extruded aluminum alloy. high strength. non-deformation.8. Mobile table surface oxidation treatment. beautiful and wearable.9. The main blade and a crossed angle of inclination from the precision instrument visual display.
Product Paramenters
Model
DW1800
Total power
4.9KW
Standard features
Double-sided gluing. top and bottom trimming. top and bottom polishing. front and rear alignment. flexible edge scraping. suck
dust
Voltage
380V/220V/415V
Minimum length of sheet
20CM
Minimum width of sheet
10CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Edge power/speed
160W 0-14M/min
Air source pressure
0.4-0.6Mpa
Transmission power/speed
180W 0-14M/min
Glue pot capacity
4000ml
Trimming power/speed
800W*2 24000r/min
Vacuum power
550W
Polishing power/speed
380W*2
Product Size
220*65*125CM
Product weight
320KG
Package Size
207*84*128CM(Heightened and widened bottom corners)
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?
Has been a professional manufacturer for over 20 years to undertake design and processing ofall types of flow meter to provide production service and technical support for customers.

Q2:Can I choose the Plug?
Yes.we have EU.USA.AU.UK plug for your country use

Q3:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.

Q4.I do not know chinese.will the operation panel in english or spanish or other?
Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.
we also can customize to you

Q5:It is my first time to purchase goods from china.how do i do?
Do not worry.Ruiqi bei chen has 10years export experience to all over the world.
also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries

Q6:How to pack the machine?
we use wooden box to packge the machine to protect them to be safe

Q7.What to do if l have any other specifications for the current?
lf you have any different requirements.just contact us and we will meet you.

Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?
Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.
Q9.Can you produce the products according to my own drawings?
Yes. we can do OEM according to your requirement
