Description
Verified Tolerance Mechanisms — Patented cutting components ground to ±0.02mm ensure consistent edge finish across MDF, particleboard, and honeycomb panels without visible glue lines.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS290 |
| Product Type | Full Linear High-Speed Edge Banding Machine |

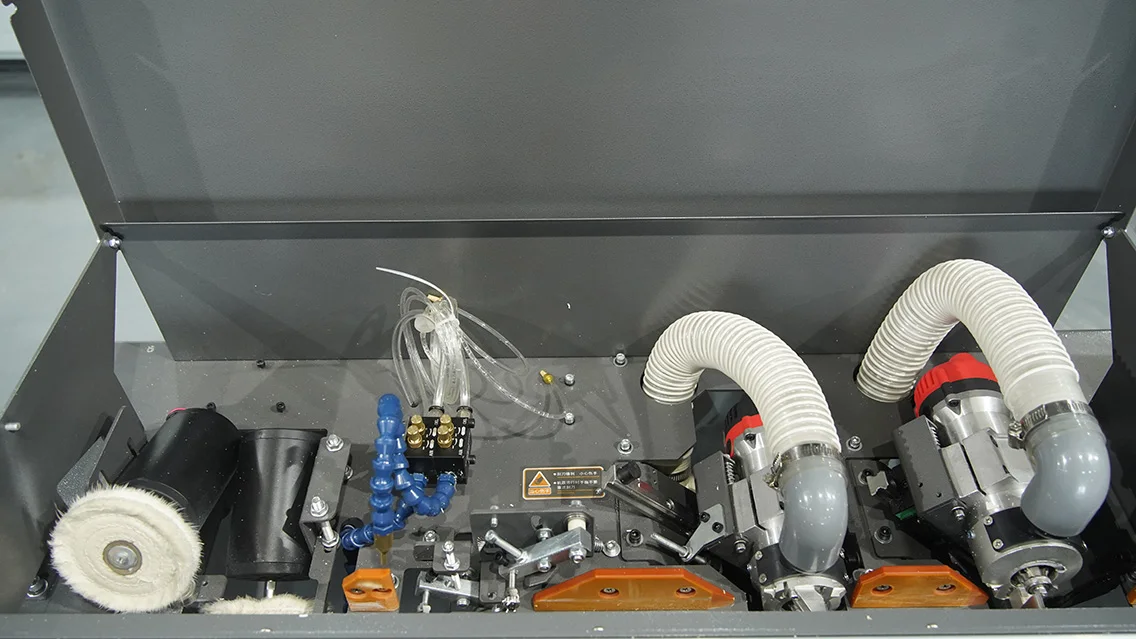

| Function Stations | Gluing, End cutting, Trimming, Vacuuming, Scraping, Cleaning, Buffing |
| Rated Voltage | 220V (frequency to be confirmed) |
| Rated Power | 4.2 kW |
| Strip Thickness Range | 0.5 – 2.5 mm |
| Sheet Thickness Range | 10 – 50 mm |
| Rated Air Pressure | 0.6 – 0.8 MPa |
| Working Speed | 0 – 6 m/min |
| Conveyor Belt Speed | 0 – 14 m/min (basis to be confirmed) |
| Glue Capacity | 1000 ml |
| Overall Dimensions | 190 × 60 × 130 cm |
| Machine Weight | 150 kg (basis to be confirmed) |
| Panel Compatibility | Honeycomb panels and ordinary wood panels |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet edge finishing | MDF and particleboard with PVC or veneer strips |
| Honeycomb panel edge banding | Aluminum-wood composite panels for lightweight furniture |
| Plywood furniture component finishing | Plywood panels with wood veneer edge banding |
| Small workshop automated edge processing | Mixed substrates including MDF, particleboard, and honeycomb boards |
Why the Voltage Question Should Come Before the Price on Any Automatic Edge Banding Machine for Sale
Matching local electrical supply to machine configuration prevents arriving equipment from sitting idle on the factory floor.
I have walked into workshops where a newly delivered edge bander could not be commissioned because the quoted voltage did not match the facility’s three-phase supply. The operator stood in front of a control panel wired for a grid that did not exist in their industrial park. Sourcing an automatic edge banding machine for sale without confirming local voltage and frequency first leads to weeks of delay while transformers are sourced or the machine is rewired. Ruiqi confirms electrical specifications during the quotation stage rather than after the order is placed [NEED_CITE: voltage and frequency standards by export market].
Where the ZDS290 Fits Within a Tiered Edge Banding Lineup
Workshops handling both honeycomb panels and standard wood-based substrates need a machine that covers varied material densities without requiring separate equipment for each. The ZDS290 occupies the compact full-function tier, integrating seven stations from gluing through buffing into a single frame that fits smaller production floors. Buyers surveying the complete catalogue can see how this model bridges entry-level manual feeding and higher-throughput automated lines.
Universal Panel Compatibility Across Mixed Substrates
Honeycomb panels behave differently under feed pressure than solid MDF or particleboard — the core compresses if conveyor pressure is not adjusted, causing strip misalignment at the trimming station. This automatic edge banding machine for sale handles aluminum-wood composite panels alongside ordinary wood-based boards within the 10–50mm sheet thickness range. Production managers running mixed material batches benefit from a single machine configuration rather than maintaining separate setups for each substrate type [NEED_CITE: substrate compression behaviour in edge banding processes].
Reading the Specifications Against Your Production Requirements
The 0.5–2.5mm strip thickness range covers standard PVC edge banding and thinner wood veneer strips used in cabinet manufacturing. Working speed of 0–6 m/min suits batch production environments where panel dimensions change frequently between orders, while the 0–14 m/min conveyor belt speed indicates the mechanical feed capacity available for future throughput scaling. The 1000ml glue pot capacity supports continuous runs without frequent refills, reducing operator intervention during longer production shifts. Air pressure requirements of 0.6–0.8 MPa are standard for pneumatic scraping and cleaning stations that remove excess adhesive after trimming.
What Happens When a Compact Machine Runs Beyond Its Designed Volume
Running an entry-level edge bander at production volumes it was never designed for produces inconsistent glue application, premature wear on trimming cutters, and visible seam lines on finished panels. I have seen workshops push compact machines through double shifts intended for industrial-grade equipment, only to find edge quality degrading noticeably by midweek. The ZDS290 is positioned for small to medium workshops — buyers with higher sustained throughput requirements should evaluate larger models in the full catalogue [NEED_CITE: equipment duty cycle classification for woodworking machinery].
Why Source This Machine Through the Full Catalogue
In-house manufacturing with patented cutting mechanisms means tolerance claims of ±0.02mm are verifiable against physical test panels rather than brochure specifications. Voltage customization from 110V to 440V is confirmed during quotation, so the machine arrives wired for your facility’s actual supply. A four-stage QC process with pre-shipment verification catches assembly deviations before the crate leaves Shandong. Engineer-led configuration recommendations ensure the ZDS290 is matched to your specific panel materials and strip types rather than sold as a generic unit. Factory visits are available for buyers who want to run their own substrate through the machine before committing.
Documentation & Verification
- CE declaration of conformity covering the ZDS290 edge banding machine assembly
- ISO 9001 certificate for the manufacturing facility producing this model
- Machine specification sheet with confirmed function stations and working speed parameters
- Electrical schematic with voltage and frequency confirmation matching your local supply
- Factory test record on your specific panel thickness range and edge banding material before dispatch
- Operation and maintenance manual in your agreed language with spare parts list included
Installation, Commissioning & Support
- Footprint of 190 × 60 × 130 cm requires level concrete flooring with clearance for panel infeed and outfeed
- 4.2 kW rated power demands a dedicated circuit with appropriate breaker rating for continuous duty
- Machine arrives assembled; pneumatic connections at 0.6–0.8 MPa require clean dry air supply at the point of use
- First commissioning includes conveyor speed calibration and glue temperature setting for your specific strip material
- Operator training covers control panel functions in the configured language, including speed adjustment and station engagement
- Spare trimming cutters and scraper blades included; consumable reorder list provided at handover
Before You Request a Quotation
Send your panel material types with typical thickness ranges, the edge banding strip materials and thicknesses you run most frequently, and your facility’s voltage and frequency. Include your daily production volume so the configuration can be matched to actual throughput requirements rather than generic assumptions. If you are running honeycomb panels alongside standard MDF or particleboard, note the proportion of each in your typical production mix.
Frequently Asked Questions
Q: Where does the ZDS290 sit in the full edge banding range, and when should I step up to a higher-tier model?
A: The ZDS290 is a compact full-function model suited to small and medium workshops processing mixed substrates including honeycomb panels. If your sustained daily volume exceeds what a 0–6 m/min working speed supports, or if you require pre-milling for thicker panels, the full catalogue includes higher-tier models with greater throughput and additional function stations.
Q: What panel materials and thicknesses is this machine rated for, and how does honeycomb board affect feed speed?
A: The ZDS290 handles MDF, particleboard, plywood, and honeycomb panels within a 10–50mm sheet thickness range. Honeycomb panels may require reduced conveyor pressure and adjusted feed speed to prevent core compression during the gluing and trimming stages, which is configured during commissioning based on your specific material.
Q: How do I match edge banding strip thickness and glue type to my substrate?
A: The machine accepts 0.5–2.5mm strips in PVC and wood veneer. Glue selection depends on substrate porosity and the operating environment of the finished furniture. Ruiqi’s engineers recommend adhesive type and application temperature during the configuration stage based on your actual panel samples submitted for testing.
Q: What voltage and frequency options are available for my country’s electrical standard?
A: Voltage is configurable from 110V to 440V to match your local supply. Frequency must be confirmed at the quotation stage so the motor and control components are specified correctly. The electrical schematic provided before shipment documents the exact configuration built for your facility.
Q: Can I visit the factory to see a sample processing test on my own panel material?
A: Factory visits are welcomed at the Shandong facility. You can send your panel samples in advance or bring them to run through the ZDS290, verifying edge finish quality and tolerance on your actual substrate before placing an order.
