Description
Integrated Voltage & Language Configuration — Every DW702 unit ships with an electrical schematic matched to your facility’s supply and a control panel in your operator’s language, verified before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW702 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 3800W |
| Voltage | 220V/380V/customization |
| Edge Banding Height | 0-50MM |
| Edge Banding Thickness | 0.3-3MM |
| Minimum Sheet Length | 25CM |
| Minimum Sheet Width | 10CM |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Edge Power | 20W |
| Transmission Power | 140W |
| Vacuum Power | 1200W |
| Glue Pot Capacity | 1000ml |
| Air Source Pressure | 0.4-0.8Mpa |
| Product Size | 120×55×110CM |
| Product Weight | 105KG |
| Key Features | Edge banding, trimming, polishing, automatic head and tail cutting, integrated vacuum |
| Language Options | Chinese, English (customizable to Spanish or other languages) |
| Plug Options | EU, USA, AU, UK |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and melamine-faced particleboard |
| Wardrobe panel edge banding | Plywood and blockboard with PVC or veneer strips |
| Office furniture production runs | Medium density fiberboard with 0.4-2mm ABS edging |
| Small-batch joinery components | Solid wood panels and polymer door blanks |
Why the Voltage Question Must Come Before the Quotation
Confirming your local supply voltage and frequency is the first engineering step, not an afterthought.
I once shipped an edge bander to a cabinet factory in Cameroon without a second confirmation on their three-phase supply. The machine arrived, the motor burned within hours, and their entire carcass line sat idle for three weeks waiting for replacement parts. When sourcing an automatic edge banding machine manufacturer, buyers often focus on feed speed and trimming stations while the electrical foundation goes unverified. The cost of a wrong voltage extends beyond the burned component — it stalls production, delays delivery schedules, and erodes trust with downstream customers [NEED_CITE: voltage and frequency standards by export market]. The DW702 supports 220V and 380V configurations with further customization available, but the correct specification only works when confirmed against your actual workshop supply before production begins.
Full-Function Coverage in a Compact Footprint

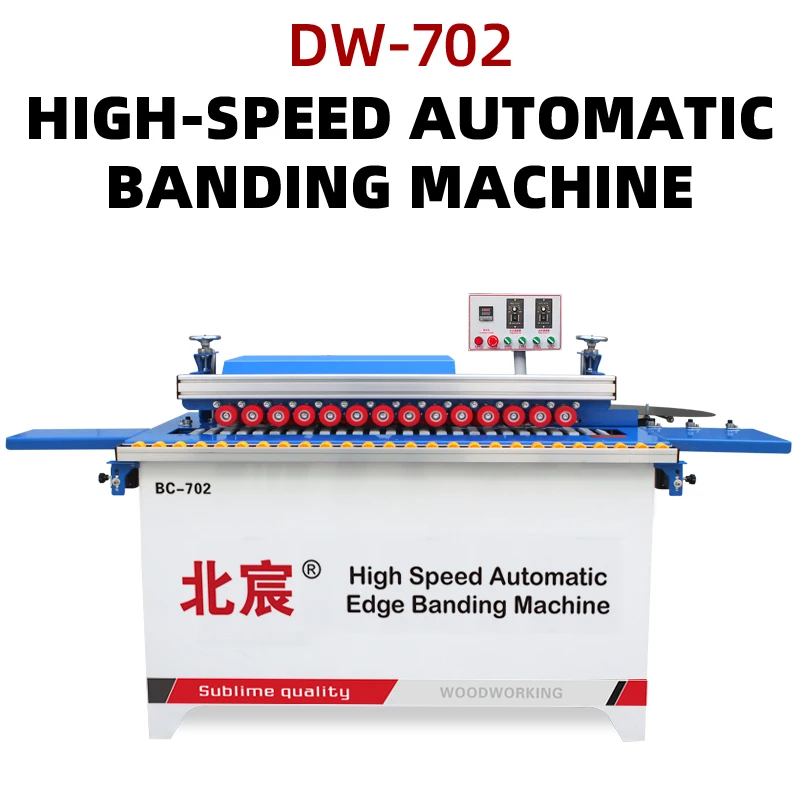

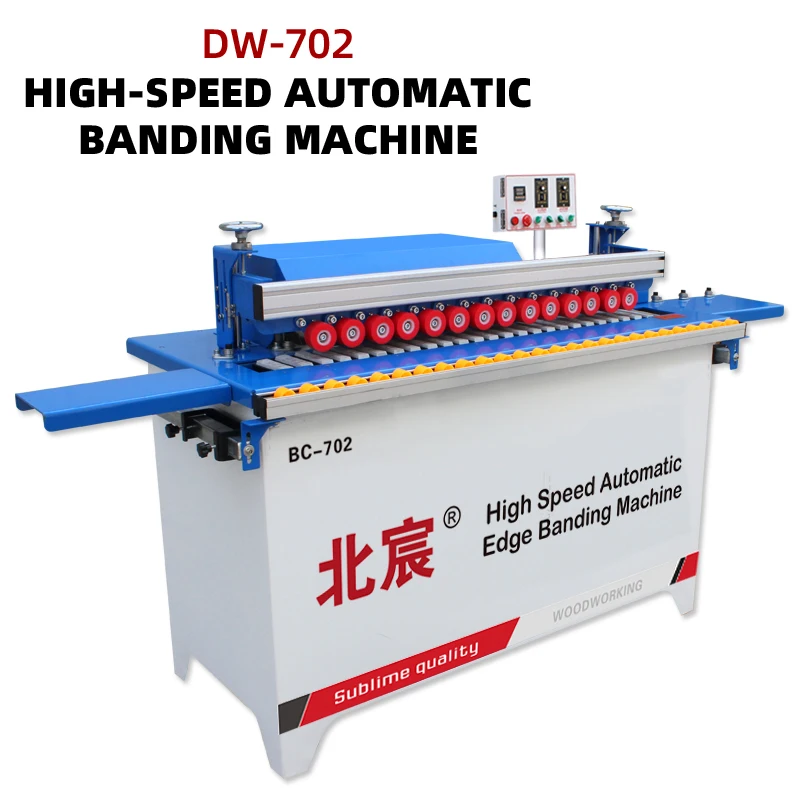

The DW702 consolidates edge banding, trimming, polishing, and automatic head-and-tail cutting into a single 120×55×110CM frame. For workshops transitioning from manual edge application to mechanized processing, this means one operator handles the complete edge finishing sequence without moving panels between stations. As an automatic edge banding machine manufacturer serving small and mid-size factories, we see this integrated layout reduce floor space requirements while keeping the production sequence continuous.
Multilingual Control Panels Configured Before Dispatch
Control interfaces that operators cannot read delay commissioning and invite incorrect parameter settings. The DW702 ships with Chinese and English panels as standard, with Spanish and other languages configurable before the machine leaves the factory. This is not a software toggle you figure out on site — the agreed language is burned into the HMI before dispatch, so your team can begin production on day one without translation guesswork.
How Core Specifications Shape Daily Output
The 0.3-3MM edge banding thickness range covers the PVC, ABS, and veneer strips most commonly used in cabinet and furniture manufacturing. Thinner veneers require precise glue application to avoid bleed-through, while 3MM PVC demands sufficient trimming torque — the dual 800W trimming motors on the DW702 address both ends of that spectrum. The 0-50MM banding height accommodates standard 18MM board as well as thicker worktop panels. Minimum sheet dimensions of 25CM × 10CM allow small offcuts and narrow components to pass through, reducing waste in nesting-optimized cutting plans. The integrated 1200W vacuum system captures dust and trim waste at the workstation, keeping the glue pot and polishing wheels clear of debris that would otherwise degrade edge quality over a production shift [NEED_CITE: dust extraction requirements for woodworking machinery].
The Hidden Cost of Mismatched Specifications
Buying a machine rated for light-duty cycles and running it in a batch-production environment accelerates wear on feed chains and trimming bearings beyond their design life. Panels then develop visible glue lines and uneven trim marks that fail assembly inspection. When the control panel language does not match the operator’s literacy, parameter adjustments become guesswork, and edge quality drifts across shifts [NEED_CITE: operator error rates in multilingual industrial environments]. These failures rarely appear during the factory acceptance test — they surface weeks into production when volume exposes the gap between what was specified and what was actually needed.
Why Source This Machine Here
In-house manufacturing with patented cutting mechanisms means tolerance claims on the DW702 are verified on the production floor, not borrowed from a catalog. Voltage and plug customization — EU, USA, AU, UK — is handled as a standard order parameter, not a special request. The four-stage QC process covers incoming material inspection through pre-shipment verification, so the machine you receive matches the tested configuration. Engineer-led proposals arrive within 24 hours of your inquiry, with a formal quotation that confirms electrical specifications against your facility data. Factory visits are welcomed for buyers who want to witness assembly and test runs before committing to an order.
Documentation & Verification
- CE declaration of conformity covering the DW702 edge banding machine assembly
- Electrical schematic matched to your confirmed voltage and plug type
- Factory test record showing edge quality on your specified board material
- Operation and maintenance manual in your agreed language before shipment
- Spare parts list with part numbers for trimming blades and feed chain components
- Packing photographs and customs documentation for your freight forwarder
Installation, Commissioning & Support
- 3800W total power requires a dedicated circuit matched to your confirmed 220V or 380V supply
- 0.4-0.8Mpa air source connection needed at the machine inlet for pneumatic trimming actuators
- Machine arrives fully assembled at 105KG — position on level floor and connect utilities
- Glue pot filled and temperature verified against your edge banding material during first run
- Operator walkthrough covers HMI navigation in the configured language before production starts
- Trimming blade and polishing wheel wear schedule provided in the maintenance manual
Before You Request a Quotation
Share your board material types, typical panel dimensions, and the edge banding thickness range you run most often. Confirm your workshop voltage, frequency, and the plug standard your electricians use. Let us know your preferred control panel language and whether you need sample processing tests on your own substrate and edging material before placing the order.
Frequently Asked Questions
Q: What voltage configurations are available for my country’s electrical standard?
A: The DW702 supports 220V and 380V as standard configurations, with further customization available for non-standard industrial supplies. Before production, we require a completed voltage confirmation document matching your facility’s actual electrical supply and frequency. The plug type — EU, USA, AU, or UK — is specified at order and installed at the factory.
Q: How do I specify the control panel language for my operators?
A: Chinese and English are standard options. Spanish and other languages are configurable before dispatch. You confirm the language during the quotation stage, and the HMI is set at the factory so operators can navigate menus and adjust parameters immediately upon commissioning without external translation support.
Q: What is the minimum panel size this machine can process?
A: The DW702 accepts sheets with a minimum length of 25CM and minimum width of 10CM. This allows small cabinet components, narrow drawer sides, and offcuts from nesting layouts to be edge-banded without manual workaround, reducing material waste in batch production environments.
Q: Can you provide sample processing tests on my edge banding material before order?
A: Yes. Send your board substrate and edge banding strip to the factory, and we run a processing test on the DW702 under production-representative conditions. You receive photographs and the finished sample for evaluation before confirming your order specifications.
Q: What documentation comes with the machine for customs clearance and installation?
A: Each DW702 ships with a CE declaration of conformity, electrical schematic for your confirmed voltage, factory test record, operation manual in your agreed language, spare parts list, and packing photographs. These documents support customs clearance and provide your local electrician with the reference material needed for installation.
