Small Wood Edge Banding Machine
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

Small Wood Edge Banding Machine

This product is currently out of stock and unavailable. SKU: Small Wood Edge Banding Machine-36309814 Categories: Woodworking Machinery, Wood Based Panels Machinery Description Additional information Table of ContentsDescriptionAdditional informationRelated productsBeichen Edge Banding Multifunctional Sealing and Repairing Wood Based Panels Machinery Thread Trimming MachineDust Free Mother Saw BladeST-30 Portable PVC Melamine Edge Banding Machine Automatic Manual […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Description

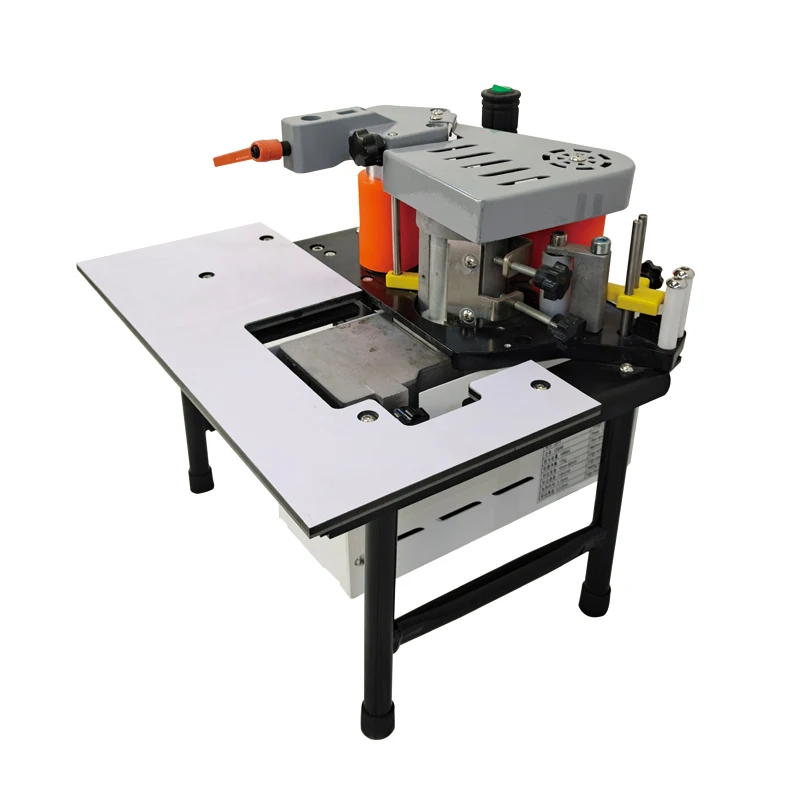

Portable edge banding machine. light and portable. is a useful equipment for furniture manufacturing and interior decoration.
Suitable for edge banding tape: ABS. PVC. Melamine. veneer
Edge type: both straight and curve edge
Product Paramenters
Model
ST-30


Total power
1000W


Standard features
Curved and straight edge banding
Voltage
220V/380V/customization
Minimum length of sheet
25CM
Minimum width of sheet
3CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Edge power/speed
20W
Air source pressure
0.5-0.8Mpa
Transmission power/speed
Glue pot capacity
1000ml
Trimming power/speed
Vacuum power
Polishing power/speed


Product Size
38*35*35CM
Product weight
12KG
Package Size
Wooden box 42*36*42CM


Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products. Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ? We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality. Q2:Can I choose the Plug? Yes.we have EU.USA.AU.UK plug for your country use Q3:Is it OK to print my logo on the product? Yes.Please inform us formally before our production and confirm the design firstly for the mass production. Q4.I do not know Chinese.will the operation panel in English or French or other? Yes.all our machine are with Chinese and English.If you want only English or Spanish or other. we also can customize to you Q5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world. also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries. Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe. Q7.What to do if l have any other specifications for the current? lf you have any different requirements.just contact us and we will meet you. Q8.lf I need a sample for pretest. do you sale sample for this inquiry ? Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation. Q9.Can you produce the products according to my own drawings? Yes. we can do OEM according to your requirement
