Automatic Linear Woodworking Plywood Edge Banding Machine Manual Laminating Edge Bander Machine
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

Automatic Linear Woodworking Plywood Edge Banding Machine Manual Laminating Edge Bander Machine

This product is currently out of stock and unavailable. SKU: Automatic Linear Woodworking Plywood Edge -36310979 Categories: Woodworking Machinery, Wood Based Panels Machinery Description Additional information Table of ContentsDescriptionAdditional informationRelated productsDW102 Bander Straight With Pre-milling Mini Edge Acrylic Banding Machine AutomaticAutomatic Mini Wood-Based Panels Edge Banding Machine for Carpentry Tools PLC Motor Controlled Scraping Gluing […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply

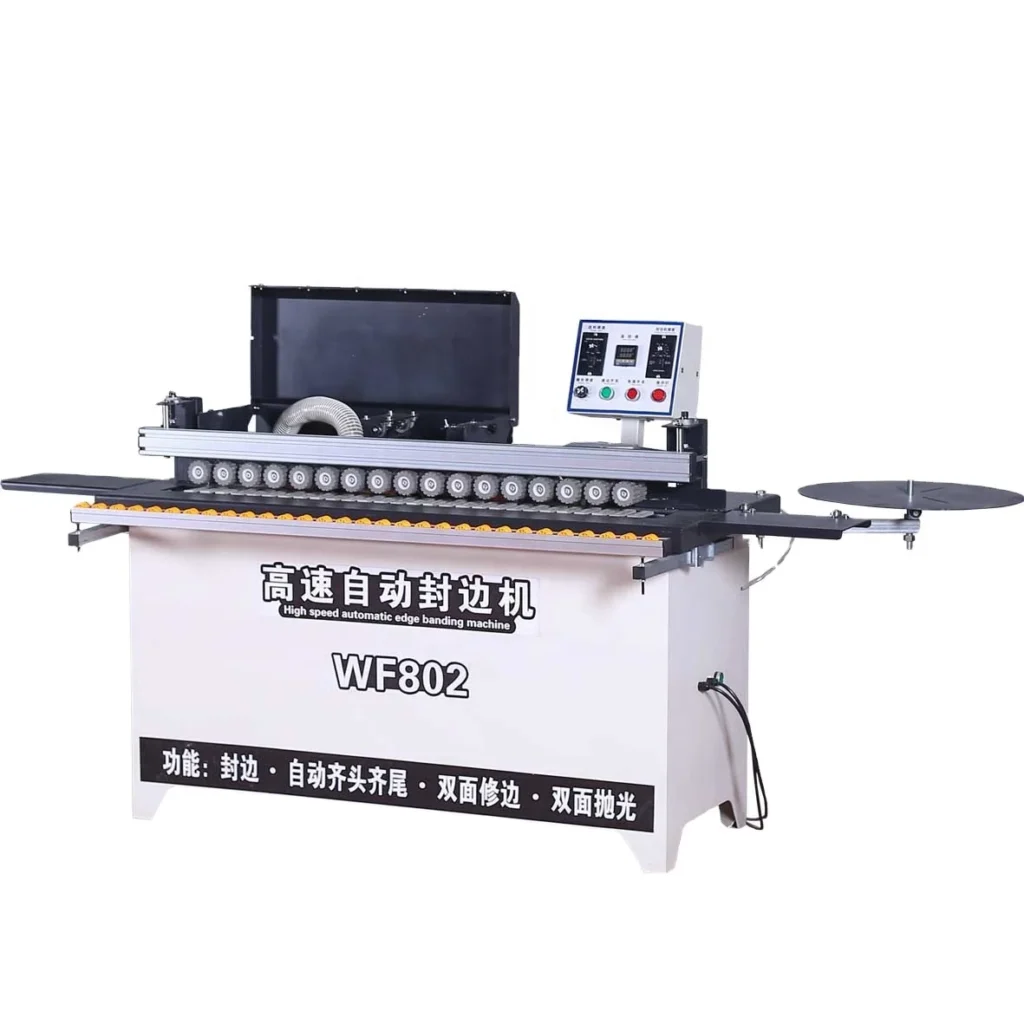

The high-speed automatic edge banding machine has the function of automatic end cutting. with its own vacuum device. clean and tidy.One-piece pressure beam. double rows of pressure wheels. silicone material conveyor belt. the sheet conveying is stable and not easy to scratch.It can seal multiple plates continuously. with convenient operation and high efficiency.
Product Parameters
Model
802
802
Function
automatic plate feeding. end cutting. upper and lower polishing. automatic head and tail trimming. comes with dust collector
Edge type
straight line
Rated voltage
220v
Strip thickness
0.5-2.5mm
Sheet thickness
10-50mm
Trimming power
800w*2
Polishing power
180w*2
Suction power
1200w
Rated power
4kw
4kw
Rated air pressure
0.4-0.6mpa
0.4-0.6mpa
Feed plate
0-10m/min
0-10m/min
Conveyer belt
0-10m/min
0-10m/min
Glue capacity
4000ml
4000ml
Heating power
1000w (5-10min)
1000w (5-10min)
Overall size
130*65*75cm
130*65*75cm
Machine weight
150kg
150kg
our services
We can provide you with various custom services

Product details
Control panel. digital display of glue pot temperature. independent switch. easy to operate.
Integrated pressure beam. double rows of pressure wheels. silicone material conveyor belt.
4000ml Large-capacity glue pot reduces the number of glue additions and improves efficiency.
702 model glue pot is 1000ml.
Pneumatically controlled belt breaking method is precise and labor-saving.
Extendable fluent strips. more stable and convenient when sealing large plates.
Double high-speed trimming motors. trimming up and down. the trimming effect is beautiful.
Up and down two polishing motors. the polishing effect is better.
edge banding tray.
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
