Description
Full catalogue coverage — the ZDSF910H sits within a complete edge bander family so a workshop can scale from entry-level to full-function without changing supplier.
Technical Specifications
| Parameter | Value |
|---|---|

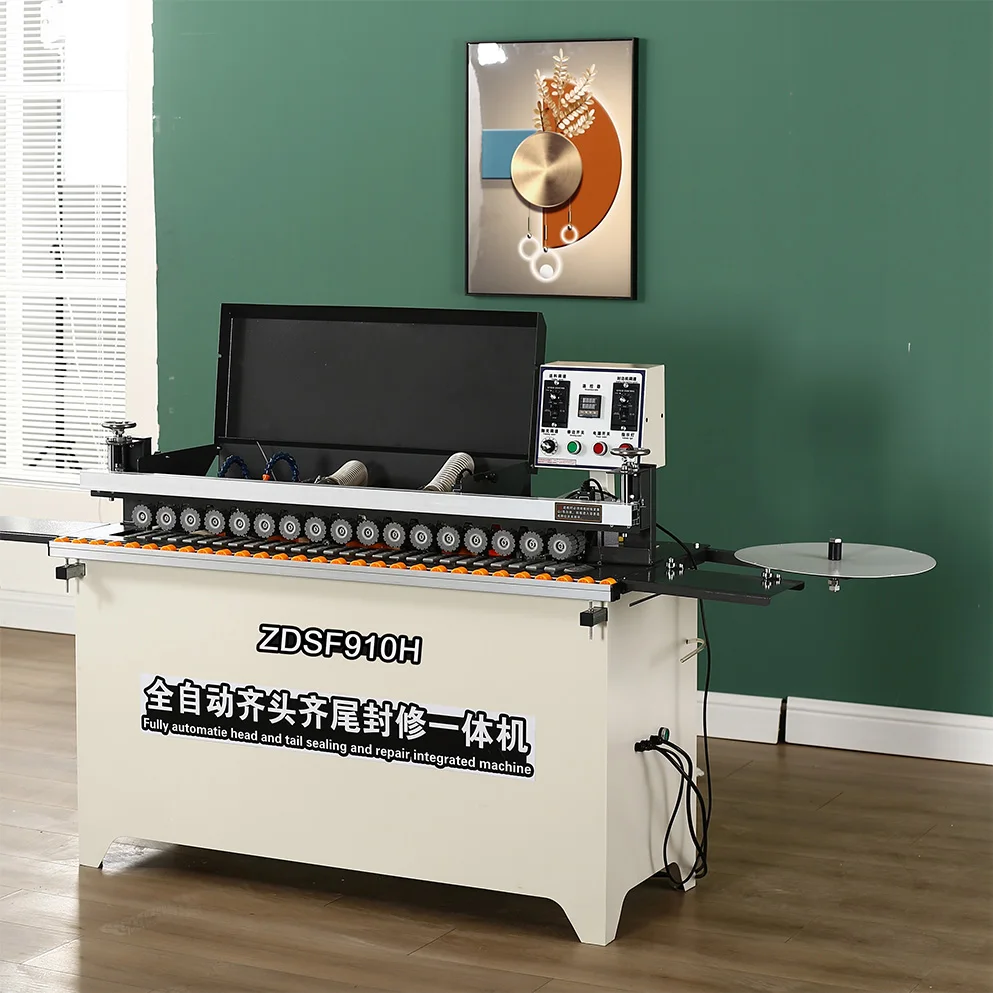

| Model | ZDSF910H |
| Product Type | Fully Automatic Edge Banding Machine |
| Function Set | Automatic plate feeding, double-sided gluing, end cutting, upper/lower trimming, head/tail trimming, polishing |
| Rated Power | 4 kW |
| Voltage & Frequency | 220V 50Hz (configurable from 110V to 440V) |
| Heating Power | 800 W |
| Trimming Power | 800 W × 2 |
| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Minimum Board Width | 2.5 cm |
| Glue Capacity | 1000 ml |
| Rated Air Pressure | 0.4–0.6 MPa |
| Feed Mechanism | Steel rod slide rails, double-row rubber pressure wheels |
| Pressure Beam | Adjustable aluminum alloy |
| Dust Extraction | Integrated dust collector, full-envelope vacuuming |

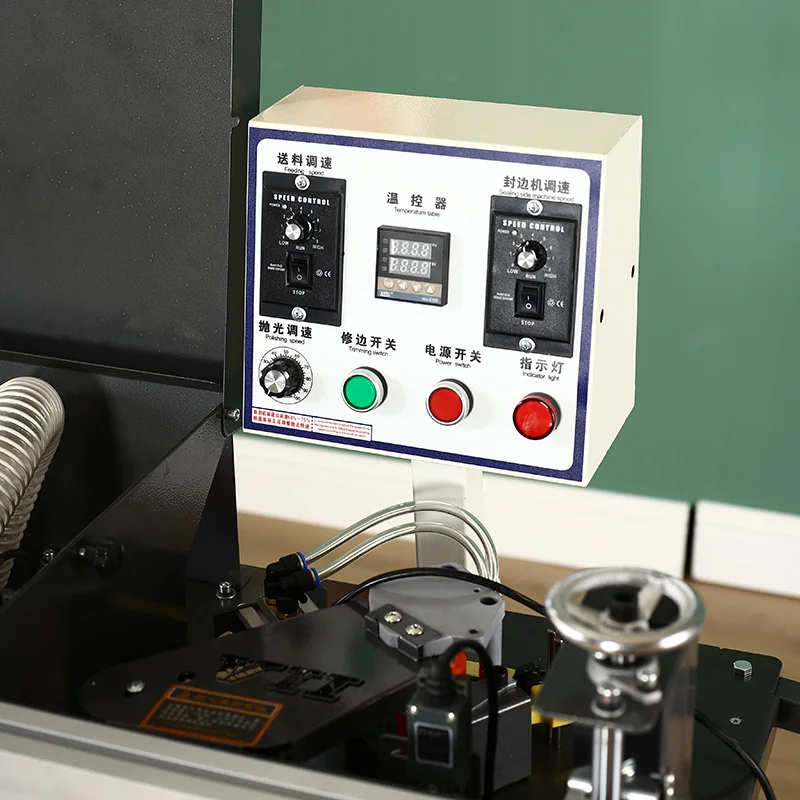

| Control System | Multi-function button operation panel |
| Overall Dimensions (L×W×H) | 1300 × 560 × 1090 mm |
| Net Weight | 185 kg |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, plywood, particleboard with PVC strips 0.5–2.5 mm |
| Cabinet door and carcass finishing | Melamine-faced board with veneer edge banding |
| Small-to-medium joinery workshop production | Solid wood panels and composite substrates up to 50 mm thick |
| Narrow strip and shelf-edge processing | Boards as narrow as 2.5 cm with consistent glue coverage |
Why the Voltage Question Should Come Before the Price
Confirming local supply voltage before placing an order prevents weeks of idle machines on the workshop floor.
I still remember a job where a 415V three-phase supply met a 400V machine at the dock — the transformer wait stalled commissioning for nearly three weeks. A Fully Automatic Edge Bander manufacturer that does not verify your site frequency and voltage is leaving installation to chance. Mismatches between machine wiring and local grid standards remain one of the most common avoidable failures in cross-border equipment procurement [NEED_CITE: voltage and frequency standards by export market].
Where the ZDSF910H Fits in the Range
This model covers automatic plate feeding through final polishing in a single pass, which positions it as the compact fully automatic tier in the Ruiqi edge bander catalogue. Workshops moving from manual trimming or semi-automatic units find the step up manageable because the function set — end cutting, upper and lower trimming, head and tail trimming, polishing — mirrors what higher-tier models perform, just at a smaller footprint and feed rate. The Fully Automatic Edge Bander manufacturer offers this as the entry point into fully automatic processing, with a clear upgrade path when throughput demands grow.
Sizing the Machine to Your Production Stage
A small custom furniture shop running fifty to eighty panels a day will find the ZDSF910H sufficient for steady output, but a cabinet factory pushing two hundred panels daily should evaluate higher-tier models in the same product family. Buying a machine rated for lighter duty and running it at heavy production volumes accelerates wear on feed wheels and trimming heads. The advantage of sourcing from a single Fully Automatic Edge Bander manufacturer is that stepping up later means consistent control logic, compatible spare parts, and familiar operator training [NEED_CITE: equipment sizing for panel processing workshops].
Reading the Specs That Matter on the Floor

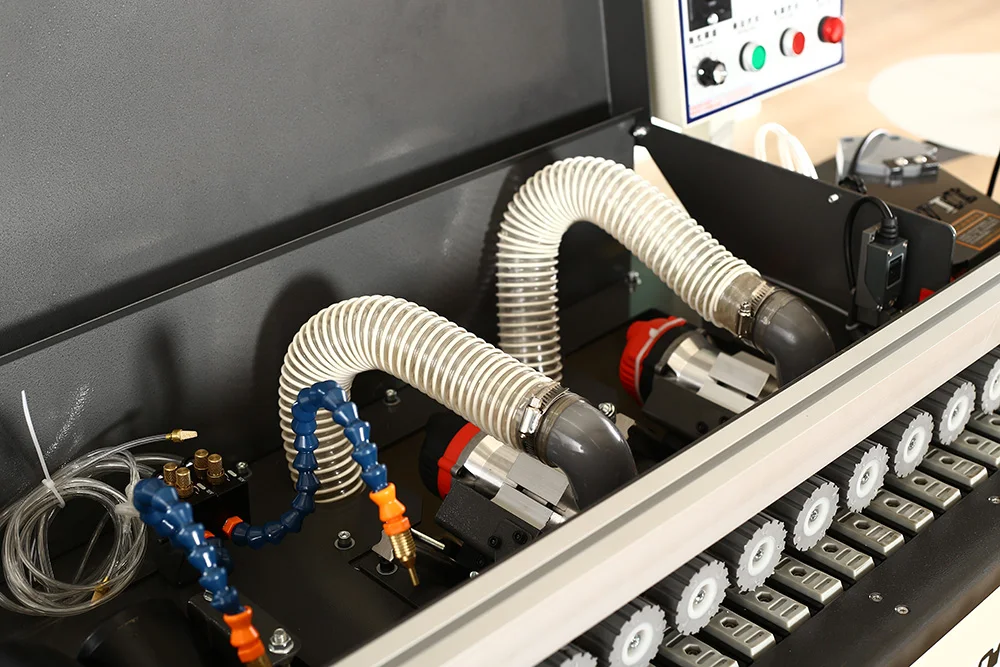

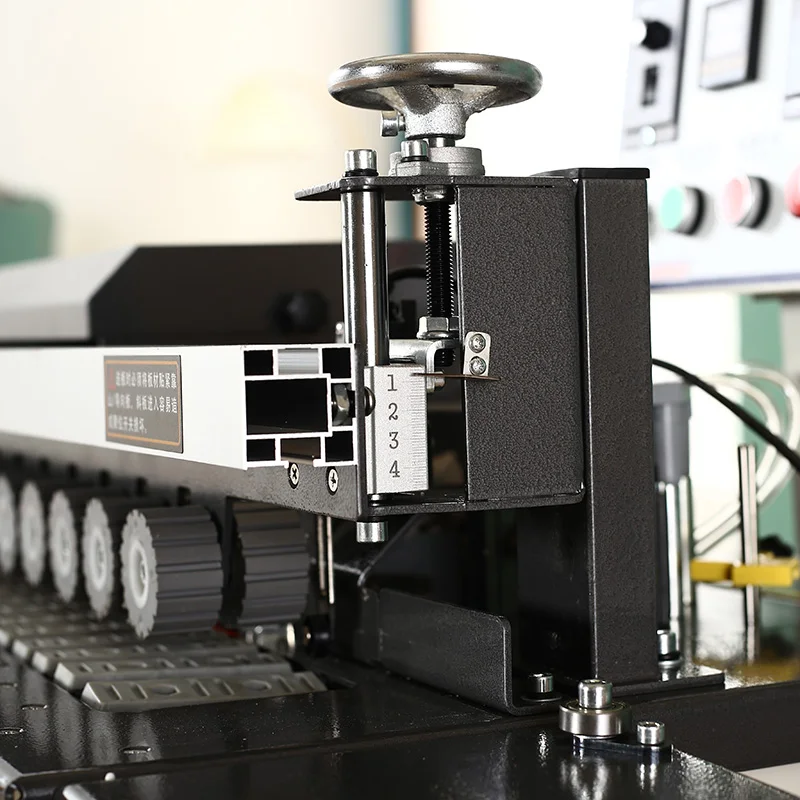

The 10–50 mm sheet thickness range paired with an adjustable aluminum alloy pressure beam means the machine handles everything from thin shelf panels to thick worktop blanks without fixture changes. Steel rod slide rails with double-row rubber pressure wheels keep the panel flat against the fence during the glue application zone, which directly affects edge bond consistency. The 0.4–0.6 MPa air pressure requirement is standard for pneumatic trimming and polishing actuators — verify your workshop compressor can sustain this at the far end of the airline. An integrated dust collector with full-envelope vacuuming captures trim waste at source, so the extraction port specification should match your central dust system or run standalone with the built-in 1200W suction motor.
The Cost of Skipping Configuration Checks
Ordering a machine without confirming the control panel language leaves operators guessing at error codes during the critical first week of production. A unit specified for one voltage but plugged into another can trip breakers repeatedly or, worse, damage the heating element in the glue pot before the fault is diagnosed. Panels processed on a machine with mismatched feed speed expectations develop visible glue lines, which then fail the cabinet assembler’s quality check downstream. These problems are entirely preventable when the specification conversation happens before the order is placed [NEED_CITE: CE machinery directive requirements for industrial equipment].
Why Source This Model Through Ruiqi
The ZDSF910H benefits from the same four-stage QC process that covers every machine in the range — incoming material inspection, in-process checks, finished product verification, and pre-shipment testing. Voltage and frequency customization from 110V to 440V is standard practice, not a special request, so the machine that arrives matches the supply on your workshop floor. The full product family means your operator learns one control logic and applies it across every future upgrade. Engineer-led configuration ensures the quotation reflects your actual panel thickness and edge strip combination, not a generic default. Factory test records on your specific materials ship with the machine, so you can verify tolerance claims before the crate is opened.
Documentation & Verification
- CE declaration of conformity applicable to this edge bander class
- ISO 9001 certificate covering the manufacturing process
- Electrical schematic with confirmed voltage and frequency for your site
- Factory test record on your specified panel thickness and strip type
- Operation manual provided in the agreed operator language
- Spare parts list with part numbers matching the shipped configuration
Installation, Commissioning & Support
- 1300 × 560 mm footprint fits through standard workshop doors on a level concrete floor
- Dedicated 220V circuit at confirmed amperage for the 4 kW rated load
- Machine ships fully assembled; connect power, air supply at 0.4–0.6 MPa, and dust extraction
- First-run parameter setting for your panel thickness range and glue temperature at 800W heating element
- Operator training on the multi-function button panel covering feed, trimming, and polishing controls
- Trimming blades and polishing wheels included in the initial spare parts kit
What to Include in Your Inquiry
Specify the panel materials you process most often — MDF, plywood, particleboard, or solid wood — along with typical thickness and the edge banding strip type and width. State your local voltage and frequency so the machine is wired correctly before dispatch. Mention whether your operators need the control panel in a specific language and whether you would like a sample processing test on your own materials before the order is finalized.
Frequently Asked Questions
Q: Where does the ZDSF910H sit in the Ruiqi edge bander range, and when should I step up?
A: This model is the compact fully automatic tier, covering all major functions in one pass. It suits small-to-medium workshops processing up to several dozen panels daily. When your volume grows or you need higher feed speeds and additional trimming stations, the range includes higher-tier models with the same control logic, so operator retraining is minimal.
Q: How do I confirm the voltage and frequency will match my facility before ordering?
A: Share your site supply specification — voltage, phase, and frequency — during the inquiry stage. The machine is configurable from 110V to 440V, and the electrical schematic is confirmed before production begins. A voltage confirmation document ships with the machine for your electrician’s reference.
Q: What panel materials and edge banding strip types is this machine compatible with?
A: The ZDSF910H handles MDF, plywood, particleboard, and solid wood panels from 10 to 50 mm thick, with PVC or veneer edge banding strips between 0.5 and 2.5 mm. Narrow boards down to 2.5 cm width are supported by the adjustable pressure beam and double-row rubber pressure wheels.
Q: Can I visit the factory or request a sample edge banding test on my own materials?
A: Yes. Factory visits are welcomed, and you can send representative panel and strip samples for a processing test. The factory test record, including edge quality photographs and measured tolerances, is included in the pre-shipment documentation package.
Q: What documentation is included with the machine?
A: Each shipment includes a CE declaration, ISO 9001 certificate, electrical schematic confirming your voltage, operation manual in the agreed language, spare parts list, packing photographs, and customs documentation support. The machine specification sheet and factory test record are also provided before dispatch.
