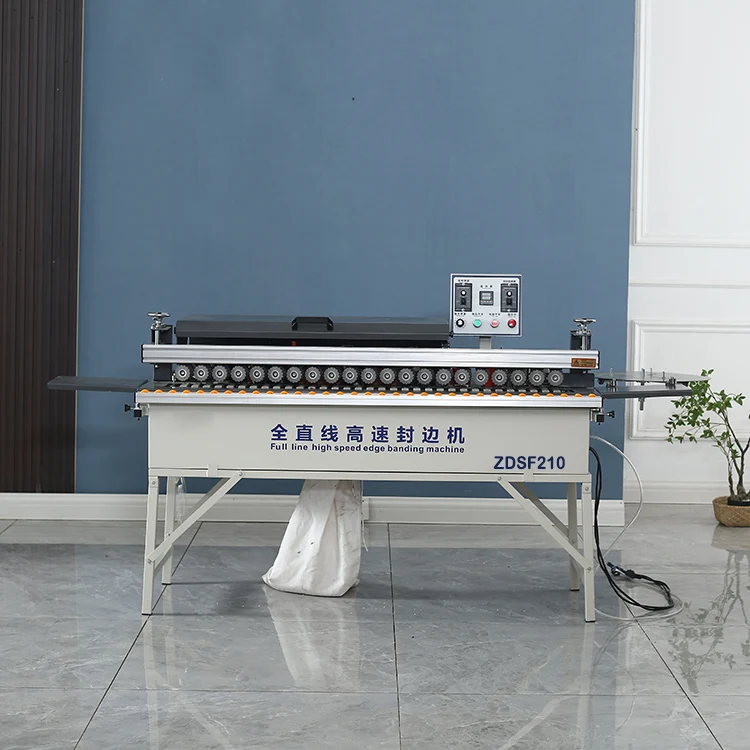

ZDSF210 High Speed Woodworking Automatic Portable Edge Bander Furniture Cabinet Wood Board MDF PVC Edge Banding Machine Price
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

ZDSF210 High Speed Woodworking Automatic Portable Edge Bander Furniture Cabinet Wood Board MDF PVC Edge Banding Machine Price

This product is currently out of stock and unavailable. SKU: ZDSF210 High Speed Woodworking Automatic P-36310809 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply Miniature Fully Automatic Straight Line Edge Banding Machine1. It adopts an integrated all-aluminum pressure beam. a rotating hand crank design. and precise scales on both sides […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply
Miniature Fully Automatic Straight Line Edge Banding Machine
1. It adopts an integrated all-aluminum pressure beam. a rotating hand crank design. and precise scales on both sides for easy adjustment.2. Double rows of inner inclined pressure rollers. the grip plate is stable and does not deviate.3. Frame structure. strong track. good stability.4. Trimming device. dual high-speed motors adopt precision guide rail sliders to lift up and down. parallel up and down. four-edged 1.5 alloy trimming knife. profiling trimming.5. Profile scraping for smoother edges.6. Clean up and down the board to remove excess glue lines.7. Large diameter closed dust collector. good dust collection effect.This edge banding machine can seal large boards and small boards. and the boards can be fed continuously and stably.
Product Paramenters
Model
ZDS210
Function
Automatic plate feeding
Double-sided gluing
Upper and lower polishing
Automatic trimming
Wood cleaning system up and down
Edge type
straight lines
Voltage
220v50hz
Rated power
4kw
Rated air pressure
0.4-0.6mpa
Suction
1200w
Belt power
25w
Transmission power
120w
Heating power
800w
Polishing power
180w*2
Trimming power
800w*2
Conveyer belt
0-14m/min
Feed plate
0-14m/min
Sheet thickness
10-50mm
Strip thickness
0.5-2.5mm
Glue capacity
1000ml
Overall size
2100*570*1120mm
Packing size
157*60*69cm
Weight
140kg
Product details
Control panel. multi-function button operation. save worry and effort.
The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.
The elastic pressing device makes the bonding between the edge band and the board more firm.
Pneumatically controlled edge strip cutting device makes work easier.
2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.
Plate up and down cleaning device + edge scraping device.
Glue roller. adjustable glue volume.
Push-type limit switch. precise control.
Extended feed plate. more convenient to use.
4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.
Polishing device. cross polishing up and down.
Comes with a tray for edge banding.
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
