Description

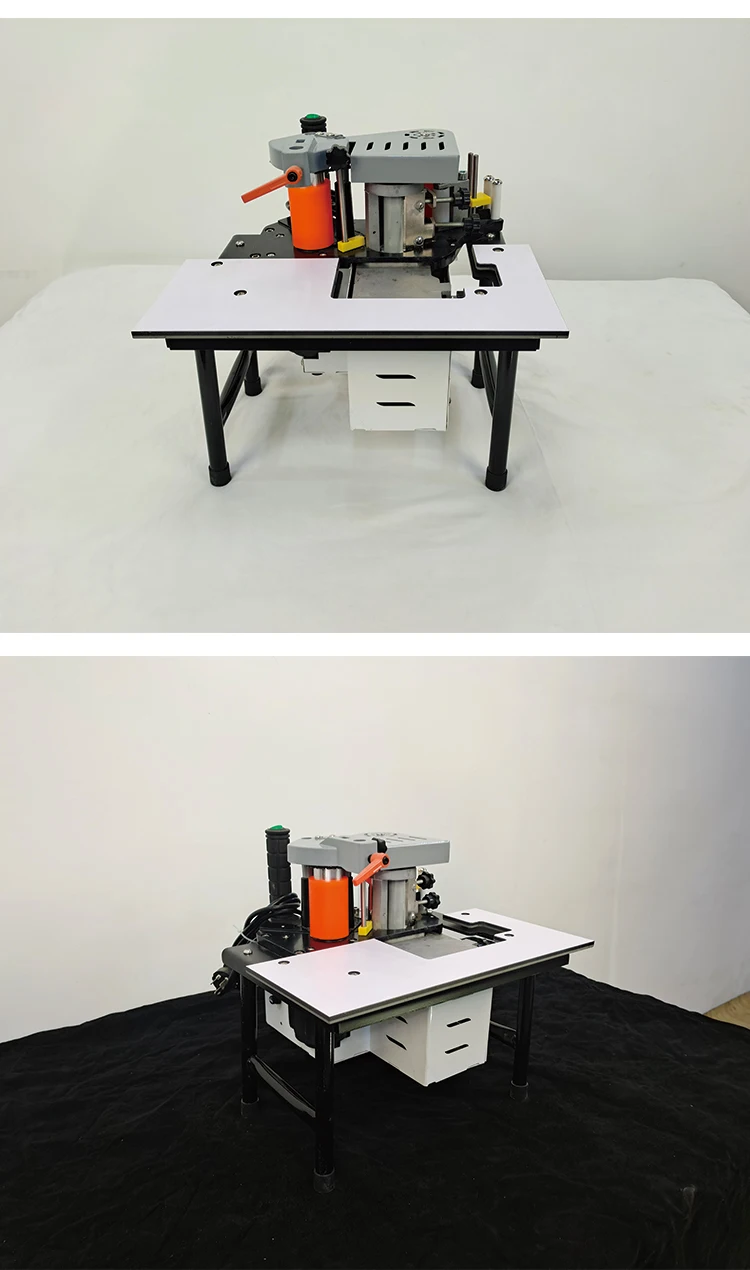

Precision-Matched Configuration — every ST-30 handheld edge banding machine ships with voltage and frequency confirmed against your workshop supply before production begins.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ST-30 |
| Product Type | Handheld Edge Banding Machine |
| Rated Power | 1000W |
| Voltage & Frequency | 220V / 380V / customization (frequency to be confirmed per region) |
| Edge Banding Capability | Curved and straight edge profiles |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Suitable Edge Banding Tape | ABS, PVC, Melamine, Veneer |
| Minimum Length of Sheet | 25 cm |
| Minimum Width of Sheet | 3 cm |
| Glue Pot Capacity | 1000 ml |
| Air Source Pressure Requirement | 0.5–0.8 MPa |
| Product Size | 38 × 35 × 35 cm |
| Product Weight | 12 kg |
| Assembly State | Portable / Handheld |
| Language Options | Chinese and English standard; Spanish and other languages customizable |
| Standards | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet and wardrobe panel edging | MDF and particleboard with PVC or ABS tape on straight and curved profiles |
| Interior decoration on-site cabinetry | Plywood and blockboard with melamine or veneer tape |
| Small joinery workshop first-stage edge banding | Mixed panel substrates up to 50 mm thickness |
| Supplementary curved-edge work alongside full-automatic lines | Contoured furniture components requiring manual feed control |
| Shelving and retail fixture edging | Narrow stock down to 3 cm width with 0.3 mm thin tape |
Why the Voltage Question Must Come Before Anything Else
A handheld edge banding machine that cannot match your local supply is dead weight on arrival.
I have watched workshops receive portable units wired for 50 Hz only to find the glue pot cannot reach temperature on a 60 Hz circuit, leaving melamine tape peeling off within hours. The ST-30 Handheld Edge Banding Machine for sale supports 220V and 380V configurations, yet frequency and phase must still be locked in before the machine leaves the factory. Confirming these details early avoids the scenario where an operator stands in front of a cold glue pot on commissioning day [NEED_CITE: voltage and frequency standards by export market].
Where the ST-30 Sits in a Growing Edge Banding Lineup

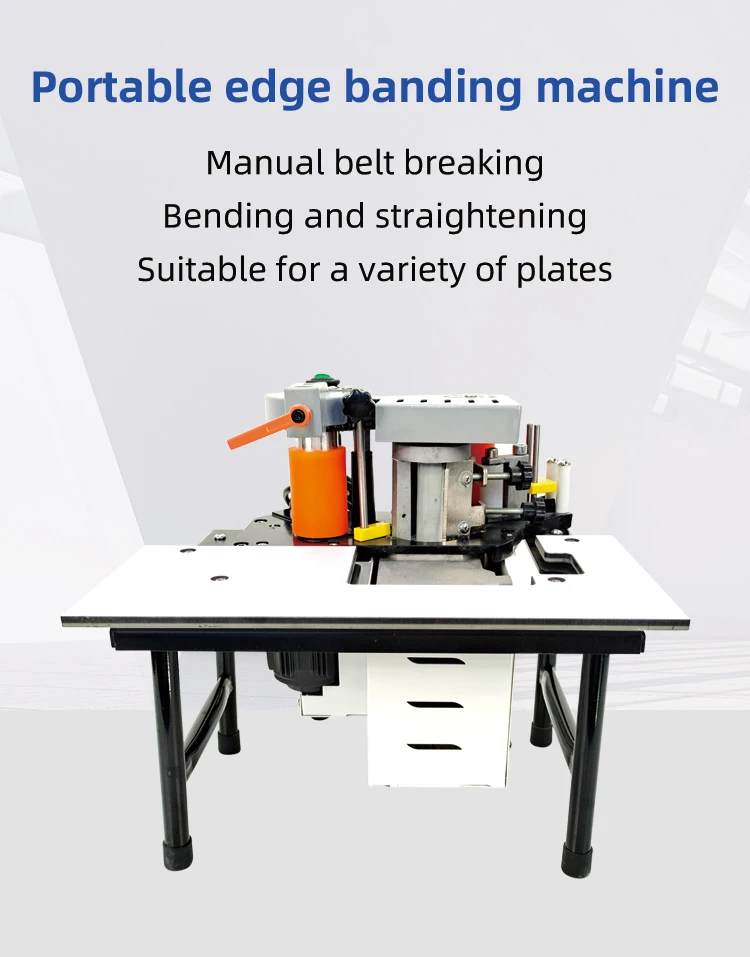

This handheld edge bander fills the gap between manual iron-on tape and a full-automatic through-feed machine. Workshops that already run an automatic edge bander for straight panels often discover that curved cabinet doors, radius shelves, and irregular off-cuts still require hand feeding. The ST-30 occupies that supplementary position, handling profiles the main line cannot accept while keeping floor-space commitment minimal at 38 × 35 × 35 cm.
Scaling From Manual Work Without Over-Investing
A joinery startup applying melamine tape with a household iron quickly outgrows that method once order volume climbs. The ST-30 offers a 1000 ml glue pot and adjustable thickness range up to 3 mm, giving operators consistent heat and feed control that manual methods cannot hold across a full shift. For a small workshop evaluating its first dedicated edge banding machine, this unit provides a viable starting point before committing capital to a semi-automatic or full-automatic model [NEED_CITE: typical edge banding adoption path in small furniture workshops].
Reading the Specifications That Matter Most

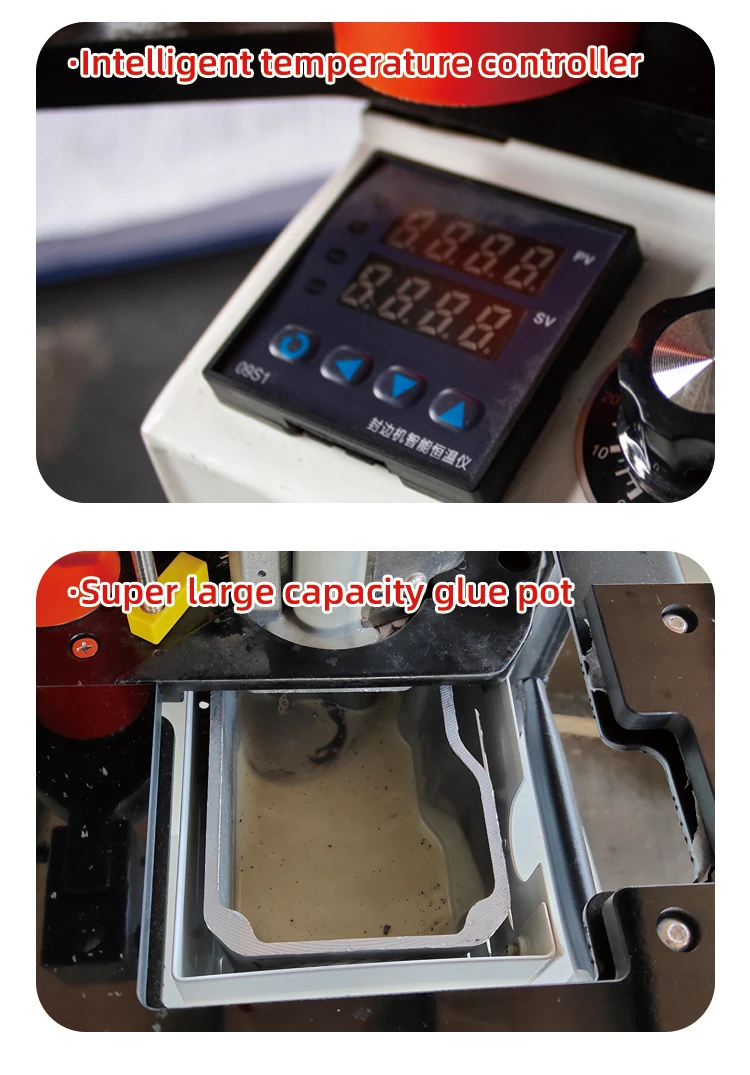

The 0.3–3 mm tape thickness range covers everything from thin PVC foil on drawer fronts to thicker ABS edging on worktops, meaning a single machine handles the majority of panel furniture tapes without swap-outs. The 0–50 mm height range accommodates standard 18 mm particleboard as well as thicker blockboard used in shelving and stair components. Glue pot capacity at 1000 ml determines how long an operator can run before stopping to refill — on a busy day with mixed panel sizes, that volume typically sustains continuous work through a substantial batch before topping up is required. Air pressure at 0.5–0.8 MPa must be matched to your workshop compressor; insufficient pressure causes uneven tape adhesion, while excessive pressure can squeeze out too much adhesive and starve the bond line.
The Cost of Skipping Material and Tape Verification
One workshop ordered a portable edge bander configured for PVC tape, then switched to melamine paper without adjusting glue temperature — the bond failed on nearly every panel, forcing a full rework of the batch. Melamine requires higher heat than PVC, and veneer demands yet another temperature window. When you source a handheld edge banding machine without specifying the exact tape material and panel substrate you will run, you risk receiving settings that work perfectly on one combination and fail completely on another [NEED_CITE: adhesive temperature requirements across edge banding tape types].
Why Source This Machine Through Ruiqi
In-house manufacturing with patented cutting mechanisms means the ST-30 is built and tested in the same facility that produces the full-automatic range, so quality standards carry across the lineup. Voltage and language customization is treated as standard procedure rather than a special request, confirmed during the quotation stage. Four-stage QC with pre-shipment verification catches assembly issues before the crate is sealed. Engineer-led configuration ensures the machine you receive matches your actual tape and substrate, not just a generic default setup. Factory visits are available so you can see the ST-30 run on your own panel samples before committing.
Documentation & Verification
- CE declaration of conformity covering portable woodworking edge banding equipment
- Machine specification sheet with confirmed voltage, frequency, and tape compatibility for your region
- Factory test record on your specific panel thickness and edge banding tape before dispatch
- Electrical schematic and voltage confirmation document matched to your workshop supply
- Operation and maintenance manual in the agreed operator language
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed 220V or 380V supply with appropriate breaker rating for 1000W draw
- Compressed air supply at 0.5–0.8 MPa must be available at the workstation for consistent tape pressure

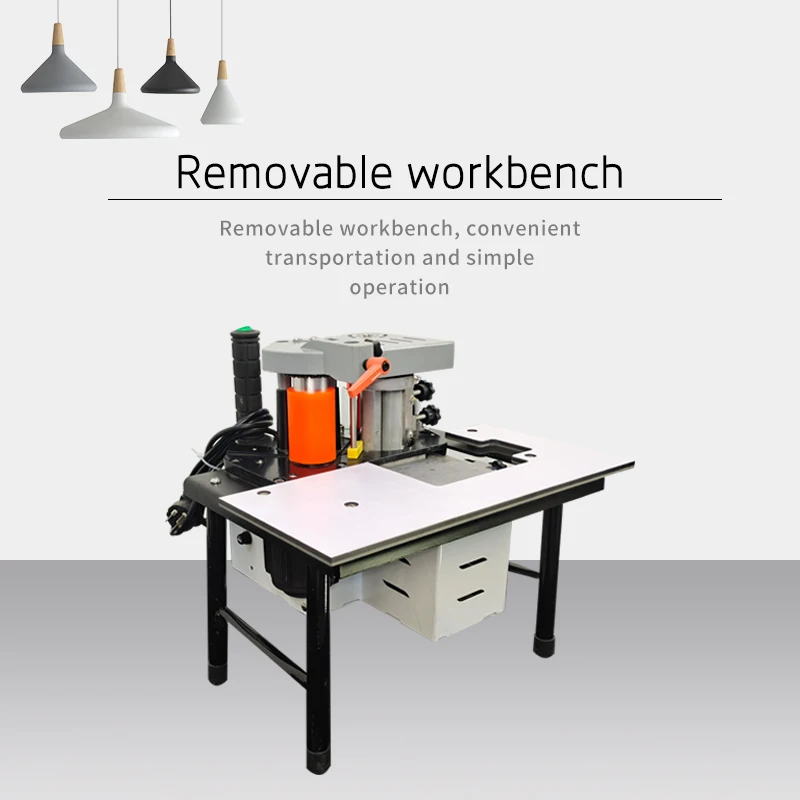

- Portable 12 kg unit arrives fully assembled — no foundation or floor anchoring required
- First-run parameter setting includes glue temperature adjustment matched to your chosen tape material
- Operator training covers feed speed control on both straight and curved profiles
- Spare parts list includes replacement glue pot elements and feed rollers for ongoing maintenance
Request a Configuration Proposal
Share your primary panel substrate, the specific edge banding tape material and thickness you plan to run, and your local voltage and frequency. If you already operate panel saws or boring machines, let us know the models so we can confirm throughput compatibility. Requesting a sample processing test on your actual material before placing a volume order is always an option.
Frequently Asked Questions
Q: Where does the ST-30 fit compared to semi-automatic and full-automatic edge banders?
A: The ST-30 is a portable handheld unit for straight and curved profiles that automatic through-feed machines cannot handle. It supplements a primary edge banding station or serves as the first machine for a small workshop. It does not replace a full-automatic line for high-volume straight-panel production.
Q: How do I verify voltage and frequency compatibility before ordering?
A: Provide your workshop supply voltage, phase, and frequency during the inquiry stage. The engineering team confirms compatibility and documents it on the electrical schematic before production begins, so the machine matches your local grid on arrival.
Q: What control panel language options are available?
A: Chinese and English are standard. Spanish and other languages can be customized upon request. Confirm the required language at the quotation stage so the manual and any control labels match your operator’s capability before shipment.
Q: How does the ST-30 pair with other machines in a growing workshop?
A: The ST-30 handles curved and short-run edge banding while a panel saw handles cutting and a boring machine handles drilling. Together they form a basic production cell. Throughput between stations should be reviewed to avoid bottlenecks as order volume increases.
Q: What does the sample processing test involve before a volume order?
A: You send representative panel samples and edge banding tape to the factory. The ST-30 runs on your exact material combination, and the finished pieces are photographed and shipped back for your inspection. This verifies glue temperature, adhesion quality, and edge finish before you commit.
