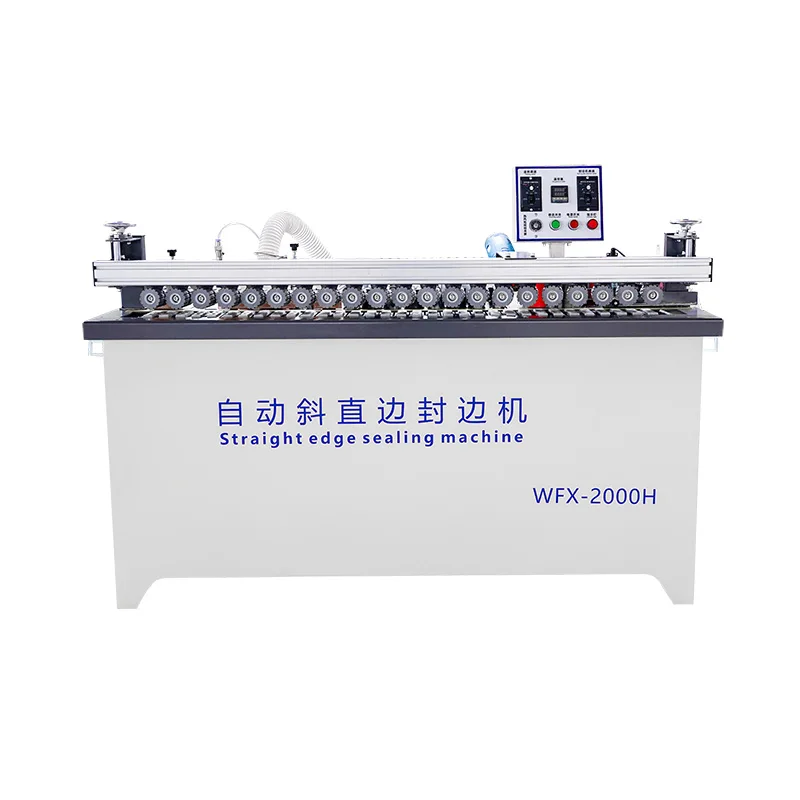

Oblique Straight Shape Automatic Edge Banding Machine Bevel Edge Bander
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

Oblique Straight Shape Automatic Edge Banding Machine Bevel Edge Bander

This product is currently out of stock and unavailable. SKU: Oblique Straight Shape Automatic Edge Band-36310128 Categories: Woodworking Machinery, Wood Based Panels Machinery Description Additional information Table of ContentsDescriptionAdditional informationRelated productsGood Quality Wood Saw Machines Electric Double Table Saw Portable Electric Saw MachineHandheld Edge Banding Machine Multifunction Edge Banding Machine Gluing Edge Banding MachineDW102 Bander […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply
Automatic Slanted Straight Edge Banding Machine1. Automatic plate feeding. stable transmission. no deviation.2. It has the function of slotting edge banding.3. The hot air heats the whole process. and the edge sealing is stronger.4. Elastic profiling trimming. no damage to the plate.5. Self-contained vacuum device. more convenient.

Product Parameters
Name
ZDSF-2000H  bevel-Sraight edge banding machine
WF-2000H
Overall dimension
2100*600*1100mm
2100*600*1100mm
Weight
149KG
149kg
Plate thickness
18-25mm
Strip thickness
1.2mm
Rated voltage
220V
Rated power
6.17KW
Rated air pressure
0.4-0.6mpa
Plate feeding speed
0-14m/min
Product details
control Panel
Aluminum alloy pressure beam. can be adjusted manually up and down.
Automatically break the belt
Gluing device
8 pressing rollers
Trimming device
Polishing device
Self-contained vacuum device
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
