Description
Verified Tolerance — the ZDSF910H carries Ruiqi’s patented cutting mechanism across its compact frame, maintaining edge consistency without requiring a full production line footprint.
Technical Specifications
| Parameter | Value |
|---|---|

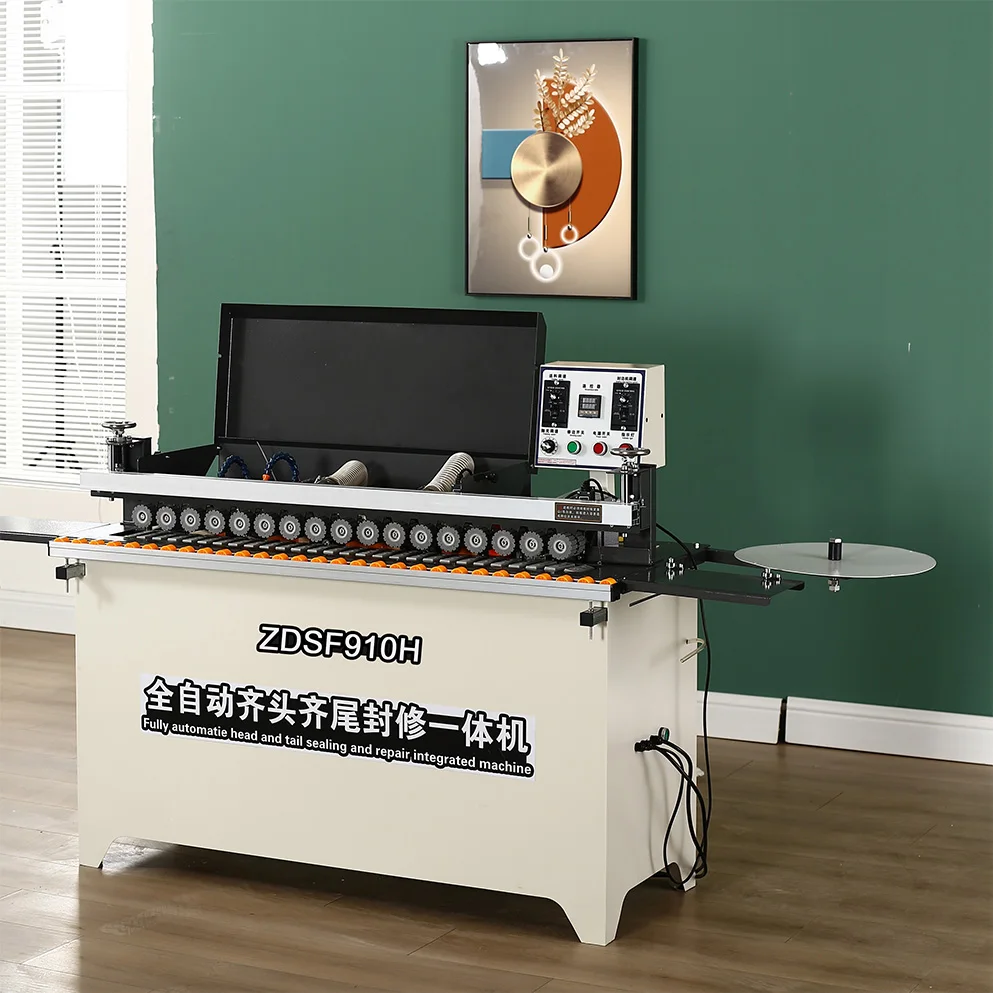

| Model | ZDSF910H |
| Product Type | Fully Automatic Edge Banding Machine |
| Function Sequence | Automatic plate feeding, double-sided gluing, end cutting, upper and lower polishing, automatic head and tail trimming, integrated dust collector |
| Voltage & Frequency | 220V 50Hz (configurable 110V–440V) |
| Rated Power | 4 kW |
| Heating Power | 800 W |
| Trimming Power | 800 W × 2 |
| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Transmission Power | 120 W |
| Rated Air Pressure | 0.4–0.6 MPa |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Minimum Board Width | 2.5 cm |
| Glue Capacity | 1000 ml |
| Transmission System | Steel rod slide rails, crawler transmission |
| Trimming Mechanism | Imported 4-blade alloy arc knife, square slide rail profiling |
| Dust Collection | Dual large-diameter collectors |

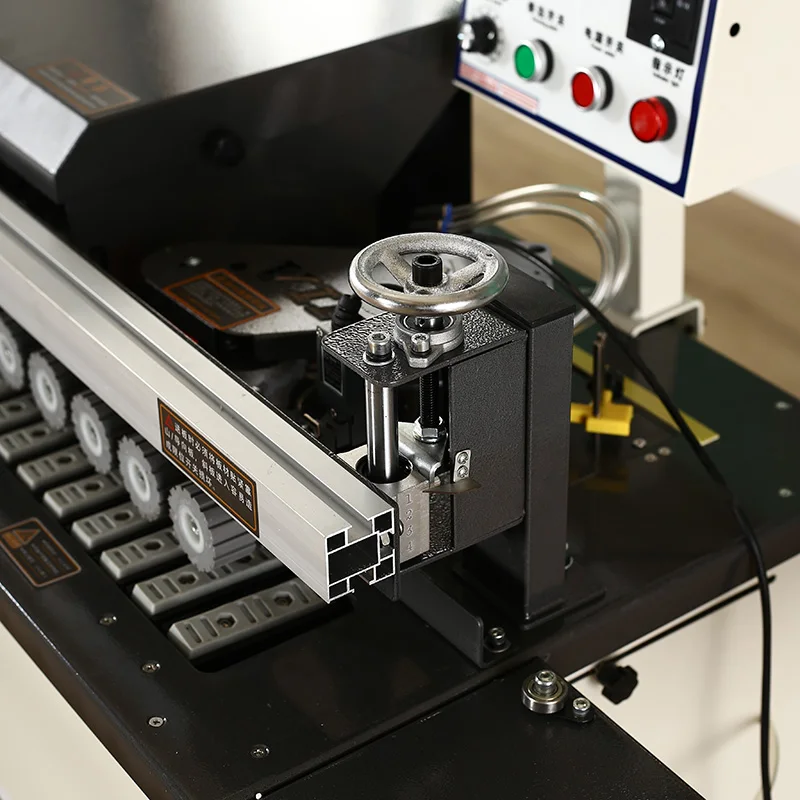

| Pressure Beam | Adjustable aluminum alloy |
| Feed System | Double-row rubber pressure wheels, automatic plate feeding |

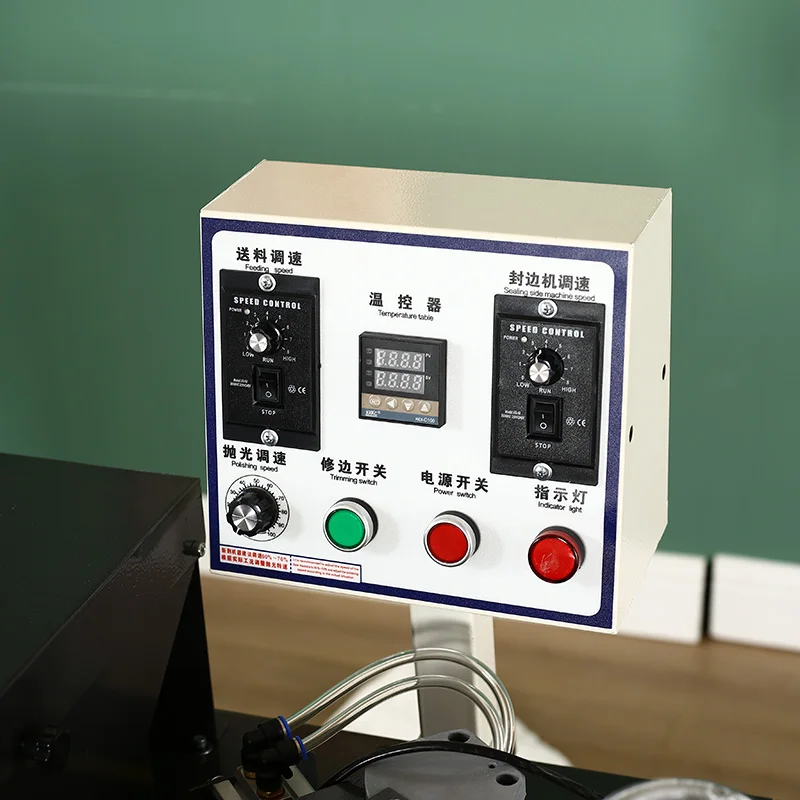

| Control Panel | Multi-function button operation |
| Overall Dimensions (L×W×H) | 1300 × 560 × 1090 mm |
| Net Weight | 185 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edging | MDF and particleboard with PVC banding |
| Cabinet door and carcass production | Plywood panels with veneer edge strips |
| Small-batch joinery components | Solid wood panels up to 50 mm thickness |
| Compact workshop edge finishing | Melamine-faced board with 0.5–2.5 mm strips |
Why the Voltage Question Should Come Before the Price
A fully automatic edge banding machine manufacturer must confirm your local supply before quoting, not after the crate arrives.
I once watched a client in Eastern Europe stand in front of a crated machine while an electrician explained that 400V three-phase and 380V are not interchangeable terms. The transformer took three weeks to source, and the trade fair opening passed with the machine still cold. [NEED_CITE: voltage and frequency standards by export market] That unit had been quoted, paid for, and shipped without anyone asking what came out of the wall socket at the destination. Every specification sheet now carries a voltage confirmation line that the buyer signs before production starts.
A Scalable Family Instead of Isolated Purchases
Single machines bought piecemeal often turn out incompatible in feed height or throughput when you add the next station. The ZDSF910H sits within a broader product family, so when your workshop moves from small-batch custom work to higher-volume cabinet runs, the next machine in the line shares control logic, spare part commonality, and service familiarity. A fully automatic edge banding machine manufacturer that covers entry-level through full-function pre-milling models lets you scale without retraining operators or renegotiating support contracts.
Compact Footprint Without Function Compromise
Workshops renting urban industrial space do not have the luxury of a ten-meter machine footprint. At 1.3 meters in length, this unit compresses gluing, end cutting, profiling, trimming, and polishing into a single station that one operator can manage. [NEED_CITE: typical workshop floor space allocation for panel processing equipment] The integrated dust collector eliminates a separate extraction unit, which further reduces the floor area this machine claims.
Reading the Numbers That Actually Matter
The 10–50 mm sheet thickness range covers everything from thin MDF shelving to thick solid-wood tabletop panels, meaning the adjustable aluminum alloy pressure beam and double-row rubber pressure wheels must accommodate significant variation in workpiece mass. The imported 4-blade alloy arc knife on square slide rails determines the profiling quality you see when a cabinet door meets its frame — a poorly trimmed edge shows immediately under LED lighting in the client’s kitchen. The 800 W heating element paired with the 1000 ml glue pot maintains consistent adhesive viscosity across a shift, which matters when morning ambient temperature differs from afternoon conditions in an unheated workshop. Dual 1200 W suction collectors handle PVC dust and fine wood particles generated during trimming and polishing, keeping the workpiece surface clean before the operator moves it to the next station.
The Hidden Cost of Overlooking Air Supply
Rated air pressure of 0.4–0.6 MPa sounds straightforward until you connect the machine to a compressor shared with three other stations that drop pressure every time a pneumatic clamp engages elsewhere. Inconsistent air supply causes the edge strip cutting cylinder to hesitate mid-stroke, leaving a ragged end that the operator must re-trim by hand. [NEED_CITE: compressed air system sizing for woodworking machinery] Buyers who confirm compressor capacity and dedicate a regulated line to the edge bander avoid this entirely.
Why Source This Model Here
Ruiqi builds the ZDSF910H on the same manufacturing floor that produces its full-function pre-milling models, which means component sourcing and precision grinding standards apply across the range. Voltage customization from 110V to 440V is handled at the configuration stage, not as an afterthought. The four-stage QC process covers incoming material, in-process assembly, finished product testing, and pre-shipment verification with a factory test record on your specific panel material. Control panel language and operation manual are confirmed before the machine leaves Shandong, so your operator reads instructions in a language they work in. Engineer-led configuration means the quotation accounts for your actual panel sizes and strip thicknesses rather than a default setup that may not suit your production mix.
Documentation & Verification
- Machine specification sheet confirming ZDSF910H voltage and frequency for your local supply
- Factory test record using your panel thickness range and edge strip material before dispatch
- Electrical schematic with confirmed plug type and circuit protection ratings
- Operation and maintenance manual in your operator’s working language
- CE declaration of conformity and ISO 9001 certificate for customs clearance
- Spare parts list matched to the trimming knife and pressure wheel configuration
Installation, Commissioning & Support
- Requires a dedicated 4 kW circuit at the confirmed voltage; shared circuits risk heating element fluctuation
- 1300 × 560 mm footprint fits through standard workshop doors without dismantling the frame
- 0.4–0.6 MPa air line with a dedicated regulator prevents trimming cylinder hesitation during peak demand
- First-run parameter setting covers glue temperature, feed pressure, and trimming knife offset for your strip thickness
- Imported 4-blade arc knife replacement schedule aligned with your weekly production volume
- Dual dust collector hose routing confirmed before station placement to avoid repositioning later
What to Include With Your Inquiry
Share the panel materials you run most often — MDF, particleboard, plywood, or solid wood — along with the edge strip type and thickness. Specify your local voltage and frequency so the configuration is locked before production. If you have an existing compressor, confirm its output capacity and whether the line will be dedicated or shared.
Frequently Asked Questions
Q: What panel materials and edge strip types can the ZDSF910H handle, and what is the minimum board width?
A: The machine processes MDF, particleboard, plywood, and solid wood panels with PVC or veneer edge banding in the 0.5–2.5 mm thickness range. The minimum board width for edge sealing is 2.5 cm. Sheet thickness capacity runs from 10 to 50 mm, covering most custom furniture and cabinet components produced in small to medium workshops.
Q: How does this model fit within Ruiqi’s full edge banding machine range as my production volume grows?
A: The ZDSF910H occupies the compact end of a product family that extends to full-function pre-milling models for higher-volume lines. As throughput requirements increase, you can move to a larger model within the same range, retaining familiarity with control logic, spare part supply, and service support without switching to a different manufacturer entirely.
Q: Can voltage, control panel language, and specifications be customized for my market?
A: Yes. Voltage is configurable from 110V to 440V to match local supply, and this is confirmed and documented before production begins. Control panel language and the operation manual are provided in your operator’s working language. Plug type and circuit protection are specified during the quotation stage to avoid on-site incompatibility after delivery.
Q: What documentation ships with the machine?
A: Documentation includes the CE declaration of conformity, ISO 9001 certificate, machine specification sheet, electrical schematic with confirmed voltage, factory test record from a pre-shipment run on your material, operation and maintenance manual in the agreed language, spare parts list, packing photographs, and customs documentation support.
Q: How do I arrange a sample processing test or factory visit before ordering?
A: You can send your own panel stock and edge strip material for a live processing test at the factory, which produces a sample output and a test record showing edge quality and trim finish on your specific substrates. Factory visits are welcomed and can be coordinated with your travel schedule through the sales engineer handling your configuration proposal.
