Description
Complete Catalogue Clarity — the DW902 sits within a full edge banding family mapped from entry-level to production-grade, so buyers surveying the range see exactly where each model fits before narrowing down.
Technical Specifications
| Parameter | Value |
|---|---|

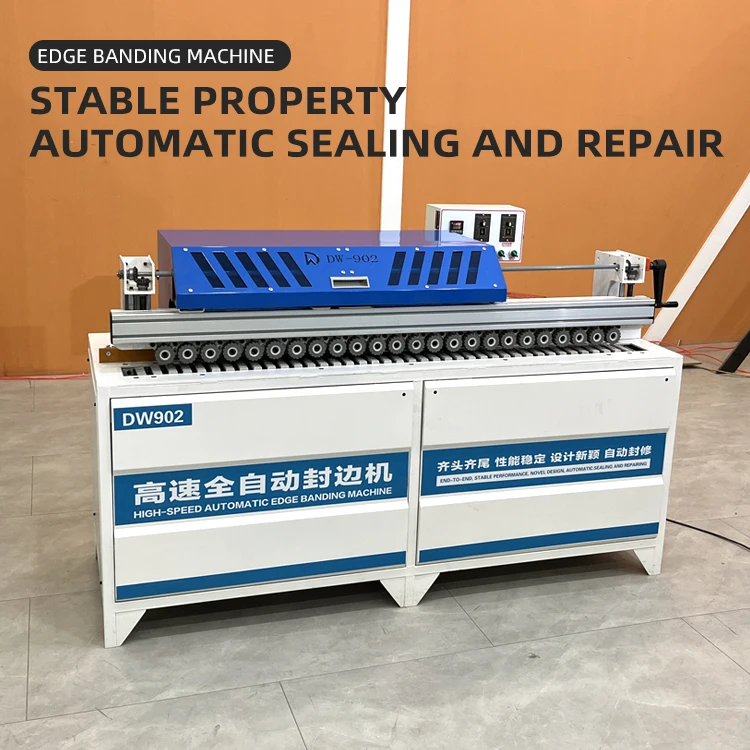

| Model | DW902 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4000W |
| Voltage & Frequency | 220V/380V/customization |
| Edge Banding Thickness Range | 0.3-3mm |
| Edge Banding Height | 50mm |
| Minimum Sheet Length | 250mm |
| Minimum Sheet Width | 100mm |
| Trimming Power / Speed | 800W×2 / 24000 r/min |
| Polishing Power | 380W×2 |
| Edge Feeding Power | 140W |
| Transmission Power | 140W |
| Vacuum Power | 550W |
| Glue Pot Capacity | 4000ml |
| Air Source Pressure | 0.5-0.8 MPa |
| Overall Dimensions (L×W×H) | 1750×870×1120mm |
| Net Weight | 240kg |
| Standard Functions | Edge banding, trimming, polishing, automatic trimming, scraping, vacuuming |

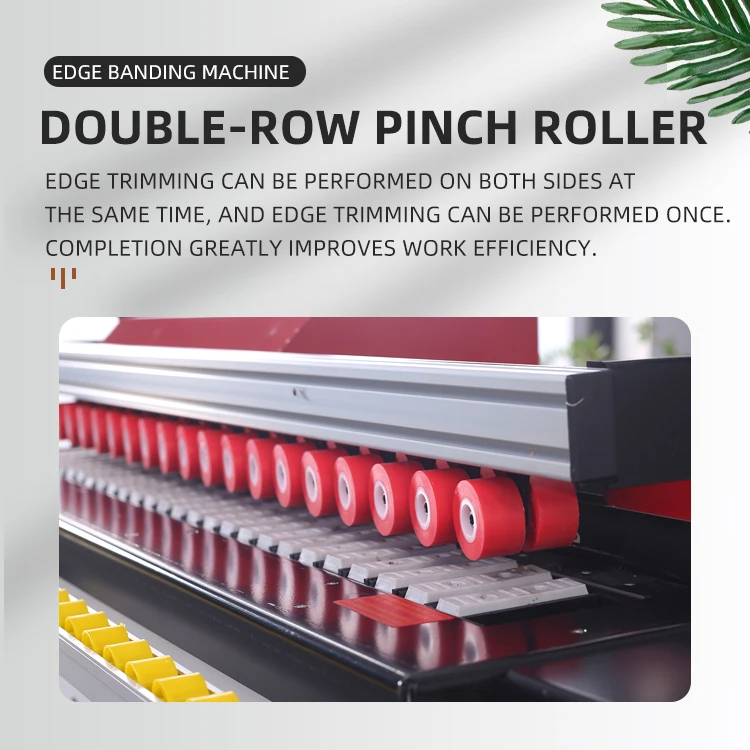

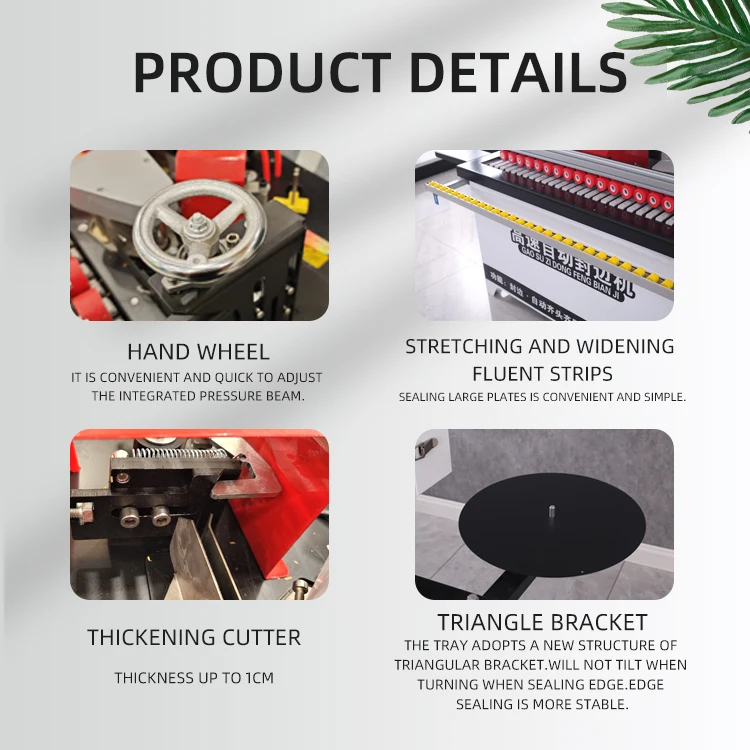

| Design Features | Oblique and straight dual-purpose; double hot air design; feeding auxiliary slide plate; 4 groups of oblique pressure wheels; double row pressing wheels |

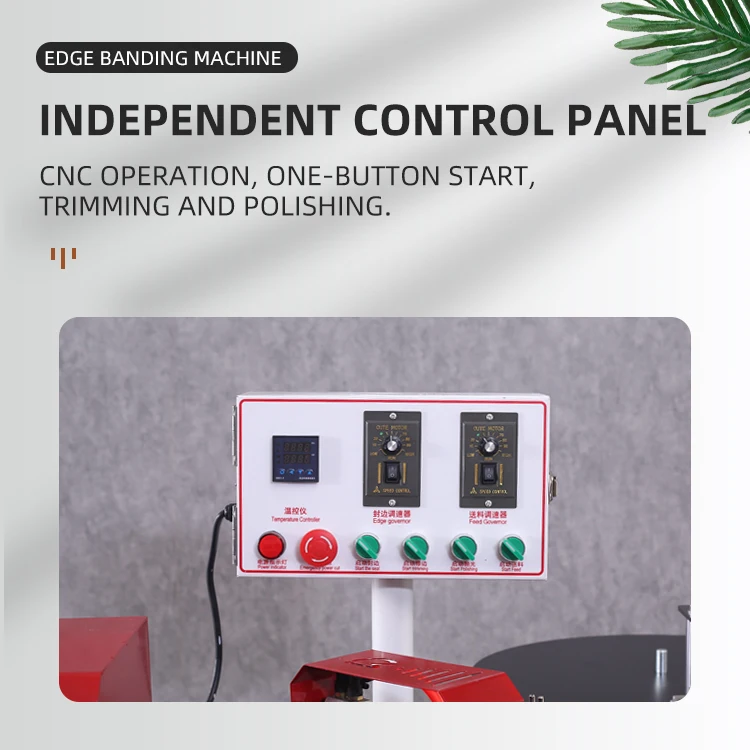

| Control Panel Language | Chinese and English standard; other languages customizable |
| Plug Options | EU, USA, AU, UK |
| Assembly State | Fully assembled |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet and wardrobe panel edging | MDF, particleboard, plywood |
| Custom furniture straight-line edges | Ecological board, solid wood board |
| Home decoration and joinery production | PVC edge banding material, 0.3-3mm thickness |
| Medium-scale workshop batch processing | 90-degree straight-line profiles on board stock |
Why "Universal Edge Bander" Claims Cause Commissioning Delays
Matching the machine tier to actual daily volume and substrate type prevents the most common failures seen after installation.
An Automatic Edge Banding Machine manufacturer hears two complaints more than any other: visible glue lines on certain boards, and edge trimming that chips the surface. Both trace back to a machine running outside its engineered envelope. A unit sized for light joinery work pushed into daily cabinet production will show wear on pressure wheels and inconsistent feed traction. Equally, a board with high moisture content demands different glue pot behavior and pressing force than a dry MDF panel [NEED_CITE: substrate moisture influence on hot-melt adhesion in edge banding]. When buyers survey a complete catalogue rather than a single listing, they can place the DW902 correctly within a tiered range and avoid deploying it into a throughput bracket it was not built to sustain.
Positioning the DW902 Within the Full Range
The DW902 covers 90-degree straight-line banding with oblique and straight dual-purpose capability, placing it as a versatile mid-range option for workshops that process a mix of board types but do not yet require pre-milling stations. Buyers comparing models across the catalogue can see where a pre-milling unit becomes necessary — typically when recycled particleboard or high-moisture substrates produce inconsistent edge quality that trimming alone cannot correct.
How Catalogue Breadth Simplifies Future Scaling
A workshop starting with the DW902 for PVC edging on MDF cabinet components can later move to a higher-tier model in the same product family without changing suppliers or retraining operators on a different control philosophy. This continuity matters for distributors selecting a model mix for their regional market: stocking an entry-level, a mid-range like the DW902, and a full-function pre-milling unit covers the majority of buyer profiles without redundant inventory [NEED_CITE: edge banding machine tier selection for regional distribution].
Reading the Specifications Against Your Production Reality
The 0.3-3mm edge banding thickness range covers standard PVC and thin veneer, but buyers processing thicker solid wood lipping need to confirm whether a heavier-tier model is more appropriate. The 24000 r/min trimming speed with dedicated scraping and polishing stations produces clean edges on melamine and MDF surfaces, yet the actual finish quality depends on the operator matching feed speed and trimming cutter condition to the specific substrate. The 4000ml glue pot capacity supports sustained batch runs, while the double hot air design stabilizes glue viscosity in cooler workshop environments. Air source pressure at 0.5-0.8 MPa is standard for pneumatic pressing and trimming actuators — confirming your compressor can sustain this under continuous draw avoids mid-shift pressure drops that cause banding lift-off.
The Cost of Skipping the Catalogue Comparison
Buyers who purchase a single machine without seeing where it sits in the broader range often discover incompatibilities later — a feed height mismatch with an existing panel saw, or throughput that bottlenecks a newly added boring machine. These problems compound when the machine is already on the workshop floor and the production schedule is waiting. Specifying from a complete catalogue lets the buyer and the Automatic Edge Banding Machine manufacturer align every station in the line before metal is cut [NEED_CITE: production line throughput matching between edge banding and CNC stations].
What Full-Catalogue Procurement Actually Delivers
The DW902 is documented within a complete model family, so configuration comparisons use consistent specification formats across every tier. Voltage and frequency are confirmed against your local electrical standard before production begins — not after the crate arrives. Control panel language is specified in the order, matching the operators who will run the machine. Factory visits allow you to see the DW902 running on your own board samples alongside higher-tier models, making the tier decision visual rather than theoretical. Every unit passes a four-stage quality verification covering incoming components through to pre-shipment testing, and the same engineering team that configures the DW902 can advise on the correct upgrade path when your volume outgrows this tier.
Documentation & Verification
- CE declaration of conformity included with every DW902 shipment
- Machine specification sheet confirming your selected voltage and plug type
- Electrical schematic matching the as-built control panel configuration
- Factory test record run on your specified board thickness and edge material
- Operation and maintenance manual in the language confirmed at order
- Spare parts list with part numbers cross-referenced to the DW902 assembly
Installation, Commissioning & Support
- Fully assembled delivery; position the 1750×870×1120mm unit and connect utilities
- Dedicated circuit required for 4000W total draw at confirmed 220V or 380V supply
- Compressed air line rated to sustain 0.5-0.8 MPa under continuous trimming cycles
- First-run parameter setting covering glue temperature, feed rate, and trimming depth
- Oblique and straight pressure wheel adjustment demonstrated on your board samples
- Spare wear parts for trimming cutters and polishing wheels identified at delivery
Preparing Your Inquiry
To receive a formal configuration proposal, share the board materials and thicknesses you process most frequently, the edge banding type and thickness range you run, and your local voltage and frequency standard. If you are evaluating the DW902 against other models in the catalogue, include your estimated daily panel volume so the recommendation accounts for where this tier fits in your scaling plan.
Frequently Asked Questions
Q: How does the DW902 compare to other models in the range on feed speed and throughput?
A: The DW902 is positioned within the mid-range of the full edge banding family. Feed speed and daily panel throughput vary by model tier, and the formal quotation includes a specification sheet comparing the DW902 against adjacent models so you can match the unit to your actual production volume rather than an assumed figure.
Q: What voltage and frequency details must I confirm before ordering?
A: Your local supply voltage and frequency must be confirmed before production begins. The DW902 supports 220V and 380V with further customization available, and the electrical schematic provided with your quotation documents the exact configuration built for your market, preventing unusable machines on arrival.
Q: Which edge banding materials does this model handle, and when is pre-milling necessary?
A: The DW902 processes PVC and veneer edge banding from 0.3mm to 3mm on MDF, particleboard, plywood, and solid wood board. Pre-milling becomes necessary when substrates have surface irregularities or high moisture content that trimming alone cannot correct, and this is assessed during sample testing.
Q: Can I visit the factory to test the DW902 on my own materials?
A: Factory visits are welcomed and encouraged. You can bring your board samples and preferred edge banding material to observe the DW902 running under conditions that mirror your workshop, and compare its output directly against higher-tier models in the same range.
Q: What is the upgrade path when production volume grows beyond this tier?
A: Because the DW902 belongs to a unified product family, moving to a higher-tier model with additional stations or higher feed speed does not require changing suppliers or relearning a different control system. Your configuration history is retained, and transition planning can begin well before capacity is reached.
