Description
Full Range Positioning — The DW802 automatic edge banding machine sits within a complete product family, giving buyers a clear view of where this unit fits across entry-level and mid-tier configurations before committing to a single model.
Technical Specifications
| Parameter | Value |
|---|---|

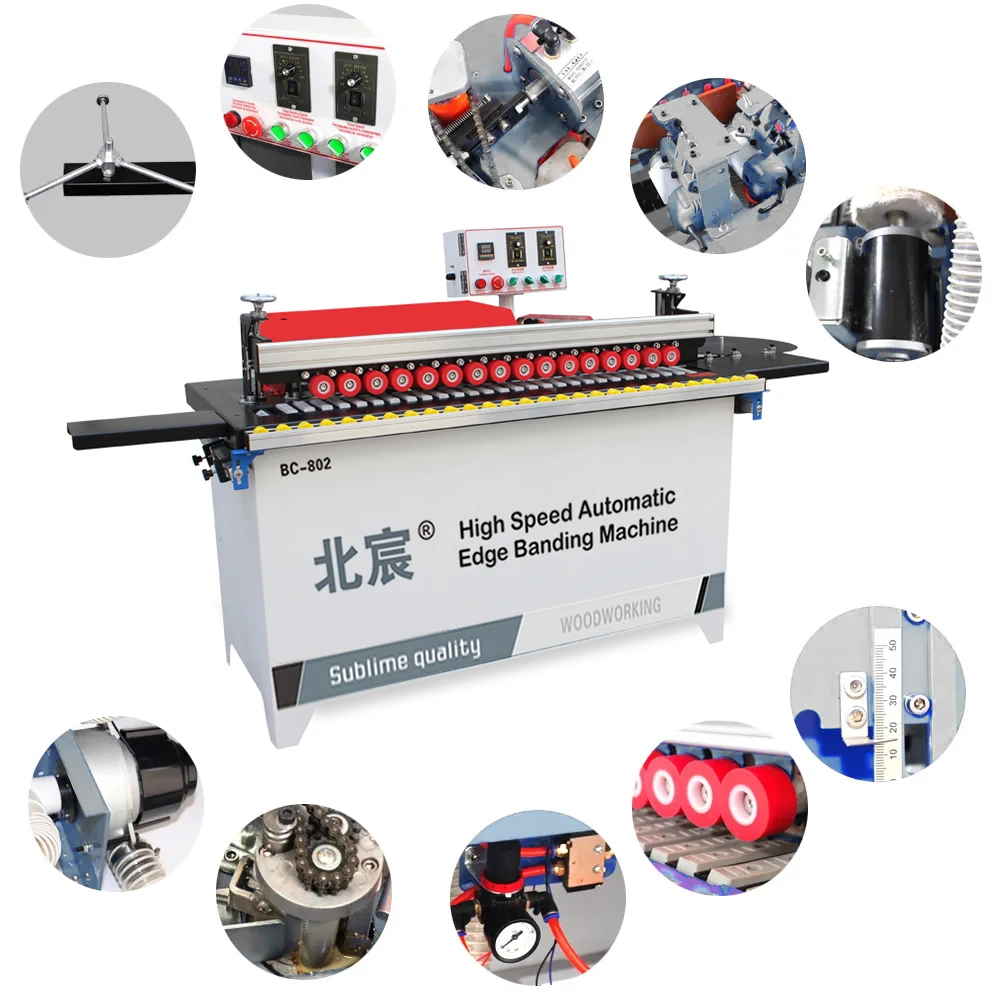

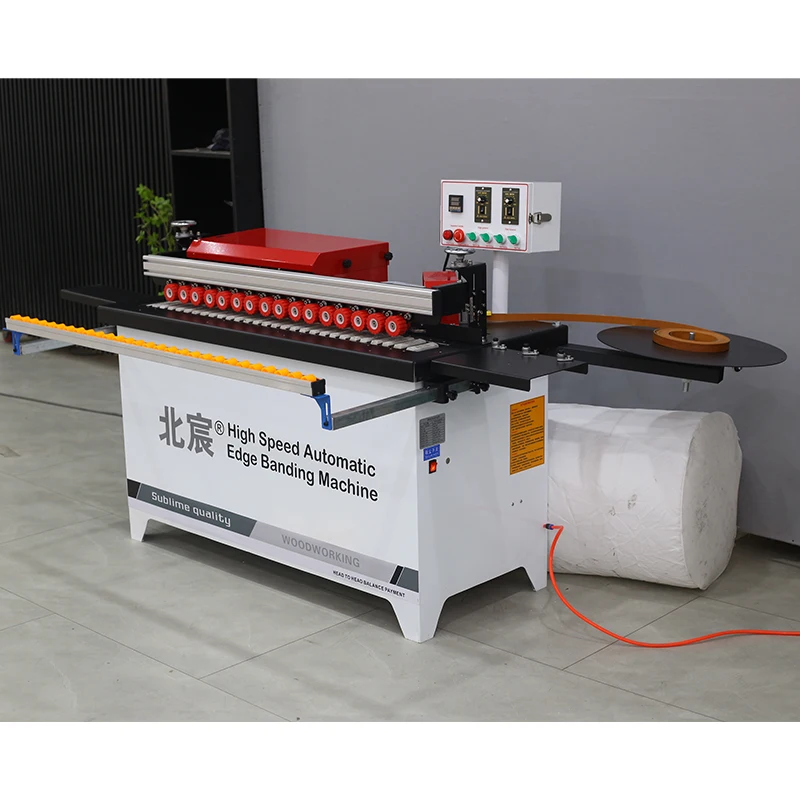

| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage & Frequency | 220V/380V/customization (frequency to be confirmed per market) |
| Overall Dimensions (L×W×H) | 130×60×95 cm |
| Net Weight | 135 kg |
| Minimum Panel Length | 25 cm |
| Minimum Panel Width | 10 cm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Feed Motor Power | 140W |
| Transmission Motor Power | 140W |
| Trimming Motor Power | 800W × 2 |
| Polishing Motor Power | 180W × 2 |
| Vacuum Power | 1200W |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.4–0.8 MPa |
| Standard Functions | Edge banding, trimming, polishing, automatic head and tail cutting, vacuum hold-down |
| Language Options | Chinese and English standard; Spanish and other languages customizable |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and melamine-faced particleboard with PVC banding |
| Wardrobe panel finishing | Plywood and ecological board with veneer or melamine edge strips |
| Home decoration workshop production | Solid wood panels requiring trimming and polishing after banding |
| Small-batch furniture runs | Mixed substrate batches switching between 0.3 mm and 3 mm banding thickness |
| Regional distributor demo stock | Versatile mid-range unit suitable for showroom and trial demonstrations |
Why Voltage Confirmation Must Happen Before the Order Ships
I once watched a container arrive in the Middle East carrying an automatic edge banding machine manufacturer order — and the local grid ran at 60Hz while the motor was wound for 50Hz. The machine sat idle for three weeks waiting for a variable-frequency retrofit. Confirming voltage and frequency at quotation stage eliminates the most common commissioning failure in cross-border machinery trade.
When buyers skip this step, the consequences extend beyond downtime. The electrician on site may attempt a workaround that voids the motor warranty. Production schedules slip while the factory sources compatible transformers or drives. In some regions, utility inspectors will not certify a machine whose nameplate does not match local grid standards [NEED_CITE: voltage and frequency standards by export market]. Every quotation I prepare now includes a mandatory voltage confirmation line — it is a small detail that prevents weeks of lost output.
How the DW802 Fits Within a Broader Machine Catalogue
Buyers surveying an automatic edge banding machine manufacturer range need a reference point. The DW802 occupies a position between entry-level manual-feed units and full-function pre-milling models equipped with scraping and buffing stations. Its 0.3–3 mm banding thickness range and integrated trimming and polishing functions cover the majority of standard panel sealing tasks, while workshops processing high-gloss acrylic or thick solid-wood edges may step up to a higher-tier model within the same product family.
This positioning matters for distributors building a regional inventory mix. Stocking the DW802 alongside entry-level and premium units allows a dealer to match customer budgets without sourcing from multiple factories. The shared control logic and component architecture across the range simplifies spare parts management and technician training.
Scaling From a Single Machine to a Production Cell
A workshop starting with one edge bander often adds a panel saw and a boring machine within the first year of operation. The DW802’s footprint of 130×60×95 cm leaves room for adjacent stations in a typical small-factory layout, and its 0.4–0.8 MPa air requirement aligns with standard workshop compressor output. When throughput grows beyond what a single operator can feed, the logical next step is integrating a return conveyor or an automatic loading table — both compatible with this machine’s feed height and panel size envelope [NEED_CITE: typical panel processing cell layouts for small furniture workshops].
Planning the electrical supply early avoids costly rewiring later. With a total power draw of 4200W, the DW802 can share a circuit with smaller auxiliary equipment, but adding a pre-milling edge bander or a CNC router later will require a dedicated panel. Mapping the full intended machine list at the quotation stage ensures the factory receives a coherent electrical schematic rather than piecemeal wiring diagrams.
What the Specification Sheet Actually Tells You About Edge Quality

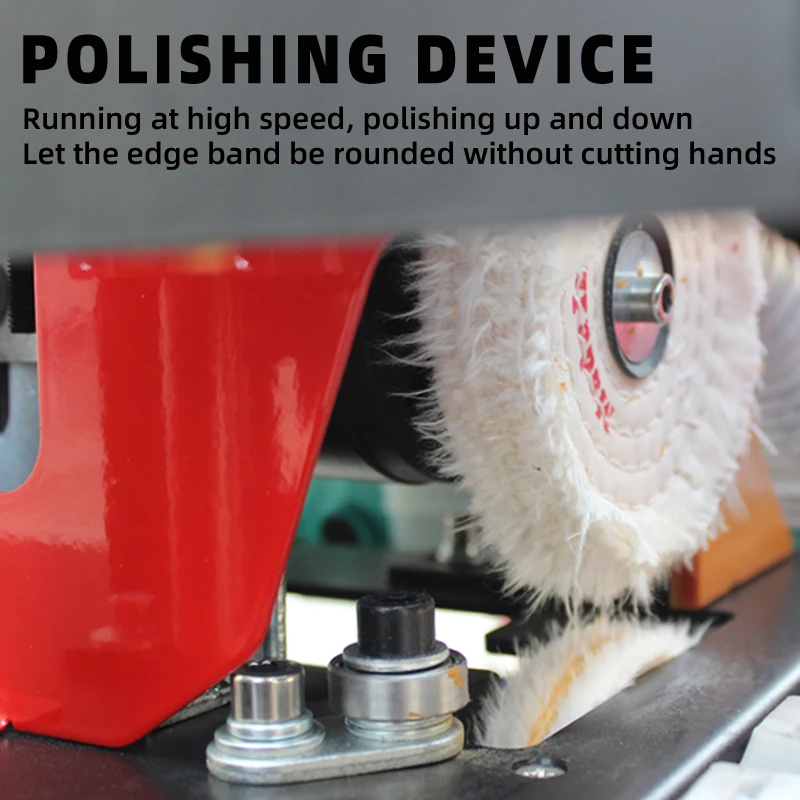

The dual 800W trimming motors are the first indicator of how cleanly the machine removes overhanging banding material. Sufficient trimming power at the right spindle speed prevents tear-out on melamine and veneer edges — a common defect that forces operators into manual touch-up. The 180W × 2 polishing motors then smooth the trimmed edge to a finish that does not require secondary buffing.

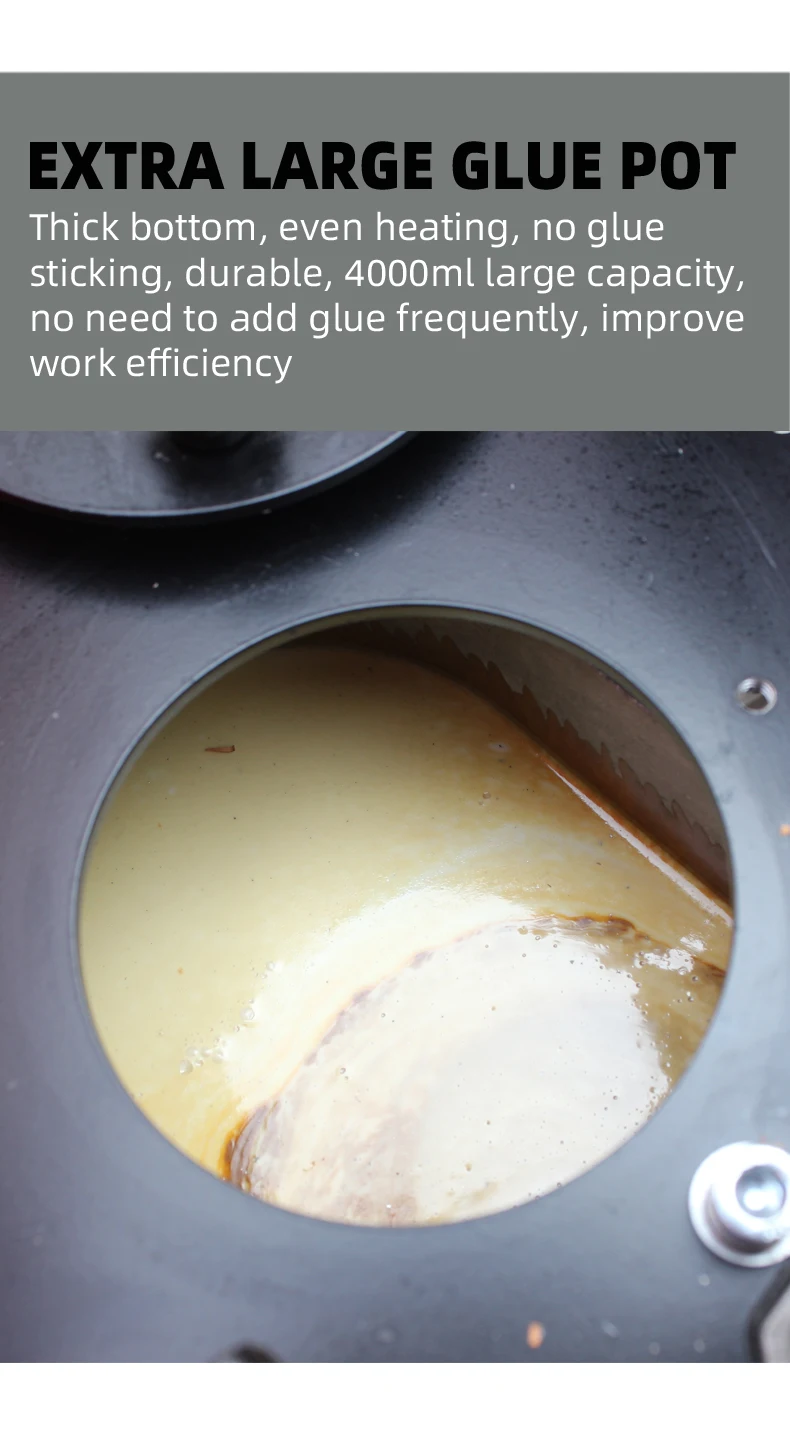

The 4000 ml glue pot capacity matters for batch continuity. Smaller pots require mid-run refills, which introduce temperature fluctuation and inconsistent adhesive application. A pot of this volume supports a full morning shift of standard panel work without interruption, assuming normal ambient conditions and typical glue consumption rates.

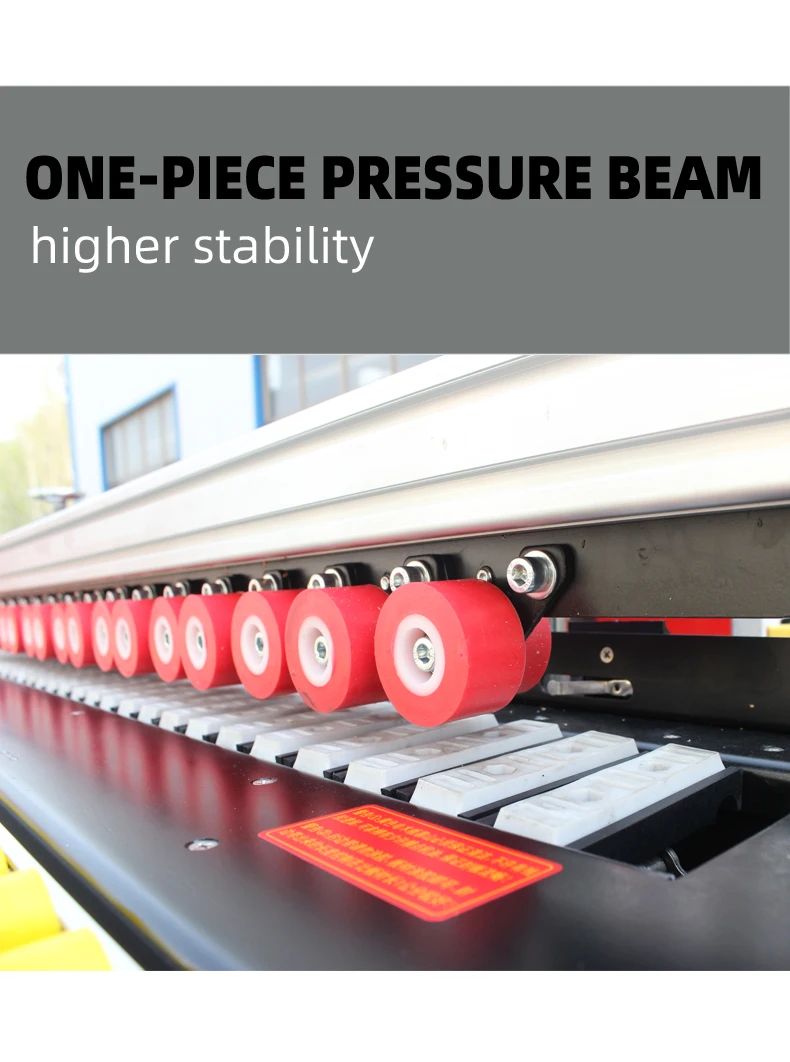

Vacuum hold-down at 1200W ensures panels remain flat against the feed table throughout the banding and trimming sequence. Without adequate vacuum, thinner substrates such as 3 mm MDF backing boards can lift slightly during trimming, producing an uneven edge profile that only becomes visible during assembly.
The Hidden Cost of Specifying Only on Price
When buyers select an edge bander based on quotation amount alone, mismatches appear during the first production week. A machine undersized for daily volume develops premature wear on feed chains and trimming bearings. Control panels arrive in a language the operator cannot read, stalling commissioning until translation overlays are fabricated locally. Panels processed on incompatible feed heights show inconsistent glue lines that are discovered only when cabinets fail alignment checks during installation [NEED_CITE: common edge banding defects traced to machine-workshop mismatch].
These issues compound because they surface after the machine has already been shipped, cleared through customs, and positioned on the factory floor. The cost of resolving them — in labor, replacement parts, and lost production time — regularly exceeds the savings gained from choosing a lower-priced quotation.
What Separates a Verified Purchase From a Speculative One
In-house manufacturing means the DW802 is built, tested, and verified under one roof rather than assembled from outsourced sub-assemblies with unclear provenance. Patented cutting mechanisms within the trimming stations deliver consistent edge removal across PVC, veneer, and melamine banding materials.
Voltage customization from 220V to 380V with frequency options is treated as a standard configuration step, not a special request that adds lead time. Each unit undergoes four-stage quality control — incoming material inspection, in-process verification, finished product testing, and pre-shipment confirmation — before it leaves the factory.
An engineer-led configuration process means the quotation you receive reflects your actual panel sizes, substrate mix, and local power supply rather than a generic price list entry. Factory visits are welcomed so buyers can witness test runs on their own material samples before signing off on the order.
Documentation & Verification
- CE declaration of conformity matching the DW802 configuration as shipped
- ISO 9001 certificate covering the manufacturing process for this machine family
- Full electrical schematic confirming voltage, frequency, and circuit protection ratings
- Factory test record processed on your specified panel thickness and banding material
- Operation and maintenance manual provided in the operator’s agreed language
- Packing photographs and customs documentation support for smooth import clearance
Installation, Commissioning & Support
- Floor space allocation based on the 130×60×95 cm footprint plus operator clearance on the feed side
- Dedicated circuit rated for 4200W total draw with appropriate breaker and isolation switch
- Air line connection at 0.4–0.8 MPa from a filtered and regulated workshop supply
- First-run parameter setting for glue temperature, feed speed, and trimming depth on your panel stock
- Operator training on control panel functions in the selected language
- Spare parts list identifying wear items including trimming blades, polishing wheels, and glue roller surfaces
How to Structure Your Inquiry
When you are ready to request a formal quotation, include the panel substrates you process most frequently, the edge banding materials and thicknesses in regular use, and your local voltage and frequency specification. If your workshop runs multiple shifts or processes panels outside the 25 cm minimum length, mention this so the engineer can confirm whether the DW802 meets your throughput expectation or whether a higher-tier model in the catalogue is more appropriate. Sample processing tests on your actual material can be arranged before order confirmation.
Frequently Asked Questions
Q: How does the DW802 compare to higher-tier edge banding models in the catalogue?
A: The DW802 covers standard edge banding, trimming, polishing, and automatic head-and-tail cutting. Higher-tier models add pre-milling, scraping, and buffing stations for high-gloss or thick solid-wood edges. Your substrate mix and finish requirements determine which tier fits. The full range is available from one manufacturer, simplifying future expansion.
Q: What voltage and frequency configurations are available for different export markets?
A: The machine supports 220V and 380V as standard, with additional voltage options on request. Frequency must be confirmed per destination market — 50Hz and 60Hz configurations are available. Voltage and frequency are locked in at quotation stage to ensure the motor, transformer, and control components match your local grid upon arrival.
Q: Which edge banding materials and thicknesses does this model handle?
A: The DW802 processes PVC, veneer, and melamine edge banding in thicknesses from 0.3 mm to 3 mm, with a banding height range of 0–50 mm. If you regularly use materials outside this range — such as thick solid-wood lipping or acrylic high-gloss strips — a higher-tier model may be recommended for consistent results.
Q: Can the control panel language be customized for local operators?
A: Chinese and English are standard. Spanish and other languages are available as customization options. Confirming the required language at quotation stage ensures the control panel and operation manual arrive in the correct version, avoiding commissioning delays caused by unreadable interface text.
Q: What documentation is included with shipment for customs and commissioning?
A: Each DW802 ships with a CE declaration, ISO 9001 certificate, electrical schematic with voltage confirmation, factory test record, operation manual in the agreed language, and spare parts list. Packing photographs and customs documentation support are provided to facilitate import clearance and on-site setup.
