Description
Voltage-First Configuration — every JL-1 boring machine ships with a confirmed electrical schematic matching your workshop’s supply and frequency before assembly begins.

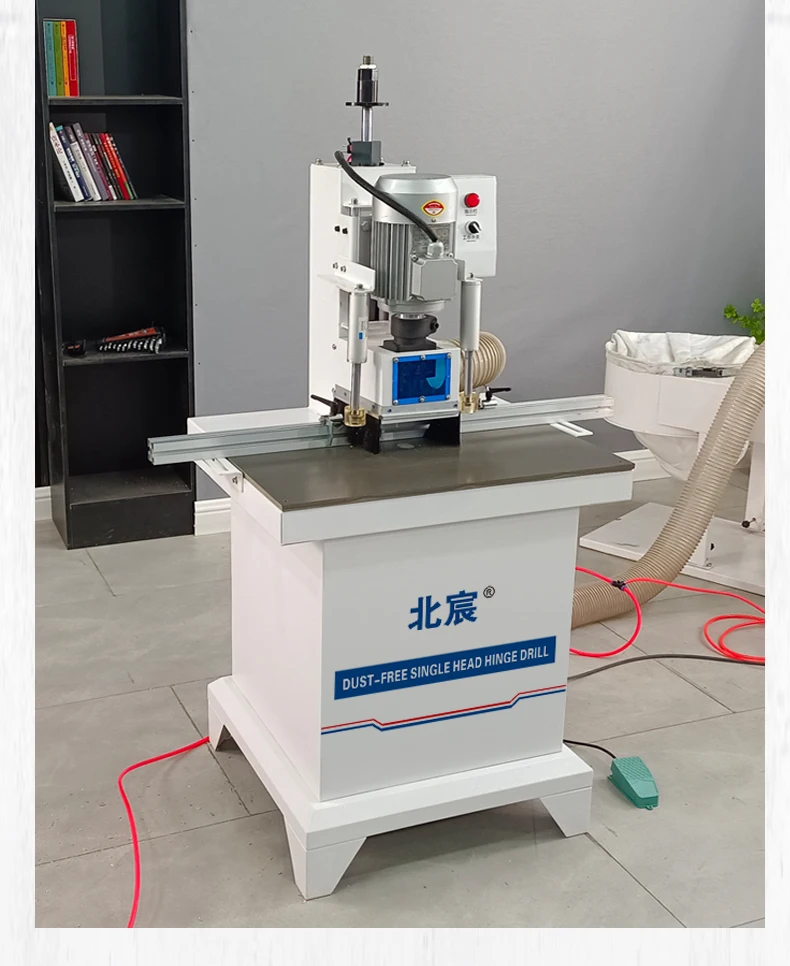

Technical Specifications

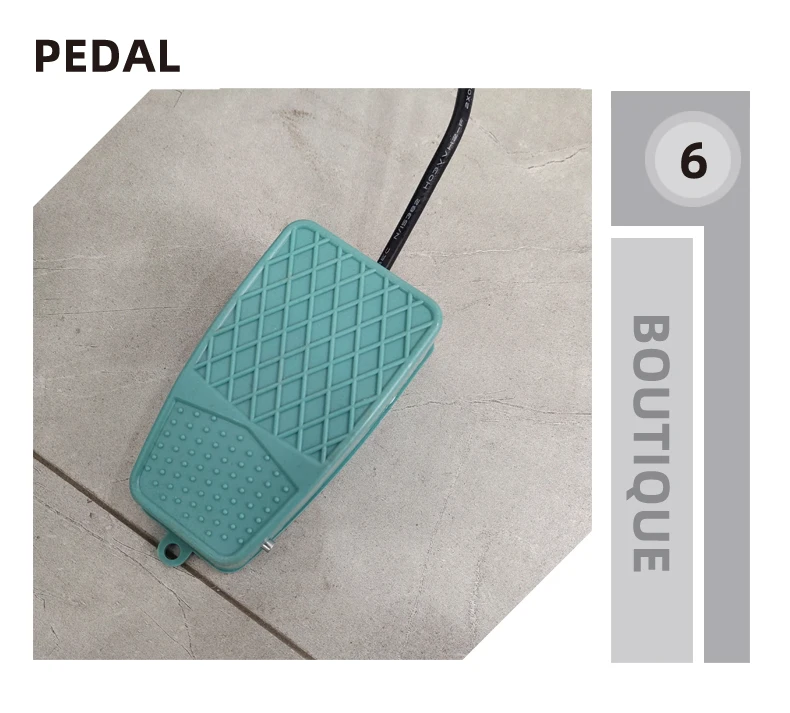

| Parameter | Value |
|---|---|
| Model | JL-1 |
| Product Type | CNC Wood Boring and Hinge Drilling Machine |
| Rated Power | 1.5 kW |
| Voltage & Frequency | 380V/415V three-phase four-wire (frequency 50Hz/60Hz to be confirmed per destination) |
| Control System | Foot switch control |

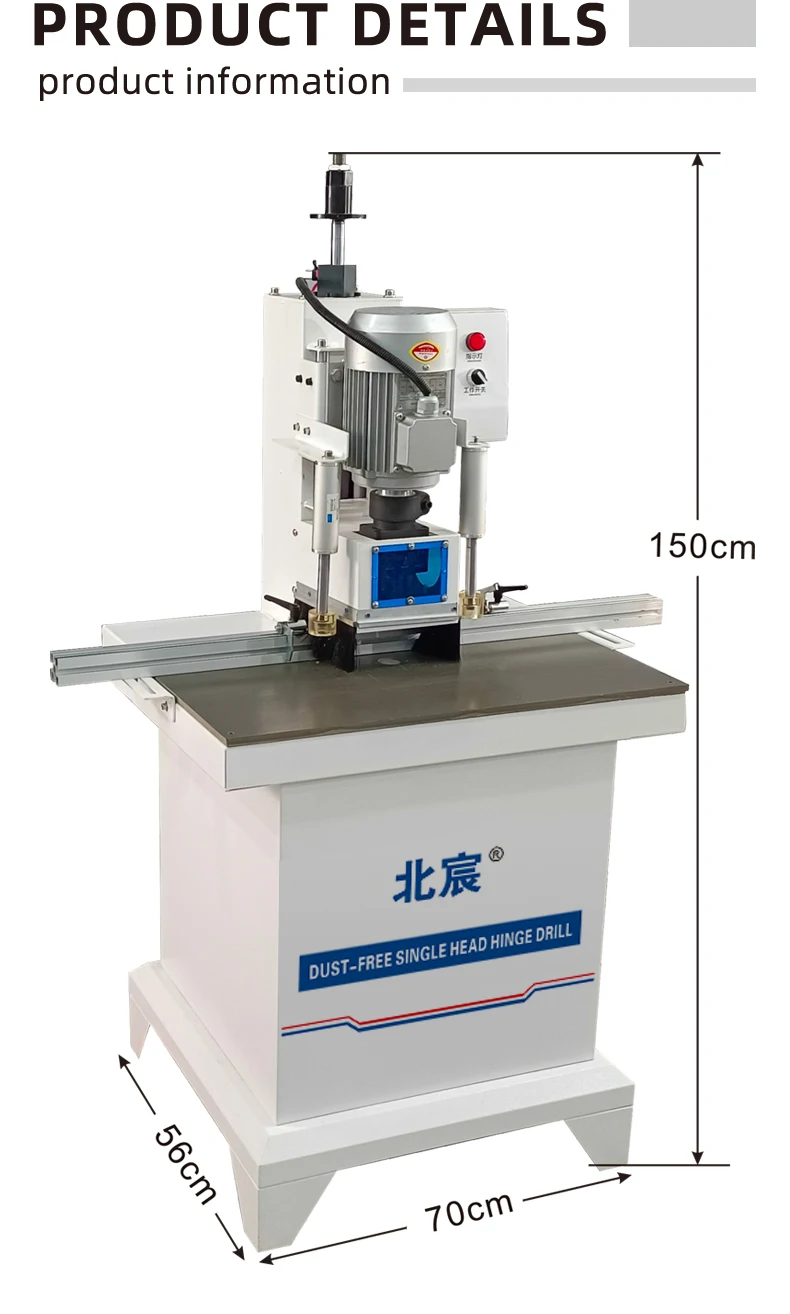

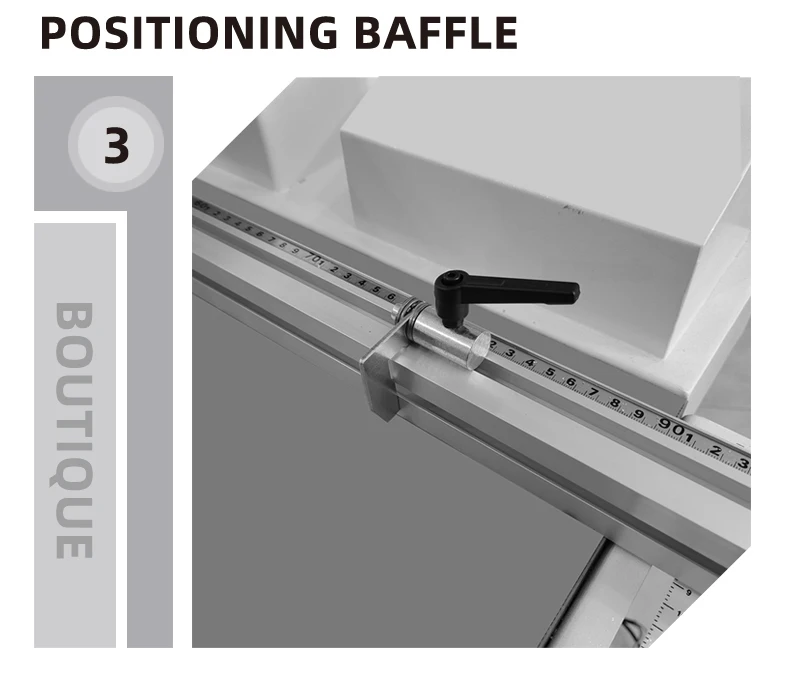

| Overall Dimensions (L×W×H) | 70×56×145 cm |
| Net Weight | 55 kg |
| Working Capacity | Cabinet door hinge hole opening |
| Drill Sizes | Large drill 35 mm, small drill 3 mm |
| Vacuum Power | External vacuum connection (port diameter and airflow requirement to be confirmed) |
| Guide Rail | Precision guide rails |
| Motor | Pure copper motor |
| Drilling Position Adjustment | Vertical and horizontal |
| Language Options | Chinese and English (customizable to Spanish or other languages) |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door hinge cup drilling | MDF and particleboard door panels up to standard hinge depths |
| Wardrobe panel hinge processing | Plywood and melamine-faced board for concealed hinge layouts |
| Furniture loose-leaf hole boring | Solid wood panels requiring pilot holes alongside 35 mm cups |
| Door manufacturing hinge stations | Pre-finished and raw panel stock in dedicated door assembly lines |
Why Voltage Confirmation Must Precede the Purchase Order
A boring machine wired for the wrong frequency will burn its motor within the first production shift.
I have watched workshops receive drilling equipment that was quoted on price alone, only to find the motor overheating because the local grid runs 60Hz while the machine was built for 50Hz. The copper windings inside a 1.5 kW motor are not forgiving of that mismatch. A hinge drilling machine for sale at an attractive price becomes dead weight when the control panel language is unreadable to the operator standing in front of it [NEED_CITE: voltage and frequency standards by export market]. The cost of rewinding a motor or replacing a contactor on-site always exceeds the ten minutes it takes to confirm these details before production starts.
Model Range Across the Hinge Boring Category
This JL-1 sits at the entry point of a broader CNC wood boring machine manufacturer catalogue that extends from single-row hinge stations to multi-spindle CNC configurations. A small joinery workshop moving away from hand-held routers can start here and add spindle heads later without changing suppliers. The foot switch control keeps both hands free for panel alignment, which matters when an operator is feeding door blanks one after another through a morning shift.
How the Dual Drill Head Configuration Serves Assembly Accuracy
The 35 mm large drill cuts the hinge cup cavity while the 3 mm small drill simultaneously bores the pilot holes for mounting screws. Doing both operations in one clamping cycle eliminates the registration error that accumulates when a panel is moved between separate machines. For cabinet factories running standard European concealed hinges, this dual-head setup maintains the relationship between cup depth and screw position across hundreds of door panels [NEED_CITE: European hinge cup dimension standards for cabinet doors]. The vertical and horizontal adjustment accommodates different hinge layouts without requiring fixture changes between jobs.
What the Guide Rail and Motor Specs Mean on the Shop Floor
Precision guide rails govern how consistently the drill head returns to position after each foot switch cycle. On particleboard, even slight rail play translates to oval hinge cups that cause doors to hang unevenly — a defect that only reveals itself during final assembly when the installer tries to adjust the hinge. The pure copper motor at 1.5 kW delivers stable torque through dense MDF without stalling mid-bore, which would otherwise leave a torn cup wall that rejects the hinge. External vacuum extraction is specified but the port diameter and airflow requirement should be confirmed against your workshop’s central dust collection system before installation [NEED_CITE: industrial dust extraction requirements for woodworking machinery].
The Hidden Cost of Skipping Pre-Shipment Panel Testing
Workshops that order a hinge drilling machine for sale based on a brochure specification alone often discover tolerance problems only when assembled cabinets show misaligned doors. Particleboard from different suppliers varies in density, and a drill speed that works cleanly on one batch may tear the melamine face on another. Without a factory test record run on your actual panel stock before the machine leaves the production floor, you are commissioning blind. The debugging time spent on-site — adjusting feed pressure, swapping drill bit geometries, rewriting parameters — is time your assembly line stands idle [NEED_CITE: panel material variability effects on drilling quality].
What Sets This Procurement Path Apart
The engineer-led configuration process means your JL-1 is quoted with your local voltage, frequency, and plug type documented before the build begins, not assumed after payment. The four-stage quality control sequence includes a pre-shipment test on sample panels that match your production material, so drilling tolerance is verified before the crate is sealed. Customization of the control panel language to Spanish, Portuguese, or other operator languages is treated as a standard configuration step rather than a special request. The full product family — from this single-row entry model through to multi-spindle CNC lines — lets a workshop scale its boring capacity without introducing a second supplier’s spare parts ecosystem.
Documentation & Verification
- Electrical schematic confirming voltage, frequency, and plug type for your destination market
- Factory test record drilled on your specified panel thickness and material grade
- Operation manual translated into the agreed operator language before dispatch
- Spare parts list matched to the drill bit sizes and guide rail components on your unit
- CE declaration of conformity covering the machine’s electrical and mechanical safety scope
- Packing photographs documenting crate condition and component securing before handover
Installation, Commissioning & Support
- Floor space of 70×56 cm footprint with clearance behind for panel loading at 145 cm height
- Dedicated 380V/415V three-phase circuit with confirmed frequency before electrical connection
- Machine arrives as a single unit requiring power and vacuum hookup rather than multi-component assembly
- First-run parameter setting on your actual hinge layout using the 35 mm and 3 mm drill heads
- Operator training on foot switch sequencing and vertical-horizontal position adjustment routines
- Replacement drill bits and guide rail lubrication schedule documented in the maintenance manual
What to Include in Your Inquiry
To receive an accurate configuration proposal for this CNC wood boring machine manufacturer offering, provide your panel material type and typical door dimensions, your workshop’s voltage and frequency supply, and the hinge brand and cup diameter you are currently running. If you operate in a multi-language environment, specify the preferred control panel language. Sharing your daily door volume helps determine whether this single-row model matches your throughput or whether a multi-spindle configuration is more appropriate.
Frequently Asked Questions
Q: How do I confirm the JL-1 will work with my local power supply?
A: Share your workshop’s voltage, phase configuration, and frequency with the engineering team before order confirmation. The machine supports 380V/415V three-phase four-wire input, and a formal electrical schematic is produced confirming compatibility with your grid before the unit enters assembly. This document is included in your pre-shipment verification pack.
Q: What hinge types and panel thicknesses can this machine handle?
A: The JL-1 is configured for standard 35 mm European concealed hinge cups with 3 mm pilot holes, working across MDF, particleboard, and plywood door panels. The vertical and horizontal drilling position adjustment accommodates varying hinge mounting plate layouts. Share your specific hinge brand and panel thickness range for a confirmed capability assessment.
Q: Can the control interface be set to a language other than English?
A: Yes. Chinese and English are standard, and the control panel can be customized to Spanish or other languages as part of the configuration process. This is treated as a standard specification item during the quotation stage, ensuring your operators can read all settings and diagnostic messages from the first day of production.
Q: How is drilling accuracy verified before the machine ships?
A: A factory test record is produced using sample panels that match your production material and thickness. The test demonstrates hinge cup diameter, depth, and pilot hole positioning against your specified tolerances. This record, along with photographs of the test panels, is included in your documentation package before dispatch.
Q: What consumables and spare parts arrive with the initial shipment?
A: The machine ships with drill bits sized to the 35 mm and 3 mm heads specified in your configuration, along with a spare parts list covering guide rail components and motor brushes. A maintenance manual documents the replacement intervals for each consumable item, and additional spares can be included based on your expected production volume.
