Automatic Woodworking Miniature Fully Automatic Curved and Straight Dual-purpose PVC Edge Banding Machine
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Other Woodworking Machinery Woodworking Machinery

Automatic Woodworking Miniature Fully Automatic Curved and Straight Dual-purpose PVC Edge Banding Machine

This product is currently out of stock and unavailable. SKU: Automatic Woodworking Miniature Fully Auto-36310402 Categories: Other Woodworking Machinery, Woodworking Machinery Description Additional information Description Products Disply ZDSF190Z Fully Automatic Curved and Straight Dual-purpose Edge Banding Machine Miniature Fully Automatic Curved and Straight Dual-purpose Edge Banding MachineThe use of square slide rail realizes profiling and […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply

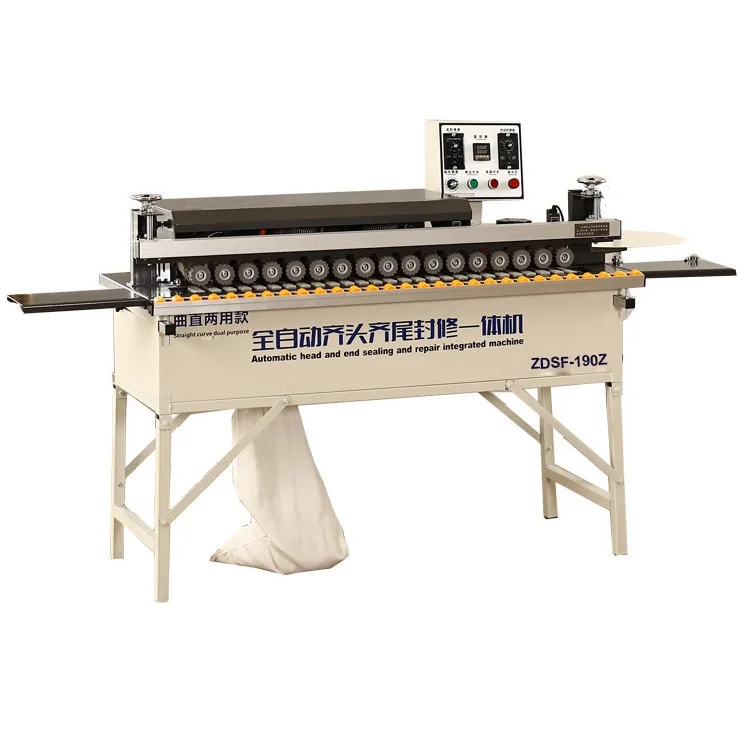

ZDSF190Z Fully Automatic Curved and Straight Dual-purpose Edge Banding Machine
Miniature Fully Automatic Curved and Straight Dual-purpose Edge Banding Machine
The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler transmission. we use steel rod slide rails. which is more stable in delivery. and the real materials can be seen!
Minimum board width for edge sealing 2.5cm.
Product Paramenters
Model
ZDSF190Z


Function
Automatic plate feeding
Automatically break the belt
Double-sided gluing
Upper and lower trimming and polishing
Curved and straight edgebanding
Large diameter surrounding vacuum
Edge type
Both curved and straight lines
Voltage
220v50hz
Rated power
4kw
Rated air pressure
0.4-0.6mpa
Suction
1200w
Belt power
25w
Transmission power
120w
Heating power
800w
Polishing power
180w*2
Trimming power
800w*2
Conveyer belt
0-14m/min
Feed plate
0-14m/min
Sheet thickness
10-50mm
Strip thickness
0.5-2.5mm
Glue capacity
1000ml
Overall size
1900*560*1300mm
Packing size
138*58*64cm
Weight
120kg
Product details
Control panel. multi-function button operation. save worry and effort.
The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.
It can be used for straight edge banding. and can be used for curved edge banding after rotating 180 degrees. which is powerful.
Pneumatically controlled edge strip cutting device makes work easier.
Double-row rubber pressure wheels. automatic plate feeding. large-size plates can also be transported stably.
2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.
Glue roller. adjustable glue volume.
Glue line cleaning device.
Extended feed plate. more convenient to use.
4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.
Polishing device. cross polishing up and down.
Comes with a tray for edge banding.
Recommend Products
Packing & Delivery
Company Profile

ABOUT US

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a CNC machinery company in Lunjiao. Foshan
City.
Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. CNC nesting machine. CNC wood router. CNC six-sided drilling and milling processing center. CNC side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries. In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you
proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Get in Touch

Request a Free Quote

Tell us your requirements and our engineers will provide a tailored solution with full specifications and formal quotation within 24 hours.

WhatsApp (Español)
Peter: +86 185 6023 3698
Sending...

We respect your privacy. Your information will only be used to respond to your inquiry. Typical response time: within 24 hours.

You May Also Like

Related Products

Wood Based Panels Machinery

XZF450 Woodworking Bevel and Straight Edge Banding Machine 45 Degree Pre Milling Edge Bander Machine

30/45/60 Degree Bevel Edge90 Degree Straight Edge Product Name:ZXF-450 Fully Automatic Bevel&Straight Edge Banding MachineFunction:Gluing.End cutting.Trimming.Scraping.BuffingEdge shapeBevel&StraightVoltage380V(220V needs customize)Total Power9.5KWSpeed0-12m/minBoard thickness:0-50mmStrip thickness:0.5-3mmGlue pot capacity:4000mlDimension:300*65*135cmWeight??/DIV>430kgOur ServiceWe can provide you with various custom services Control panel Milling Shape Cutter Package And Shipping Company Profile ABOUT USZhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels […]

View Details
Wood Based Panels Machinery

Good Price Semi Automatic Edge Banding Machine for Wood

Products Disply edge banding machine with auto gluing and trimming buffing and automatic end cutting The high-speed automatic edge banding machine has the function of automatic end cutting.with its own vacuum device. clean and tidy.One-piece pressure beam. double rows of pressure wheels. silicone material conveyor belt. the sheet conveying is stable and not easy to […]

View Details
Wood Based Panels Machinery

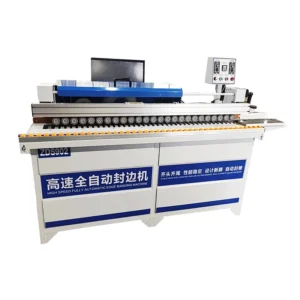

Manual Edge Banding Machine Double Side Gluing Portable Edge Bander Woodworking Edge Banding Machine
