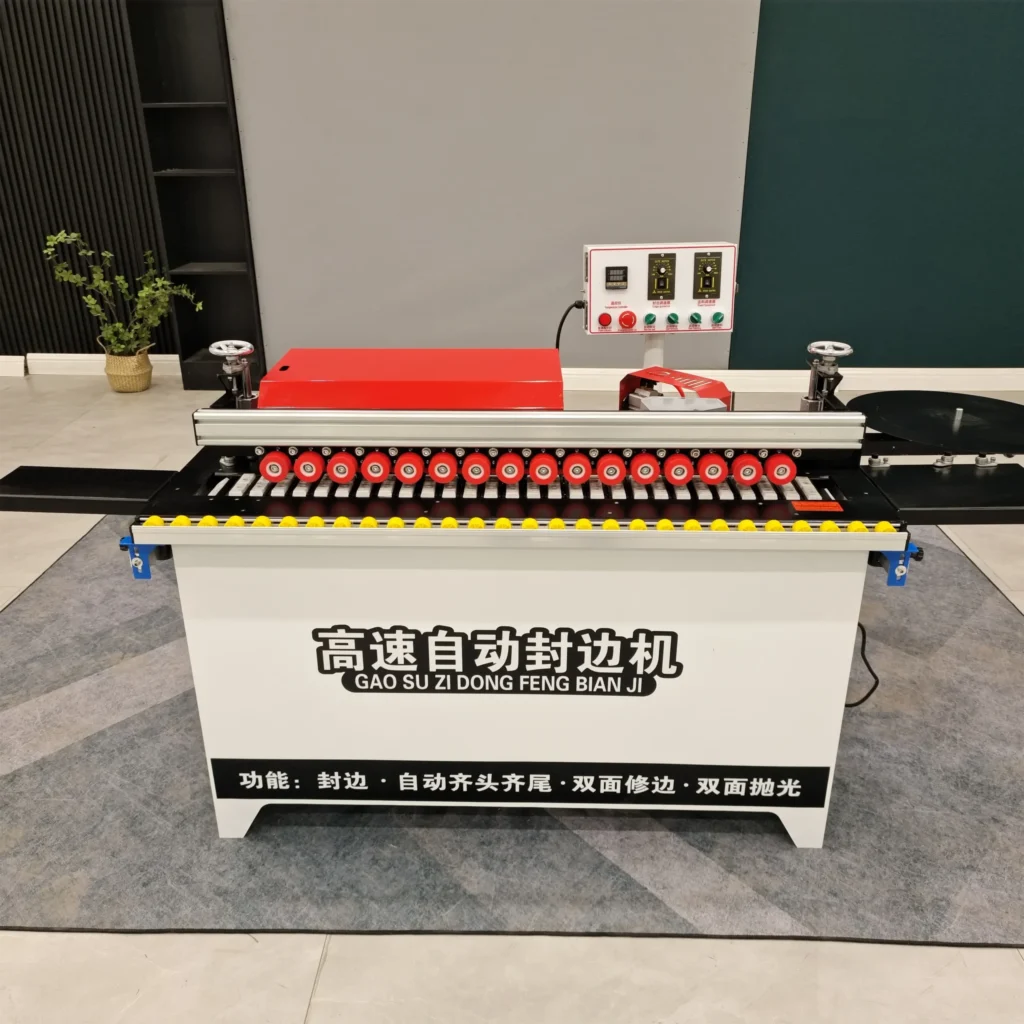

Automatic Wood Based Board Mdf Melamine Pvc Edge Bending Machine
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

Automatic Wood Based Board Mdf Melamine Pvc Edge Bending Machine

This product is currently out of stock and unavailable. SKU: Automatic Wood Based Board Mdf Melamine P-36310942 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply Product Parameters ModelZDSF802 Full-line Auto Edge Banding Machine802FunctionGluing. End cutting. Trimming.Vacuumming. BuffingRated voltage220VRated power4KWStrip thickness0.5-2.5mmSheet thickness10-50mmRated air pressure0.6-0.8mpa0.4-0.6mpaWorking speed0-7m/min0-10m/minConveyer belt0-14m/min0-10m/minGlue capacity4000ml4000mlOverall size190*60*130cm130*65*75cmMachine weight150kg150kg our servicesWe can […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply
Product Parameters
Model
ZDSF802 Full-line Auto Edge Banding Machine
802
Function
Gluing. End cutting. Trimming.Vacuumming. Buffing
Rated voltage
220V
Rated power
4KW
Strip thickness
0.5-2.5mm
Sheet thickness
10-50mm
Rated air pressure
0.6-0.8mpa
0.4-0.6mpa
Working speed
0-7m/min
0-10m/min
Conveyer belt
0-14m/min
0-10m/min
Glue capacity
4000ml
4000ml
Overall size
190*60*130cm
130*65*75cm
Machine weight
150kg
150kg
 our services
We can provide you with various custom services
Product details
Control panel. digital display of glue pot temperature. independent switch. easy to operate.
Integrated pressure beam. double rows of pressure wheels. silicone material conveyor belt.
4000ml Large-capacity glue pot reduces the number of glue additions and improves efficiency.
702 model glue pot is 1000ml.
Pneumatically controlled belt breaking method is precise and labor-saving.
Extendable fluent strips. more stable and convenient when sealing large plates.
Double high-speed trimming motors. trimming up and down. the trimming effect is beautiful.
Up and down two polishing motors. the polishing effect is better.
edge banding tray.
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
