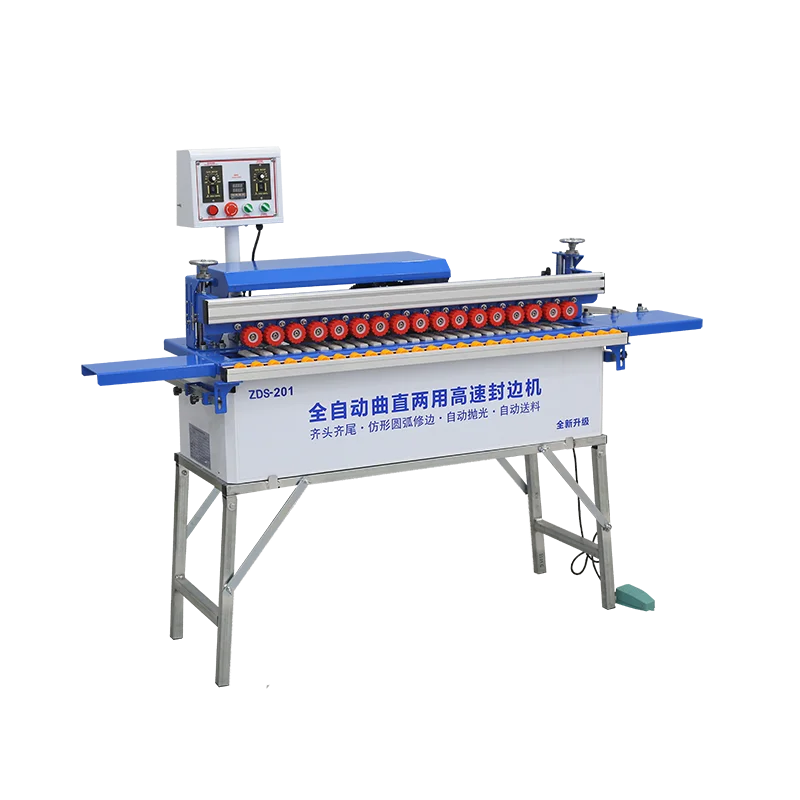

Automatic Trimming / Buffing/Curved and Straight Edge Banding Machine With Trimmer for MDF Wood
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

Automatic Trimming / Buffing/Curved and Straight Edge Banding Machine With Trimmer for MDF Wood

This product is currently out of stock and unavailable. SKU: Automatic Trimming / Buffing/Curved and St-36310871 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply Fully automatic straight and curved high-speed edge banding machineThe use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply
Fully automatic straight and curved high-speed edge banding machine
The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler transmission. we use steel rod slide rails. which is more stable in delivery. and the real materials can be seen!

Product Paramenters
Heating power
1.2kw
Edge banding speed
0-26cm/s
Edge banding thickness
0.3-3mm
Total power
3KW
Panel thickness
8-50mm
Feeding speed
0-15m/min
Dimension(L*W*H)
1200*450*750
transport power
180w
Weight
 85kg
Function
Automatic Trimming Aand Buffing.Curved And Straight EdgeBanding
Product details
Control panel. multi-function button operation. save worry and effort.
The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.
It can be used for straight edge banding. and can be used for curved edge banding after rotating 180 degrees. which is powerful.
Pneumatically controlled edge strip cutting device makes work easier.
4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.
Polishing device. cross polishing up and down.
Comes with a tray for edge banding.
