Description
Full Model Family Access — The DW802 sits within a complete tier lineup from entry-level to full-function pre-milling, letting workshops scale without changing suppliers.
Technical Specifications
| Parameter | Value |
|---|---|

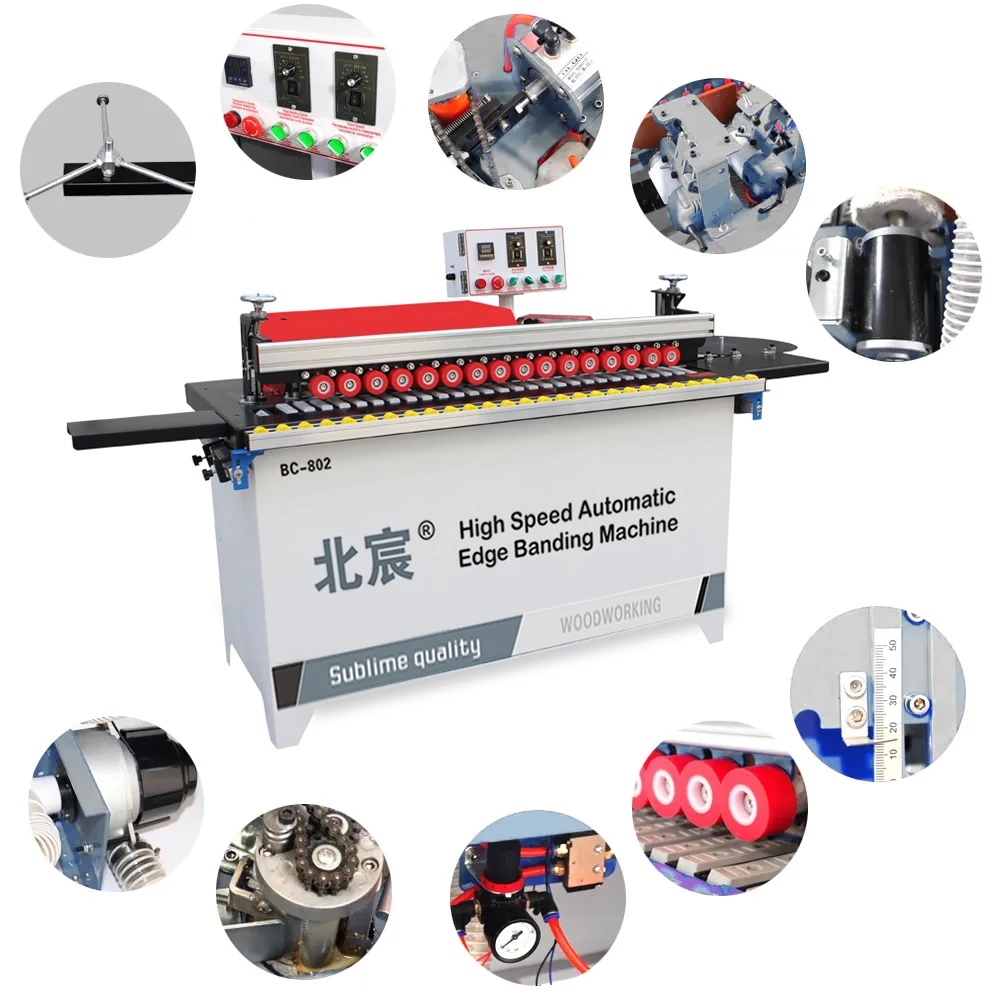

| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage | 220V / 380V / customization available |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Edge Feed Power | 140W |
| Transmission Power | 140W |
| Trimming Power | 800W × 2 |

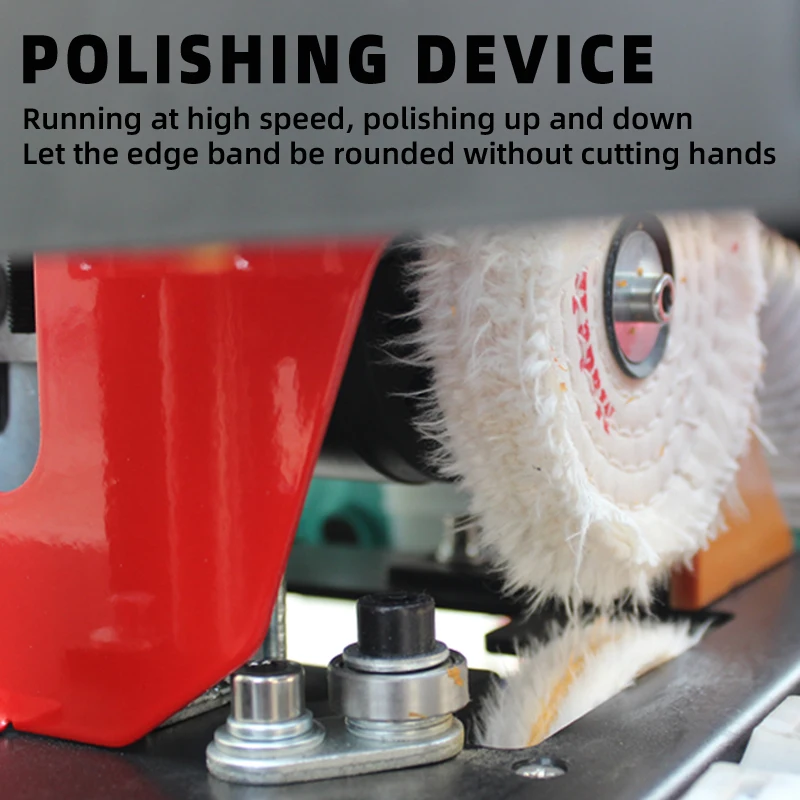

| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Air Source Pressure | 0.4–0.8 MPa |
| Glue Pot Capacity | 4000 ml |
| Processing Type | Straight edge only |
| Product Size (L×W×H) | 130 × 60 × 95 cm |
| Product Weight | 135 kg |
| Control Panel Language | Chinese and English (customizable) |
| Key Features | Edge banding, trimming, polishing, automatic head-and-tail cutting, vacuum hold-down |
| Feed Speed | (basis to be confirmed) |
| Tolerance | (basis to be confirmed) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door sealing | MDF with PVC or ABS edge banding, 0.4–2 mm thickness |
| Wardrobe and shelving panel edging | Particleboard with melamine or veneer strips |
| Plywood casegoods edge finishing | Plywood panels with solid wood or PVC banding |
| Home decoration built-in joinery | Ecological board and blockboard, straight-edge profiles |
| Small-batch furniture workshop output | Mixed substrates in low-to-medium daily volume runs |
Why the Voltage Question Must Come Before the Quotation on Any Automatic Edge Banding Machine
A machine quoted without confirming local voltage and frequency will arrive unusable — and the fix is never as simple as swapping a plug.
I once watched a customer in Southeast Asia take delivery of an edge bander wired for 380V/50Hz while the local grid ran 220V/60Hz. The motor overheated on the first shift, the glue pot never reached temperature, and the trimming motors stalled mid-panel. The whole line sat idle for three weeks while new motor windings were shipped in. That Automatic Edge Banding Machine manufacturer should have asked about supply specs before sending a quotation. [NEED_CITE: voltage and frequency standards by export market]
The DW802 is configurable for 220V, 380V, or custom supply requirements. The voltage confirmation step happens before the order is finalized, not after the crate arrives at your dock.
Mapping the DW802 Across the Edge Banding Tier Lineup
The DW802 is positioned as an entry configuration within a broader product family. Workshops evaluating their first automatic edge bander or replacing a manual glue-and-clamp setup will find this model covers the essential functions: gluing, end-cutting, trimming, and polishing in a single pass. Because the same manufacturer offers mid-range and full-function pre-milling models above this tier, a growing operation can add capacity later without relearning a different control system or negotiating with a second supplier.
Understanding Where This Model Fits Your Production Stage
If your shop is running under a few hundred panels per shift and the substrate mix stays within MDF, particleboard, and plywood on straight edges, the DW802 addresses that workload without carrying the cost of functions you have not yet needed. When volume grows or you begin processing curved edges and high-gloss acrylic banding, the upgrade path within the same product family keeps training, spare parts, and service relationships consistent. [NEED_CITE: CE machinery directive requirements for industrial equipment]
How the Numbers on the Spec Sheet Translate to the Shop Floor

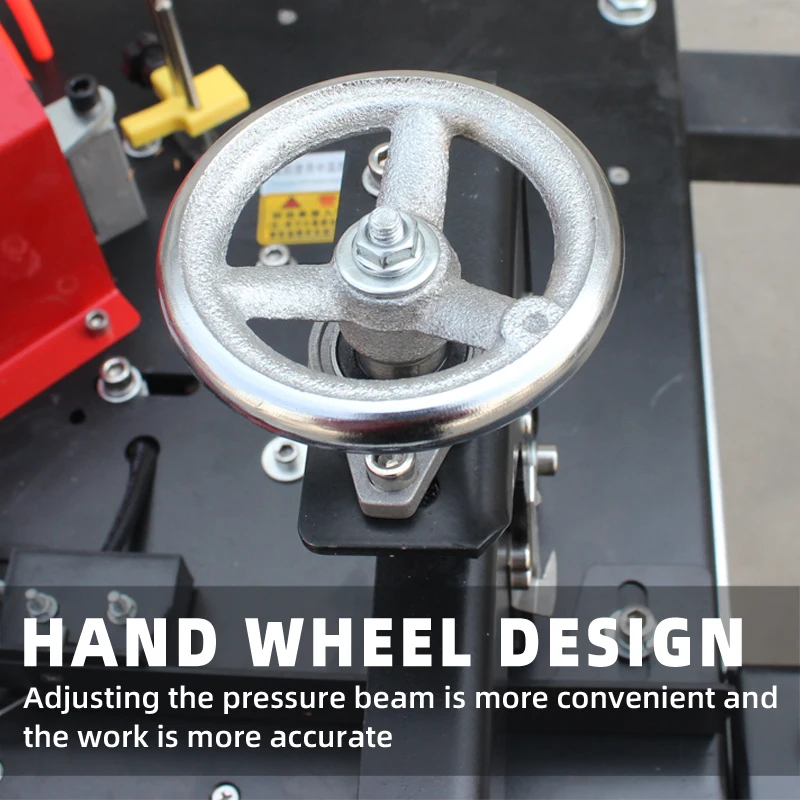

The 4000 ml glue pot capacity means fewer refill pauses during a continuous run, which matters when you are edging a batch of cabinet sides back-to-back. The trimming pair at 800W each provides enough torque to cleanly shear PVC and thin wood veneer without tearing the substrate edge. The 0.3–3 mm banding thickness range covers most PVC and ABS materials used in panel furniture, plus thin solid wood strips. The 0–50 mm banding height accommodates standard 18 mm board as well as thicker blockboard used in shelving and worktops. The silica gel conveyor belt with integrated pressure beam feeds panels without scratching the laminate surface, which is a common complaint when shops run high-gloss melamine boards through machines with standard rubber belts.
The Hidden Cost of Choosing Outside a Unified Product Family
Buying machines piecemeal from different manufacturers often means discovering — after installation — that feed heights do not align, throughput rates mismatch between stations, and control languages differ across the line. I have seen workshops spend more time troubleshooting the gap between two unrelated machines than actually producing panels. When the entire edge banding range comes from one Automatic Edge Banding Machine manufacturer, the engineering team can confirm that the DW802’s output speed and panel dimensions match the upstream saw and downstream boring equipment you already run or plan to add. [NEED_CITE: production line compatibility in panel furniture manufacturing]
What Buying from This Manufacturer Actually Means for Your Order
The DW802 is built in-house, not rebranded from a third-party assembler, so specification changes like custom voltage wiring or control panel language are handled on the production line rather than through a middleman. The four-stage quality process — incoming material inspection, in-process checks, finished product testing, and pre-shipment verification — applies to every unit before it is crated. Patented cutting mechanisms and precision-ground components are manufactured on-site. Engineer-led configuration means you receive a written proposal matching your substrate and volume before committing, not a generic catalogue price. Factory visits are accepted, so you can inspect the full model range and see machines at different tiers running side by side.
Documentation & Verification
- CE declaration of conformity issued for the DW802 unit before dispatch
- ISO 9001 certificate covering the manufacturing facility
- Electrical schematic with confirmed voltage and frequency for your site
- Machine specification sheet listing all verified parameters and options
- Factory test record run on your specified panel thickness and edge material
- Operation and maintenance manual written in the language you select at order
Installation, Commissioning & Support
- 130 × 60 cm footprint requires a level concrete floor with 95 cm overhead clearance
- 4200W total draw needs a dedicated circuit matching your confirmed 220V or 380V supply
- Machine ships fully assembled; position, level, connect air at 0.4–0.8 MPa, and power on
- First-run glue temperature and feed calibration performed against your actual panel stock
- Operator training covers the multilingual control panel and daily maintenance checkpoints
- Spare parts list includes trimming cutters, polishing wheels, and conveyor belt segments
What to Share When Requesting a Quotation
Send the substrate types and thicknesses you run most often, the edge banding material and thickness range, and your local voltage and frequency. If you already have a panel saw or boring machine upstream, include the model and feed height so the configuration team can verify compatibility. Specify the control panel language your operators need.
Frequently Asked Questions
Q: How does the DW802 compare to other models in the Ruiqi edge banding range?
A: The DW802 is the entry configuration, handling straight-edge sealing with trimming and polishing. Higher tiers add pre-milling, corner rounding, and scraping for shops processing high-gloss or acrylic banding at greater volume. Choosing within one family means consistent controls and spare parts as you scale.
Q: What voltage and frequency options are available for my target market?
A: The DW802 supports 220V, 380V, and custom configurations. Voltage and frequency are confirmed during the quotation stage, and the electrical schematic is reviewed before production begins so the machine matches your local supply exactly.
Q: How do I choose between entry-level and full-function models for my workshop scale?
A: Share your daily panel count, substrate mix, and edge material types. The engineering team maps your requirements against each tier and recommends the model that covers your current output with room to grow, avoiding over-investment in functions you have not yet needed.
Q: What panel materials and edge banding thicknesses does this model support?
A: The DW802 processes MDF, particleboard, plywood, solid wood board, and ecological board. It accepts edge banding from 0.3 to 3 mm thick and handles panel thicknesses within the 0–50 mm banding height range, covering standard furniture board and thicker shelving stock.
Q: Can I visit the factory to see the complete machine lineup before deciding?
A: Factory visits are welcomed. You can see the DW802 alongside mid-range and full-function models running on test panels, inspect component quality at each assembly stage, and discuss configuration options directly with the engineering team on the production floor.
