Description
Full Product Range Access — the 802 automatic edge banding machine anchors a complete catalogue spanning entry-level to full-function pre-milling configurations, letting workshops survey every tier before narrowing down.
Technical Specifications
| Parameter | Value |
|---|---|

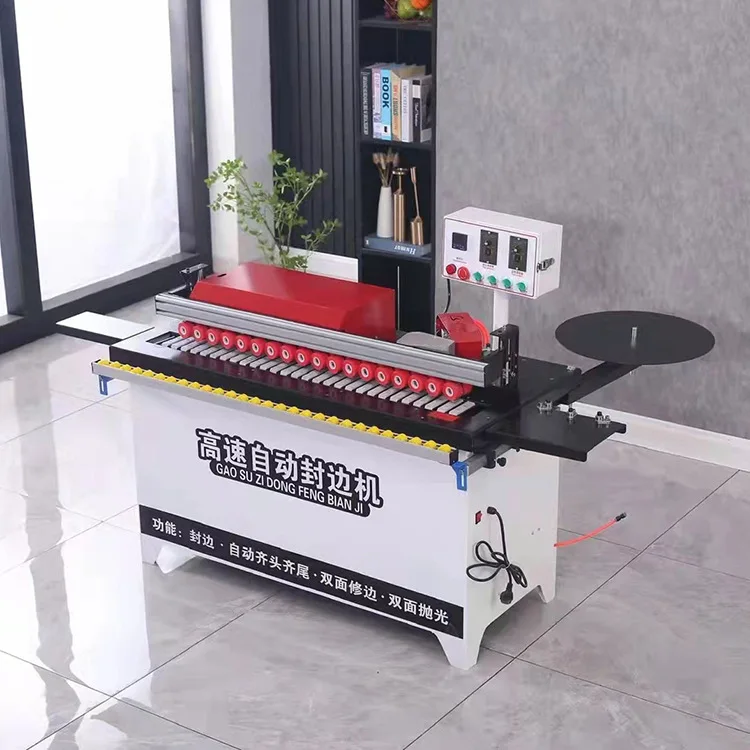

| Model | 802 |
| Product Type | Automatic Edge Banding Machine |
| Function Stages | Automatic plate feeding, end cutting, upper and lower polishing, head and tail trimming, integrated dust collector |
| Edge Type | Straight line |
| Rated Voltage | 220V |
| Strip Thickness Range | 0.5–2.5 mm |
| Sheet Thickness Range | 10–50 mm |
| Trimming Power | 800 W × 2 |

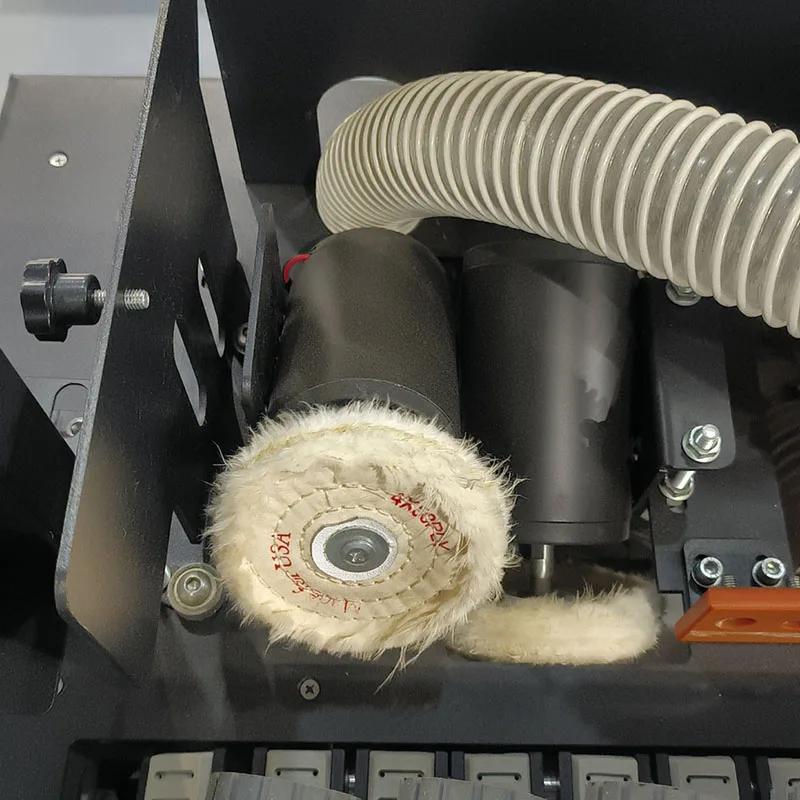

| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Rated Power | 4 kW |
| Heating Power | 1000 W (5–10 min warm-up) |
| Rated Air Pressure | 0.4–0.6 MPa |
| Feed Speed | 0–10 m/min |
| Glue Pot Capacity | 4000 ml |
| Conveyor Belt Material | Silicone |

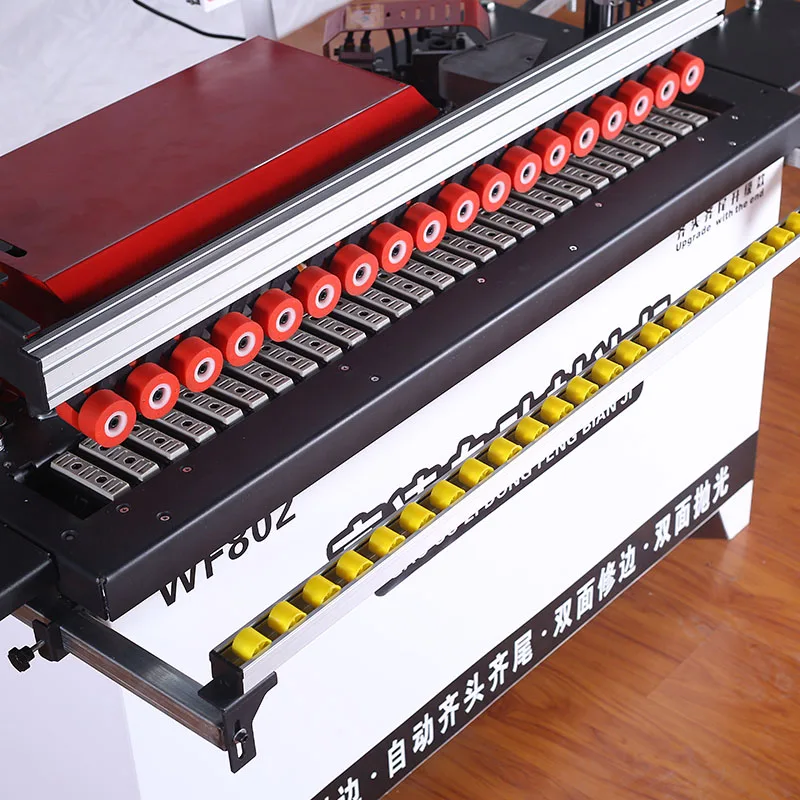

| Pressure Beam | One-piece, double rows of pressure wheels |
| Overall Dimensions | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
| Control Panel | Digital display of glue pot temperature, independent switch |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and particleboard with PVC edge banding |
| Wardrobe panel straight-line banding | Plywood and melamine-faced board |
| Small-batch furniture component finishing | Solid wood panels with veneer edge banding |
| Workshop transition from manual to automated | Mixed substrate batches requiring frequent material changeover |
Why the Glue Pot Size Decides Whether Your Line Keeps Running
A 4000 ml glue pot means fewer refills during continuous runs, and that directly determines whether a batch finishes intact or stalls halfway through.
I have watched a smaller-capacity glue pot run dry mid-batch on a custom cabinet order, leaving half the panels with inconsistent adhesion and visible glue lines on melamine substrates. The operator had to stop, wait for reheating, and restart — by then the glue temperature had drifted and the next dozen panels were scrapped. When you are surveying an automatic edge banding machine manufacturer’s full catalogue, glue pot capacity is one of those specifications that separates a unit suited for short runs from one that survives a real production day [NEED_CITE: edge banding glue temperature stability and adhesion failure rates].
Surveying the Full Edge Bander Catalogue

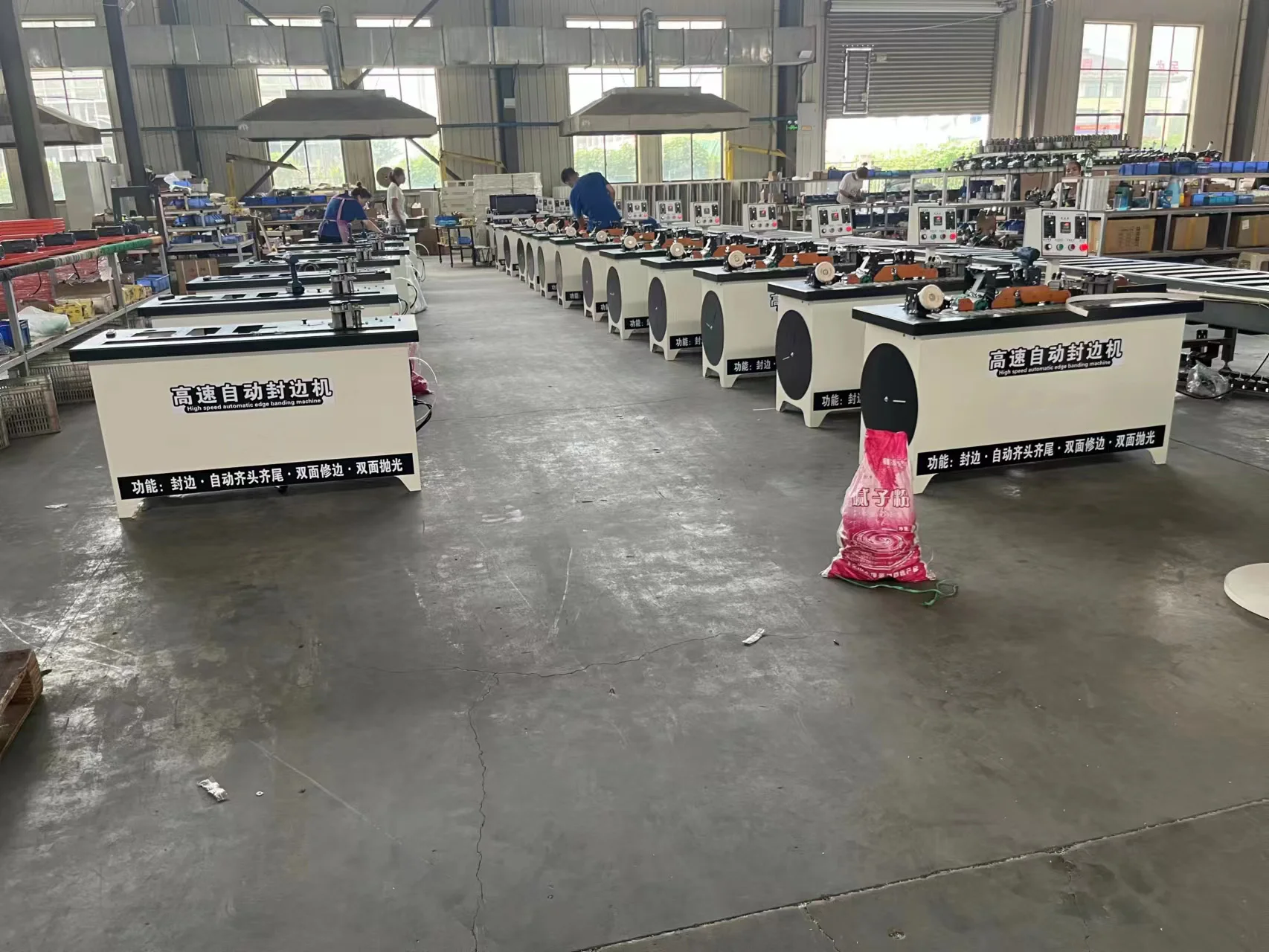

The 802 sits at a mid-tier position within a broader range that begins with compact workshop units and extends to full-function pre-milling machines. This matters when you are evaluating an automatic edge banding machine manufacturer because the upgrade path stays within one product family. A workshop can start here and move to higher-throughput models later without relearning controls or requalifying a new supplier.
How Model Tiers Map to Workshop Scale
Entry-level units handle intermittent runs with thinner stock, while the 802 accommodates sheet thickness up to 50 mm and strip thickness up to 2.5 mm — covering most standard cabinet and furniture panel specifications. Higher tiers in this catalogue add pre-milling stations and additional trimming functions for shops running abrasive substrates at sustained volume. Understanding where each tier sits lets a buyer match the machine to current output without overpaying for capacity that will sit idle [NEED_CITE: woodworking machinery selection by workshop throughput tier].
Reading the Specifications That Actually Matter

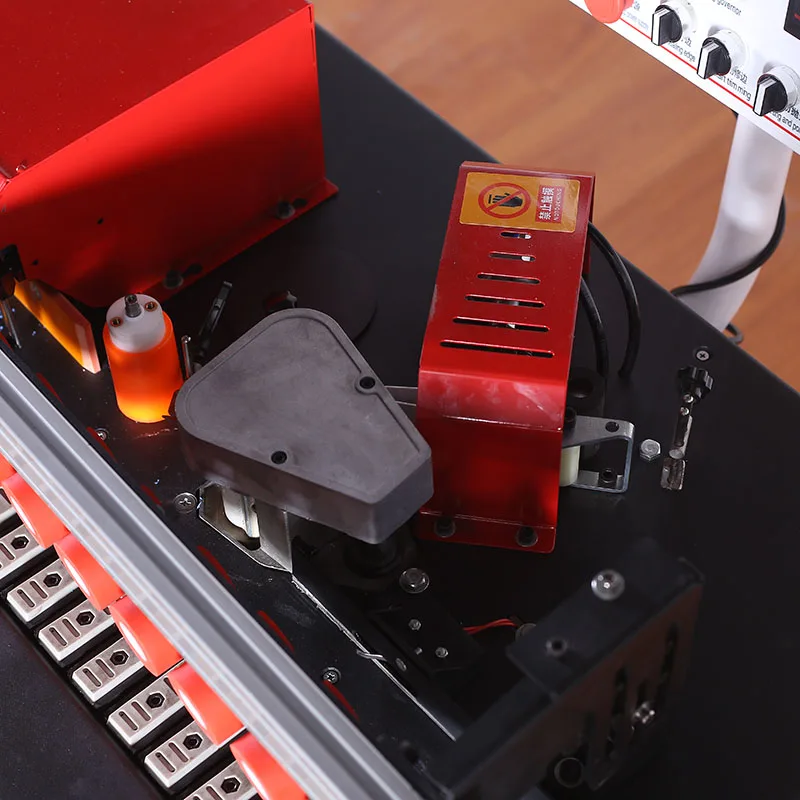

The 10–50 mm sheet thickness range covers the majority of panel stock used in custom furniture, from thin MDF drawer sides to thicker plywood shelving. The 0–10 m/min feed speed allows operators to slow down for delicate veneer banding or speed up for standard PVC runs. The dual 800 W trimming motors provide enough power for clean cuts on both soft PVC and harder melamine edges, reducing the tear-out that leads to rework downstream. Meanwhile, the 1000 W heating element with a 5–10 minute warm-up window means the glue pot reaches working temperature fast enough to keep morning startups efficient without overheating adhesive during idle periods.
What Happens When Machines Are Sourced Piecemeal
Buying one machine at a time from different suppliers often leads to mismatched feed heights and throughput rates between stations. Panels jam at the transfer point, operators compensate by hand-feeding, and the bottleneck shifts rather than disappears. A unified catalogue from one automatic edge banding machine manufacturer means infeed and outfeed geometries are engineered to align, reducing the friction that stalls a growing production line [NEED_CITE: production line throughput mismatch in panel processing].
Why Buyers Survey the Range Before Committing
Every model in this catalogue shares common control logic and component architecture, so operator training transfers across tiers. Spare parts overlap between adjacent models, which simplifies inventory for distributors stocking regional backups. When a workshop’s volume grows, the next machine up the range slots into the existing workflow without requiring new electrical infrastructure or compressed air capacity beyond what was already installed for the 802.
Documentation & Verification
- CE declaration of conformity covering the 802 and its integrated dust collector assembly
- Machine specification sheet confirming voltage, air pressure, and power ratings before order
- Electrical schematic with circuit identification for on-site electrician reference
- Factory test record on your specified panel thickness and edge banding material before dispatch
- Operation manual translated into the agreed language matching the control panel display
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for the 4 kW total draw with appropriate breaker sizing
- Compressed air supply must sustain 0.4–0.6 MPa at the machine inlet for pneumatic belt breaking
- Overall footprint of 130 × 65 × 75 cm fits through standard workshop doors without disassembly
- Extendable fluent strip supports must be leveled to match the silicone conveyor belt height for large panels
- Glue pot first-fill and warm-up cycle should be run before any production panels are fed
- Spare trimming blades and polishing wheels included for initial commissioning runs
What to Include in Your Inquiry
Provide the panel substrates you process most often — MDF, particleboard, plywood, or solid wood — along with the edge banding materials and thicknesses you run. Confirm your local voltage and frequency so the electrical configuration matches your facility before the machine leaves the factory. If you are evaluating this model against others in the range, share your daily panel volume and available floor space so the recommendation accounts for both current needs and foreseeable growth.
Frequently Asked Questions
Q: How does the 802 sit within the full edge bander range, and what model should a growing workshop plan toward?
A: The 802 occupies a mid-tier position with 4000 ml glue pot capacity, dual trimming motors, and a 10–50 mm sheet thickness range. Workshops currently running short batches can start here and move to full-function pre-milling models as volume grows, staying within the same product family and control architecture.
Q: Is the rated voltage configurable for different markets, and is frequency confirmed before shipment?
A: Voltage is configurable from 110V to 440V across the catalogue, and frequency is confirmed during the specification review stage. The electrical schematic provided before order documents the exact configuration so your on-site electrician can verify supply compatibility before the machine is energized.
Q: Can the control panel language be specified to match the operator at destination?
A: Yes, multilingual control panels are available across the range. The agreed language is confirmed during the specification stage and reflected in both the digital display configuration and the printed operation manual included in the documentation package.
Q: What OEM and private label options exist for distributors evaluating this model?
A: Custom logo placement, private label packaging, and tailored specification sheets are available for distributor-branded equipment. The manufacturing facility supports OEM runs from single units through larger production batches, with the same four-stage quality control applied regardless of branding.
