Description
Complete Product Family — The ZDSF210 sits within a full range spanning entry-level to full-function edge banders, letting workshops compare tiers before committing to a single purchase.
Technical Specifications
| Parameter | Value |
|---|---|

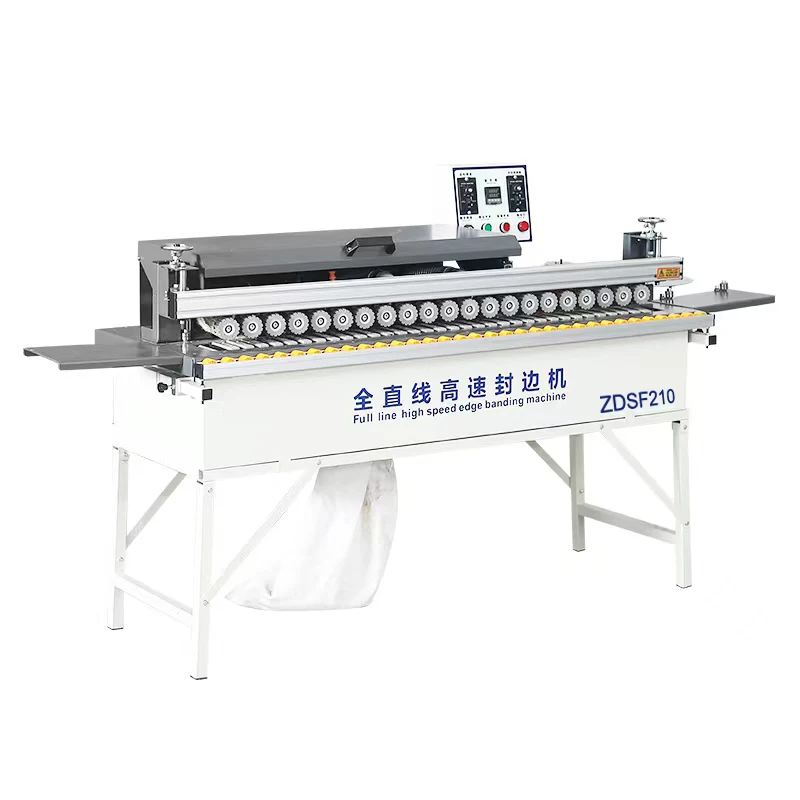

| Model | ZDSF210 |
| Product Type | Miniature Fully Automatic Straight Line Edge Banding Machine |
| Function | Automatic plate feeding, double-sided gluing, upper and lower polishing, automatic trimming, wood cleaning system |
| Edge Type | Straight lines |
| Voltage & Frequency | 220V 50Hz (basis not stated in source — confirm if 3-phase or single-phase) |
| Rated Power | 4 kW |
| Feed Speed | 0–14 m/min |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.6–2.0 mm |
| Glue Pot Capacity | 1000 ml |
| Heating Power | 800 W |
| Trimming Power | 800 W × 2 |

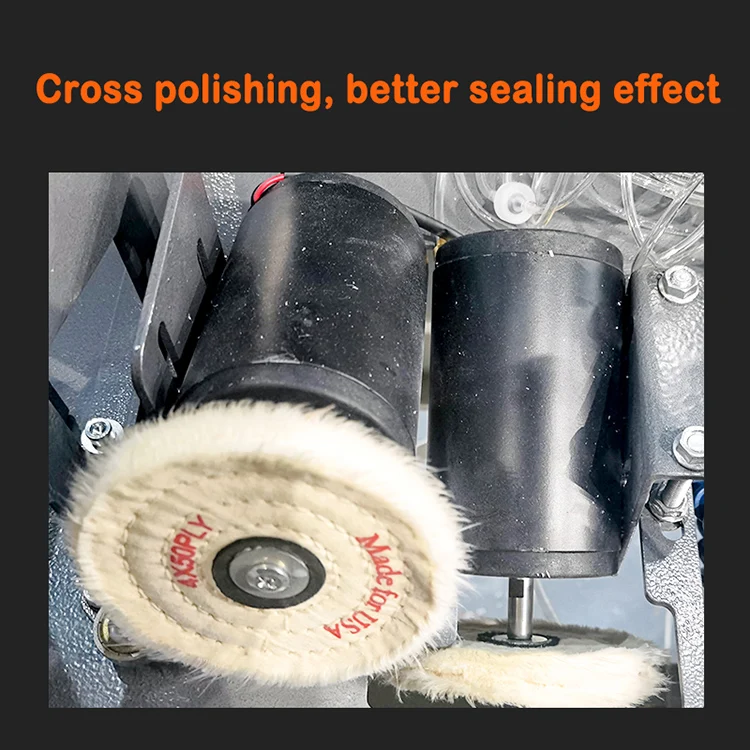

| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Rated Air Pressure | 0.4–0.6 MPa |

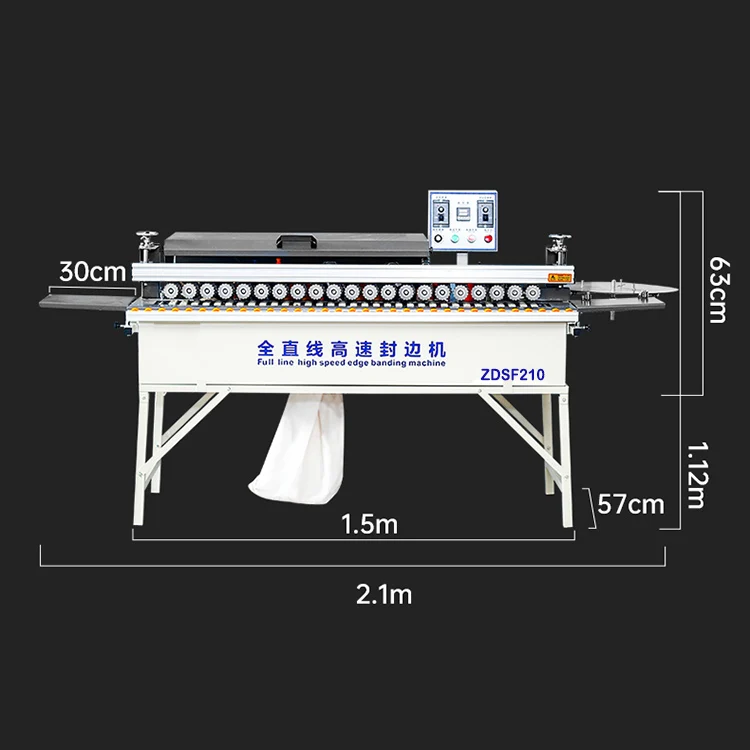

| Overall Dimensions (L×W×H) | 2100 × 570 × 1120 mm |
| Weight | 140 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and plywood with PVC edge banding |
| Small-batch furniture panel finishing | Particleboard with melamine or veneer strips |
| Joinery workshop straight-line work | Solid wood panels with thin veneer banding |
| Compact workshop panel processing | Plywood and MDF boards 10–50 mm thick |
Why the Voltage Question Must Come Before You Compare Any Edge Banding Machine for Sale
Confirming local supply voltage and phase before evaluating any edge bander prevents costly commissioning failures.
Machines quoted without verifying site electrical conditions arrive at factories only to sit idle. I have visited workshops in Lagos where a newly delivered unit could not start because the local supply ran at a different frequency than the motor winding specification. The ZDSF210 is configured at 220V 50Hz, but whether your site delivers single-phase or three-phase power at that rating changes the entire installation plan. Asking this question early avoids the situation where an edge banding machine for sale looks right on paper but cannot run on your shop floor [NEED_CITE: voltage and frequency standards by export market].
Where the ZDSF210 Fits Across the Full Catalogue
The ZDSF210 occupies the compact tier in a complete product family of edge banders. Workshops evaluating this unit can compare its 0–14 m/min feed speed and dual trimming stations against higher-tier models in the same range, making it straightforward to identify whether current volume justifies stepping up. This edge banding machine for sale serves as a practical entry point for joinery shops transitioning from manual edge application to mechanised processing.
Catalogue Comparison: Matching Model Tier to Production Stage
Buyers planning phased equipment rollouts benefit from surveying the full line before selecting a single unit. A startup cutting twenty panels per day may find the ZDSF210 sufficient, while a factory running three shifts needs to examine models further up the catalogue with additional trimming and profiling stations. The advantage of staying within one product family is that control panel logic, spare parts architecture, and maintenance routines remain consistent as you scale [NEED_CITE: phased equipment investment planning for woodworking factories].
Interpreting the Specifications That Matter on the Shop Floor

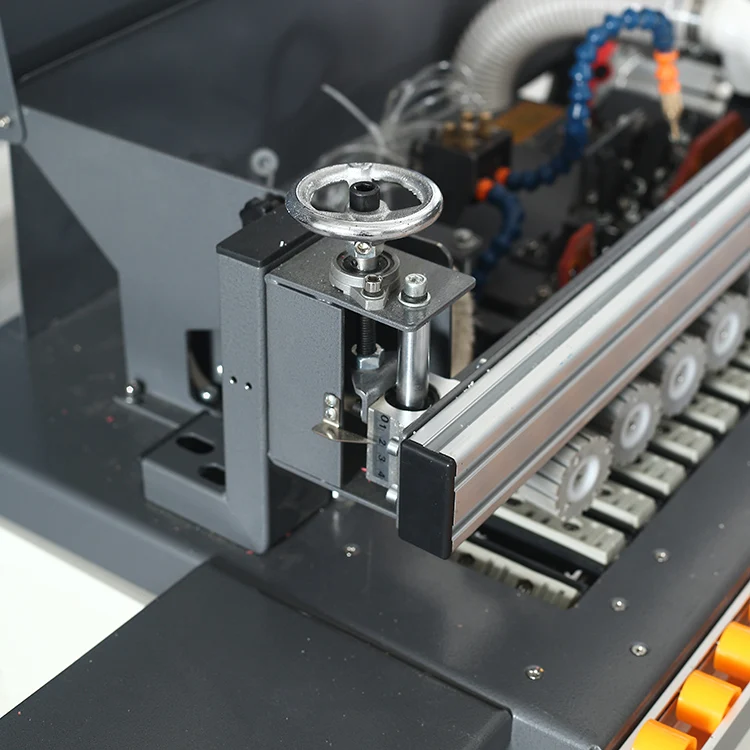

The 10–50 mm sheet thickness range covers standard furniture board stock, and the rotating hand crank with dual-side scales on the integrated aluminum pressure beam lets operators dial in beam height without trial-and-error. The dual high-speed trimming motors use a four-edge arc-shaped alloy cutter head mounted on precision guide rail sliders, which matters because straight-line profiling quality depends on cutter rigidity and guide accuracy rather than motor speed alone. At 1000 ml glue pot capacity with double-sided gluing, the ZDSF210 handles continuous small-batch runs without frequent refills. The 1200W closed dust collector addresses the fine particle load generated during trimming and polishing, keeping the work area clear for consistent feeding.
The Hidden Cost of Buying a Single Machine Without Viewing the Range
Purchasing one unit in isolation often leads to discovering feed height mismatches or throughput bottlenecks when adjacent equipment is added later. A workshop that starts with a standalone edge bander may find its panel saw outputs boards faster than the bander can process them, creating a queue that stalls the entire line. These incompatibilities surface only after installation, when reconfiguration costs compound the original investment [NEED_CITE: production line throughput matching between woodworking stations].
Why Buyers Survey the Range Here
In-house manufacturing with patented cutting mechanisms means the ZDSF210 and its higher-tier siblings share verified tolerance standards across the catalogue. Voltage and language customisation is treated as standard configuration rather than a special request, so buyers comparing models do not need to negotiate basic usability. The four-stage quality control process with pre-shipment verification applies to every unit in the range. Engineer-led configuration recommendations arrive as formal quotations within 24 hours, allowing buyers to evaluate multiple tiers side by side. Factory visits are welcomed, so you can watch the ZDSF210 run your own panel stock before committing.
Documentation & Verification
- Machine specification sheet confirming ZDSF210 voltage, feed speed, and trimming station configuration
- Electrical schematic with voltage confirmation document matching your site supply
- Factory test record on your panel thickness and edge band material before dispatch
- CE declaration of conformity applicable to this model
- Operation and maintenance manual in your agreed language with spare parts list
Installation, Commissioning & Support
- Floor space allocation for the 2100 × 570 mm footprint with clearance for panel infeed and outfeed
- Dedicated electrical circuit matching the 4 kW rated power and confirmed 220V 50Hz supply
- Air line connection at 0.4–0.6 MPa rated pressure for pneumatic feed and trimming actuation
- First-run parameter setup covering glue temperature, feed speed, and pressure beam height calibration
- Operator training on the multi-function button control panel in the agreed language
- Spare parts list identifying wear items for the alloy cutter heads and glue roller
What to Include in Your Enquiry
Provide the panel materials you process most frequently, including substrate type and typical board dimensions, so the engineer can confirm whether the ZDSF210 fits or a higher-tier model better matches your volume. Specify your site voltage, phase, and frequency to receive accurate electrical documentation with the quotation.
Frequently Asked Questions
Q: Where does the ZDSF210 sit in the full edge bander range, and when should I consider stepping up?
A: The ZDSF210 sits in the compact tier with dual trimming and 0–14 m/min feed speed. If your daily panel volume requires continuous multi-shift operation or you need additional profiling stations for shaped edges, the catalogue includes higher-tier models within the same product family. Compare throughput and station count before deciding.
Q: How do I confirm the voltage and frequency match my local supply before ordering?
A: Share your site voltage, phase, and frequency with the engineering team during the enquiry stage. The standard configuration is 220V 50Hz, and customisation to other voltages is available. You will receive an electrical schematic and voltage confirmation document before production begins.
Q: What panel materials and edge band types has this model been tested with?
A: The ZDSF210 handles MDF, plywood, particleboard, and solid wood panels with PVC and veneer edge banding from 0.6 to 2.0 mm thickness. If you work with unusual substrates or recycled board with high moisture content, request a sample processing test on your own material stock.
Q: Can I visit the factory to see the ZDSF210 running a sample job on my own panel stock?
A: Factory visits are welcomed. Send your panel samples ahead of time so the engineering team can set up the machine with your exact material and edge band combination. You will observe the full feeding, gluing, trimming, and polishing cycle on your own stock.
Q: What documentation ships with the machine?
A: Each ZDSF210 ships with a specification sheet, electrical schematic, factory test record, CE declaration, operation manual in the agreed language, and a spare parts list. Packing photographs and customs documentation support are also provided before dispatch.
