Description
Verified Voltage & Frequency Match — every ZDS280D ships with a confirmed electrical schematic aligned to your local grid before production begins, eliminating the commissioning delays that occur when machines arrive with mismatched motor windings.
Technical Specifications
| Parameter | Value |
|---|---|

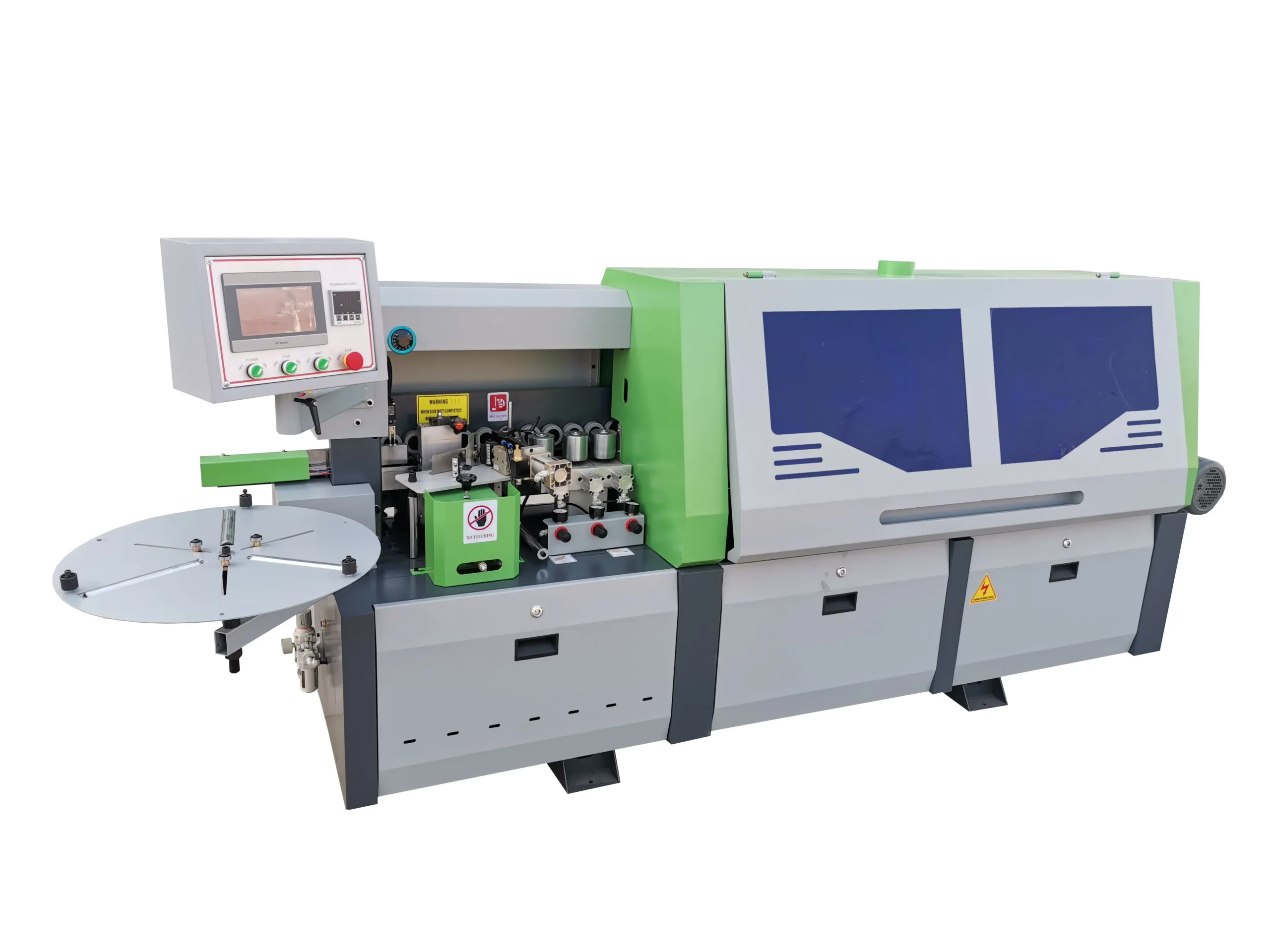

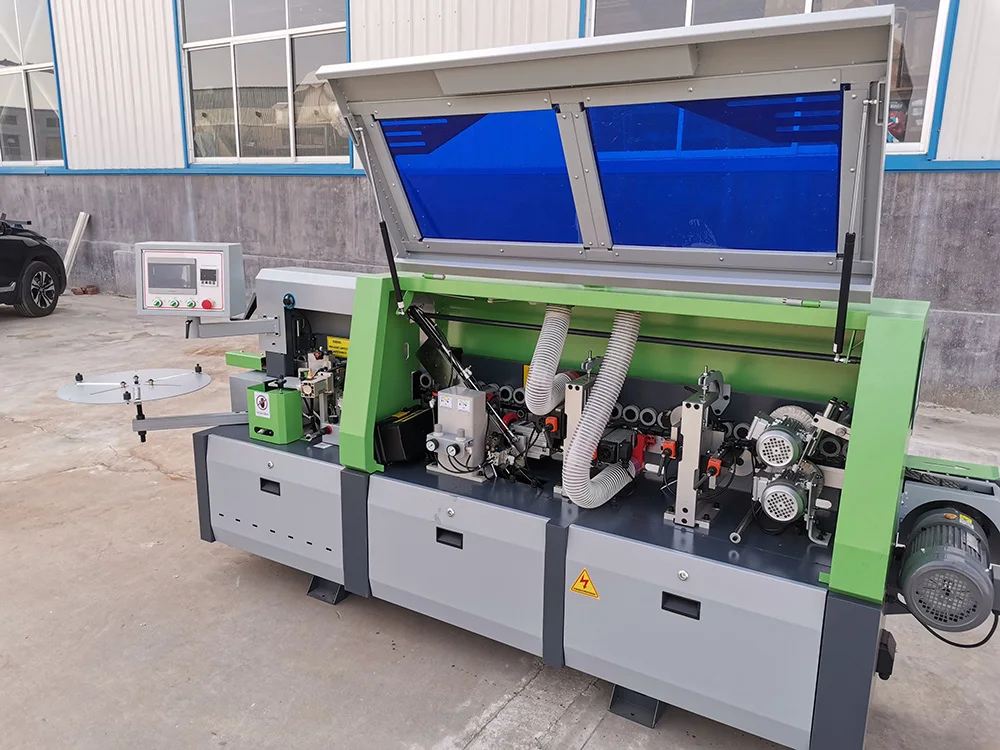

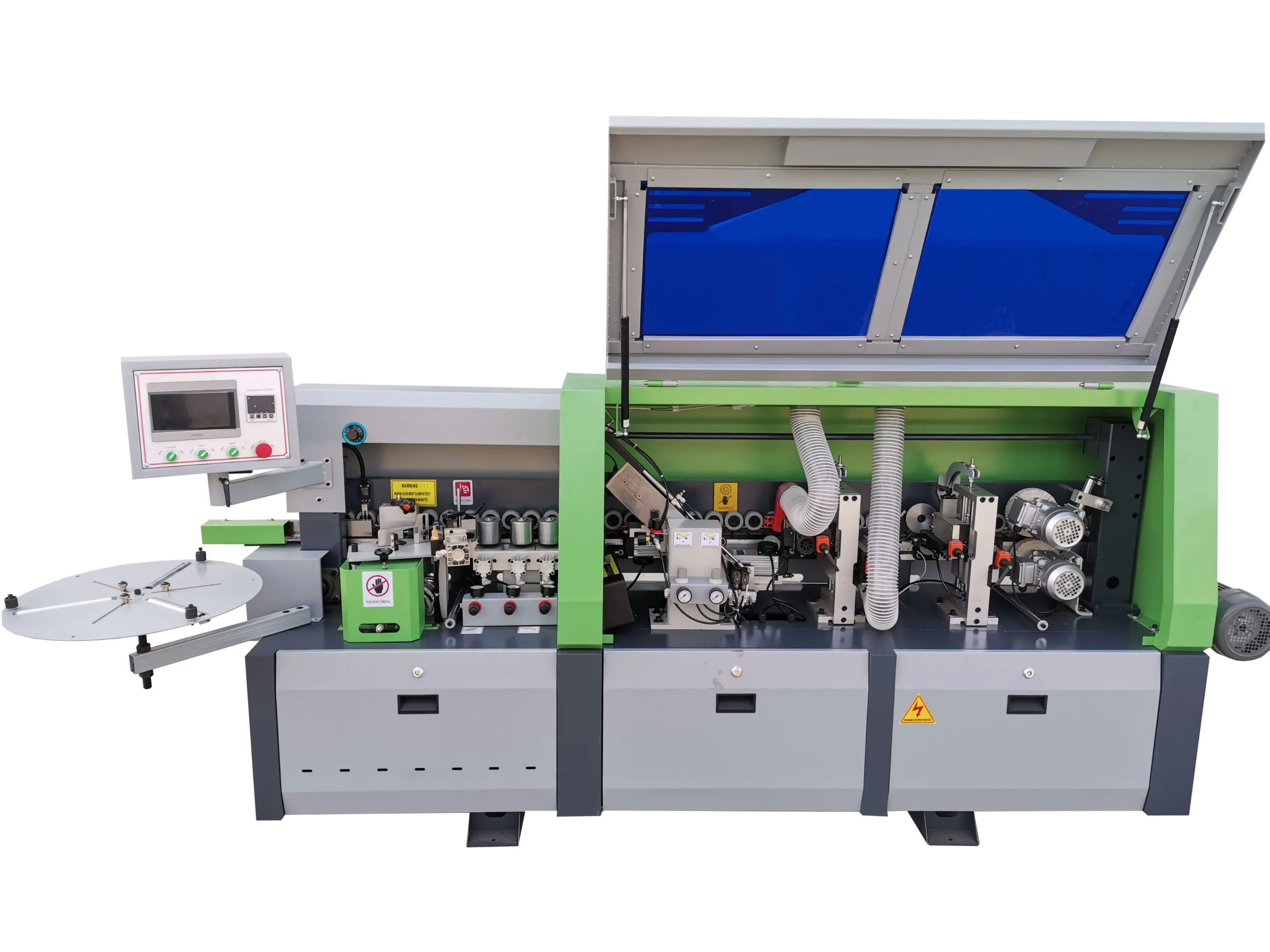

| Model | ZDS280D |
| Product Type | Automatic Edge Banding Machine |
| Main Functions | Gluing, End Trimming, Fine Trimming, Scraping, Buffing |
| Working Pressure | 0.6 MPa |
| Panel Thickness Range | 10–60 mm |
| Edge Thickness Range | 0.4–3 mm |
| Conveyor Belt Speed (Feed Speed) | 16 m/min |
| Min. Panel Width | 60 mm |
| Min. Panel Length | 150 mm |
| Voltage | 380V, 3-phase (configurable 110V–440V per market) |
| Rated Power | 7.5 kW |
| Net Weight | 700 kg |
| Overall Dimensions (L×W×H) | 3100 × 700 × 1400 mm |
| Machine Body Construction | 14 mm national standard high-strength steel plate, frame-type fuselage, high-temperature quenching treatment |
| Conveyor Guide Rail Material | HT260 |
| Conveying Motor | Taiwan brand with thermal protection system |
| Head Guide Rail | Taiwan brand |
| Pneumatic System | German Festo or Taiwan AirTAC cylinders and safety valves; AirTAC magnetic switches |
| Electrical Components | Delixi/Chint air switches and contactors; Japanese Omron travel switches |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC edge banding |
| Wardrobe side panel edging | Plywood panels with melamine or veneer banding |
| Office furniture component production | Particleboard shelving with 0.4–3 mm PVC strips |
| Joinery workshop panel processing | Solid wood panels requiring fine trimming and buffing |
| Small-batch bespoke furniture runs | Mixed substrate batches switching between MDF and plywood |
Why the Voltage Question Must Come Before the Quotation
Confirming your local voltage and frequency before ordering an automatic edge banding machine for sale prevents weeks of unplanned downtime at installation.
I worked through a case not long ago where a custom cabinet workshop received their edge bander only to discover the local grid ran at 60Hz while the motor was wound for 50Hz. The conveyor speed drifted, the glue pot could not reach bonding temperature, and the entire commissioning stalled while a replacement inverter was shipped overseas. That line sat idle for nearly three weeks. [NEED_CITE: voltage and frequency standards by export market]. When you are surveying a full catalogue to match your workshop’s stage of growth, electrical compatibility is the first filter that should shape which automatic edge banding machine for sale actually fits your facility, not a detail confirmed after the deposit is paid.
Where This Model Sits in the Full Range
The ZDS280D occupies the mid-tier position within a complete edge banding family that stretches from compact single-function units to full pre-milling lines with eight or more workstations. For a workshop currently producing a few dozen panels per shift and planning to scale, this five-function configuration covers gluing, end trimming, fine trimming, scraping, and buffing in one continuous pass. That sequence handles the majority of PVC and veneer edge banding requirements without requiring secondary finishing stations. Buyers surveying the complete range can see exactly where this automatic edge banding machine for sale fits and identify the next step up when throughput demands a pre-milling stage or higher feed speeds.
Reading the Catalogue for Growth, Not Just Today’s Order
A common mistake in workshop equipment planning is selecting a machine that solves only the current month’s production problem. The broader catalogue is structured so that each model tier shares consistent feed height and conveyor geometry, meaning an upgrade later does not force you to reconfigure your entire material flow or replace upstream saws and downstream boring machines. The 16 m/min feed speed and 10–60 mm panel thickness range on the ZDS280D serve a wide band of furniture panel sizes, and stepping to a higher-tier model later preserves compatibility with the same workpiece dimensions. This continuity matters especially for distributors assembling a regional model mix where customers at different stages need machines that share consumables and spare parts. [NEED_CITE: CE machinery directive requirements for industrial equipment]
What the Spec Sheet Tells You About Real Output Quality

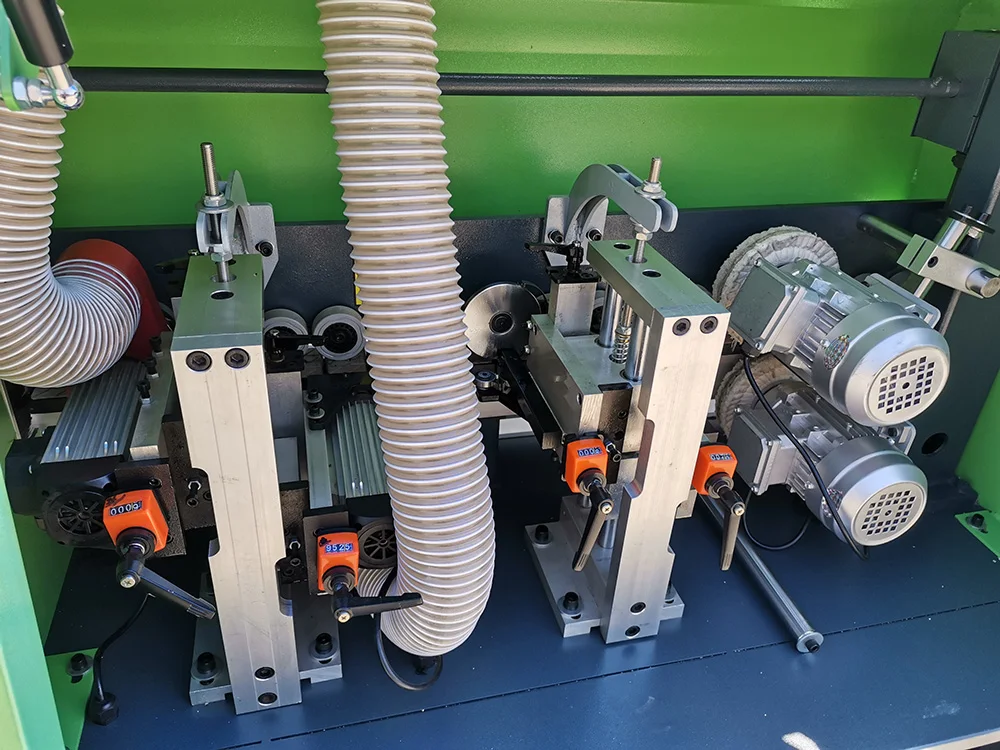

The 14 mm high-strength steel plate fuselage with high-temperature quenching is not merely a weight specification — it determines how well the machine resists vibration at the trimming and scraping stations, which directly controls edge finish consistency. The HT260 conveyor guide rail provides a rigid tracking surface for the 16 m/min feed rate; a softer rail material would allow micro-deflection under the 10–60 mm panel load, producing visible waviness on the trimmed edge. Pneumatic cylinders from Festo or AirTAC paired with magnetic switches govern the trimming and scraping tool engagement, and their response consistency defines whether the end trim lands flush or leaves a detectable step. The 0.4–3 mm edge thickness range covers thin PVC through thicker veneer strips, but the glue pot temperature must be matched to the specific banding material and ambient workshop conditions for reliable adhesion across that full span.
The Hidden Cost of Specifying a Machine in Isolation
When a single automatic edge banding machine for sale is purchased without checking how its feed height, conveyor speed, and panel size range align with the saws and boring machines already on the floor, the mismatch surfaces only after installation. Panels arrive at the edger at the wrong orientation, operators hand-feed workpieces that should transfer automatically, and throughput drops because the bottleneck simply moved rather than disappeared. Workshops that skip the catalogue-level review often end up replacing the machine within a year anyway. [NEED_CITE: typical causes of production line bottlenecks in panel furniture workshops]
Why Buyers Source This Range Here
In-house manufacturing with patented cutting mechanisms means the ZDS280D’s trimming precision is built into the toolpath geometry rather than added through aftermarket adjustment. The full product family from entry-level to full-function pre-milling models lives under one roof, so a workshop can move between tiers without managing multiple supplier relationships. Voltage, control panel language, and specification adjustments are handled as standard configuration steps, not special requests. Four-stage quality control with pre-shipment verification ensures the machine you receive matches the confirmed specification sheet. Engineer-led configuration recommendations arrive as a formal quotation within 24 hours, giving you a documented basis for comparison across the range.
Documentation & Verification
- CE declaration of conformity specific to the ZDS280D model configuration
- Machine specification sheet confirming your local voltage and frequency
- Factory test record on your actual panel thickness and edge material before dispatch
- Electrical schematic with circuit identification matching your maintenance team’s standards
- Operation and maintenance manual in your operator’s working language
Installation, Commissioning & Support
- 7.5 kW rated power requires a dedicated three-phase circuit with correctly sized breaker
- 3100 × 700 × 1400 mm footprint needs clear access on both sides for trimming adjustment
- 0.6 MPa working pressure demands a clean, regulated air supply with moisture separator
- First-run calibration covers conveyor tracking and pneumatic cylinder timing across all five stations
- Omron travel switch positions and Delixi contactor settings documented for local electricians
- Spare parts list covering wear items for the trimming blades and scraping tools
Before You Request a Quote
To match the right model from the full range to your workshop, share your primary panel substrate types and thickness range, your target daily panel count, and your local voltage and frequency. If you already have saws or boring machines on the floor, include their feed heights and conveyor speeds so we can confirm line compatibility. Let us know your operator’s preferred control panel language so the configuration arrives ready for commissioning.
Frequently Asked Questions
Q: How does the ZDS280D compare to other models in the range on function count and feed speed?
A: The ZDS280D offers five integrated functions — gluing, end trimming, fine trimming, scraping, and buffing — at 16 m/min. Entry-level models in the range carry fewer trimming stations and lower feed rates, while upper-tier models add pre-milling and additional finishing stations for higher-volume production. The full catalogue shows each tier side by side so you can match your current output to the right configuration.
Q: What voltage and frequency configurations are available for different export markets?
A: The ZDS280D is configurable from 110V to 440V across standard single-phase and three-phase supplies. Before order confirmation, we request a photo of your facility’s electrical panel nameplate to verify both voltage and frequency, then issue an electrical schematic matching those values. This step prevents the motor winding and heating element mismatches that cause commissioning failures.
Q: Can the control panel language be matched to the operator’s local language?
A: Yes, multilingual control panel options are available as a standard configuration parameter. Specify the required language during the quotation stage so the panel is configured before dispatch. This eliminates the situation where operators cannot read function labels, which delays commissioning and increases the risk of incorrect parameter settings during early production runs.
Q: What is the recommended upgrade path if production volume outgrows this model?
A: The range is designed so that higher-tier models share the same feed height and conveyor geometry as the ZDS280D. When your throughput requires pre-milling or additional finishing stations, you can step to the next model without reconfiguring upstream saws or downstream boring equipment. The catalogue layout maps each tier’s function count and feed speed against typical production volumes.
Q: How do I arrange a factory visit to see the full catalogue running before placing an order?

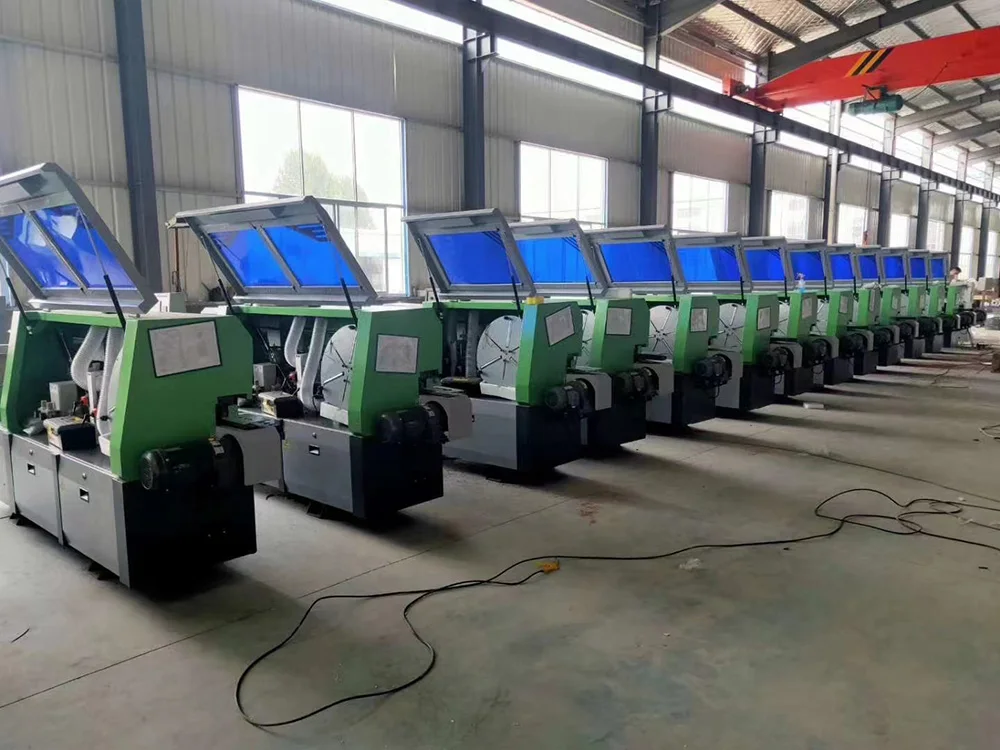

A: Factory visits are open to buyers evaluating the complete range. You can see multiple model tiers running on actual panel materials, inspect the manufacturing depth including fuselage welding and precision grinding, and discuss your line configuration with engineers on site. Contact us through the inquiry form with your preferred dates and the panel materials you want to see processed during the visit.
