Automatic Soft Forming Pre Milling PVC Edge Banding Machine – Full Range
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

Automatic Soft Forming Pre Milling PVC Edge Banding Machine – Full Range

<p>Backed by four-stage QC with pre-shipment verification, engineer-led configuration support, and full documentation including electrical schematics in your agreed language.</p>

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
380V Automatic Edge Banding Machine Full Catalogue Furniture Factory Pre Milling PVC Edge Banding ZDSJCX-880S
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)
Automatic Soft Forming Pre Milling PVC Edge Banding Machine – Full Range
Automatic Soft Forming Pre Milling PVC Edge Banding Machine – Full Range - Image 2
Automatic Soft Forming Pre Milling PVC Edge Banding Machine – Full Range - Image 3
Automatic Soft Forming Pre Milling PVC Edge Banding Machine – Full Range - Image 4
Automatic Soft Forming Pre Milling PVC Edge Banding Machine – Full Range - Image 5
Automatic Soft Forming Pre Milling PVC Edge Banding Machine – Full Range - Image 6

Backed by four-stage QC with pre-shipment verification, engineer-led configuration support, and full documentation including electrical schematics in your agreed language.

Categories: , Tags: , , , , , ,

Description

Technical Specifications

Parameter Value
Model ZDSJCX-880S
Product Type Automatic Soft Forming Edge Banding Machine
Overall Dimensions (L×W×H) 8.82×1.07×1.85 m
Total Weight 3200 kg
Total Installed Power 47.1 kW
Voltage Configuration 380 V (50 Hz / 60 Hz — confirm at order)
Air Pressure Requirement 0.6–0.8 MPa
Vacuum Port Configuration Ф100×6
Panel Thickness Range 18–22 mm
Edge Banding Thickness 0.5–0.8 mm
Edge Banding Width 58 mm
Minimum Sheet Width 150 mm
Minimum Sheet Length 300 mm
Feed Speed 6–8 m/min

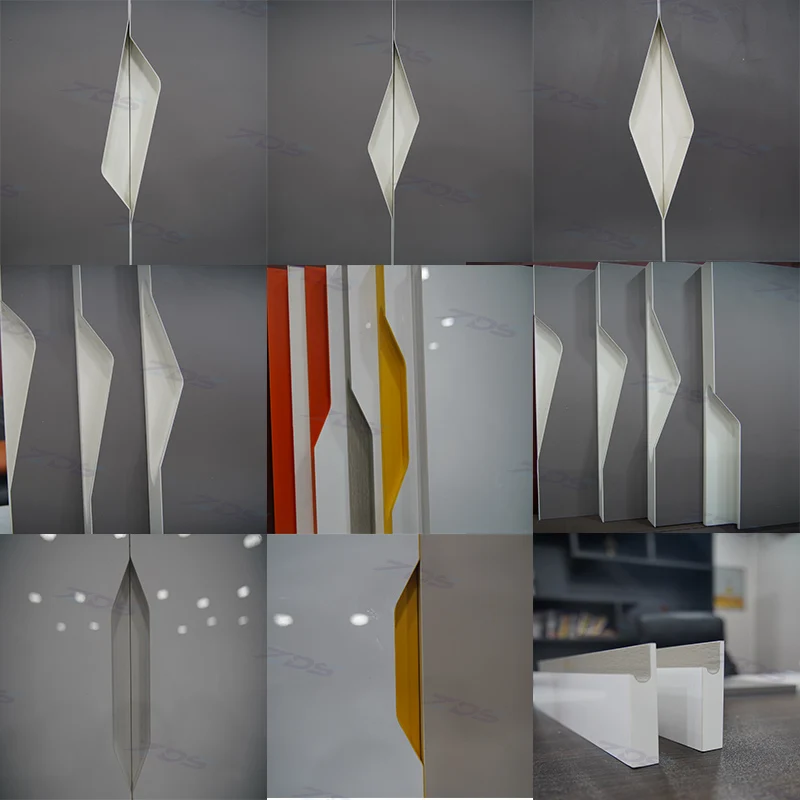

Machining Shape Capability J type, C type, oblique straight, left/right semi-pass, water drop, rhombus, triangle — 15+ profiles
Pre-milling Station Included
Warranty 1 year
Delivery Lead Time 25–30 days (basis not stated in source — confirm for configuration)
