Description
Voltage-Confirmed Production — Ruiqi verifies your local power supply, control language, and specification before the ZXF-450 enters production, eliminating jobsite commissioning failures.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZXF-450 |

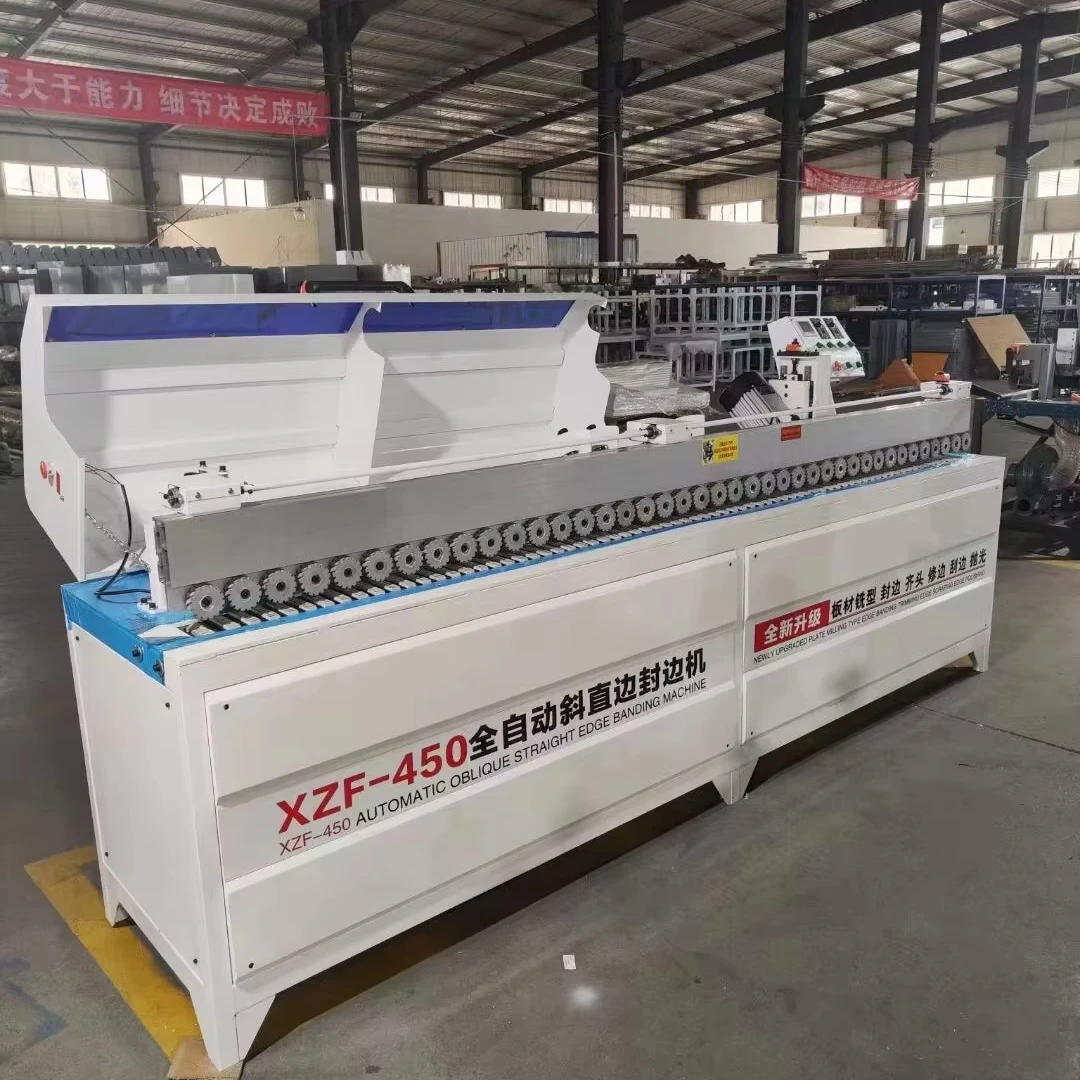

| Product Type | Bevel and Straight Edge Banding Machine |
| Edge Shape Capability | 30° / 45° / 60° Bevel & 90° Straight |
| Function Stations | Gluing, End cutting, Trimming, Scraping, Buffing |
| Total Power | 9.5 kW |
| Voltage | 380V (220V needs customize) |
| Feed Speed | 0-12 m/min |
| Board Thickness Range | 0-50 mm |
| Strip Thickness Range | 0.5-3 mm |
| Glue Pot Capacity | 4000 ml |
| Overall Dimensions | 300 × 65 × 135 cm |
| Net Weight | 430 kg |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edging | MDF, particleboard, plywood with PVC or veneer banding |
| Cabinet door and carcass production | Solid wood panels and melamine-faced boards |
| Angled joinery and decorative edging | 30°/45°/60° bevel profiles on panel stock |
| Straight edge finishing for shelving | 90° square edge on 0-50 mm substrates |
The Voltage Question That Ruins Commissioning Week
Why does a 380V machine sometimes arrive at a 220V workshop? Because the Bevel and Straight Edge Banding Machine manufacturer quoted the standard configuration without verifying the destination grid. Voltage confirmation belongs in the inquiry, not in the installation manual.
I have seen this exact scenario unfold: a panel processing plant ordered a multi-function edge bander, received it, and discovered the local three-phase supply ran at a frequency incompatible with the main drive motor. The unit sat idle while transformers were sourced locally. When a Bevel and Straight Edge Banding Machine manufacturer confirms voltage, frequency, and control panel language before production begins, the machine arrives ready to run [NEED_CITE: voltage and frequency standards by export market]. The ZXF-450 is configurable from standard 380V down to 220V single-phase for smaller workshops, but that switch must happen on the order sheet, not on the factory floor.
From Entry-Level to Full-Function Within One Supplier
Workshops often start with a basic straight-edge bander and later realize they need bevel capability for angled cabinet components. The ZXF-450 sits in the middle-to-upper tier of the Ruiqi range, handling 30°, 45°, and 60° bevels alongside standard 90° straight edges in a single pass. This means a custom furniture factory can take on decorative angled-edge work without adding a second machine or switching suppliers.
Matching Feed Speed to Substrate Behaviour
The 0-12 m/min variable feed speed is not simply a throughput number. Particleboard with high resin content or recycled filler requires a slower feed through the pre-milling and gluing stations to maintain a consistent glue line. MDF, which machines cleanly, can run closer to the upper range. The ZXF-450 lets the operator dial in the rate based on the actual board lot rather than relying on a fixed speed assumption [NEED_CITE: substrate density variation in panel manufacturing].
Pre-Milling, Glue Pot, and the Five-Station Sequence

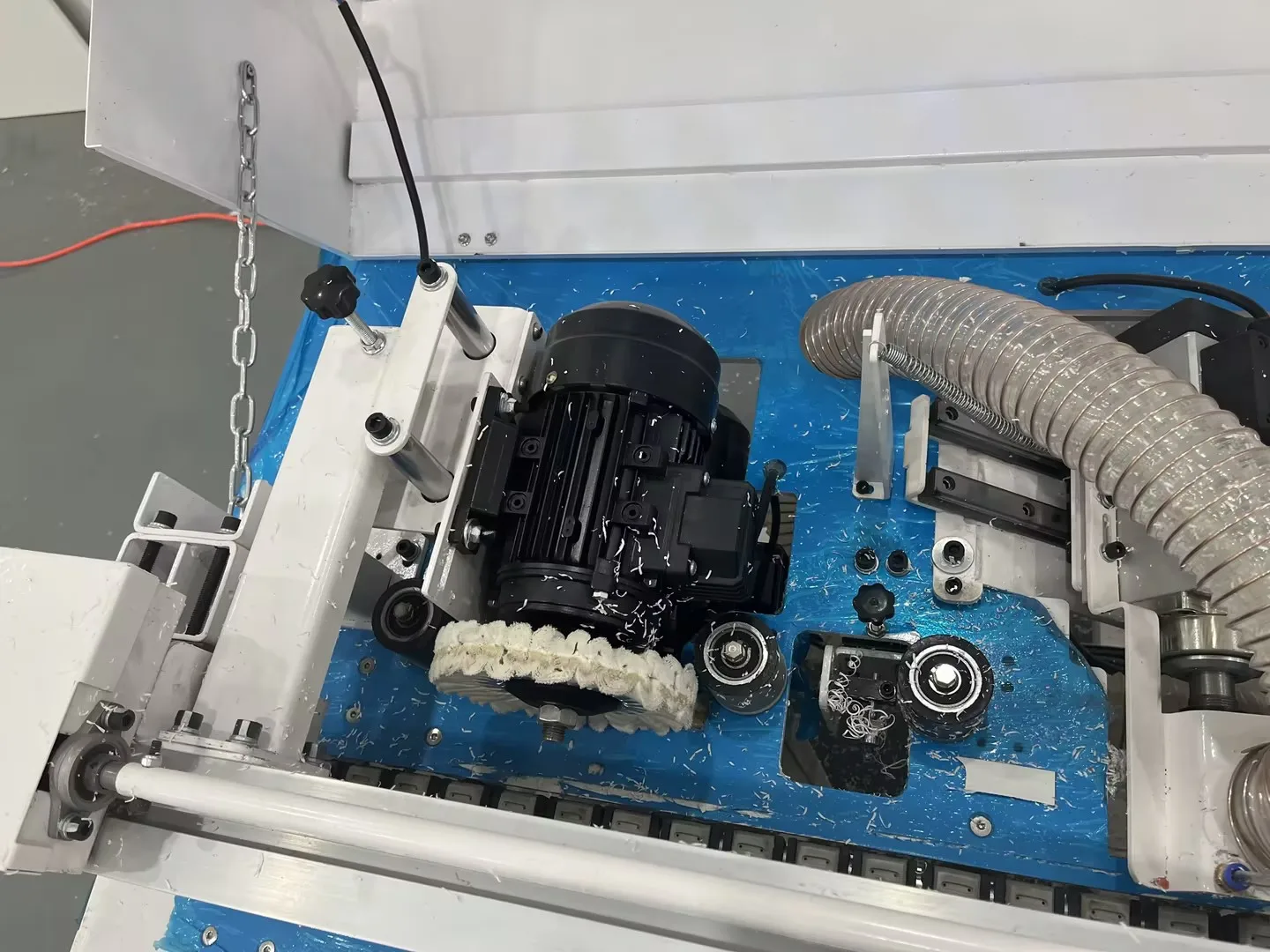

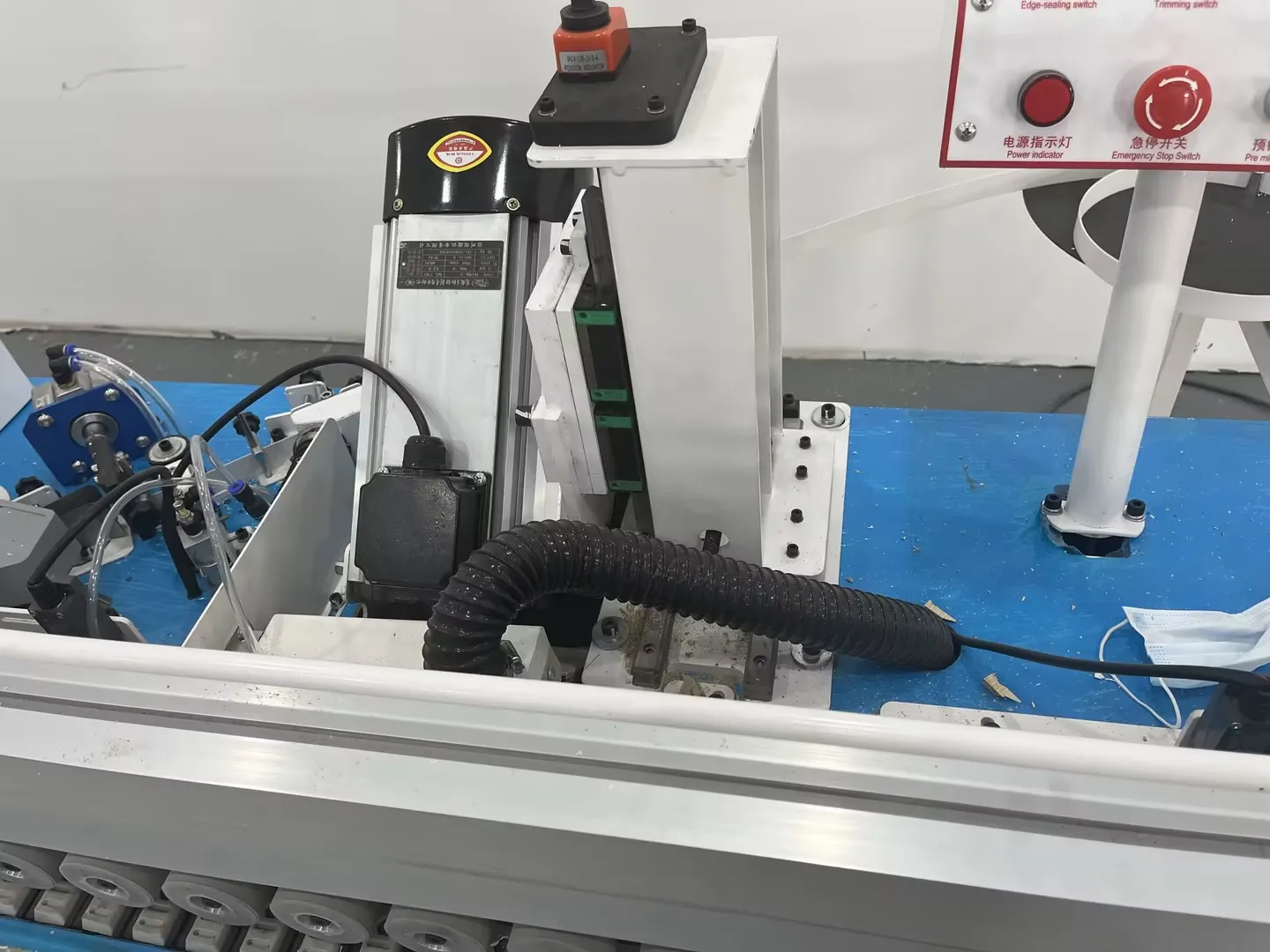

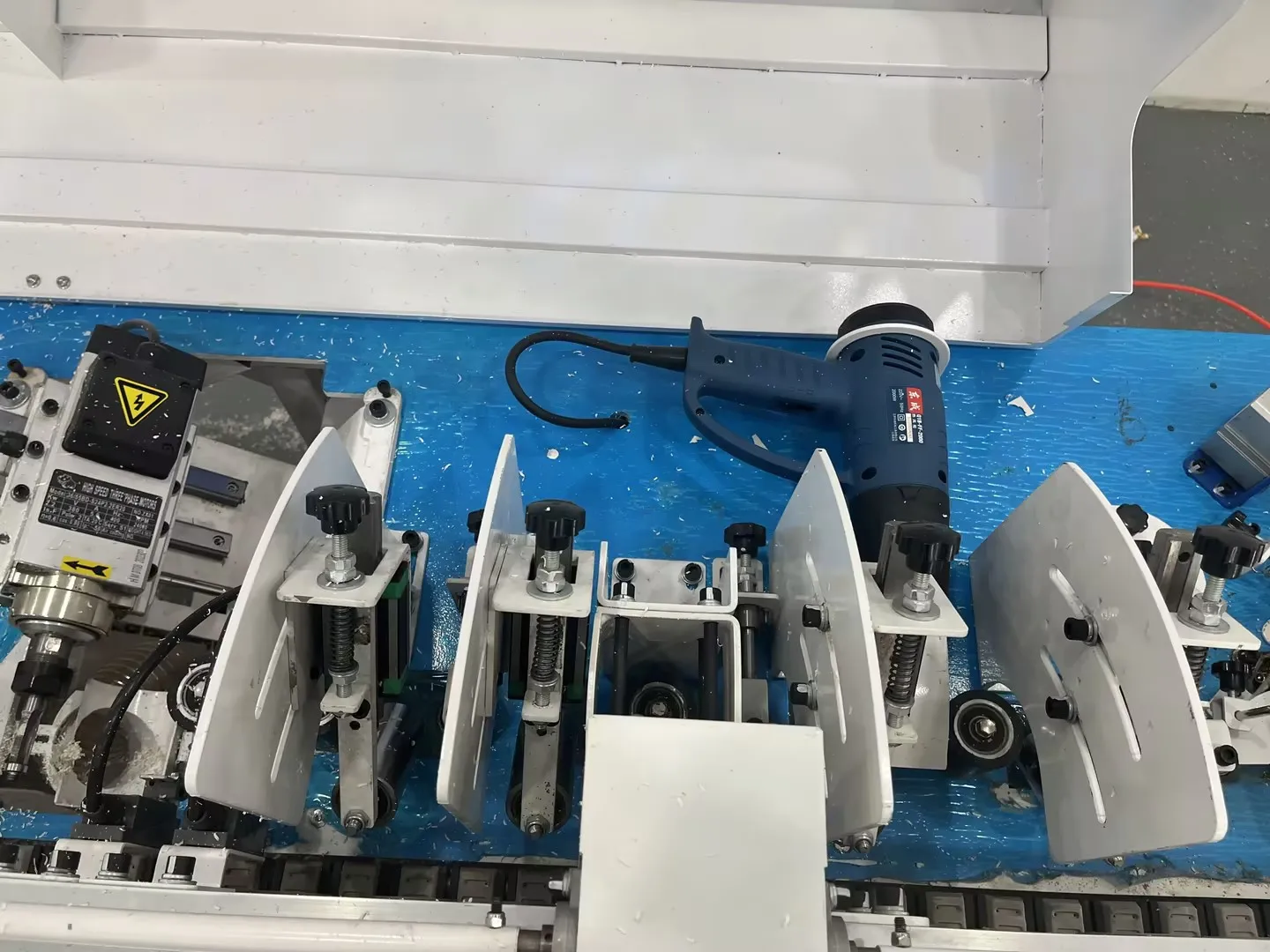

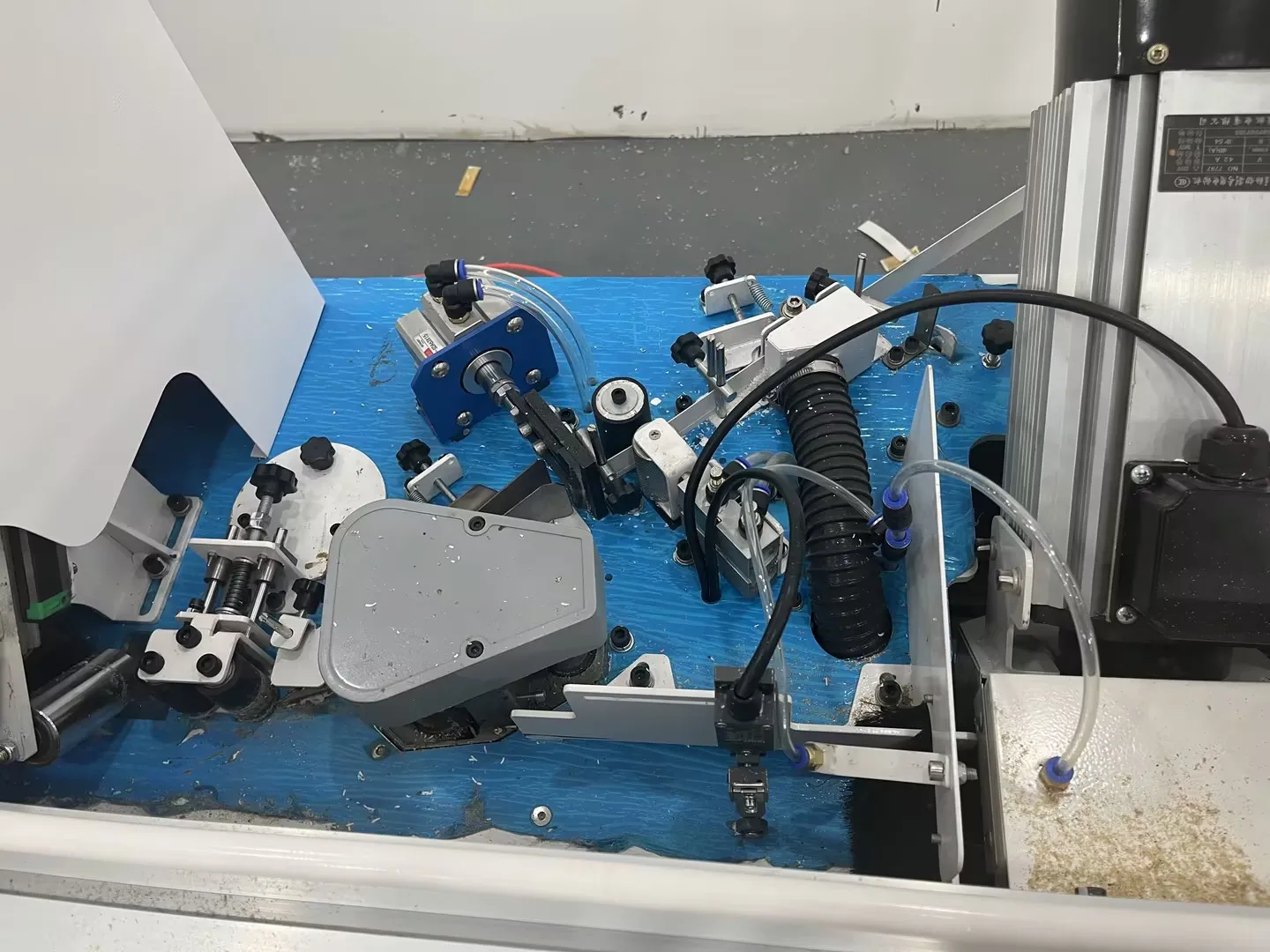

The ZXF-450 routes each panel through gluing, end cutting, trimming, scraping, and buffing in sequence. The 4000 ml glue pot provides enough capacity to sustain a continuous run without mid-batch refills, which matters when processing a full kitchen cabinet order. Board thickness coverage from 0 to 50 mm means the machine handles everything from thin shelf stock to thick solid-wood worktop panels. The pre-milling station squares the panel edge before glue application, removing saw marks and ensuring the PVC or veneer strip bonds to a true surface. Strip thickness from 0.5 to 3 mm covers standard PVC, ABS, and wood veneer banding materials used across furniture and joinery production.
The Cost of Skipping Configuration Verification

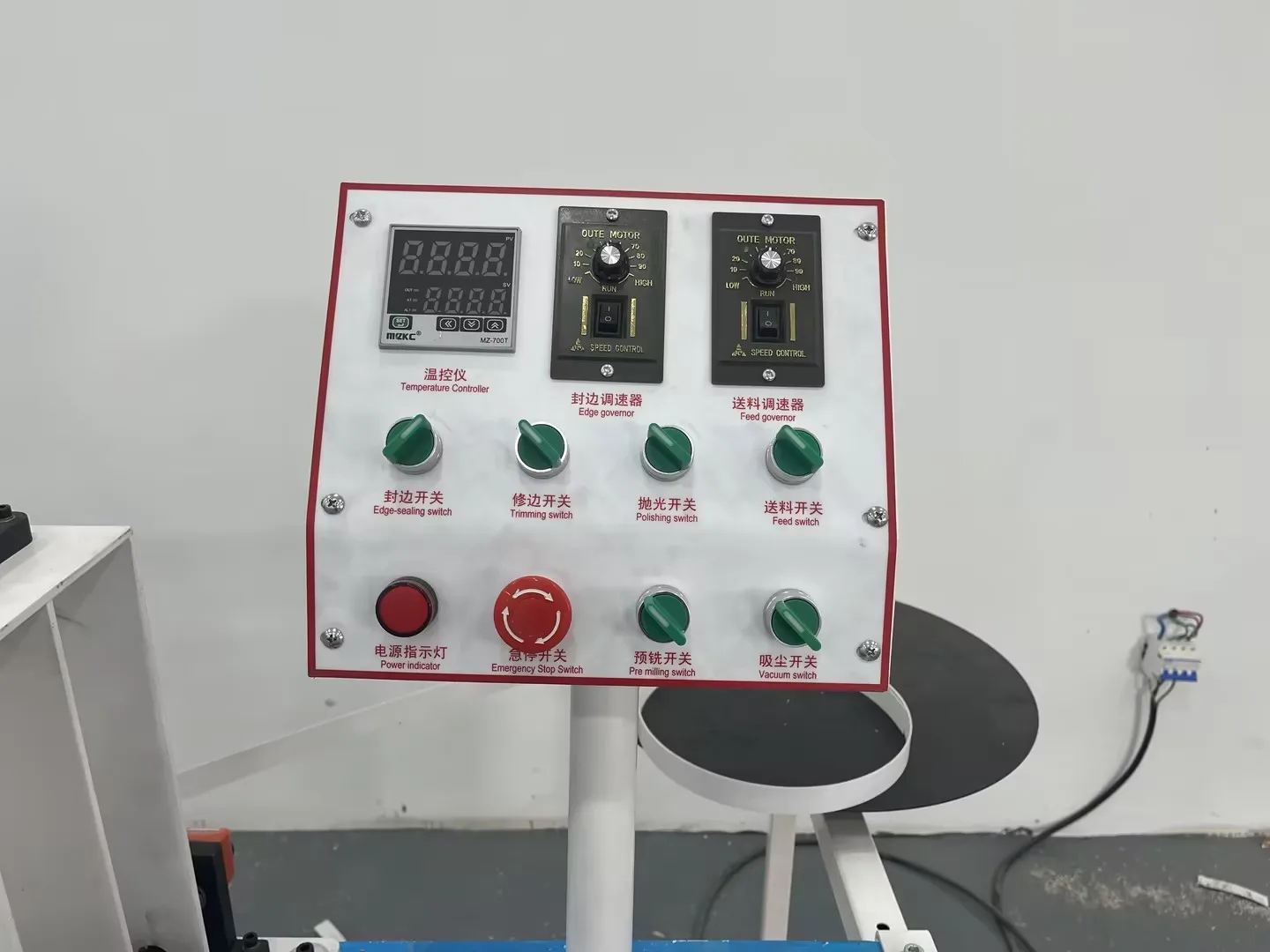

A buyer who specifies a machine by catalogue number alone risks receiving a unit with control labels in a language the operators cannot read, stalling commissioning for days. When the control panel is in the correct language from day one, the operator can set bevel angles and feed speed without guesswork. Skipping voltage verification can mean a motor that overheats under load or a VFD that faults repeatedly [NEED_CITE: CE machinery directive requirements for industrial equipment]. These are not defects in the machine; they are gaps in the order specification that surface only after the crate is opened.
Why Procurement Teams Source This Range Here
Ruiqi manufactures the ZXF-450 in-house with a four-stage quality control process spanning incoming material inspection, in-process checks, finished product testing, and pre-shipment verification. The factory welcomes buyer visits so you can witness a test run on your own panel samples before the machine is crated. Engineer-led configuration ensures the voltage, language, and function stations match your production requirement, with a formal quotation returned within 24 hours. Custom logo application and private-label packaging are available for distributors integrating this model into a regional catalogue. The ZXF-450 sits within a broader product family, so workshops can scale capacity later without changing the supply relationship.
Documentation & Verification
- CE declaration of conformity covering the ZXF-450 bevel and straight edge configuration
- Electrical schematic with confirmed voltage and frequency for your destination market
- Factory test record on your specified board thickness and edge banding material
- Operation and maintenance manual produced in the agreed operator language
- Spare parts list identifying wear items for the trimming and scraping stations
- Packing photographs documenting the machine condition before crate closure
Installation, Commissioning & Support
- The 300 × 65 × 135 cm footprint requires a level concrete floor with clearance for panel infeed and outfeed
- A dedicated 9.5 kW circuit with the confirmed voltage and correct phase rotation must be available at the panel
- The 430 kg net weight allows positioning with standard workshop lifting equipment
- First-run parameter setting covers bevel angle selection, feed speed calibration, and glue temperature for your strip material
- Operator training addresses glue pot refill procedure, scraping blade adjustment, and daily buffing wheel inspection
- Wear parts for end cutting, trimming, and scraping stations are listed with reorder part numbers
Preparing Your Inquiry
To receive an accurate configuration proposal for the ZXF-450, provide the panel materials you process most frequently, the edge banding types and thicknesses in regular use, and the bevel angles your product range requires. Include your workshop supply voltage and frequency so the electrical package is built correctly. If you run both MDF and particleboard, note the proportion of each, as this affects feed speed recommendation and glue selection.
Frequently Asked Questions
Q: What is the difference between bevel and straight edge banding, and when do I choose each?
A: Straight 90° edge banding is standard for cabinet carcasses, shelving, and most flat panel furniture. Bevel edge banding at 30°, 45°, or 60° is used for decorative angled edges on cabinet doors, tabletops, and architectural joinery where a chamfered profile is specified. The ZXF-450 handles both in one machine, so you can switch jobs without moving the panel to a different station.
Q: How is local voltage and frequency confirmed before the order is placed?
A: During the inquiry stage, Ruiqi requests your workshop supply voltage, phase configuration, and frequency. The electrical package and motor specification on the ZXF-450 are then built to match, whether that is standard 380V three-phase or a customized 220V arrangement. This confirmation appears on the formal quotation before production begins.
Q: Where does the ZXF-450 sit in the product family, and can I expand later?
A: The ZXF-450 occupies the full-function tier with five processing stations and multi-angle bevel capability. If your volume grows or you add new product lines, Ruiqi offers higher-throughput models within the same product family, allowing you to scale without qualifying a new supplier. Entry-level models are also available for secondary workshops.
Q: What panel materials and edge banding types does this machine handle?
A: The ZXF-450 processes MDF, plywood, particleboard, and solid wood panels from 0 to 50 mm thick. It applies PVC, ABS, and wood veneer edge banding from 0.5 to 3 mm in thickness. The pre-milling station prepares the panel edge for consistent adhesion across these material combinations.
Q: What documentation ships with the machine for commissioning?
A: Each ZXF-450 ships with a CE declaration, electrical schematic matching your confirmed voltage, factory test record, operation manual in the agreed language, spare parts list, and packing photographs. These documents support immediate commissioning and local regulatory compliance.
