Description

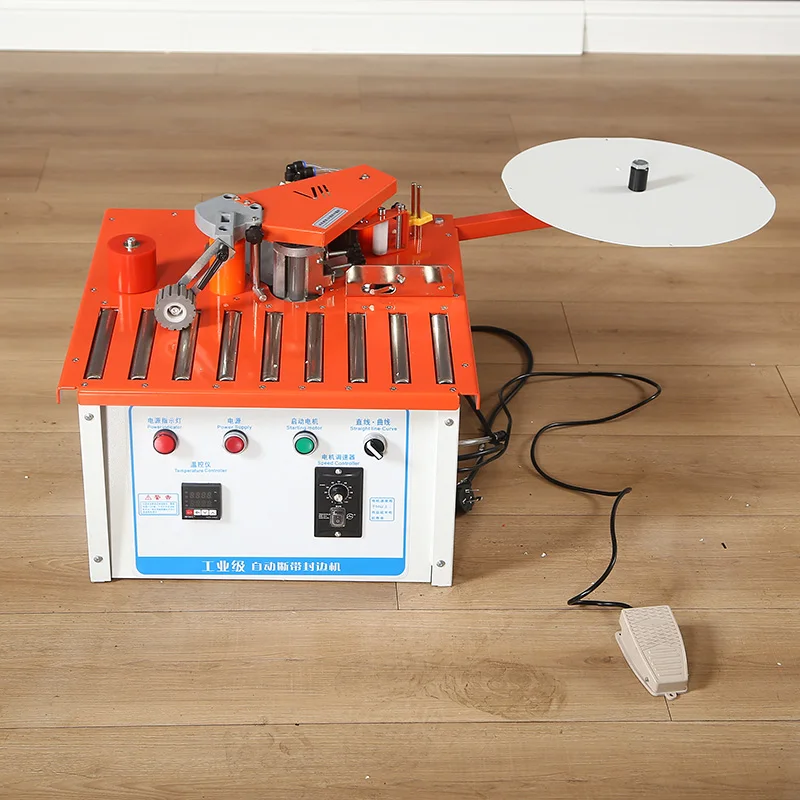

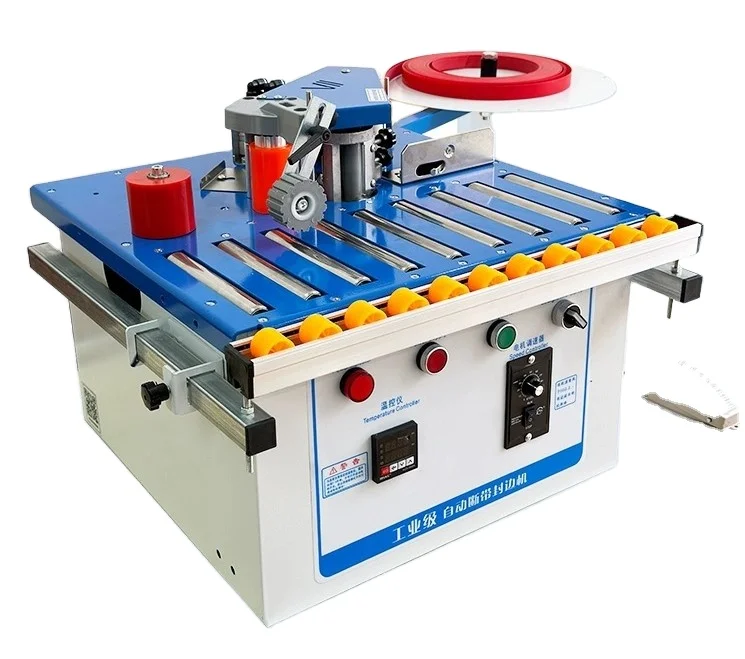

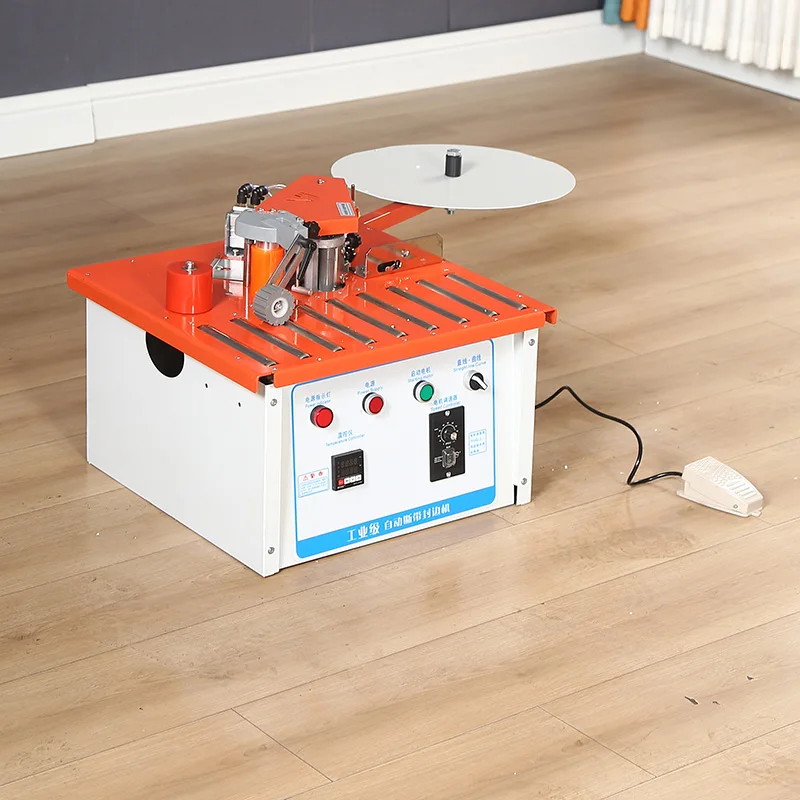

Compact Single-Phase Edge Banding — a 220V portable unit with double-sided gluing and pneumatic tape breaking, positioned at the entry tier of Ruiqi’s full edge banding range for workshops scaling toward automated production lines.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF50+ |
| Product Type | Mini Portable Edge Banding Machine |
| Rated Voltage | 220V (single-phase) |
| Rated Power | 1.2 kW |
| Rated Air Pressure | 0.4–0.6 MPa |
| Feed Speed | 0–6 m/min |
| Panel Thickness Range | 10–60 mm |
| Edge Strip Thickness Range | 0.5–1.5 mm |
| Glue Pot Capacity | 1000 ml |
| Heating System | 4 heating tubes, 5–10 min heat-up |
| Gluing Method | Double-sided gluing with rubber pressing rollers |
| Tape Breaking | Pneumatic; foot switch (curves), travel switch (straight lines) |
| Control | Manual with pneumatic tape breaker and foot switch |
| Overall Dimensions | 54 × 54 × 56 cm |
| Net Weight | 28 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture and cabinet edge finishing | MDF, particleboard, plywood panels 10–60 mm thick |
| On-site curved and straight panel profiles | PVC edge banding 0.5–1.5 mm |
| Low-volume production and repair stations | Solid wood panels with veneer edge strips |
| Workshop prototyping and sample runs | Mixed substrate batches requiring quick changeover |
Why the Voltage Question Must Come Before Any Model Discussion
Confirming your site’s single-phase supply eliminates the most common commissioning failure in small workshop exports.
When I was sourcing equipment for a panel furniture factory in Shandong, I watched a neighbouring line sit idle for weeks because a three-phase machine arrived at a shop wired only for single-phase. The ZDSF50+ runs on standard 220V single-phase power, which removes that risk for smaller joinery operations. But single-phase availability does not mean you can skip verification — frequency mismatches between 50 Hz and 60 Hz markets still cause motor overheating on equipment of this class [NEED_CITE: voltage and frequency standards by export market]. A mini portable edge banding machine for sale becomes a liability if it cannot run on the power already in your building.
Where This Unit Sits in the Full Ruiqi Edge Banding Lineup
The ZDSF50+ occupies the entry position in Ruiqi’s complete edge banding catalogue, designed for workshops that need mechanised edge finishing before scaling to higher-throughput automatic models. Its 0–6 m/min feed speed and manual feed path suit batch sizes where flexibility matters more than line speed. When your volume grows, the product family extends upward through pre-milling and multi-station configurations without changing supplier. This continuity means the mini portable edge banding machine for sale you start with shares glue chemistry and strip compatibility with the larger machines you may add later.
Curve and Straight-Line Versatility Without Tooling Changeovers

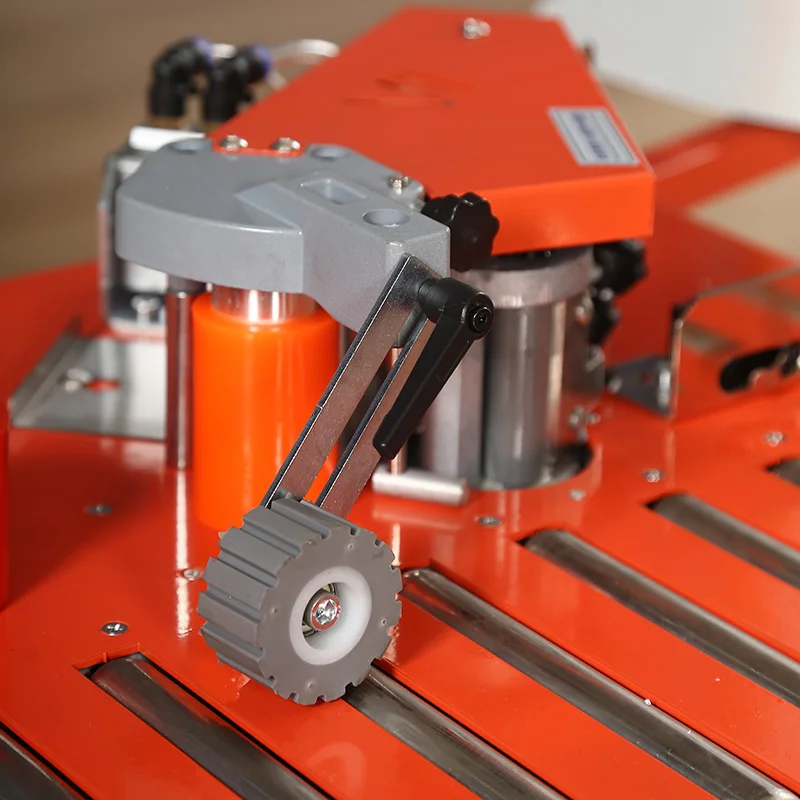

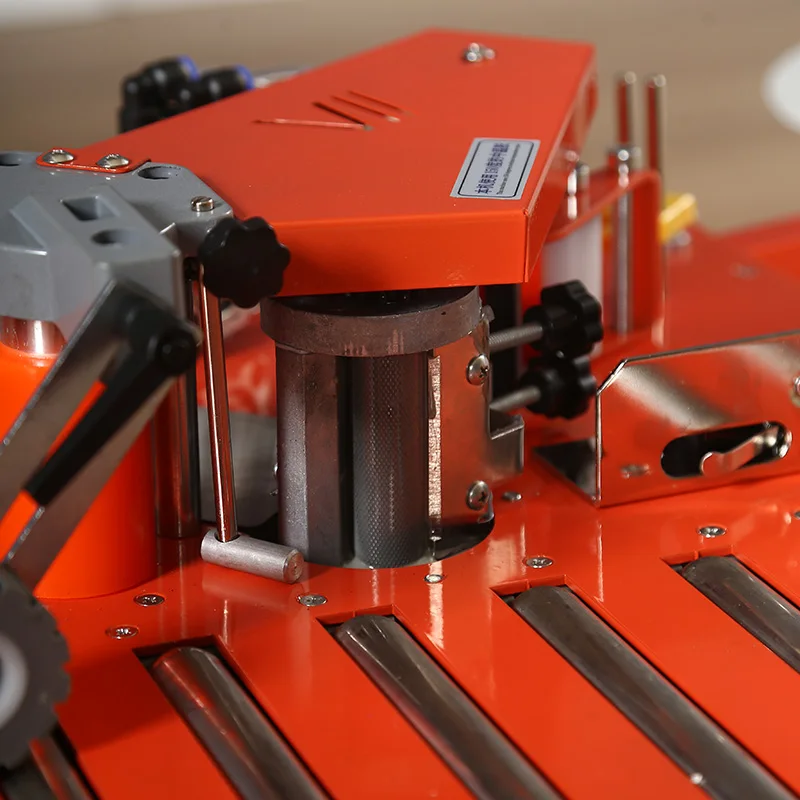

The pneumatic tape-breaking system switches between curve and straight-line modes through two distinct triggers: a foot switch for curved profiles and a travel switch for automatic straight-line breaking. Operators do not need to stop and reconfigure the machine when a batch contains both radiused cabinet doors and flat side panels. The double-sided gluing system with rubber pressing rollers applies adhesive to both the strip and the panel edge simultaneously, which improves bond consistency on porous substrates like particleboard compared to single-sided application [NEED_CITE: edge adhesion testing methods for wood-based panels]. This flexibility is what makes the unit practical for custom furniture shops handling varied orders.
Reading the Specifications Against Your Actual Production Needs
The 10–60 mm panel thickness range covers standard cabinet carcase boards through thicker worktop panels, while the 0.5–1.5 mm strip range handles PVC and veneer without requiring separate feed mechanisms. The 1000 ml glue pot with four heating tubes reaches operating temperature in 5–10 minutes, which matters when you run short batches and cannot afford a long warm-up consuming your shift. Adjustable pressure rollers and the transport bayonet allow you to match the feed path to your specific panel height, reducing the strip creep that causes misaligned edges downstream. At 0–6 m/min feed speed, an operator can maintain consistent hand-feed pressure on curved profiles where automated feed belts would lose grip. The 28 kg net weight and 54 × 54 × 56 cm footprint mean the unit can be positioned beside your main panel saw or relocated for on-site installation work.
The Cost of Buying a Standalone Machine Without a Growth Path
Workshops that purchase edge banders as isolated units often discover incompatibilities in feed height and throughput when they later add panel saws or boring machines to the line. A machine that processes panels at the wrong height relative to your saw table forces operators to lift and reposition boards manually, introducing edge damage and slowing production [NEED_CITE: material handling injuries in woodworking workshops]. Choosing from a product family that shares dimensional standards means the ZDSF50+ can sit within a workflow that eventually incorporates larger Ruiqi stations without material flow conflicts. The risk is not just inconvenience — it is the accumulated labour cost of compensating for equipment that was never designed to work together.
Why Workshops Source This Entry-Tier Model Here
Ruiqi manufactures the full edge banding range in-house, from this portable unit to full-function pre-milling lines, so specification and voltage confirmation happens directly with the engineering team rather than through a trading intermediary. Every ZDSF50+ passes a four-stage quality control sequence covering incoming materials, in-process assembly, finished product testing, and pre-shipment verification. The proprietary cutting mechanism patents that define the higher-tier models share design principles with this unit’s tape-breaking system. Engineer-led configuration recommendations address your panel stock, local power supply, and production volume before a quotation is issued. Single-unit orders carry the same documentation and testing protocol as large production runs.
Documentation & Verification
- Machine specification sheet confirming ZDSF50+ voltage and panel thickness range against your requirements
- Electrical schematic with single-phase wiring diagram matching your local supply standard
- Factory test record demonstrating edge quality on your submitted panel and strip samples
- Operation and maintenance manual in your agreed language with illustrated adjustment procedures
- Spare parts list identifying wear items specific to the ZDSF50+ glue pot and roller assembly
- Packing photographs documenting machine condition before crate sealing
Installation, Commissioning & Support
- Requires a dedicated 220V single-phase circuit rated for the 1.2 kW load with earth continuity
- Compressed air supply at 0.4–0.6 MPa needed for pneumatic tape-breaking actuation
- Arrives fully assembled at 28 kg — position on a stable bench at operator waist height
- First-run glue temperature calibration against your specific PVC or veneer strip material
- Pressure roller and transport bayonet adjustment training for your 10–60 mm panel range
- Foot switch and travel switch operation walkthrough covering curve and straight-line modes
What to Prepare Before Requesting a Quotation
Share your primary panel substrate and thickness range so we can confirm the ZDSF50+ covers your production mix. Specify your site voltage and frequency — including whether your supply is single-phase or if you are planning an upgrade — so the electrical configuration is locked before build. Tell us which edge strip materials and thicknesses you run most often, as this determines glue pot setup and roller pressure calibration at the factory.
Frequently Asked Questions
Q: What is the upgrade path from the ZDSF50+ as our workshop volume increases?
A: The ZDSF50+ sits at the entry tier of Ruiqi’s edge banding range. As throughput requirements grow, you can move to semi-automatic models with powered feed belts, then to full-function pre-milling machines with multiple trimming stations — all within the same product family, maintaining strip and glue compatibility.
Q: Which panel materials and edge strips produce the best results on this machine?
A: The ZDSF50+ handles MDF, particleboard, plywood, and solid wood panels from 10–60 mm thick, with PVC and veneer strips from 0.5–1.5 mm. Edge quality on curved profiles depends on consistent hand-feed speed and correct pressure roller adjustment for your specific substrate density.
Q: How do we verify the voltage and frequency are correct for our country before ordering?
A: Provide your local supply voltage and frequency at the inquiry stage. Ruiqi’s engineering team confirms electrical compatibility and documents it on the machine specification sheet and electrical schematic before production begins, so the ZDSF50+ arrives wired for your exact single-phase supply.
Q: Can we send our own panel stock for a test run before committing to the order?
A: Yes. Submit sample panels and edge strips to the factory for a processing test on the ZDSF50+. You receive test results showing edge adhesion quality and strip alignment on your actual materials, allowing you to verify performance before the machine ships.
Q: What documentation and after-sales support come with the machine?
A: The ZDSF50+ ships with a specification sheet, electrical schematic, factory test record, operation manual in your language, and a spare parts list. After-sales support includes installation guidance and technical assistance for international buyers throughout the warranty period.
