Description
Verified Tolerance Control — the 802 portable edge bander holds ±0.02mm trimming accuracy through patented cutting mechanisms, tested at each station before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 802 |
| Product Type | Portable PVC Edge Banding Machine |
| Function | Automatic plate feeding, end cutting, upper and lower polishing, head and tail trimming, integrated dust collector |
| Edge Type | Straight line |
| Rated Voltage | 220V (configurable 110V–440V) |
| Rated Power | 4 kW |
| Trimming Power | 800 W × 2 |
| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Heating Power | 1000 W (heat-up time 5–10 min) |
| Rated Air Pressure | 0.4–0.6 MPa |
| Feed Speed | 0–10 m/min |
| Conveyor Belt Speed | 0–10 m/min |
| Strip Thickness Range | 0.5–2.5 mm |
| Sheet Thickness Range | 10–50 mm |
| Glue Pot Capacity | 4000 ml |

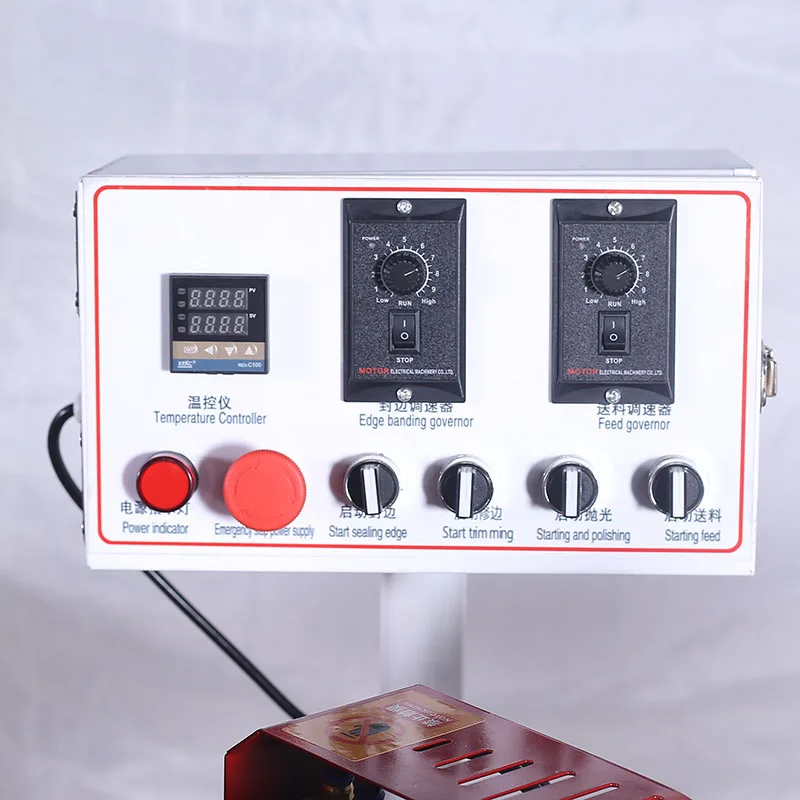

| Control Panel | Digital display of glue pot temperature, independent switches |
| Conveyor Belt Material | Silicone |

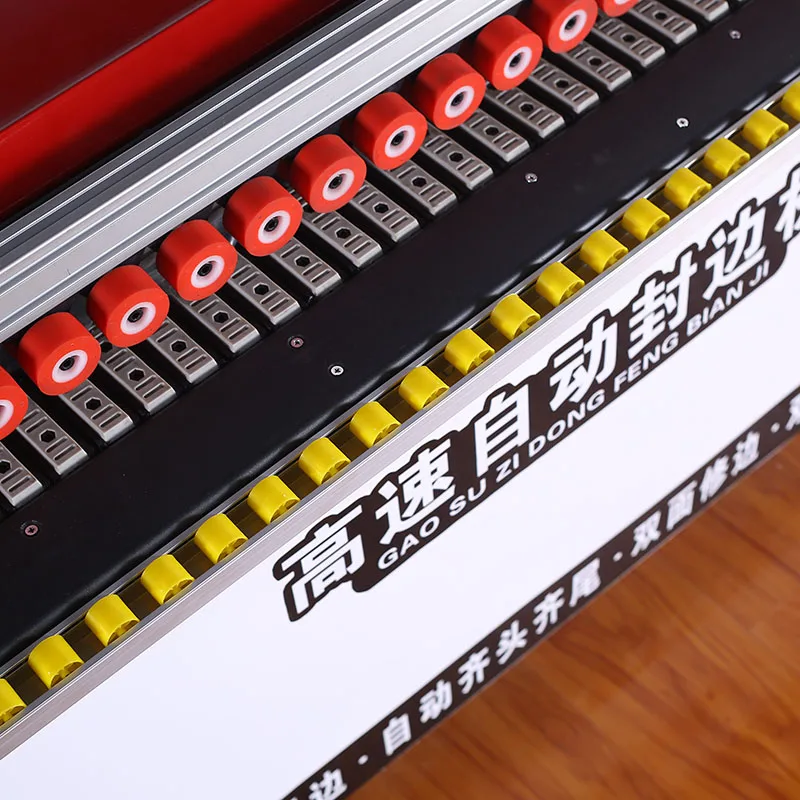

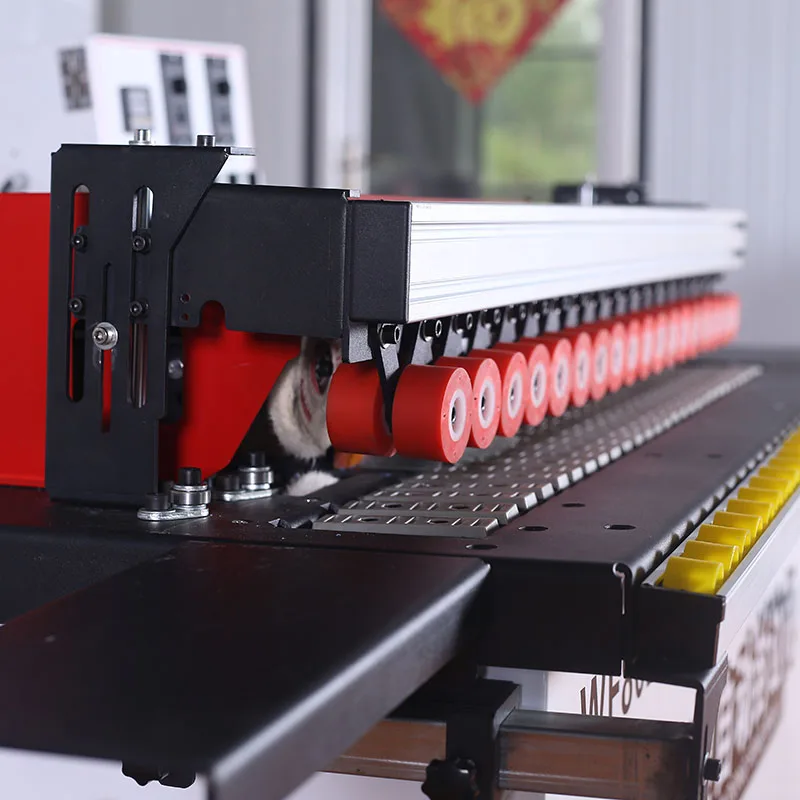

| Pressure Beam | One-piece integrated, double rows of pressure wheels |
| Extendable Support Strips | Yes |
| Overall Dimensions (L×W×H) | 130 × 65 × 75 cm |
| Net Weight | 150 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet straight-line edge banding | MDF and particleboard panels 10–50 mm thick |
| Small joinery workshop production | Plywood and solid wood panels with PVC or veneer strips 0.5–2.5 mm |
| Mobile or on-site woodworking operations | Self-contained processing with built-in dust extraction |
| Entry-level panel finishing | Batch runs of furniture components requiring trimming and polishing |
Why the Voltage Question Must Precede Every Portable Edge Banding Machine for Sale Inquiry
A machine that cannot match your local power supply becomes dead weight the moment it arrives.
I once shipped a portable unit to a Middle East workshop without re-confirming the site frequency. The operator waited three weeks for a step-down transformer while his production schedule fell apart. Since then, every electrical cabinet leaves the floor only after the buyer signs a voltage and frequency confirmation sheet. The 802 is rated at 220V by default, but winding and breaker specs change across markets [NEED_CITE: voltage and frequency standards by export market]. An Edge Banding Machine manufacturer should verify these details at quotation stage, not after the crate is opened.
Where the 802 Sits in the Complete Machine Range
Ruiqi’s catalogue spans from compact portable units like this 802 through to full-function pre-milling edge banders with six or more processing stations. The 802 occupies the entry tier — a single-pass straight-line machine that handles end cutting, trimming and polishing without requiring a separate extraction system. For a buyer surveying the range, this model covers the fundamentals of PVC and veneer banding on panels between 10 mm and 50 mm, making it a practical starting point before committing to higher-station configurations.
Mapping the Portable Edge Banding Machine for Sale to Workshop Scale
A joinery shop running fifty or fewer panels per shift will find the 0–10 m/min feed speed and 4000 ml glue pot adequate for continuous batch work without frequent stops for adhesive refill. The silicone conveyor belt and one-piece pressure beam keep thinner sheets stable, which matters when tolerances on cabinet carcasses leave little room for edge misalignment. When volume grows beyond this tier, the next step within the same product family adds pre-milling and corner-rounding stations without requiring a change of supplier or spare parts ecosystem [NEED_CITE: machinery product family continuity for spare part availability].
Reading the Specifications Against Real Workshop Output

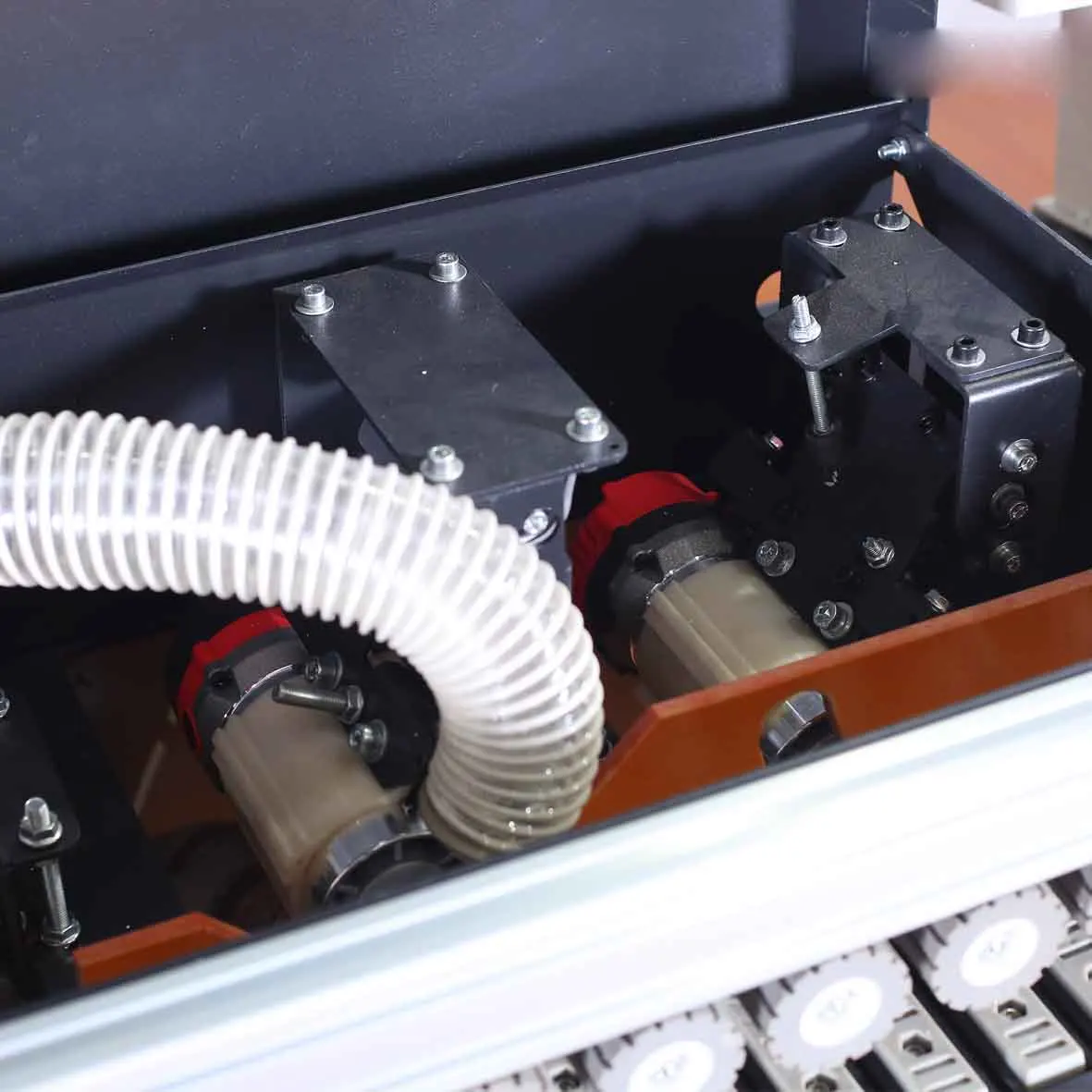

The dual 800 W trimming motors work the upper and lower strip edges in one pass, which directly affects how clean the joint appears on light-coloured PVC. Slower feed speeds below 4 m/min generally yield a finer trim finish on veneer, while the upper end of the 0–10 m/min range suits long PVC runs on particleboard where throughput matters more than visible grain matching. The 1000 W heating element reaches working temperature within five to ten minutes — important for shops that start cold each morning rather than holding adhesive at temperature overnight. Glue pot capacity at 4000 ml supports extended runs before replenishment, reducing operator intervention during batch processing.
The Cost of Skipping Configuration Details
Buyers who confirm only the headline price and skip the specification review often discover feed-height mismatches with their existing panel saws or air-pressure incompatibilities with workshop compressors. A portable unit rated at 0.4–0.6 MPa will underperform on a compressor that cannot sustain that range continuously, producing uneven adhesive transfer and visible glue lines on lighter substrates. Language barriers on the control panel add further friction — an operator facing an unfamiliar script will hesitate during temperature adjustments, risking adhesive degradation or panel scorching [NEED_CITE: multilingual control panel requirements for exported machinery].
Why Source This Model Through Ruiqi
In-house manufacturing with patented cutting mechanisms means the ±0.02mm trimming tolerance is verified on your material, not quoted from a generic catalogue. Voltage, control panel language and specification adjustments are treated as standard order parameters rather than special requests. A four-stage quality check — incoming material, in-process, finished product and pre-shipment verification — runs on every unit before packing. Engineer-led configuration recommendation arrives with a formal quotation within 24 hours, and factory visits are welcomed for buyers who want to witness test runs on their own panel stock.
Documentation & Verification
- CE declaration of conformity covering the 802 electrical and mechanical safety scope
- ISO 9001 certificate available for download with each quotation package
- Factory test record on your specified panel thickness and strip material before dispatch
- Electrical schematic confirming confirmed voltage and breaker ratings for your market
- Operation and maintenance manual in the agreed language, matching the control panel script
- Packing photographs and customs documentation support provided prior to shipment
Installation, Commissioning & Support
- Allocate a level floor area of roughly 150 × 80 cm allowing clearance for extendable support strips
- Provide a dedicated 220V circuit (or confirmed custom voltage) with appropriate breaker rating for 4 kW total draw
- Unit ships fully assembled; connect air supply at 0.4–0.6 MPa and power on arrival
- First-run calibration of glue pot temperature and feed speed against your panel stock and ambient conditions
- Spare parts list covering trimming blades, polishing wheels and conveyor belt sections for initial stock
- Routine glue pot cleaning and belt inspection intervals outlined in the supplied manual
What to Include in Your Inquiry
Send your typical panel material, sheet thickness range and the strip type you run most often. Specify your local voltage and frequency, preferred control panel language and whether your workshop compressor can sustain the required air pressure continuously. If you are planning a broader line, note any upstream panel saws or downstream boring equipment so the configuration can be checked for feed-height and throughput compatibility.
Frequently Asked Questions
Q: How does the 802 compare to full-function pre-milling edge banders in station count and throughput?
A: The 802 covers end cutting, trimming and polishing in a single straight-line pass, while pre-milling models add routing and corner-rounding stations for higher-spec finishes. Throughput on the 802 suits small to mid-size workshops; pre-milling units serve factories running larger daily volumes where edge preparation before banding is required for chipboard with rough-cut surfaces.
Q: Can the 802 handle curved or shaped panels?
A: No. The 802 is designed exclusively for straight-line edge banding on flat panels between 10 mm and 50 mm thick. Curved or shaped components require a dedicated contour edge bander with oscillating pressure rollers. Ruiqi’s catalogue includes models for shaped work if your production mix includes both formats.
Q: What voltage and control panel language options are available?
A: Standard rated voltage is 220V, configurable between 110V and 440V to match your local supply. Control panels can be supplied in multiple languages confirmed at order stage. A voltage and frequency confirmation sheet must be signed before the unit leaves the factory to prevent on-site power incompatibility.
Q: How does the 802 fit into a complete Ruiqi production line?
A: The 802 pairs with Ruiqi panel saws upstream for cut-to-size panels and hinge or multi-boring machines downstream for hardware fitting. Feed height and conveyor alignment are checked during line layout planning so panels transfer between stations without manual lifting or re-orientation.
Q: What is the upgrade path as production volume grows?
A: Buyers typically move from the 802 to a mid-range model adding pre-milling and additional trimming stations, then to full-function units with profiling capabilities. Remaining within the same Edge Banding Machine manufacturer product family keeps spare parts, glue specifications and operator training consistent across each transition.
