Description
Precision-Ground Components — verified on every ZDS750 Mini Edge Banding Machine before dispatch through four-stage QC covering incoming material, in-process, finished product, and pre-shipment checks.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS750 |
| Product Type | Mini Edge Banding Machine |
| Edge Banding Type | Straight and curve capable |
| Edge Banding Speed | 0–6 m/min |
| Strip Thickness Range | 0.5–2 mm |
| Sheet Thickness Range | 7–50 mm |
| Glue Capacity | 1000 ml |
| Heating Power | 800 W (5–8 min heat-up) |
| Plate Feeding Power | 60 W |
| Belt Feeding Power | 25 W |
| Rated Voltage | 220 V |
| Rated Air Pressure | 0.4–0.6 MPa |
| Gluing Device Rotation | 180° |
| Widening Bracket | Stretch 300 mm |
| Pressure Beam | One-piece aluminum alloy, double row of pressure wheels |
| Pressing Rollers | 2 elastic profiling pressing rollers |

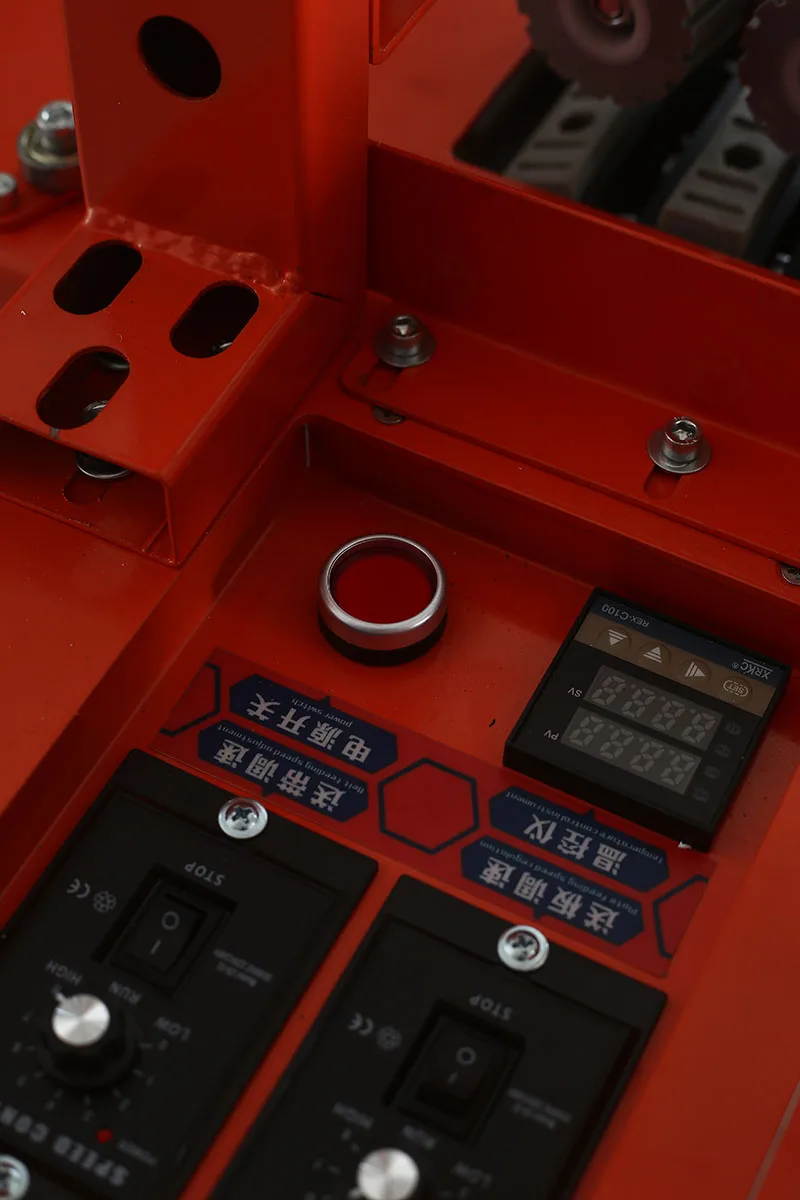

| Control Panel | Inner recessed design for special-shaped edge banding |
| Overall Dimensions | 120 × 50 × 50 cm |
| Machine Weight | 50 kg |
| Assembly State | Semi-automatic, portable configuration |
Application Suitability
| Application | Material or Output |
|---|---|
| Small-scale custom cabinet edge banding | MDF and particleboard with PVC edge banding |
| Joinery startup production runs | Plywood panels with veneer strips 0.5–2 mm |
| On-site furniture installation finishing | Solid wood panels requiring curve edge work |
| Prototype and short-run workshop jobs | Mixed substrates with frequent material changeovers |
Why Voltage Confirmation Should Happen Before You Sign the Order
Every ZDS750 mini edge banding machine ships with a confirmed electrical schematic matched to your local supply.
I spent years doing after-sales repair in the Yangtze Delta region before moving into configuration consulting. One cabinet factory I worked with took delivery of a semi-automatic edge bander only to find the voltage did not match their workshop supply. The machine sat idle for weeks while an electrician reconfigured the distribution cabinet. That delay is entirely avoidable when the mini edge banding machine manufacturer verifies local voltage and frequency before production starts [NEED_CITE: voltage and frequency standards by export market].
Portability Without Compromising Edge Adhesion

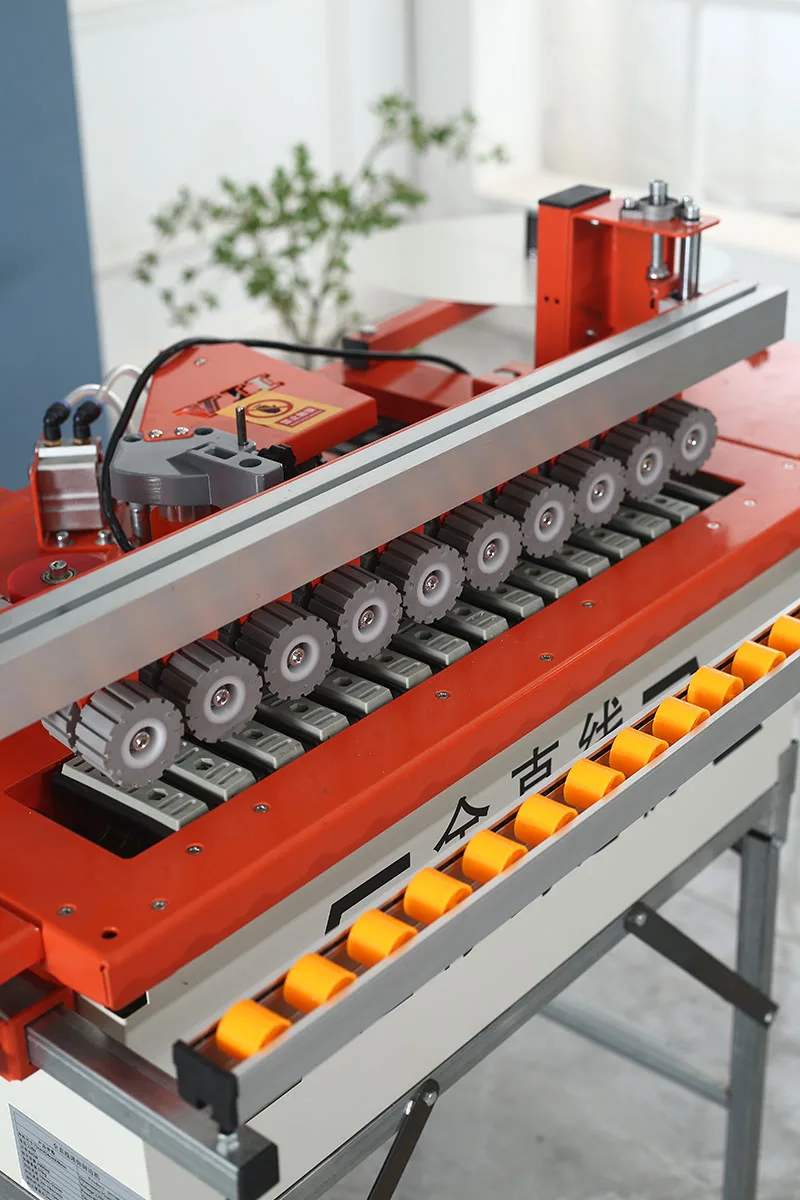

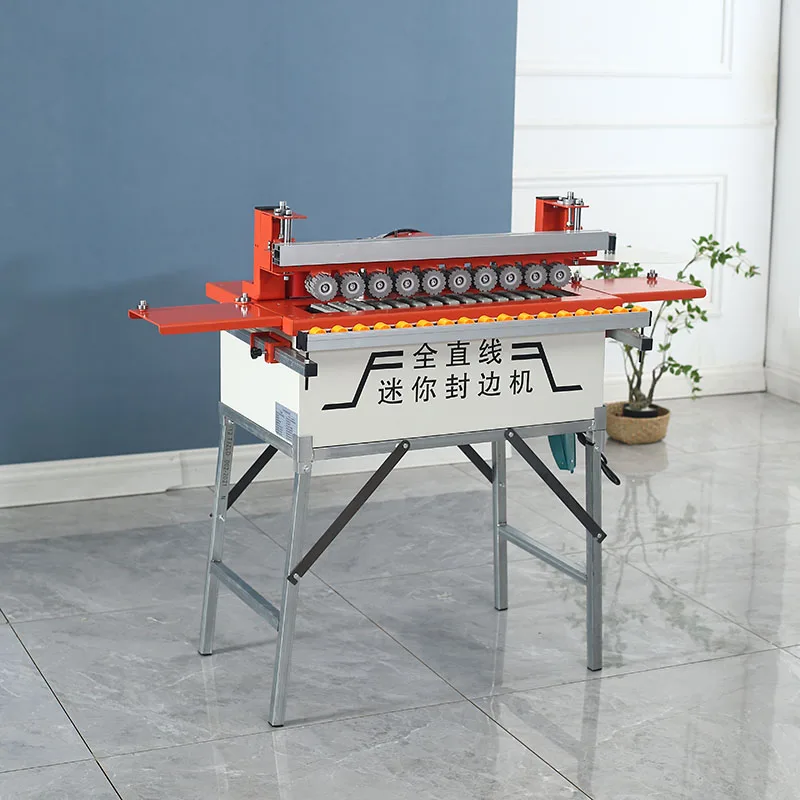

The ZDS750 weighs 50 kg and runs on 220 V single-phase power, which means a small workshop or mobile installer can move it between locations without needing three-phase infrastructure. The one-piece aluminum alloy pressure beam with a double row of pressure wheels keeps consistent contact across the panel edge, which matters when you are running curve work on a compact machine where the workpiece is being guided partly by hand.
Curve and Straight Work on One Unit

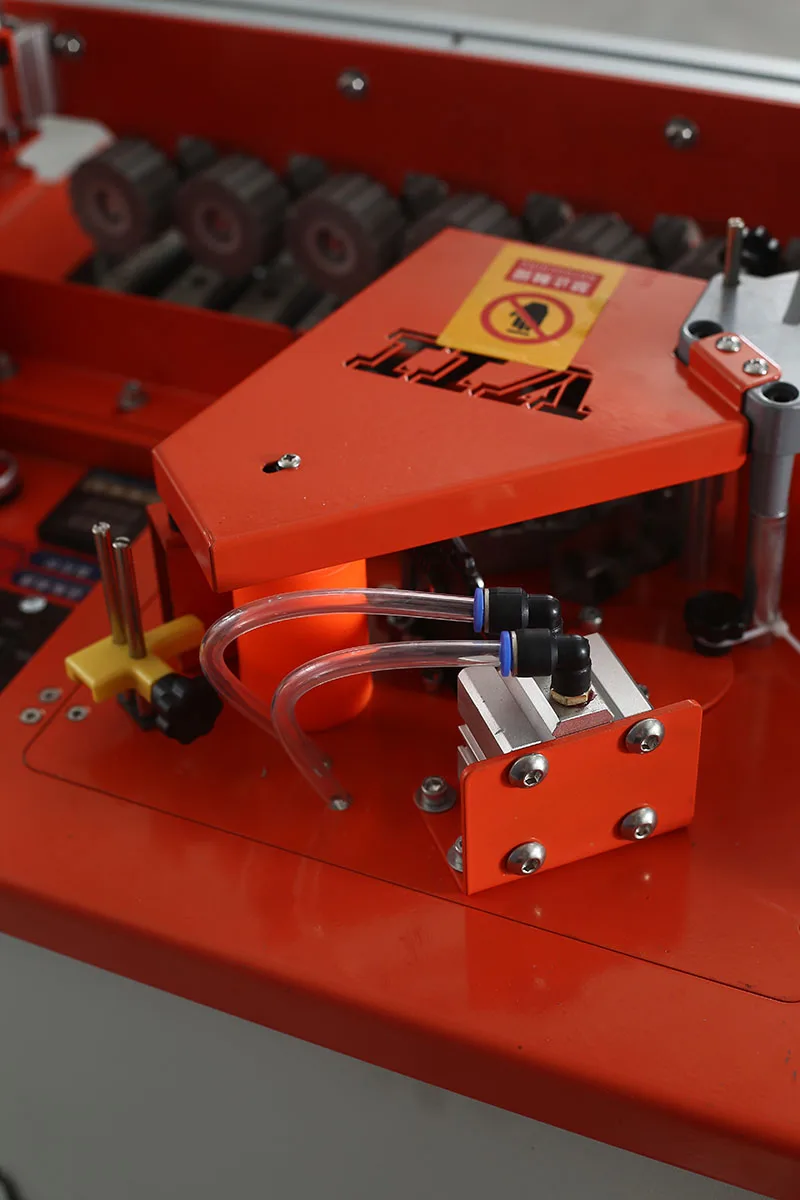

The 180° rotating gluing device is what separates this mini edge banding machine from fixed-head models. When you need to edge-band a shaped panel — a radius corner on a cabinet end, for example — the glue head rotates to follow the contour while the inner recessed control panel stays clear of the workpiece path. This eliminates the interference problem that forces operators to stop and reposition the control box mid-run on other portable edge banders [NEED_CITE: CE machinery directive requirements for edge banding equipment].
Reading the Specs That Actually Matter in the Workshop

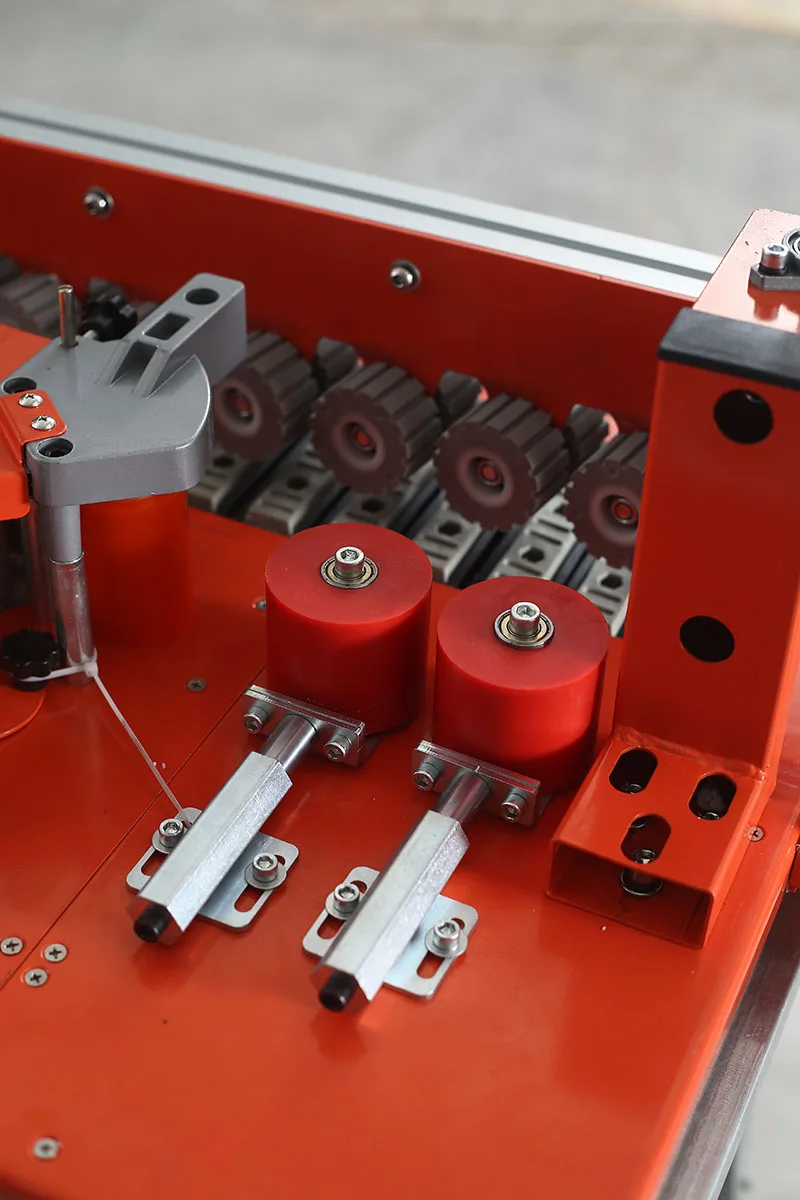

The 7–50 mm sheet thickness range covers everything from thin MDF shelving to thick solid-wood tabletop panels, but what matters more is how the two elastic profiling pressing rollers handle that range. These rollers adjust to panel thickness automatically, maintaining contact pressure without manual gap setting between jobs. The 0.4–0.6 MPa air pressure requirement is modest enough for a standard workshop compressor, yet sufficient to keep the feed mechanism and pressure beam stable. At 0–6 m/min feed speed, the machine suits short runs and custom pieces rather than continuous production shifts. The 800 W heating element reaches working temperature in 5 to 8 minutes, which is practical when you are doing several small batches with idle periods between them. The 300 mm widening bracket extension gives enough support for wider panels without needing a separate outfeed table.
What Happens When the Machine Does Not Match the Volume
Entry-level machines sold into production environments they were never designed for create a specific pattern of problems. Glue pots that cannot maintain temperature during continuous operation lead to weak adhesion on some panels and burnt glue on others. Feed mechanisms rated for intermittent use wear prematurely under sustained loads, and the result is edge banding that lifts weeks after delivery. When a workshop grows beyond what a portable unit can sustain, the answer is stepping up within the same product family rather than switching suppliers entirely [NEED_CITE: typical failure patterns in undersized edge banding equipment].
Why Procurement Decisions Land Here
In-house manufacturing with patented cutting mechanisms means tolerance claims on the ZDS750 are backed by verifiable factory records, not brochure numbers. The full product range — from this portable entry model to full-function pre-milling lines — lets a workshop scale production without learning a new supplier’s documentation and spare parts system. Voltage from 110 V to 440 V, multilingual control panels, and tailored specifications are offered as standard options rather than special requests. A four-stage QC process with pre-shipment verification catches electrical and mechanical issues before the crate leaves Shandong. Engineer-led configuration recommendations with formal quotation within 24 hours mean you get a machine matched to your actual panel mix and daily volume, not a generic stock unit.
Documentation & Verification
- Machine specification sheet with confirmed voltage and frequency for your local grid
- Factory test record demonstrating edge banding adhesion on your specific panel substrate
- Operation and maintenance manual in your operator’s agreed language
- Electrical schematic showing wiring matched to your site’s power supply
- Pre-shipment photograph set documenting machine condition before crating
Installation, Commissioning & Support
- 220 V single-phase supply with dedicated circuit breaker rated for 800 W heating plus motor loads
- Flat workshop floor with 120 × 50 cm footprint and clearance for the 300 mm widening bracket
- Semi-automatic assembly arrives largely complete; verify pressure beam alignment after unpacking
- First-run calibration of the two elastic profiling pressing rollers against your actual panel thickness
- Spare glue pot liner and replacement pressing rollers stocked for routine maintenance intervals
What to Include in Your Inquiry
To get a configuration recommendation that matches your workshop, provide the panel materials and thicknesses you run most often, the edge banding strip types and thickness range, your local voltage and frequency, and the language your operators read. If you have existing upstream saws or downstream boring machines, mention their feed heights so compatibility can be checked before the order is finalized.
Frequently Asked Questions
Q: Is the ZDS750 rated for my daily panel volume, or should I step up to a full-automatic model?
A: The ZDS750 suits short runs, custom pieces, and workshops transitioning from manual edge banding. If your daily volume involves continuous straight-run production for several hours, an engineer will assess whether a full-automatic model within the same product family better matches your throughput. The recommendation is based on your actual panel count and material mix, not a generic capacity chart.
Q: How do I confirm voltage and frequency compatibility before the machine ships?
A: During the specification confirmation stage, you provide your local supply voltage and frequency along with a photo of your workshop electrical panel. The factory then issues an electrical schematic showing the exact wiring configuration. The machine is built and tested against that confirmed specification before dispatch, so no on-site electrical rework is needed when it arrives.
Q: Can the control panel and operation manual be supplied in my operator’s language?
A: Yes. The inner recessed control panel labels and the operation and maintenance manual are both produced in your agreed language. This is confirmed during the specification stage alongside voltage, so the machine arrives ready for immediate commissioning without translation delays.
Q: What edge banding materials and thicknesses are verified on this model?
A: The ZDS750 handles PVC and veneer edge banding from 0.5 mm to 2 mm strip thickness, applied to MDF, particleboard, plywood, and solid wood panels between 7 mm and 50 mm thick. If you work with ABS or specialty laminates, request a sample processing test using your own material before the order is confirmed.
Q: How does the ZDS750 fit into a phased upgrade path toward a fully automated line?
A: The ZDS750 shares the same product family as the manufacturer’s full-function pre-milling edge banding lines. When your volume grows beyond semi-automatic capacity, you can transition to a larger model with compatible spare parts logic and the same documentation standards. The engineering team maps this upgrade path during the initial configuration discussion.
