Description
Verified Tolerance Claims — Every ZDSF210 unit undergoes four-stage QC with pre-shipment testing, so the edge accuracy you see on the spec sheet is what you get on your workshop floor.
Technical Specifications
| Parameter | Value |
|---|---|

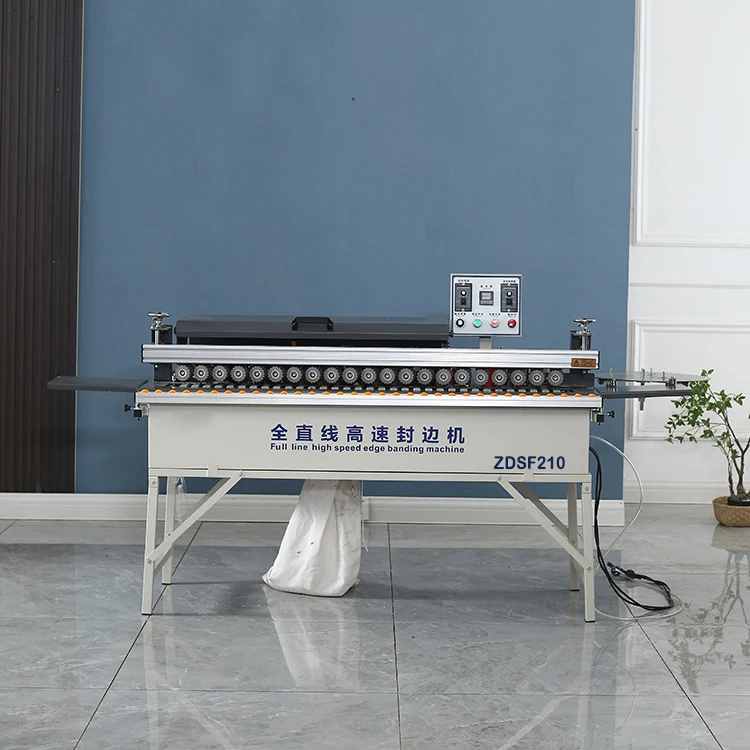

| Model | ZDSF210 |
| Product Type | Full Line High Speed Edge Banding Machine |
| Edge Banding Speed | 6 m/min |
| Belt Feed Motor | 25 W |
| Board Feed Motor | 120 W |
| Trimming Motor | 800 W × 2 |
| Heating Motor | 800 W |
| Vacuum Fan | 1200 W |
| Glue Capacity | 1000 ml |

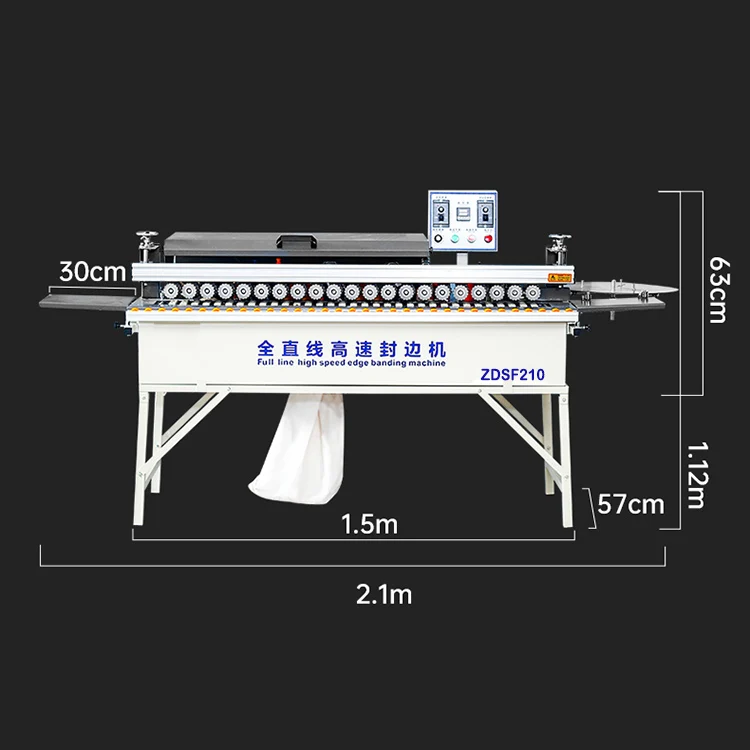

| Overall Dimensions (L×W×H) | 1500 × 570 × 630 mm |
| Net Weight | 155 kg |
| Guide Rail | Steel rod guide rail |
| Trimming Type | Up, down, left and right profiling trimming |
| Dust Collection | Airtight dust collection and cleaning function |
| Glue Pot | Front and rear anti-shape glue pot |
| Pressing | Elastic device secondary pressing |
| Scraping | Flexible edge scraping function |
| Polishing | Cross polishing |
| Motor Base | Frame type motor base |
| Warranty | 1 Year |
| Voltage & Frequency | Configurable from 110 V to 440 V (confirm local supply) |
| Control System | Confirm PLC or manual at inquiry |
| Panel Thickness Range | Confirm range at inquiry |
| Dust Extraction Port Diameter | Confirm at inquiry |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF panels with PVC edge banding |
| Wardrobe side panel finishing | Particleboard with melamine paper edging |
| Small-batch furniture edging | Plywood panels with veneer strip banding |
| Workshop prototype runs | Solid wood panels with thin PVC or ABS edging |
| Shelving and drawer front trimming | Laminated board with pre-glued edge material |
Why the Material Question Matters More Than the Speed Rating
Matching the glue pot temperature to your actual edge banding material prevents the delamination and bubbling that no amount of feed speed can fix.
I have watched workshops invest in a Full Line High Speed Edge Banding Machine for sale, only to discover that their melamine paper edging required a glue temperature their machine could not sustain. The visible glue lines and lifting edges showed up within the first production run. That mismatch between machine capability and substrate behaviour is far more costly than any throughput difference between models [NEED_CITE: edge banding adhesion requirements by material type].
Mapping the ZDSF210 Across the Ruiqi Edge Banding Range
The ZDSF210 occupies a defined position within a broader product family that stretches from compact entry-level banders to full-function pre-milling stations. A workshop starting with this Full Line High Speed Edge Banding Machine manufacturer can add stations from the same family as volume grows, keeping feed heights, control logic, and spare part inventories consistent across the line.
How a Unified Product Family Reduces Integration Risk
When machines are sourced from different suppliers, mismatches in panel transfer height, dust extraction port diameter, and electrical control voltage create hidden installation costs. Staying within one product family means the ZDSF210 lines up with upstream panel saws and downstream boring machines without custom adapters. That continuity matters most when a small workshop scales into multi-shift production and cannot afford commissioning delays [NEED_CITE: production line integration standards for woodworking machinery].
Reading the Specs That Actually Affect Edge Quality

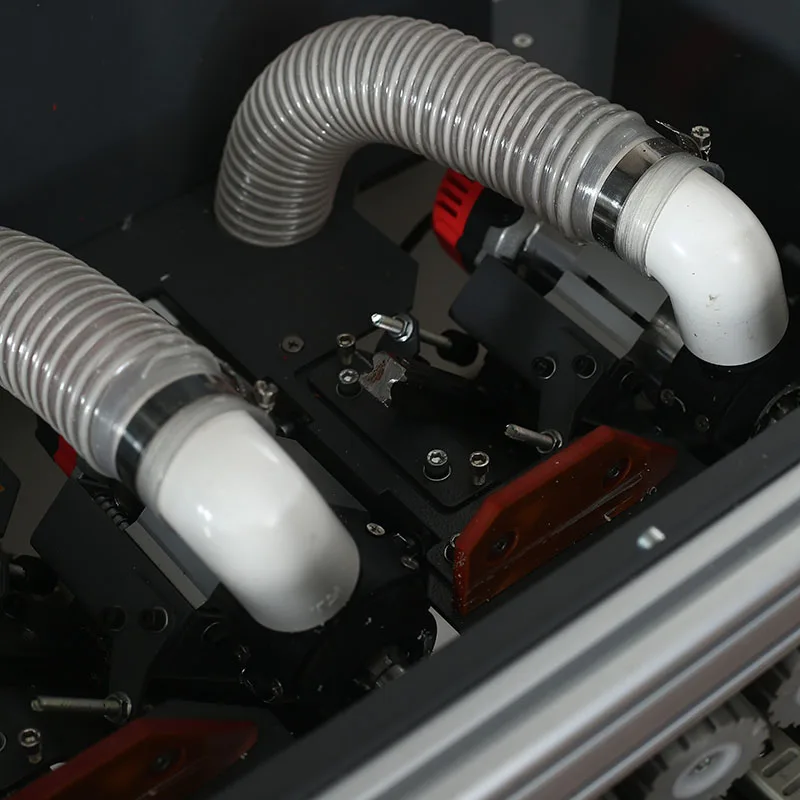

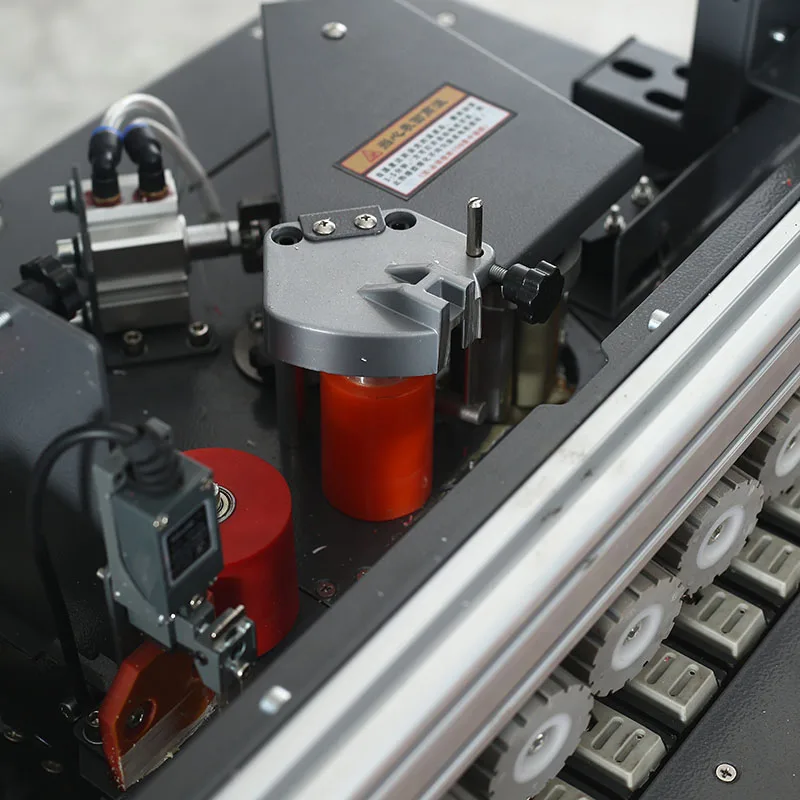

The 800 W × 2 trimming motors drive the up, down, left and right profiling trimming mechanism, which follows the panel contour rather than making a single flat pass. This matters when edging shaped cabinet fronts or radius corners where a fixed trimming head would leave witness marks. The steel rod guide rail keeps the panel travel path stable at the 6 m/min feed rate, reducing the chatter that shows up as micro-ripples on the finished edge. Meanwhile, the front and rear anti-shape glue pot paired with elastic device secondary pressing ensures the adhesive spreads evenly across varying panel thicknesses, and the 1000 ml glue capacity supports sustained runs without frequent refills. The airtight dust collection function works in tandem with the flexible scraping and cross polishing stages to remove residual adhesive strings and buff the edge to a uniform sheen before the panel leaves the machine.
The Cost of Skipping Voltage Confirmation Before Shipment
A machine wired for 380 V three-phase arriving at a workshop running 220 V single-phase becomes a stationary crate until a transformer or rewiring is arranged. Beyond the delay, the heating motor and trimming motors on the ZDSF210 are calibrated to a specific frequency; running them at the wrong cycle rate alters the glue pot temperature profile and trimming head RPM, producing edge finishes that fall outside tolerance. Confirming voltage and frequency before production begins eliminates this entire failure mode [NEED_CITE: voltage and frequency standards by export market].
Why Procurement Through This Channel Works
In-house manufacturing with patented cutting mechanisms means the ZDSF210 is built and tested under one roof, not assembled from outsourced sub-assemblies of unknown origin. The four-stage QC process — incoming material, in-process, finished product, and pre-shipment verification — catches tolerance drift before the machine leaves the factory. Voltage, control language, and panel thickness configuration are confirmed at the quotation stage, not discovered at uncrating. A formal engineer-led configuration proposal arrives within 24 hours of inquiry, and factory visits are available so buyers can witness test runs on their own panel stock before committing to an order.
Documentation & Verification
- CE declaration of conformity covering the ZDSF210 trimming and heating motor circuits
- ISO 9001 certificate for the manufacturing facility producing this edge bander
- Machine specification sheet confirming voltage, frequency, and panel thickness range
- Factory test record on your specified edge banding material before dispatch
- Electrical schematic with confirmed motor wiring for your local supply
- Operation and maintenance manual in your chosen language
Installation, Commissioning & Support
- The 1500 × 570 mm footprint fits standard workshop bays; confirm floor leveling within tolerance
- Dedicated circuit required for the combined 800 W trimming and 1200 W vacuum loads
- Machine ships assembled; position and connect dust extraction before first run
- Glue pot temperature calibration performed on your PVC or melamine edging stock at startup
- Elastic pressing device adjusted to your panel thickness range during commissioning
- Spare trimming cutters and scraper blades included for initial maintenance cycles
What to Include With Your Inquiry
Send your primary edge banding material type — PVC, melamine paper, veneer, or ABS — along with the thickness range of the panels you process most often. Confirm your workshop voltage and frequency so the ZDSF210 motors and heating element are wound correctly before production. If you are evaluating this model against others in the range, note your daily panel count and whether you plan to add pre-milling or stacking stations later.
Frequently Asked Questions
Q: How does the ZDSF210 compare to other models in the edge banding range?
A: The ZDSF210 sits in the mid-tier of the full edge banding family. It offers profiling trimming, cross polishing, and airtight dust collection in a compact footprint. Workshops needing pre-milling or higher feed speeds can step up within the same product family without changing suppliers or retraining operators on a different control interface.
Q: What voltage and frequency options are available for my target market?
A: The ZDSF210 motors and heating element can be configured for voltages from 110 V to 440 V. You must confirm the exact voltage and frequency at your facility before production so the trimming motors, glue pot heater, and vacuum fan are all matched to your local electrical supply.
Q: Can I see a sample edge banding test before placing an order?
A: Factory visits are available where the ZDSF210 runs on your specified panel material and edge banding stock. The pre-shipment test uses your actual substrates so you can inspect glue line quality, trimming accuracy, and polishing finish before the machine is packed for dispatch.
Q: What panel thickness and material types does this model handle?
A: The ZDSF210 processes MDF, particleboard, plywood, and solid wood panels with PVC, melamine paper, veneer, or ABS edge banding. Confirm your exact panel thickness range during the quotation stage so the elastic pressing device and guide rail settings are configured for your production requirements.
Q: How do I plan an upgrade path from this model to a full-function pre-milling machine?
A: Because the ZDSF210 belongs to a unified product family, upgrading to a pre-milling station keeps the same control language, dust extraction interface, and spare part ecosystem. Your initial configuration notes are retained, so the transition requires only line layout adjustment rather than a complete operator retraining cycle.
