Description

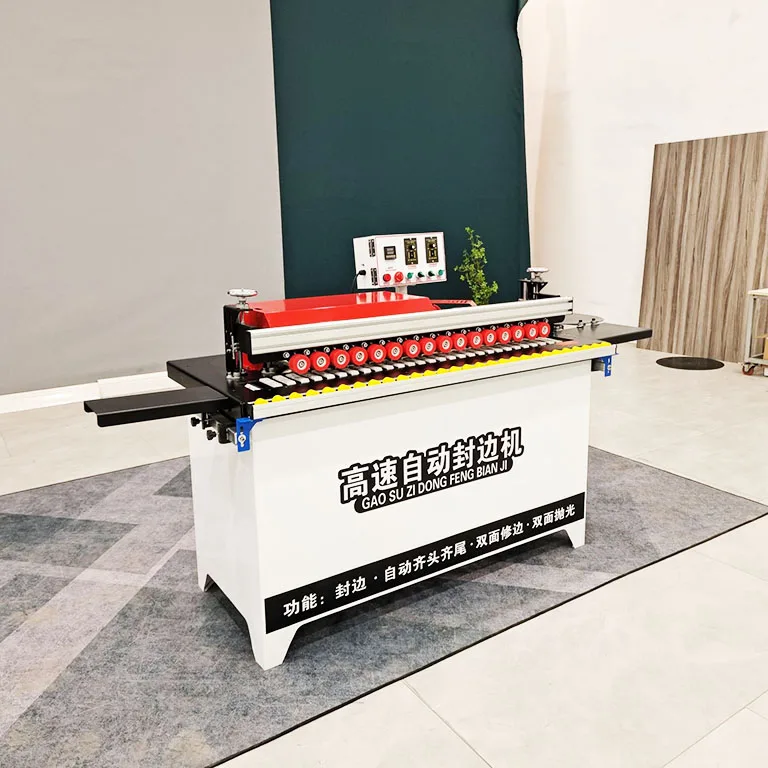

Verified Tolerance Control — The ZDS802 achieves ±0.02mm edge banding precision through patented cutting mechanisms and four-stage inspection, giving furniture workshops repeatable results across MDF, particleboard, and plywood substrates.
Technical Specifications
| Parameter | Value |
|---|---|

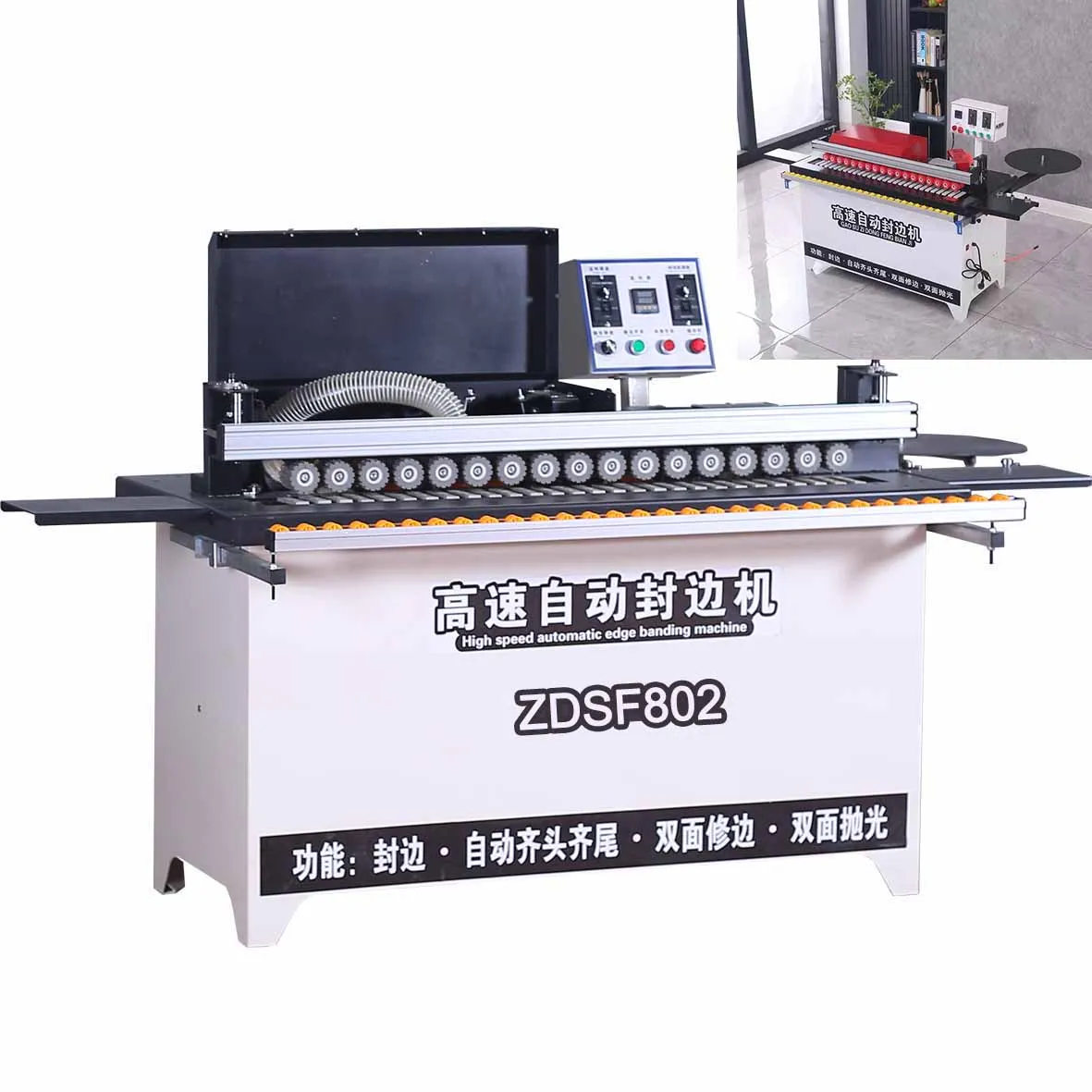

| Model | ZDS802 |
| Product Type | Automatic Edge Banding Machine |
| Function | Automatic plate feeding, end cutting, upper and lower polishing, head and tail trimming, integrated dust collector |
| Edge Type | Straight line |
| Rated Voltage | 220V (configurable from 110V to 440V) |
| Frequency | 50Hz or 60Hz (basis to be confirmed) |
| Rated Power | 4 kW |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Suction Power | 1200W |
| Heating Power | 1000W (heat-up time 5–10 min) |
| Strip Thickness Range | 0.5–2.5 mm |
| Panel Thickness Range | 10–50 mm |
| Feed Speed | 0–10 m/min |
| Conveyor Belt Speed | 0–10 m/min |
| Glue Pot Capacity | 4000 ml |
| Gluing Method | Double-sided gluing |
| Air Supply Requirement | 0.4–0.6 MPa |
| Overall Dimensions (L×W×H) | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
| Belt Breaking Method | Pneumatically controlled |

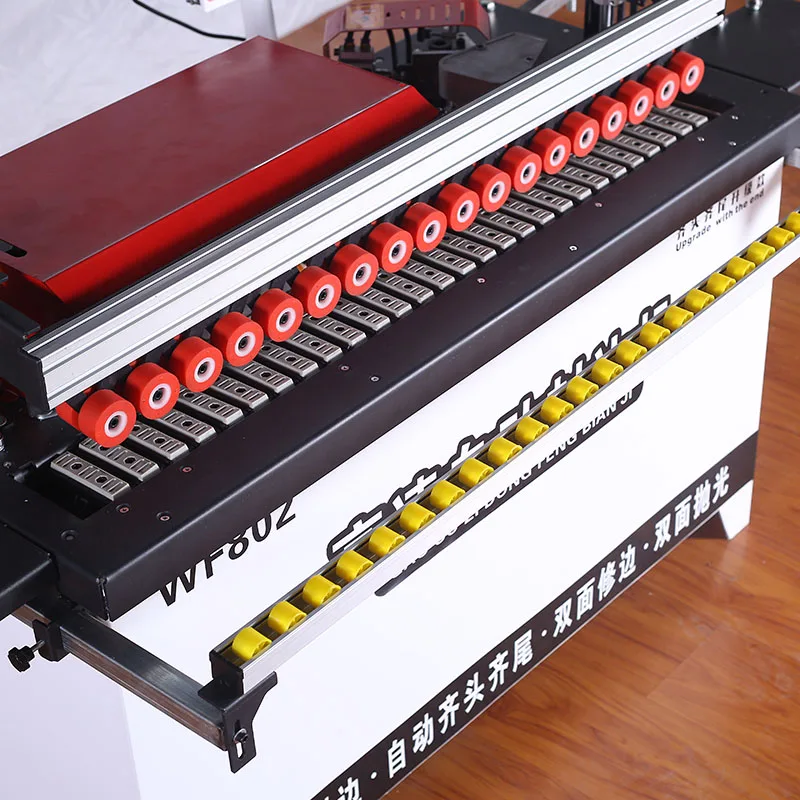

| Pressure System | Integrated pressure beam, double-row pressure wheels, silicone material conveyor belt |
| Control Panel | Digital display of glue pot temperature, independent switches |
| Extendable Support | Extendable fluent strips for large plate stability |
| Key Features | Integrated dust collector (1200W suction), large-capacity glue pot, double-sided gluing |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture and cabinet edge banding | MDF, particleboard, plywood, solid wood panels |
| PVC and veneer edge banding on straight-line edges | 0.5–2.5 mm strip thickness, 10–50 mm panel thickness |
| Small to mid-size workshop semi-automated edge finishing | Mixed-batch production runs with continuous gluing |
| Panel processing plants with multi-plate banding | Large glue pot capacity for extended runs without refill |
Why the Edge Material Question Should Come Before the Quote
Knowing your exact edge banding material before configuring the ZDS802 prevents the most common commissioning failure I see in the field.
When a Chilean cabinet factory ordered an automatic edge banding machine manufacturer setup for standard PVC, they ran into trouble within the first week. Their actual production used high-gloss acrylic strips, which demanded entirely different glue temperatures and feed speeds. The first two weeks produced enough rejected panels to fill half a storage room. That is the kind of mismatch that no spec sheet catches on its own [NEED_CITE: edge banding material compatibility with glue temperature profiles]. Asking what substrate and strip material the machine will actually process determines whether double-sided gluing and the 1000W heating element are configured correctly from day one.
How the ZDS802 Fits Within a Complete Machine Range
This automatic edge banding machine manufacturer model occupies the mid-range position in Ruiqi’s full catalogue. Workshops that start with the ZDS802 can later add pre-milling stations or higher-throughput units from the same product family without retraining operators or changing control panel conventions. The digital temperature display and independent switch layout remain consistent across the lineup, so an operator who learns on this machine transitions to a higher-tier model with minimal friction.
Double-Sided Gluing and the Substrate Bonding Problem

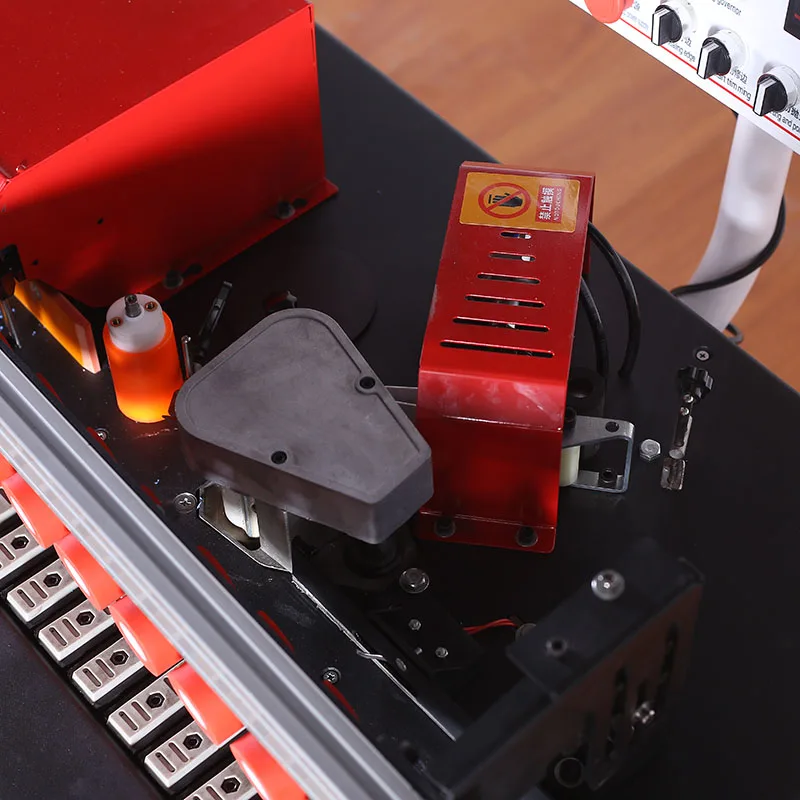

Visible glue lines on certain substrates trace back to uneven adhesive distribution. The ZDS802 addresses this through double-sided gluing that coats both the panel edge and the strip simultaneously. Combined with the integrated pressure beam and double-row pressure wheels, the system maintains uniform contact pressure across the full 10–50 mm panel thickness range. The silicone conveyor belt prevents surface scratching during transport, which matters when running finished panels that go directly to assembly without secondary sanding [NEED_CITE: substrate-dependent bonding variation in edge banding].
Reading the Specs That Actually Matter on the Shop Floor
The 4000 ml glue pot capacity means operators run longer batches without stopping to refill — a practical difference when processing full sheets of MDF back-to-back. The dual 800W trimming motors handle upper and lower edge trimming in a single pass, which directly affects whether the finished edge sits flush or requires hand cleanup. Panel thickness range of 10–50 mm covers everything from thin cabinet shelving to thick worktop cores. Feed speed adjustability from 0–10 m/min lets operators slow down for delicate veneer strips or speed up for high-volume PVC runs. The pneumatically controlled belt breaking eliminates the inconsistent cutoffs that manual snipping produces, keeping the leading edge clean for downstream trimming [NEED_CITE: pneumatic versus manual edge strip cutoff methods].
The Hidden Cost of Specifying the Wrong Voltage
Machines quoted without confirming local voltage and frequency arrive at the factory floor unusable. I have seen edge banders of this class sit in crates for weeks while electricians jury-rig step-down transformers that then cause the heating element to run below its designed 1000W output. The glue never reaches proper working temperature, and the bond fails during trimming. Confirming whether the local grid runs 50Hz or 60Hz is not optional — it changes motor RPM and therefore feed speed accuracy. A machine rated for 220V/50Hz behaves differently on a 60Hz supply unless the motor and control system are matched at the factory [NEED_CITE: voltage and frequency standards by export market].
Why Buyers Source This Automatic Edge Banding Machine Manufacturer
In-house manufacturing with patented cutting mechanisms means tolerance claims on the ZDS802 are verifiable against physical test records, not just brochure numbers. The full range from entry-level to full-function within one product family lets workshops scale without changing supplier or retraining staff. Voltage, control panel language, and specification customization ship as standard practice rather than special requests. Four-stage quality control with pre-shipment verification catches configuration errors before the crate leaves the factory. Engineer-led configuration recommendations with formal quotation within 24 hours mean buyers get a matched setup rather than a generic catalog order.
Documentation & Verification
- Factory test record on your specified panel thickness and edge strip material before dispatch
- Electrical schematic confirming voltage and frequency match for your local power grid
- Operation and maintenance manual supplied in the operator’s working language
- CE declaration of conformity and ISO 9001 certificate included in the documentation package
- Spare parts list matched to the ZDS802 configuration as shipped
Installation, Commissioning & Support
- The 130 × 65 × 75 cm footprint requires a level floor with clearance on both sides for extendable fluent strip supports
- A dedicated 220V circuit rated for the 4 kW total draw prevents voltage sag during glue pot heat-up
- The 150 kg weight allows positioning with standard workshop equipment without heavy rigging
- First commissioning includes setting glue pot temperature for your specific PVC or veneer strip material
- Pneumatic belt breaking requires a stable 0.4–0.6 MPa air supply connection at the machine inlet
- The 1200W integrated dust collector connects directly to the machine, simplifying extraction setup
What to Include in Your Inquiry
Send your primary edge banding material type and strip thickness, the panel substrates you run most often, and your local voltage and frequency. Let us know the operator’s preferred control panel language and whether you need a sample processing test on your actual materials before committing to the order.
Frequently Asked Questions
Q: How is edge banding tolerance verified on the ZDS802 before shipment?
A: Each unit undergoes pre-shipment testing with panel and strip materials matching the buyer’s production requirements. The factory test record documents measured trimming tolerance and edge quality. Buyers can request a sample processing run or visit the facility to witness the verification in person before the machine is packed.
Q: What voltage and frequency options are available for different export markets?
A: The ZDS802 is configurable from 110V to 440V and supports both 50Hz and 60Hz grids. The exact configuration must be confirmed during the quotation stage so that motor speed, heating element output, and control panel settings match the destination country’s electrical standards.
Q: How do I choose between this model and other edge banders in the Ruiqi range?
A: The decision depends on your production volume, edge banding material mix, and whether you need functions like pre-milling. The ZDS802 suits workshops running straight-line PVC and veneer banding at moderate volumes. Higher-tier models add stations for heavier throughput or more complex edge profiles.
Q: What edge banding materials and panel thicknesses does the ZDS802 support?
A: The machine handles PVC and veneer strips from 0.5 to 2.5 mm thick on panels ranging from 10 to 50 mm. MDF, particleboard, plywood, and solid wood panels are all within its processing range. Glue temperature and feed speed are adjusted to match the specific material combination.
Q: Can I arrange a factory visit or sample test before ordering?
A: Factory visits are welcomed at any stage. Buyers can send their actual panel and edge strip materials for a sample processing test, allowing them to verify edge quality, glue line visibility, and trimming accuracy on their own substrates before placing an order.
