Description
Verified Tolerance In-House — the DW802 is manufactured with proprietary cutting mechanisms and verified tolerance under a four-stage QC process before it leaves the Ningjin facility.
Technical Specifications
| Parameter | Value |
|---|---|

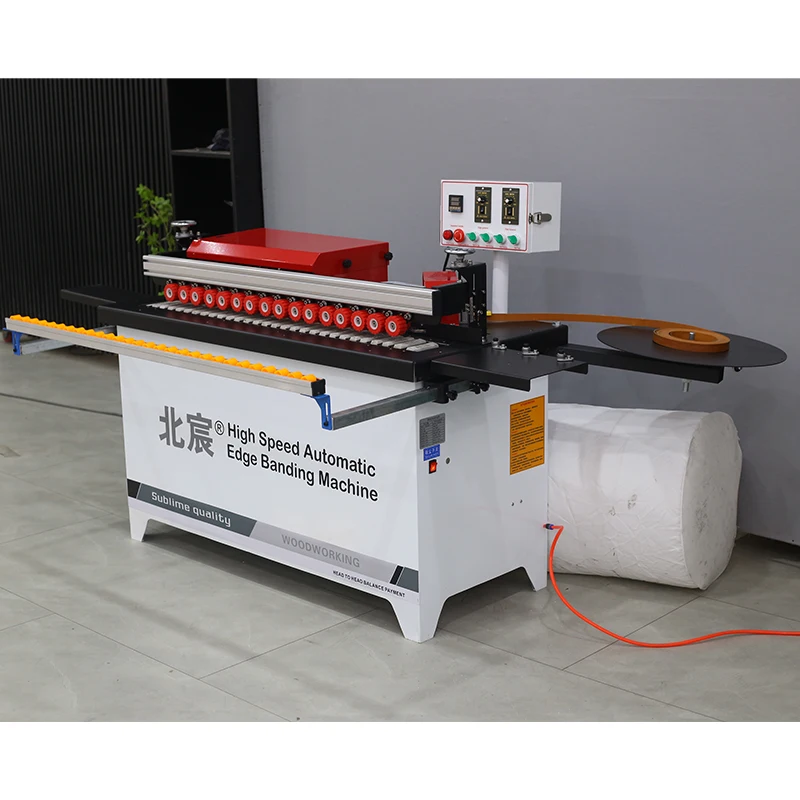

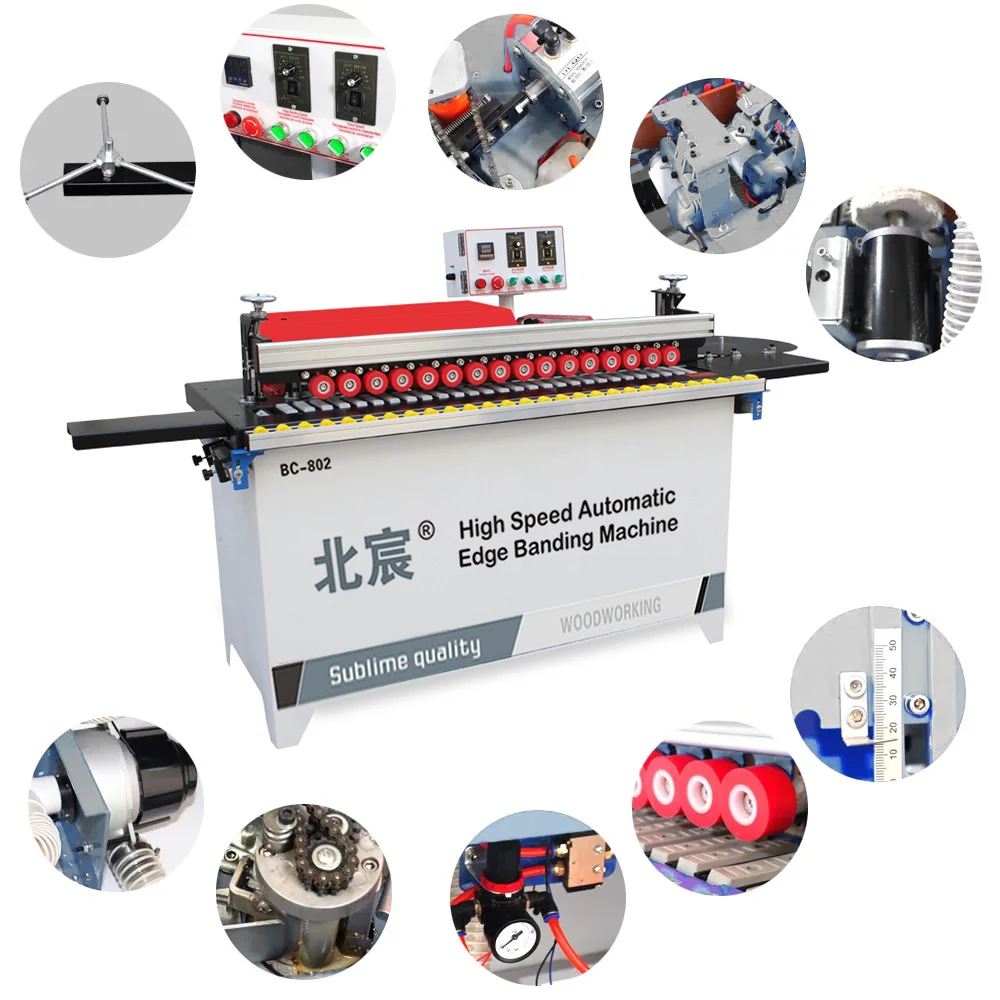

| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage | 220V/380V/customization |
| Standard Features | Edge banding, trimming, polishing, automatic head and tail cutting, with vacuum |
| Minimum Sheet Length | 250mm |
| Minimum Sheet Width | 100mm |
| Edge Banding Height Range | 0-50mm |
| Edge Banding Thickness Range | 0.3-3mm |
| Edge Feed Power | 140W |
| Transmission Power | 140W |
| Trimming Power | 800W×2 |

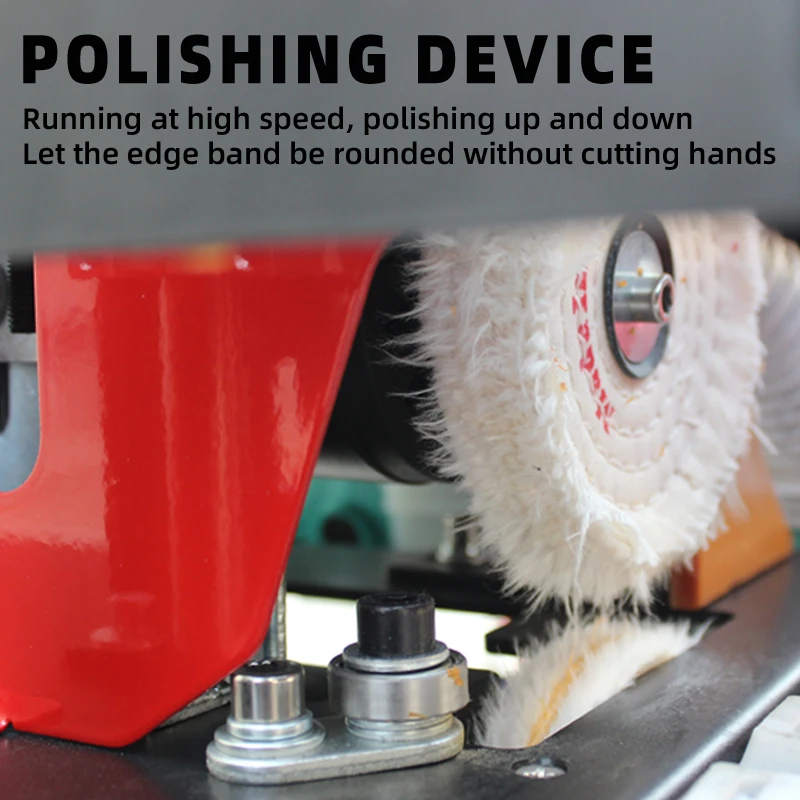

| Polishing Power | 180W×2 |
| Vacuum Power | 1200W |
| Air Source Pressure | 0.4-0.8MPa |

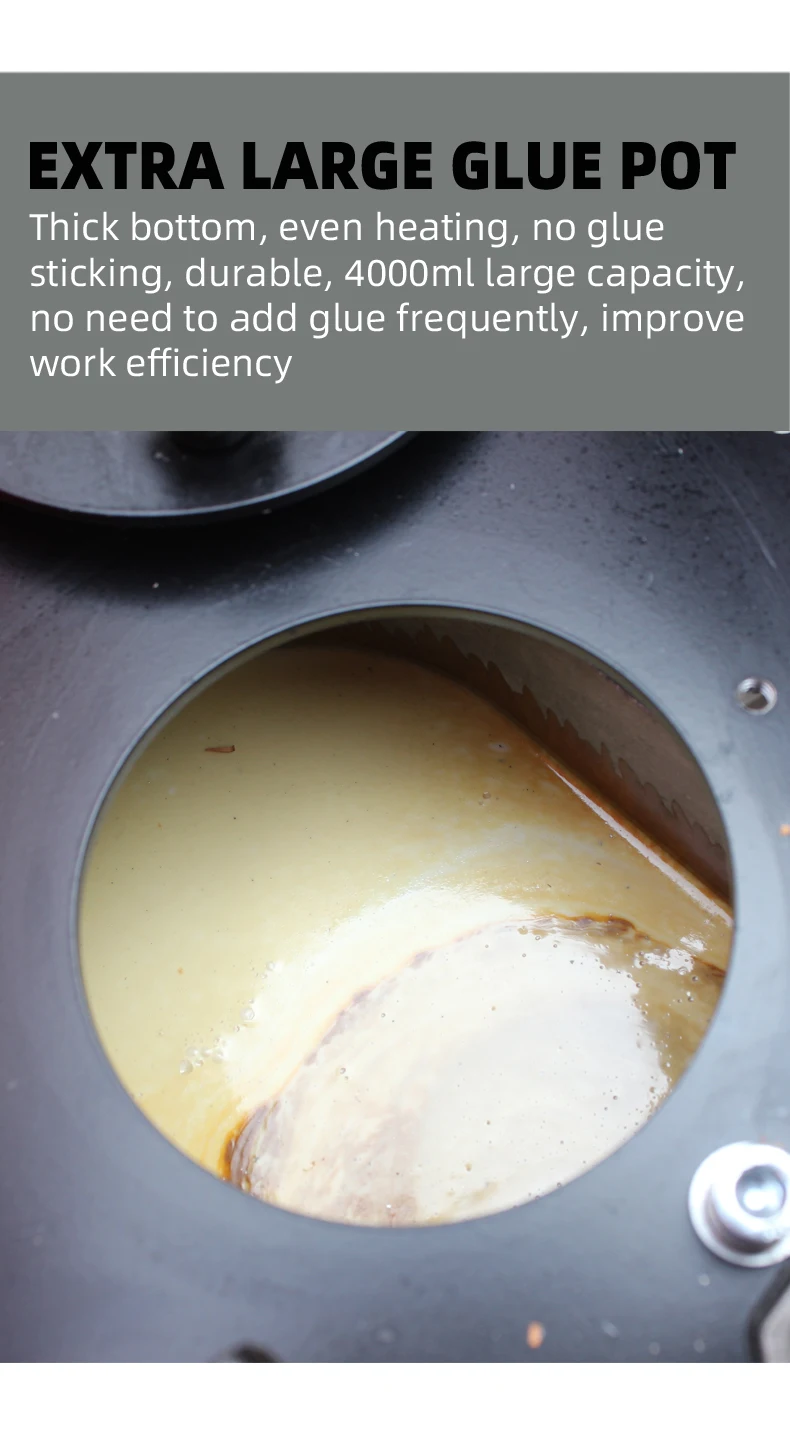

| Glue Pot Capacity | 4000ml |
| Overall Dimensions (L×W×H) | 1300×600×950mm |
| Net Weight | 135kg |
| Feed Speed | (basis to be confirmed) |
| Panel Thickness Range | (basis to be confirmed) |
| Control System | (basis to be confirmed) |
| Conveyor Belt Material | Silica gel |

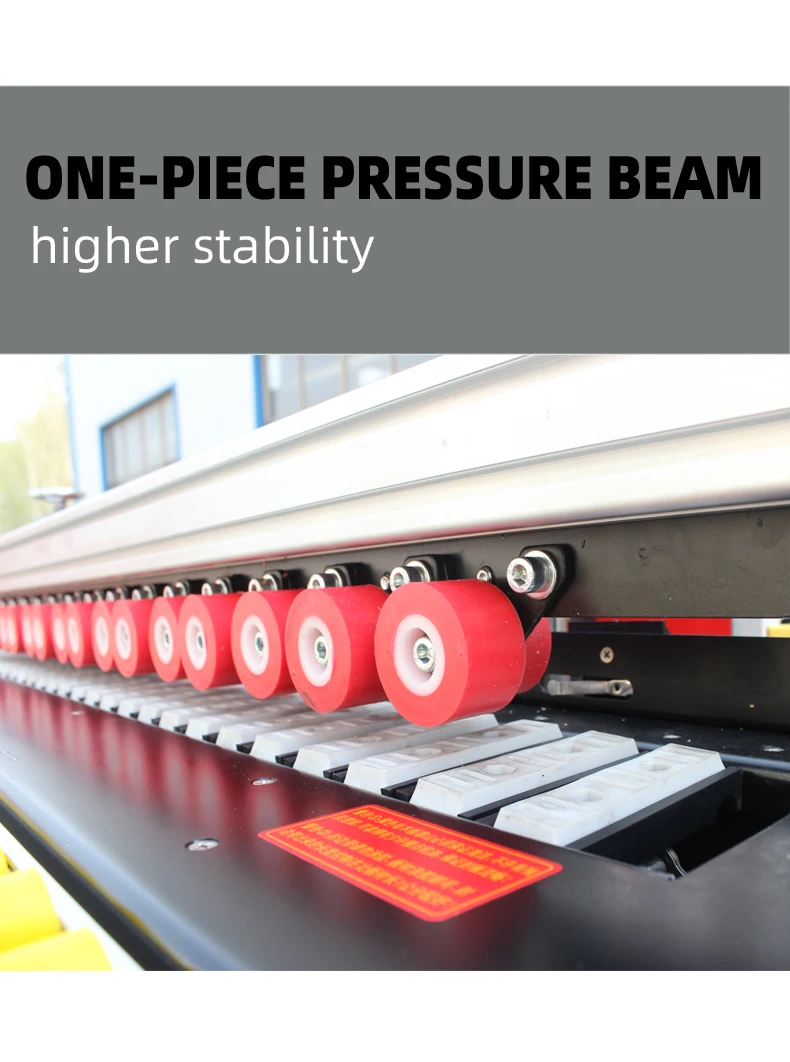

| Pressure Beam Design | Integrated pressure beam |
| Assembly State | Fully assembled |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Home decoration and custom furniture production | MDF, particleboard, solid wood board, ecological board, plywood |
| Cabinet and joinery workshop edge sealing | PVC, veneer, wood banding |
| Small to mid-scale panel processing | Flat panel components requiring trimmed and polished edges |
Why the Voltage Question Must Precede the Automatic Edge Banding Machine Order
A machine wired for the wrong supply is dead weight on the shop floor.
I once shipped a unit to a workshop where the local grid ran at a frequency the motor was never wound for. The automatic edge banding machine manufacturer had built exactly what was ordered, but nobody asked about the site supply before production started. The result was weeks of downtime and rewinding costs that wiped out any margin on the deal [NEED_CITE: voltage and frequency standards by export market]. When sourcing from a full catalogue, the voltage and frequency confirmation must happen at the quotation stage, not after the crate arrives.
Navigating the Complete Model Range
The DW802 occupies a defined position within a broader family of edge banding equipment, from entry-level units designed for occasional use to full-function pre-milling configurations built for continuous production runs. Understanding where this automatic edge banding machine sits allows a buyer to map out not just today’s requirement but the next step up when panel volumes increase. A workshop can scale within one product family without changing supplier or relearning a new control interface.
Matching the Machine Tier to Workshop Throughput
Selecting a model from a comprehensive range means the specification is matched to actual daily output rather than guessed from a brochure headline. A joinery shop running fifty boards a day has fundamentally different needs from a cabinet factory processing five hundred. The catalogue structure makes it possible to compare station configurations, motor ratings, and feed capacities side by side, ensuring the chosen tier handles the real workload without being over-specified for the task [NEED_CITE: edge banding station configuration and throughput matching].
Reading the Specification Sheet Beyond the Headline Numbers
The 4200W total power rating across the DW802 tells you the combined draw of all stations running simultaneously, which directly informs the electrical circuit planning in the workshop. The dual 800W trimming motors provide the torque needed for clean cuts on both PVC and wood veneer edges, while the 4000ml glue pot capacity determines how long the machine can run before a refill pause interrupts the production flow. The silica gel conveyor belt and integrated pressure beam work together to transport panels without surface marking, a detail that matters when the substrate is a finished melamine board destined for a visible cabinet face.
The Cost of Buying a Single Machine Without Seeing the Range
Purchasing one edge bander in isolation often leads to a mismatch when the next piece of equipment is added to the line. Feed heights that do not align, throughput rates that bottleneck the downstream station, and control systems that cannot communicate are problems discovered only after installation. Seeing the full model range before committing to a single unit prevents these integration failures and protects the capital already spent [NEED_CITE: production line integration and equipment compatibility].
Why Source This Model from the Full Catalogue
The DW802 is built on the same manufacturing line as every other model in the range, meaning component sourcing, precision grinding standards, and the four-stage QC protocol apply uniformly across all tiers. Voltage customization from 220V to 380V and multilingual control panel options are confirmed as standard practice before production begins, not treated as special requests. The patented cutting mechanisms and verified tolerance are not limited to the top-tier model but are engineered into this configuration as well. Engineer-led configuration recommendations and formal quotations are provided within a typical one-day turnaround. Factory visits are welcomed for buyers who want to see the assembly process and run sample boards before placing an order.
Documentation & Verification
- Machine specification sheet confirming DW802 station configuration and motor ratings
- Electrical schematic with voltage and frequency matched to your site supply
- CE declaration of conformity verified against this specific model
- Factory test record with photographs of your unit before dispatch
- Operation manual in the agreed language for operator reference
Installation, Commissioning & Support
- Overall dimensions of 1300×600×950mm require a level floor with clear access for positioning
- 4200W total draw requires a dedicated circuit matching the confirmed voltage specification
- Machine ships fully assembled, reducing on-site setup to utility connections
- Air source pressure of 0.4-0.8MPa must be supplied from a clean, regulated compressor line
- Spare parts list provided with the unit for consumable and wear item planning
Before You Send the Inquiry
To configure the right solution from the catalogue, the key details are the panel materials you process daily, the edge banding type and thickness range, and your local voltage and frequency supply. If you are planning a phased expansion, noting your existing upstream and downstream equipment helps ensure the selected model integrates with your current feed heights and throughput rates. Specify the control panel language your operators require to avoid commissioning delays.
Frequently Asked Questions
Q: Where does the DW802 sit in the full edge banding model range, and what is the next upgrade tier?
A: The DW802 is positioned within a complete catalogue that spans from entry-level machines to full-function pre-milling models. The next tier typically adds pre-milling stations and higher feed speeds for increased daily panel volumes. Comparing the station configurations and motor ratings across the range shows exactly where each model fits in a scaling production line.
Q: How is voltage and frequency confirmed before production to avoid an unusable machine on arrival?
A: Voltage options from 220V to 380V and local frequency requirements are confirmed at the quotation stage. An electrical schematic is provided for verification before production begins. This step ensures the automatic edge banding machine manufacturer builds the unit to match your site supply exactly, eliminating the risk of arriving with an incompatible motor or control system.
Q: Can the control panel language be customized for operators who do not read Chinese or English?
A: Chinese and English are standard language options, with Spanish and other languages available on request. The required language is confirmed during the specification stage so the control interface is prepared before the machine ships. This prevents commissioning delays caused by operators being unable to read the display or adjust parameters confidently.
Q: What is the OEM and private-label capability across the full catalogue for distributor branding?
A: Custom logo application and private-label capability are available across the entire model range. This allows distributors to build a branded portfolio from entry-level to full-function models under a single identity. The OEM process covers external branding, documentation language, and packaging specifications aligned with the distributor’s market requirements.
