Description
Precision-ground mechanisms — DW602 holds verified tolerances through a four-stage QC protocol covering every station from glue pot to polishing head before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW602 |

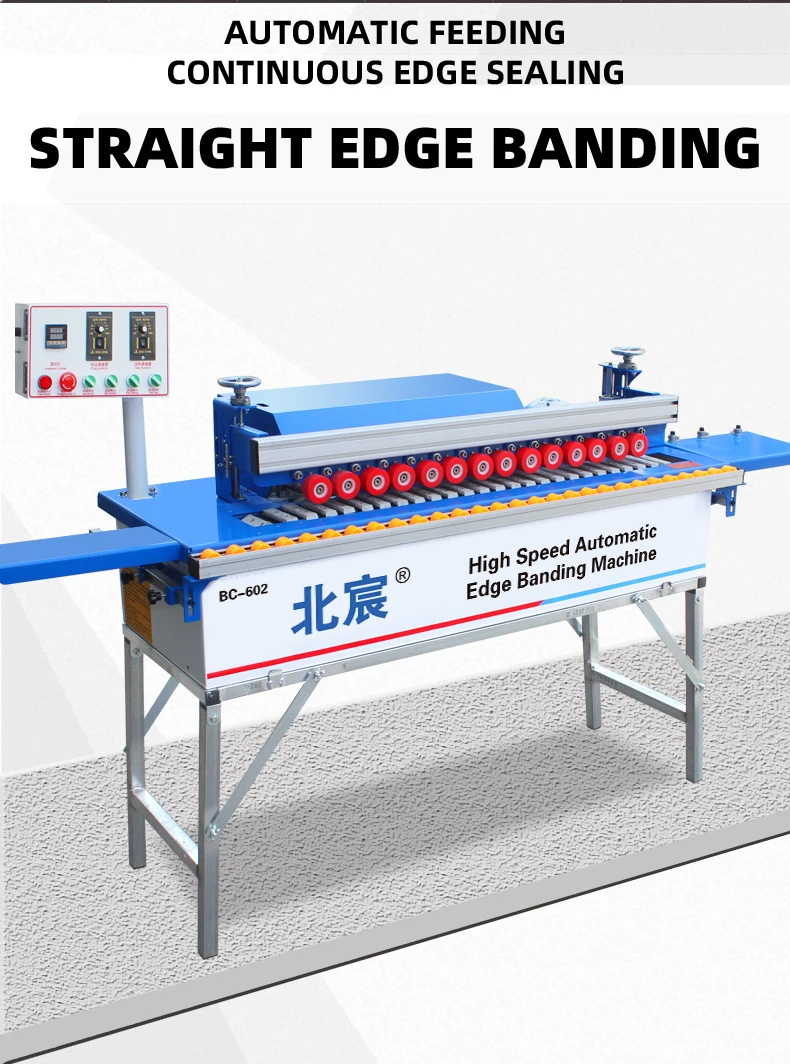

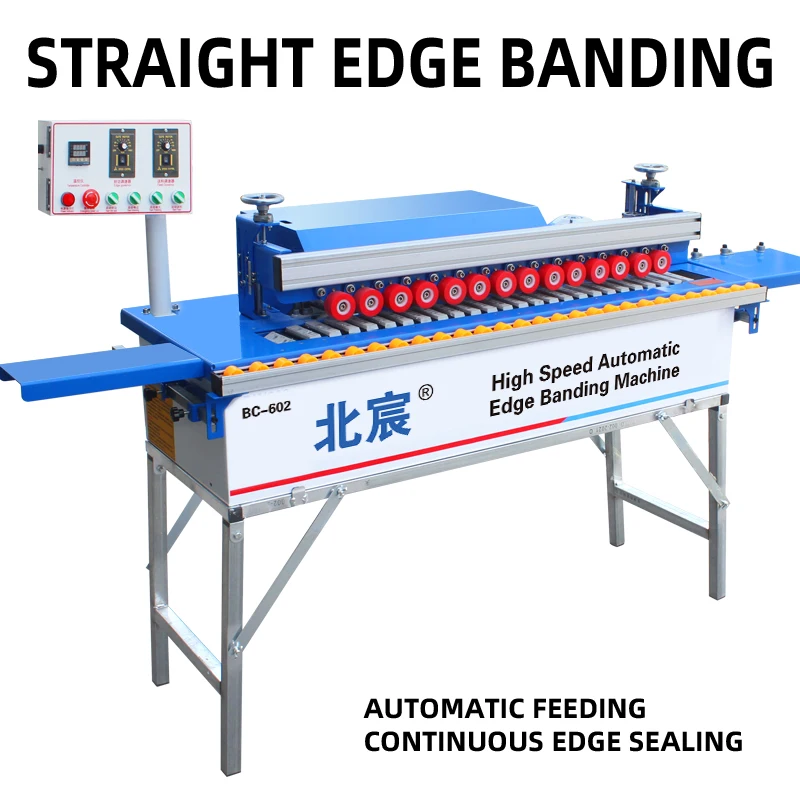

| Product Type | Small Automatic Edge Banding Machine |
| Total Power | 3800W |
| Transmission Power | 60W |
| Trimming Power | 650W × 2 |
| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Edge Power | 20W |
| Glue Pot Capacity | 1000ml |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 5 cm |
| Air Source Pressure | 0.5–0.8 MPa |
| Voltage | 220V / 380V / customization |
| Product Size | 128 × 47 × 69 cm |
| Product Weight | 90 kg |
| Language Options | Chinese, English, customizable |
| Plug Options | EU, USA, AU, UK |
| Standard Features | Edge banding, trimming, polishing, automatic head and tail cutting, vacuum hold-down |
| Certifications | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and particleboard panels with PVC or veneer banding |
| Small-batch plywood furniture | Plywood sheets from 0.3 mm to 3 mm edge thickness |
| Polymer door frame finishing | Polymer composite profiles within 50 mm height range |
| Blockboard shelving edges | Blockboard and solid wood panels requiring trimming and polishing |
| Workshop prototyping runs | Mixed substrates for sample validation before committing to full production |
Why Voltage Confirmation Must Precede the Purchase Order
An automatic edge banding machine manufacturer that ships before verifying your local grid specification is handing you a 90 kg paperweight.
I have watched crates arrive at Southeast Asian workshops only to sit unopened for weeks because the motor was wound for 380V/50Hz while the facility ran 220V/60Hz. The DW602 is configurable across 220V and 380V with frequency matching, but that flexibility only works if the conversation happens during quotation, not at the dock. Frequency mismatches alter motor RPM, which shifts feed speed and trimming torque, producing the kind of edge chatter that operators blame on the banding material when the real fault is electrical. [NEED_CITE: voltage and frequency standards by export market]
Positioning Within the Ruiqi Edge Banding Lineup
The DW602 occupies the compact tier of our catalogue as a full-function automatic edge banding machine manufacturer offering. It carries banding, trimming, polishing, and head-and-tail cutting in a single 128 cm footprint, which means a workshop gains a complete edge-finishing cell without surrendering half the floor to auxiliary stations. Buyers evaluating their first automatic edge bander typically start here and move to pre-milling models later as panel volume and tolerance demands increase.
Scaling Without Changing Supplier
Workshops that begin with the DW602 and later add a sliding table saw or multi-boring machine stay within one product family, so feed heights and control logic remain consistent across the floor. This matters when a cabinet maker adds a second shift and needs operators to move between stations without relearning interfaces. The voltage and language customization available on the DW602 extends across the entire range, so a production line ordered in phases still arrives with matched electrical and operational standards. [NEED_CITE: CE machinery directive requirements for industrial equipment]
How Trimming Stations and Glue Capacity Shape Daily Output
The dual 650W trimming motors handle the bulk of material removal after the banding passes the pressure zone, and having two independent units allows one rough and one finish pass in a single feed cycle. For plywood and particleboard, this separation reduces the risk of tear-out on the substrate edge, which is where visible glue lines typically originate. The 1000 ml glue pot is sized for intermittent runs rather than continuous eight-hour shifts, meaning the DW602 suits workshops processing batches of 20 to 50 panels before reloading adhesive. The 0.3–3 mm banding thickness range covers standard PVC and melamine strips, while the 50 mm maximum height accommodates most cabinet and shelving stock. Vacuum hold-down at 1200W stabilizes thinner panels that would otherwise drift during the trimming pass, directly affecting whether the finished edge sits flush or shows a hairline step.
The Cost of Skipping the Sample Test
One buyer sent no panel samples, specified MDF on the order form, and then ran high-density particleboard at maximum feed speed on day one. The trimming motors stalled, the banding peeled at the corners, and the operator concluded the machine was underpowered. After we adjusted cutter geometry and pressure roller tension on-site, the same unit ran cleanly. A five-minute sample test before shipment would have caught the mismatch and set realistic expectations for throughput on that specific substrate. [NEED_CITE: material density effects on edge banding cutter load]
Why Workshops Source This Model Through Ruiqi
The DW602 ships with a factory test record run on the buyer’s specified panel thickness, not a generic certificate pulled from a filing cabinet. Voltage and plug configuration are confirmed on the electrical schematic before production begins, so the unit arrives wired for the destination market. Operation and maintenance manuals are produced in the agreed language, which eliminates the commissioning delays that occur when an operator cannot read the fault codes on the display. The four-stage QC process means incoming materials, in-process assemblies, finished units, and pre-shipment verification each generate documented checkpoints. Engineer-led configuration recommendations arrive within 24 hours of an inquiry, reducing the quoting cycle that stretches into weeks with less responsive suppliers.
Documentation & Verification
- Machine specification sheet confirming all station power ratings and panel size limits
- Electrical schematic with voltage and frequency matched to your facility grid
- Factory test record on your specified panel material and edge thickness before dispatch
- Operation and maintenance manual in your operator’s working language
- CE declaration of conformity and ISO 9001 certificate for customs clearance
Installation, Commissioning & Support
- Requires a level floor with clearance for the 128 × 47 cm footprint plus operator access on both sides
- Dedicated circuit matching the confirmed 220V or 380V supply with appropriate breaker rating for the 3800W total load
- Arrives assembled; connect air supply at 0.5–0.8 MPa and plug into the specified socket type
- First-run calibration of trimming depth and polishing pressure against your actual banding material
- Spare parts list covering trimming cutters, polishing wheels, and glue pot seals for initial inventory
- Routine glue pot cleaning schedule based on adhesive type to prevent residue buildup
What to Include in Your Inquiry
Send us the panel substrates you process most often, the edge banding material and thickness you intend to run, and your facility voltage and frequency. If you have existing saws or boring machines upstream, note their feed heights so we can confirm compatibility. We also welcome panel samples mailed to our facility for a documented processing test before you commit to an order.
Frequently Asked Questions
Q: How does the DW602 fit within the full edge banding range, and what comes next as volume grows?
A: The DW602 is the compact entry point with a complete station set. As panel volume increases and tolerance requirements tighten, workshops typically move to models with pre-milling stations and higher feed speeds within the same product family, keeping voltage and control standards consistent across the floor.
Q: How do I confirm the correct voltage and frequency before ordering?
A: Provide your facility supply specification during the inquiry stage. We issue an electrical schematic and voltage confirmation document that matches your local grid standard, and this is signed off before production begins so the machine arrives ready to connect.
Q: Can the control panel language be customized for my operators?
A: Yes. The standard offering includes Chinese and English, and other languages are configurable. Specify your operator’s working language in the inquiry so the manual and on-screen text are produced accordingly before shipment.
Q: What panel materials and edge banding thicknesses does this model handle?
A: The DW602 processes MDF, particleboard, plywood, blockboard, and polymer panels with edge banding from 0.3 mm to 3 mm thickness and up to 50 mm height. For substrates outside this range, we recommend a sample test to confirm trimming and polishing performance.
Q: Can I arrange a factory visit or sample processing test before placing an order?
A: Both are available. You can visit the production floor to observe assembly and QC procedures, or mail panel samples to us for a documented processing test. Results including edge quality and tolerance readings are shared before you make a purchasing decision.
