Description
In-house manufacturing with verified tolerance — the ZDSF750 curved and straight edge banding machine is built within a complete product family, letting workshops scale from portable semi-auto units to fully automatic lines without changing supplier.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF750 |
| Product Type | Curved and Straight Edge Banding Machine |
| Function | Curved and Straight Edge Banding |
| Working Method | Semi-auto |
| Edge Banding Speed | 6 m/min |
| Rated Voltage | 220 V (configurable from 110 V to 440 V) |
| Power | 1000 W |
| Overall Dimensions (L×W×H) | 1200 × 500 × 500 mm |
| Weight | 60 kg |
| Glue Capacity | 1000 ml |
| Feeding System | Automatic plate sealing caterpillar feeding |
| Table Top Rotation | 360° free rotation |

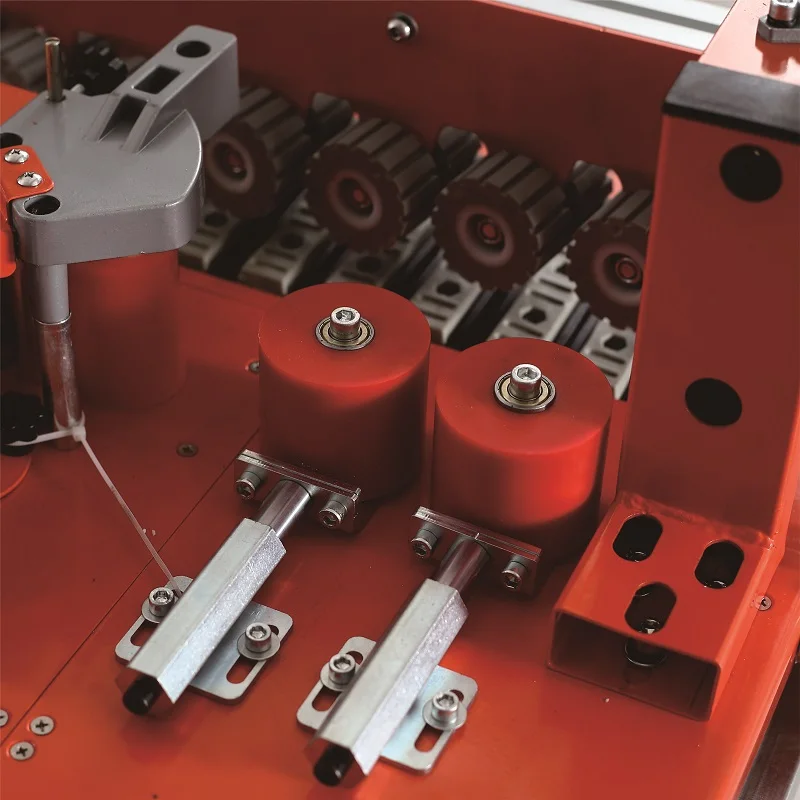

| Press System | Multi-wheel profiling press |

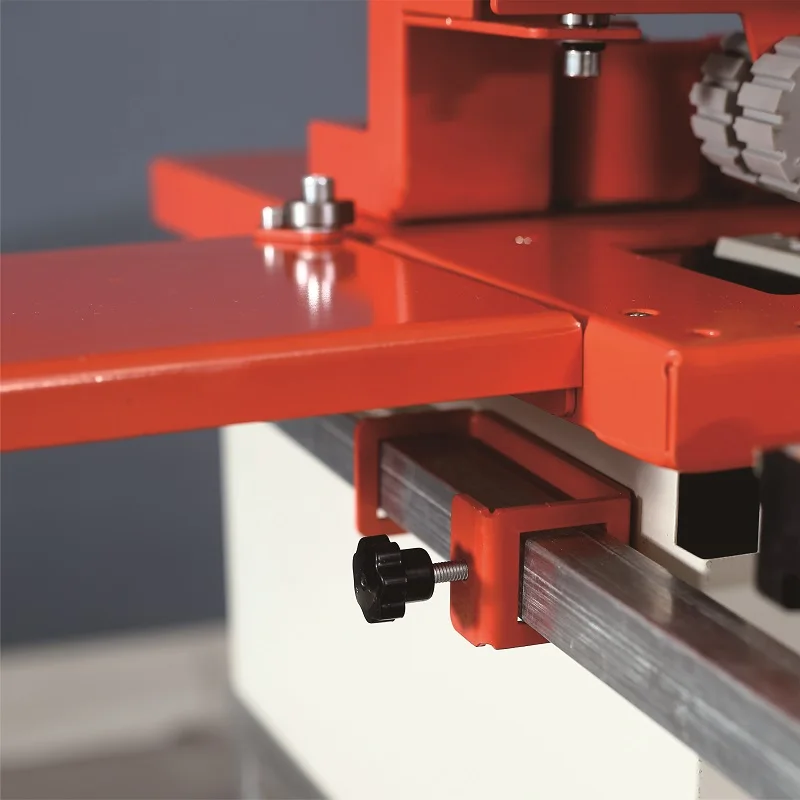

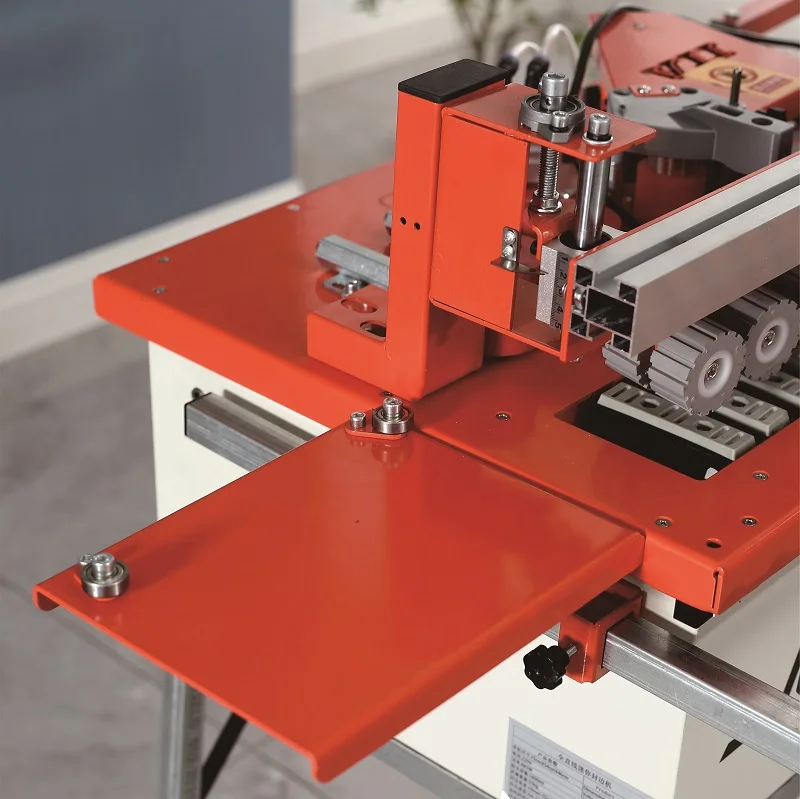

| Extension Plate | Both sides with 30 cm stretch bracket |
| Core Components | Motor, Engine |
| Condition | New |
| Warranty | 1 Year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, plywood, and particleboard with curved or straight profiles |
| Kitchen cabinet door and carcass edging | PVC and veneer edge banding on flat and radius panels |
| Small-batch joinery production | Solid wood panels requiring profiled edge finishing |
| Job-site or mobile workshop use | Portable edge banding where full-size machines are impractical |
| Prototype and sample preparation | Short-run curved and straight edge profiles for approval samples |
Why Voltage Compatibility Must Be Settled Before You Compare Models
Ordering a Curved and Straight Edge Banding Machine manufacturer without confirming local voltage and frequency is the most common reason imported woodworking equipment arrives unusable.
I have watched factories take delivery of edge banders wired for a grid that simply does not match their three-phase supply or single-phase workshop circuit. The machine sits idle while electricians rewire or source transformers, and the production schedule slips by weeks. The ZDSF750 ships at 220 V as standard, but the platform supports configuration from 110 V to 440 V, so confirming your site supply before the order is placed eliminates this failure mode entirely [NEED_CITE: voltage and frequency standards by export market].
How the ZDSF750 Fits Within a Scalable Machine Range
Every Curved and Straight Edge Banding Machine manufacturer in this catalogue positions the ZDSF750 as the portable entry point for workshops that are moving away from manual edge application. Its 60 kg weight and compact 1200 mm footprint mean it can be loaded into a vehicle trunk and relocated between workstations or job sites, which is practical for custom furniture shops that handle varied panel sizes throughout the week.
From Portable Semi-Auto to Full Automatic Lines
When your throughput demands outgrow semi-auto feeding, the product family extends through fully automatic pre-milling edge banders within the same supply chain. This continuity matters because control logic, glue systems, and maintenance practices carry forward, reducing the learning curve for operators who already run the ZDSF750. A workshop can plan its capacity expansion in phases without requalifying a new vendor [NEED_CITE: phased machinery investment planning for woodworking workshops].
Reading the Specifications That Actually Affect Output

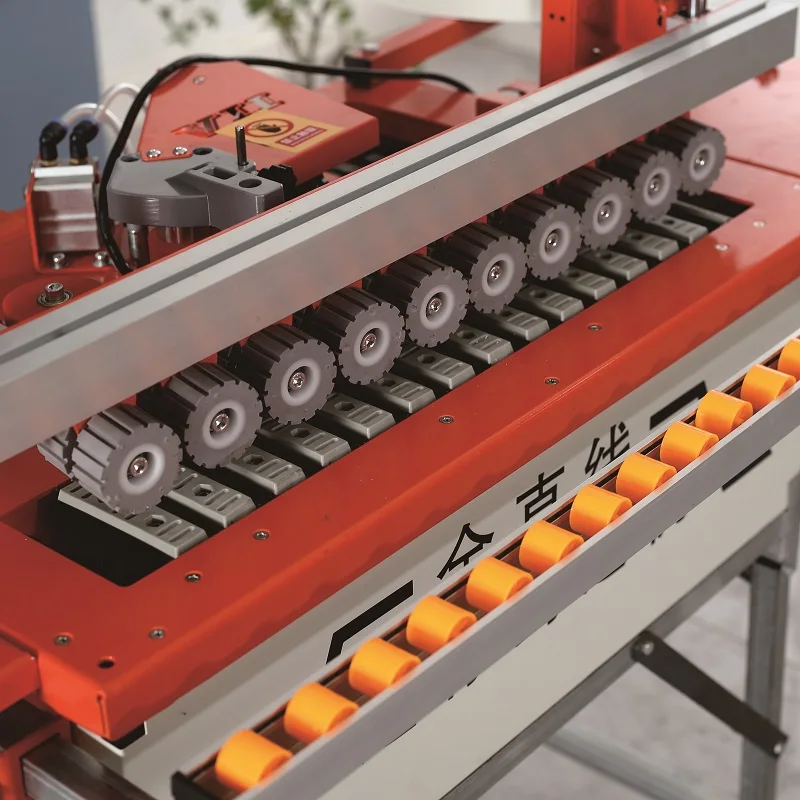

The caterpillar feeding system with automatic plate sealing provides consistent panel transport, which is critical when edge banding curved profiles where gravity-assisted feed tables cannot maintain contact. The 360° free-rotation table top lets a single operator handle both concave and convex radii without re-fixturing, reducing setup time between parts. At 6 m/min edge banding speed, the machine suits batch sizes where flexibility matters more than raw throughput, such as bespoke cabinet runs or curved furniture components. The multi-wheel profiling press distributes clamping force across the edge profile, which helps minimize visible glue lines on both straight and radius sections. Glue capacity at 1000 ml supports continuous short-run operation without frequent refills, and the dual-side extension plates with 30 cm stretch brackets stabilize large panels that would otherwise sag past the table edge.
What Happens When the Entry-Level Machine Is Pushed Beyond Its Design Envelope
A semi-auto portable edge bander is engineered for batch flexibility, not continuous high-volume production. I have seen workshops run machines of this class on ten-hour shifts with MDF panels generating fine dust that accumulates on feed rollers, eventually causing board slippage and tape misalignment. When edge banding quality becomes inconsistent across panel materials and visible glue lines appear on substrates that previously finished cleanly, the root cause is often throughput volume exceeding what the feed mechanism and press system were designed to sustain [NEED_CITE: edge banding feed system wear patterns under continuous operation].
Why Sourcing From a Full-Range Manufacturer Matters
In-house manufacturing with patented cutting mechanisms means the tolerances claimed in the specification sheet are verifiable on the factory floor, not inherited from a trading company’s catalog. A four-stage quality control process covering incoming material, in-process inspection, finished product checks, and pre-shipment verification ensures the ZDSF750 you receive matches the test record. Voltage, language, and specification customization is treated as standard practice rather than a special request, so the control panel and manual arrive in the language your operators actually read. Engineer-led configuration recommendations come with a formal quotation within 24 hours, and factory visits are welcomed so you can witness sample processing tests on your own panel materials before committing.
Documentation & Verification
- Factory test record on your specified panel thickness and edge banding material before dispatch
- Electrical schematic with confirmed voltage and frequency matching your workshop supply
- Operation and maintenance manual in the operator’s agreed language
- CE declaration of conformity for machinery directive compliance
- Spare parts list cross-referenced to ZDSF750 components
- Packing photographs confirming condition prior to container loading
Installation, Commissioning & Support
- Requires a dedicated 220 V single-phase circuit rated above 1000 W with proper grounding
- Portable 60 kg body can be positioned on any stable workbench without floor anchoring
- Both-side 30 cm extension plates must be leveled with the main table before first operation
- Glue pot initial heat-up and temperature calibration should be verified against your banding material
- Caterpillar feeding tension adjustment demonstrated during commissioning for your panel thickness range
- Multi-wheel profiling press alignment checked on both straight and curved sample pieces
Preparing Your Inquiry
To receive a configuration proposal that matches your production reality, share the panel materials and thickness range you process most frequently, the proportion of curved versus straight edge profiles in a typical week, and your local voltage and frequency. If you are planning to scale toward a full automatic line later, mention your anticipated volume growth so the engineer can map an upgrade path within the same product family.
Frequently Asked Questions
Q: Is the 220 V rating compatible with my workshop supply, or does customization apply?
A: The ZDSF750 ships at 220 V as standard, but the platform supports configuration from 110 V to 440 V. Before order confirmation, you will receive an electrical schematic with voltage and frequency matched to your local grid. This eliminates the risk of receiving a machine that cannot connect to your existing supply without costly rewiring or external transformers.
Q: How does this semi-auto model fit into a future upgrade toward a full automatic line?
A: The ZDSF750 belongs to a product family that extends from portable semi-auto units through fully automatic pre-milling edge banders. When your volume grows, the transition stays within the same supply chain, so glue systems, maintenance procedures, and operator familiarity carry forward. Your engineer can map a phased upgrade path during the initial inquiry.
Q: What panel thickness and edge banding materials does the ZDSF750 handle?
A: The machine processes MDF, plywood, and particleboard panels with PVC and veneer edge banding on both curved and straight profiles. For specific thickness limits and material compatibility, request the machine specification sheet along with a sample processing test on your actual panel stock to verify glue line quality before committing to an order.
Q: Can the control interface and manual be provided in my operator’s language?
A: Multilingual control panels and operation manuals in the agreed language are treated as standard configuration, not an optional extra. Specify your preferred language during the inquiry stage, and the documentation will be prepared accordingly so operators can read settings and maintenance instructions without translation delays on the shop floor.
