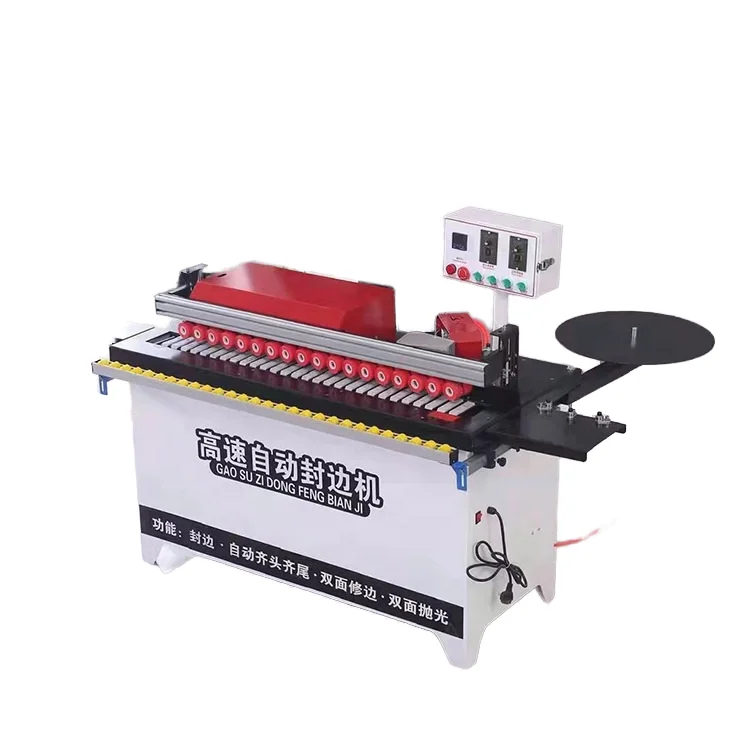

ZDS802 Multifunctional MDF Board Portable Automatic Pvc Furniture Woodworking Edge Banding Machine With Trimmer
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

ZDS802 Multifunctional MDF Board Portable Automatic Pvc Furniture Woodworking Edge Banding Machine With Trimmer

This product is currently out of stock and unavailable. SKU: ZDS802 Multifunctional MDF Board Portable -36310262 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Product Description ZDS802 Automatic Edge Banding Machine (Large Glue Pot) ZDS802 high-speed automatic edge banding machine has the function of automatic head and tail. and comes with a […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Product Description
ZDS802 Automatic Edge Banding Machine (Large Glue Pot)
ZDS802 high-speed automatic edge banding machine has the function of automatic head and tail. and comes with a vacuum cleaner. The machine is clean and tidy.
The integrated pressure beam. double row pressure roller. and silicone material conveyor belt make the board stable and solid and not easy to scratch the board.
4L large-capacity glue pot does not need to add glue frequently. saves time and effort. can band multiple plates continuously. and is easy to operate.
Edge banding speed is about 2 times of that of others models.
Banding Effect
Features: 1. Automatic board feeding 2. Double-sided gluing 3. Up and down trimming and polishing 4. Automatic end trimming 5. Big Capacity of Glue Pot
Specification
Model
ZDS802 Automatic Edge Banding Machine
Function
automatic plate feeding. end cutting. upper and lower polishing. automatic head and tail trimming. comes with dust collector
Edge type
straight line
Rated voltage
220v
Strip thickness
0.5-2.5mm
Sheet thickness
10-50mm
Trimming power
800w*2
Polishing power
180w*2
Suction power
1200w
Rated power
4kw
Rated air pressure
0.4-0.6mpa
Feed plate
0-10m/min
Conveyer belt
0-10m/min
Glue capacity
4000ml
Heating power
1000w (5-10min)
Overall size
130*65*75cm
Machine weight
150kg
Details Images

Control panel. digital display of glue pot temperature. independent switch. easy to operate.

Integrated pressure beam. double rows of pressure wheels. silicone material conveyor belt.

4000ml Large-capacity glue pot reduces the number of glue additions and improves efficiency.

Pneumatically controlled belt breaking method is precise and labor-saving.

Extendable fluent strips. more stable and convenient when sealing large plates.
Double high-speed trimming motors. trimming up and down. the trimming effect is beautiful.
Up and down two polishing motors.
the polishing effect is better.
Edge banding tray
Recommend Products
Packing & Delivery
Company Profile

ABOUT US

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a CNC machinery company in Lunjiao. Foshan
City.
Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. CNC nesting machine. CNC wood router. CNC six-sided drilling and milling processing center. CNC side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries. In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you
proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Get in Touch

Request a Free Quote

Tell us your requirements and our engineers will provide a tailored solution with full specifications and formal quotation within 24 hours.

WhatsApp (Español)
Peter: +86 185 6023 3698
Sending...

We respect your privacy. Your information will only be used to respond to your inquiry. Typical response time: within 24 hours.

You May Also Like

Related Products

Wood Based Panels Machinery

Pur Tape Machines for Sale Qingdao Semi-automatic Banding Wood Woodworking Machinery Pvc Board Cutting Machine Edge Bander

Products DescriptionThis machine is suitable for medium density fiber board. blockboard. wood panels. particleboard. plywood and other polymer doors.straight edge trimming. disposable with double-sided adhesive tape cutting edge bonding edge pressing. block. chamfer. Tinker.finishing. polishing and other functions of scraping edge. edge smooth. smooth. feel good sealing wire. flat and smooth.Theequipment operation is stable. reliable […]

View Details
Wood Based Panels Machinery

Easy to Operate High Speed Semi Automatic Edge Banding Machine Edge Bander Edging Machine for Wood

Products Disply Automatic straight and straight edge banding machine1. The crawler belt automatically feeds the boards and can seal the boards continuously.2. The stretchable 300mm bracket is more practical.3. The edge banding is automatically cut off.4. One-piece aluminum alloy pressure beam.5. Multiple profiling pressing rollers make the adhesion more firm.6. Curve edge banding can also […]

View Details
Wood Based Panels Machinery

Melamine Veneer Trimming Edgebander Dw Gluing MF 802 Full Auto Edge Banding Machine Dw802

Products DescriptionDW802 Automatic Edge banding machine with gluing.trimming.end cutting and buffing for straight only.Wood bander machine is suitable for edge sealing of MDF. particleboard. solid wood board. ecological board. plywood. etc. This machine is stable and reliable. durable. price concessions. especially suitable for home decoration production. Automatic edge bander machine is clean and tidy with the […]

View Details
Wood Based Panels Machinery

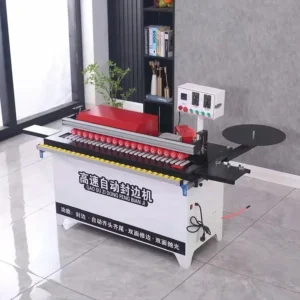

Woodworking Furniture Fully Automatic Edge Tape Banding Machine Board Edge Bander Mdf Pvc Edg Banding Machine
