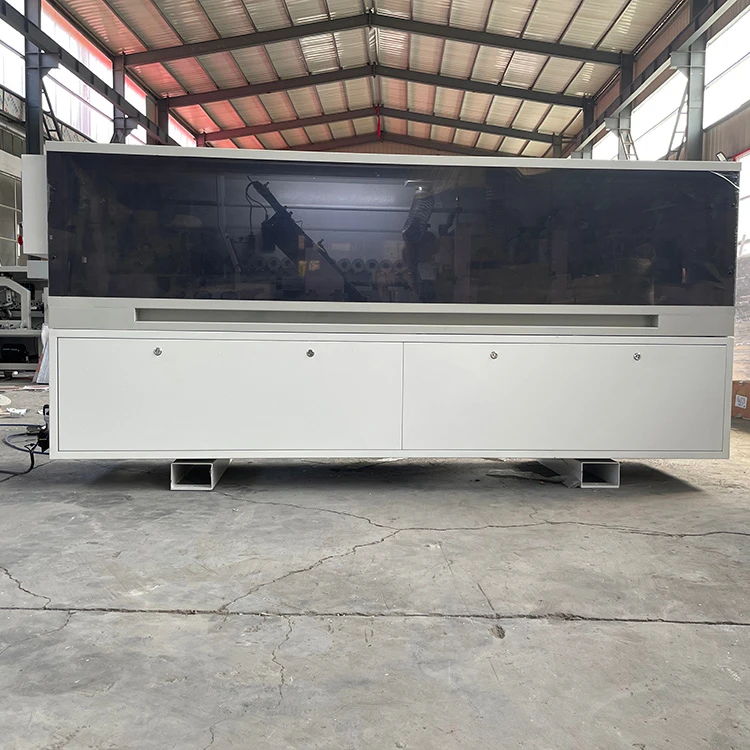

Wood Furniture Machine Mdf Pvc Melamine Corner Rounding Automatic Edge Banding Machine With Gluing
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

Wood Furniture Machine Mdf Pvc Melamine Corner Rounding Automatic Edge Banding Machine With Gluing

This product is currently out of stock and unavailable. SKU: Wood Furniture Machine Mdf Pvc Melamine Co-36310684 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply 1. The fuselage adopts 14mm national standard high-strength steel plate table. frame-type fuselage structure. which is durable and not easy to deform after high-temperature quenching […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply
1. The fuselage adopts 14mm national standard high-strength steel plate table. frame-type fuselage structure. which is durable and not easy to deform after high-temperature quenching treatment.2. The guide rail of the conveyor belt is made of HT260 material. and the conveying speed is stable.3. The conveying motor adopts a customized Taiwan brand. with stable power output. and the thermal protection system improves the safety factor.4. All high-speed motors are well-known and reliable brands. which are efficient and stable.5. The head guide rail adopts Taiwan brand. which is stable. durable and has high precision.6. Pneumatic system. German Festo or Taiwan AirTAC brand cylinder and safety valve. high-sensitivity AirTAC magnetic switch!7. Electrical appliances and operating systems: Delixi/Chint: air switches. contactors. Japanese Omron travel switches.
Product Parameters
Model
ZDS280B
ZDS280C
The main function
Gluing. End trimming. Fine trimming. Buffing
Gluing. End trimming. Fine trimming. Scraping. Buffing
Working pressure
0.6-0.8Mpa
Panel thickness
10-55mm
Edge thickness
0.4-3mm
Conveyor belt speed
15m/min
Min. panel width
45mm
Min. panel length
80mm
Voltage
380V-3HP
Power
7.5kw
Weight
650kg
800kg
Dimensions
2300*700*1250mm
2800*700*1250mm
Product details
Gluing and pressing device
Control Panel
End trimming
Fine trimming & Scraping
Type B has no scraping function
Circuit display
Buffing
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
