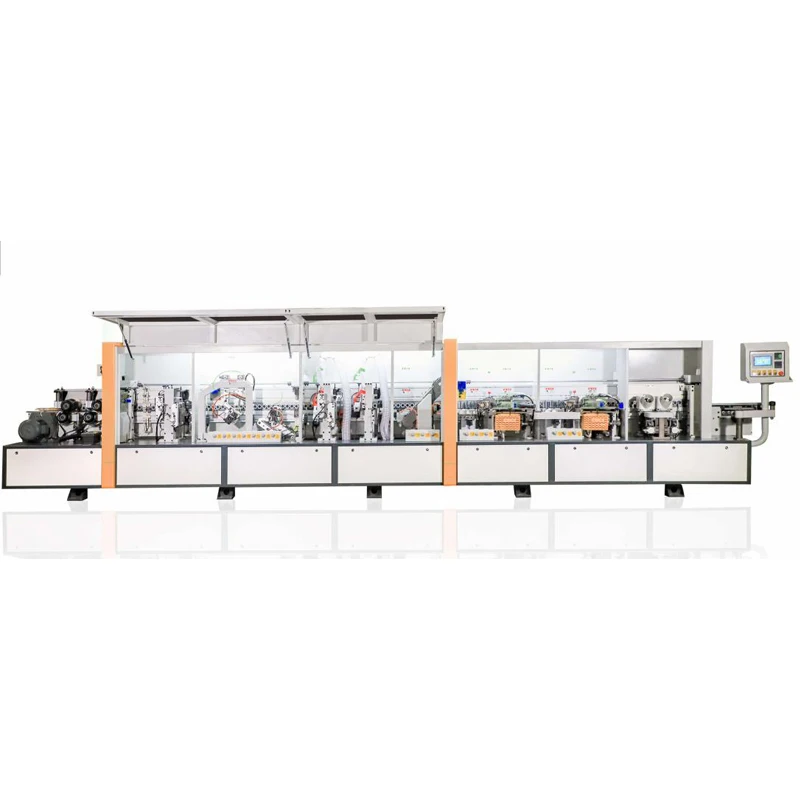

Wood Furniture Machine Mdf Pvc Abs Pre Milling Corner Rounding Kdt Automatic Edge Banding Machine With Buffing

This product is currently out of stock and unavailable. SKU: Wood Furniture Machine Mdf Pvc Abs Pre Mil-36310853 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply Product Parameters The main functionZDS365ZDS-368ZDS-468ZDS-468JZDS-468JJPre-milling√√Gluing 1√√√√√Gluing 2√End trimming√√√√√Rough Trimming√√√√Fine trimming√√√√√Corner rounding√√√Scraping√√√√√Buffing 1√√√√√Buffing 2√Min.Panel300*60mm300*60mm300*60mm/150*150mm300*60mm/150*150mm300*60mm/150*150mmTotal Power8.15KW9.65Kw13Kw16Kw18.5KwDimensions4070*900*1600mm4570*900*1600mm5800*900*1600mm6600*900*1600mm8000*900*1600mmWeight1200kg1400kg1600kg2000kg2300kgWorking pressure0.6Mpa0.6Mpa0.6Mpa0.6Mpa0.6MpaPanel Thickness10-60mm10-60mm10-60mm10-60mm10-60mmEdge Thickness0.4-3mm0.4-3mm0.4-3mm0.4-3mm0.4-3mmVoltage3-HP-380V3-HP-380V3-HP-380V3-HP-380V3-HP-380V our servicesWe can provide you with various custom […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply
Product Parameters
The main function
ZDS365
ZDS-368
ZDS-468
ZDS-468J
ZDS-468JJ
Pre-milling



√
√
Gluing 1
√
√
√
√
√
Gluing 2




√
End trimming
√
√
√
√
√
Rough Trimming

√
√
√
√
Fine trimming
√
√
√
√
√
Corner rounding


√
√
√
Scraping
√
√
√
√
√
Buffing 1
√
√
√
√
√
Buffing 2




√
Min.Panel
300*60mm
300*60mm
300*60mm/150*150mm
300*60mm/150*150mm
300*60mm/150*150mm
Total Power
8.15KW
9.65Kw
13Kw
16Kw
18.5Kw
Dimensions
4070*900*1600mm
4570*900*1600mm
5800*900*1600mm
6600*900*1600mm
8000*900*1600mm
Weight
1200kg
1400kg
1600kg
2000kg
2300kg
Working pressure
0.6Mpa
0.6Mpa
0.6Mpa
0.6Mpa
0.6Mpa
Panel Thickness
10-60mm
10-60mm
10-60mm
10-60mm
10-60mm
Edge Thickness
0.4-3mm
0.4-3mm
0.4-3mm
0.4-3mm
0.4-3mm
Voltage
3-HP-380V
3-HP-380V
3-HP-380V
3-HP-380V
3-HP-380V
 our services
We can provide you with various custom services
Details Images
PLC control system
Excellent integrated control system. clear at a glance. easy to operate. and easy to learn
Gluing
It adopts Teflon spraying process and scientific glue back design. It can make the temperature of the glue in the glue pot uniform without carbonization. and maintain good fluidity.
It can be upgraded to an upper glue pot and a PUR glue pot.

Pressing roller

4 sets of pressing roller wheels to tightly bond the edge banding strip and the plate
Optional 6 sets of pressing roller wheels.

End trimming unit with two high frequency motors

0.37 KW*2 .12000 rpm
Rough trimming system
2 high frequency motors for upper and lower edge with 0.75 KW (1 HP); 12000 rpm.
With 2pcs 6 teeth flat cutters.
Edge belt thickness change by manual
Fine trimming system2 high frequency motor for upper and lower edge with 0.75 KW (1 HP); 12000 rpm.
With 2pcs 6 teeth R2 cutters.
Edge belt thickness change by manual.
Edge scrapingEdge scraping mechanism ·Remove knife marks left by trimming and finish R rounded corners ·Electro-pneumatically controlled blowing
Buffing unit
Upper and lower buffing unit make the edge of the board after edge banding smoother.
Optional features

Pre-milling

Premilling unit with diamond cutters. 12000 rpm. 2×2.2 kW (3 HP). max. depth of cut 2 mm. max. workpiece height 60 mm. premilling
cutters with diamond cutters width 65mm; ensures right angled and chip free workpiece edges.

Corner rounding

Four-motor profiling. tracking and trimming ·High-precision profiling. to ensure the perfect tactile and visual effects of work
piece processing ·Can achieve 4 different profiling effects. as well as diamond corners.

Quick Sol Unit

With the upper melt system and the dual pre-melt system. the replacement is simple and convenient. The glue box is close to the pre-melt and the glue quantity control is more accurate.

Two Gluepots

Double glue pot. which can use different colors of glue to facilitate edge sealing operations of different colors.
Optional PUR device.
Glue pot optional up or down.

Flexible edge scraping

scrape the wave marks on the edge banding tape. more steadily.

Narrow plate auxiliary device

Narrow plate edge sealing is more stable and won't deviate.

Slotting device

Grooves are made on the finished edge banding plate as needed. forming in one step to improve efficiency.

Double Buffing unit

Upper and lower buffing unit ensures a perfect finish on the edge radius and removes any colour irregularities.

About Optional Features

Edge banding machines can have different functional combinations (Pre-milling. Gluing. End trimming. Rough trimming. Fine trimming. Profiling unit . Scraping . Buffing . Grooving. Drilling). According to your needs. in addition to the basic functions. we have multiple models with combined functions. If you need other features or want to remove some features. you can contact us and we can recommend the appropriate model to you.
Package And Shipping
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Get in Touch

Request a Free Quote

Tell us your requirements and our engineers will provide a tailored solution with full specifications and formal quotation within 24 hours.

WhatsApp (Español)
Peter: +86 185 6023 3698
Sending...

We respect your privacy. Your information will only be used to respond to your inquiry. Typical response time: within 24 hours.

You May Also Like

Related Products

Wood Based Panels Machinery

Plywood Production Edgebander Machine Hot Sale Woodworking Edge Banding Machine With Trimmer Edge Bander Machine

Product Description Specification itemvaluePlace of OriginChinaHenanConditionNewTypeEdge Banding MachineGluing. Rough Trimming. Scraping14m/minBrand NameZDSVoltage220V50HZ. 220V50HZDimension(L*W*H)1900*560*1300mmPower (kW)4KWWeight (KG)120kgApplicable IndustriesHome Use. OtherWarrantyOne yearKey Selling PointsEasy to OperateVideo outgoing-inspectionProvidedWarranty of core components1 YearCore ComponentsBearing. Motor. Pump. Gear. PLC. Other. Gearbox. Pressure vessel. EngineUsagePlywood ProductionWidening and extension300 mmTotal height1220 mmHost height630mmBelt feeding motor25 wPlate feeding motor60 wTrimming motor800 w*2 Details Images […]

View Details
Wood Based Panels Machinery

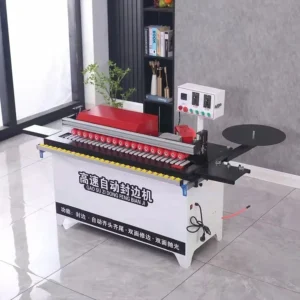

Wood Based Panels Machinery Automatic Cabinet Edge Banding Machine Pvc Mdf Edge Bander Machine
