S-140 Folding Arm Curve Edge Banding Machine Edge Sealing Board Home Improvement Woodworking Edge Bander
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

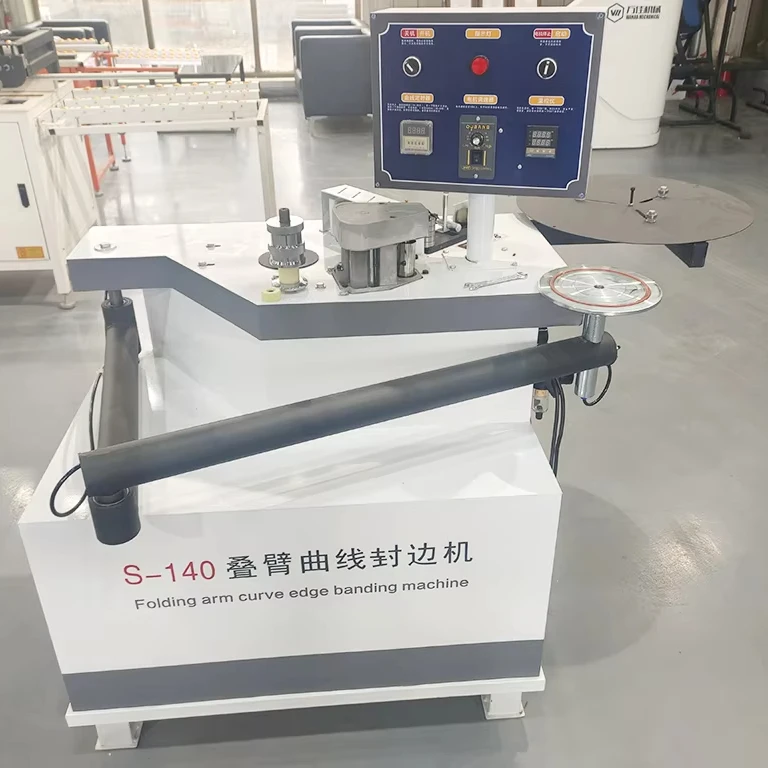

S-140 Folding Arm Curve Edge Banding Machine Edge Sealing Board Home Improvement Woodworking Edge Bander

This product is currently out of stock and unavailable. SKU: S-140 Folding Arm Curve Edge Banding Machi-36310955 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply Curve edge banding machine features:1.Double-sided gluing2.Straight and curved dual purpose 3. Arm folding device 4. Automatic belt break 5. Pure copper motor 6. Strong suction […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply
Curve edge banding machine features:
1.Double-sided gluing
2.Straight and curved dual purpose
3. Arm folding device
4. Automatic belt break
5. Pure copper motor
6. Strong suction cup
7.One-shot molding
The folding arm arc edge banding machine solves the problem of edge banding of panel furniture. study tables. office furniture. etc. Application: panel furniture. customized furniture. cabinet wardrobe. office furniture. tables and chairs. doors and windows. wood products. decoration industry. etc.
Functional display
Product details
Control Panel1 Intelligent temperature control2 Speed adjustment3 Timer for curve edge banding
Increase the size of the glue pot. reduce the number of glue additions. and improve efficiency.
Edge banding wheelAdjust according to the width of the edge strip +0.5mm to prevent the edge strip from shifting.
Hot air deviceBottom-up hot air heating improves the adhesion between the edge banding strip and the board.
strong suction cupFirmly absorb the board to prevent it from falling off.

Automatic belt breaking device controlled by double cylinders
Product Parameters
Model
S-140
W-2
W-3
Voltage
220V
220V50Hz
220V50Hz
Total power
1.4kw
1.4kw
3.4kw
Air source air pressure
0.5-0.8Mpa
0.5-0.8Mpa
0.5-0.8Mpa
Edge banding speed
0-180mm/s
0-180mm/s
0-180mm/s
Overall size
96*62*88CM
1200*800*1220mm
1210*1100*970mm
Machine size
105*65*120CM
weight
88kg
152kg
152kg
Standard suction cup
200*26mm
300*26mm
300*26mm
Edge band thickness
0.4-2mm
0.4-2mm
0.4-2mm
Edge band width
8-50mm
8-50mm
8-50mm
Breaking method
Automatic tape break
Glue pot capacity
1000ml
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
