Description

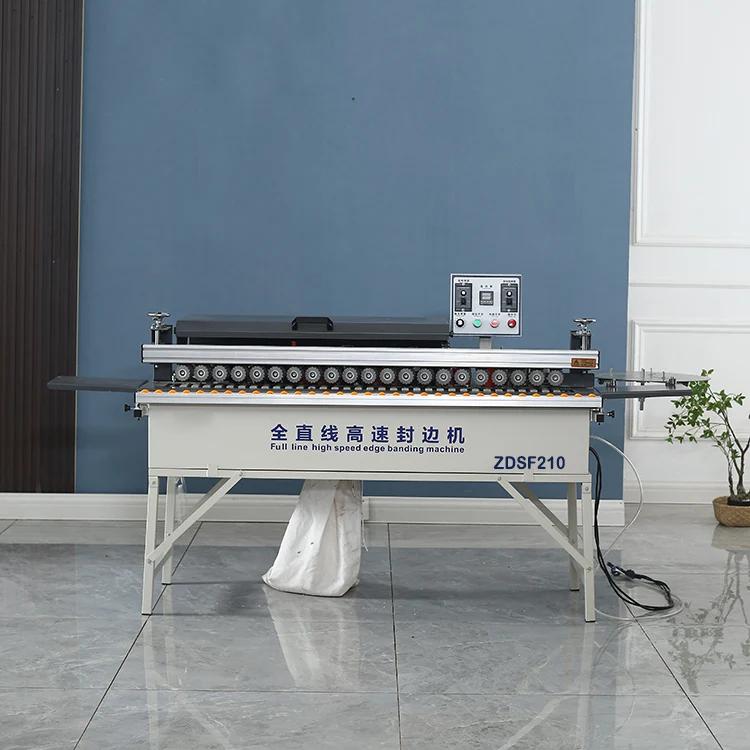

Compact Full-Line Engineering — The ZDSF210 integrates profiling trimming, cross polishing, and flexible scraping into a 1500mm portable frame, letting small workshops achieve production-grade edge finishing without investing in a full-size stationary line.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF210 |
| Product Type | Portable Automatic Edge Banding Machine |
| Edge Banding Speed | 6m/min |
| Belt Feed Motor | 25W |
| Board Feed Motor | 120W |
| Trimming Motor | 800W×2 |
| Heating Motor | 800W |
| Vacuum Fan | 1200W |
| Overall Dimensions (L×W×H) | 1500×570×630mm |
| Net Weight | 155kg |
| Glue Capacity | 1000ml |
| Guide Rail Type | Steel rod guide rail |
| Trimming | Up/down, left/right profiling trimming |
| Pressing | Elastic device secondary pressing |
| Additional Functions | Flexible edge scraping, glue line cleaning, cross polishing, dust absorption |
| Motor Base | Frame type motor base |
| Voltage & Frequency | Configurable from 110V to 440V (basis to be confirmed with local supply) |
| Control System | Basis to be confirmed |
| Panel Thickness Range | Basis to be confirmed |
| Panel Width Range | Basis to be confirmed |
| Tolerance | Basis to be confirmed |
| Warranty | 1 Year |
Application Suitability
| Application | Material or Output |
|---|---|
| Small custom furniture workshops | MDF and plywood panel edge banding with PVC edge banding materials |
| On-site installation teams | Portable cabinet and shelving edge finishing at job sites |
| Joinery startups scaling from manual | Automated edge processing within limited floor space |
Why the Voltage Question Should Come Before the Price
Confirming your local power supply is the first step, not the last.
I have watched crates arrive at Southeast Asian workshops only to sit unopened for weeks because the machine inside was wired for 380V/50Hz while the shop ran on 220V/60Hz. The ZDSF210 Portable Edge Banding Machine manufacturer configures units across a 110V–440V range, but that flexibility only works when voltage and frequency are confirmed before production starts, not after [NEED_CITE: voltage and frequency standards by export market]. A 155kg portable unit is still a significant investment — getting the electrical spec right avoids costly transformer additions or motor rewinds on arrival.
From Manual Hand-Held to Automated in One Pass
Small workshops often begin with hand-held edge banders that demand constant operator attention and produce inconsistent glue lines. The ZDSF210 replaces that variability with a steel rod guide rail that feeds panels at a steady 6m/min, while the profiling trimming motors handle up/down and left/right contour cuts automatically. This shift matters most in custom furniture shops where every panel dimension differs — the machine adapts to each piece without manual re-adjustment between boards.
What Full-Function Means in a 1500mm Footprint

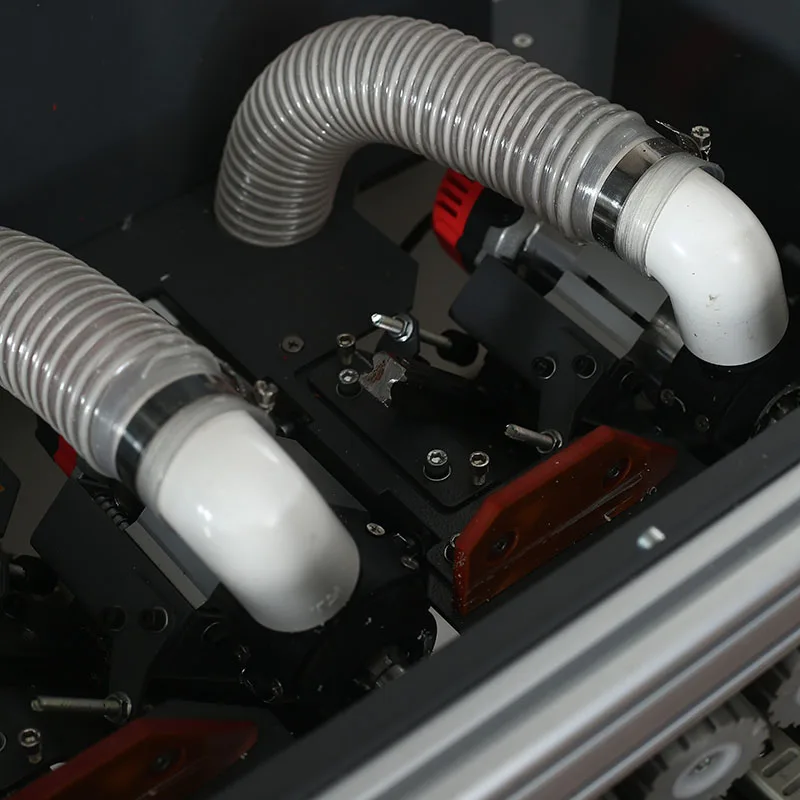

Most portable edge banders stop at trimming and leave the operator to scrape and polish by hand. The ZDSF210 integrates flexible edge scraping, glue line cleaning, and cross polishing stations downstream of the trimming head, so panels exit the machine ready for assembly. The elastic device secondary pressing keeps the banding tight against the substrate through the entire workflow, and the dedicated vacuum fan at 1200W pulls dust and trimmings away from the glue pot to prevent contamination [NEED_CITE: dust extraction requirements for edge banding operations].
Reading the Specs That Actually Matter on Site
The dual 800W trimming motors provide enough torque to cut cleanly through PVC and veneer banding without stalling on dense MDF substrates. The 800W heating motor maintains glue pot temperature across the 1000ml reservoir, which is critical when running long batches — a pot that loses heat mid-run produces visible glue lines on lighter substrates. The frame type motor base isolates vibration from the trimming and polishing heads, directly affecting the surface finish on the final panel edge. Steel rod guide rails resist deflection under the 120W board feed motor’s load, keeping the panel tracking straight through all stations.
The Hidden Cost of Skipping the Sample Test
When a workshop buys an edge bander based on catalog specs alone, the first real test happens on the production floor — with real panels, real glue, and real deadlines. If the banding chips on recycled particleboard or the glue line shows through melamine-faced MDF, the machine is already installed and the delivery commitment is already made. Requesting a factory test on your actual panel material before shipment eliminates that risk and gives you a physical sample to benchmark against on day one [NEED_CITE: edge banding quality standards for furniture assembly].
Why Source the ZDSF210 Through This Channel
The manufacturer holds proprietary cutting mechanism patents verified to tight tolerances, meaning the profiling trimming you see on the spec sheet is engineered in-house rather than sourced from a third-party spindle supplier. Voltage, control panel language, and plug configuration are confirmed during the quotation stage, so the ZDSF210 arrives ready to plug into your existing circuit. A four-stage quality check — incoming material, in-process, finished product, and pre-shipment — runs on every unit before it leaves the factory floor. Engineer-led configuration recommendations arrive within 24 hours of your inquiry, not after weeks of back-and-forth. Factory visits are welcomed, letting you see the precision grinding and assembly process before committing to an order.
Documentation & Verification
- CE declaration of conformity covering the ZDSF210 portable edge banding unit
- Factory test record on your specific panel thickness and edge banding material before dispatch
- Electrical schematic confirming configured voltage, frequency, and circuit requirements
- Operation and maintenance manual translated into your operator’s working language
- Spare parts list identifying wear items and recommended replacement intervals
- Packing photographs documenting machine condition prior to crate sealing
Installation, Commissioning & Support
- Requires a level floor surface within the 1500×570mm footprint with clearance for panel infeed and outfeed
- Dedicated circuit matching confirmed voltage and frequency to handle combined motor and heating loads
- Ships as a single portable unit at 155kg — two personnel can position it without a forklift
- First-run commissioning includes glue pot temperature calibration and trimming head alignment on your panel stock
- Wear parts include trimming blades, scraping tools, and guide rail bearings with sourcing guidance provided
- Glue pot and vacuum fan require periodic cleaning to maintain consistent banding quality over time
What We Need to Configure Your ZDSF210
To prepare an accurate quotation, share the panel materials you run most often — MDF, particleboard, plywood, or solid wood — along with the edge banding type and thickness you plan to use. Confirm your workshop’s voltage and frequency so the motor and heating elements are wound correctly for your grid. If you need the control panel in a specific language or require a processing test on your own sample panels before order, note that in your inquiry so the engineer can include it in the configuration proposal.
Frequently Asked Questions
Q: What panel thickness range and edge banding materials does the ZDSF210 support?
A: The ZDSF210 is configured for PVC edge banding on MDF and similar panel substrates used in furniture production. Panel thickness range and maximum banding width depend on the specific configuration selected at order. Share your typical panel dimensions during inquiry so the engineer confirms compatibility and includes the verified range on your specification sheet before production begins.
Q: Can the voltage and control panel language be customized for my local market?
A: Yes. The ZDSF210 is available with voltage configurable from 110V to 440V to match local grid standards. Control panel language and plug type are confirmed during the quotation stage. Provide your country’s voltage, frequency, and preferred operator language so these details are locked in before manufacturing starts.
Q: How does the ZDSF210 fit into a workshop scaling from manual to automated edge banding?
A: The machine replaces hand-held edge banding with automated feeding, trimming, scraping, and polishing in a single 1500mm unit. Small workshops gain consistent edge quality without dedicating floor space to a full-size production line. As volume grows, the ZDSF210 can serve as a secondary or job-site unit alongside larger stationary machines.
Q: What is included in the spare parts list, and how are wear parts supplied?
A: Each ZDSF210 ships with a spare parts list identifying wear items such as trimming blades, scraping tools, and guide rail components. The list includes part numbers and recommended replacement intervals. Wear parts can be ordered directly from the manufacturer for ongoing supply after installation.
Q: Can I send sample panels for a processing test before placing the order?
A: Yes. Send your actual panel material and preferred edge banding to the factory for a processing test on the ZDSF210. The test produces finished samples you can evaluate for edge quality, glue line visibility, and trimming accuracy. A factory test record documenting the results accompanies the shipment if you proceed with the order.
