Description
Complete machine range clarity — From portable manual banders to full-function automatic lines, every DW400 tier sits under one verified manufacturing roof with pre-shipment test records.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW400 |
| Product Type | Portable Manual Edge Banding Machine |
| Total Power | 1000W |
| Voltage & Frequency | 220V / 380V / customization available |
| Edge Banding Height | 0–50mm |
| Edge Banding Thickness | 0.3–3mm |
| Minimum Sheet Length | 25cm |
| Minimum Sheet Width | 3cm |
| Glue Pot Capacity | 1000ml |
| Edge Power | 20W |
| Air Source Pressure | 0.5–0.8 MPa |
| Product Size | 38 × 35 × 35 cm |
| Product Weight | 12 kg |
| Suitable Edge Banding Tape | ABS, PVC, Melamine, Veneer |
| Edge Type | Straight and curve edge |
| Key Features | Curved and straight edge banding, portable assembly, plug options (EU, USA, AU, UK), language options (Chinese, English; other languages configurable) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and plywood panels with PVC or ABS tape |
| On-site interior trim work | Melamine and veneer banding on straight and curved edges |
| Small joinery shop curved components | Particleboard and solid wood panels up to 50mm edge height |
| Low-volume furniture prototyping | Mixed substrates requiring flexible manual feed control |
Why Voltage Confirmation Must Happen Before You Compare Quotes
A portable edge banding machine manufacturer that skips voltage dialogue before quoting is selling you a problem.
I have watched workshops in Southeast Asia receive 380V units wired for 50Hz when their local grid runs 220V/60Hz. The glue pot never reaches temperature, the feed motor stalls under load, and the operator blames the tape. Months pass before anyone checks the nameplate. This DW400 portable edge bander is configurable across voltage ranges, but only if the conversation happens at inquiry stage — not after the crate arrives [NEED_CITE: voltage and frequency standards by export market].

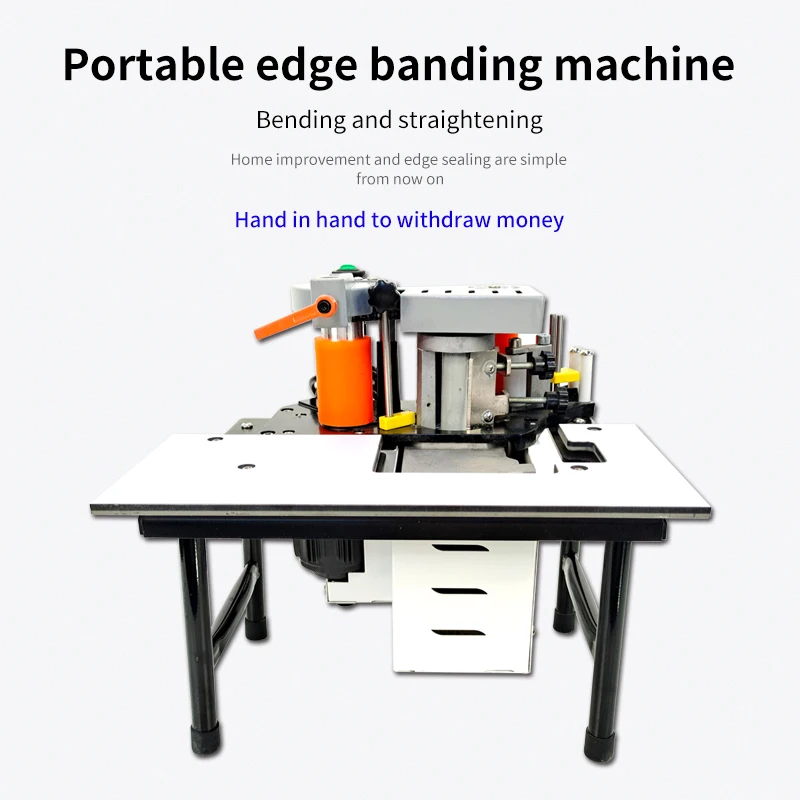

Straight and Curved Edges Without Swapping Machines
Most small workshops buy a straight-line bander first, then discover half their custom jobs involve radiused cabinet sides or rounded shelf ends. The DW400 handles both geometries on a single unit, which means one operator, one glue pot, and one setup routine cover the full edge profile range a custom furniture shop typically encounters. For a portable edge banding machine manufacturer building for export markets, this dual capability reduces the number of SKUs a distributor needs to stock.

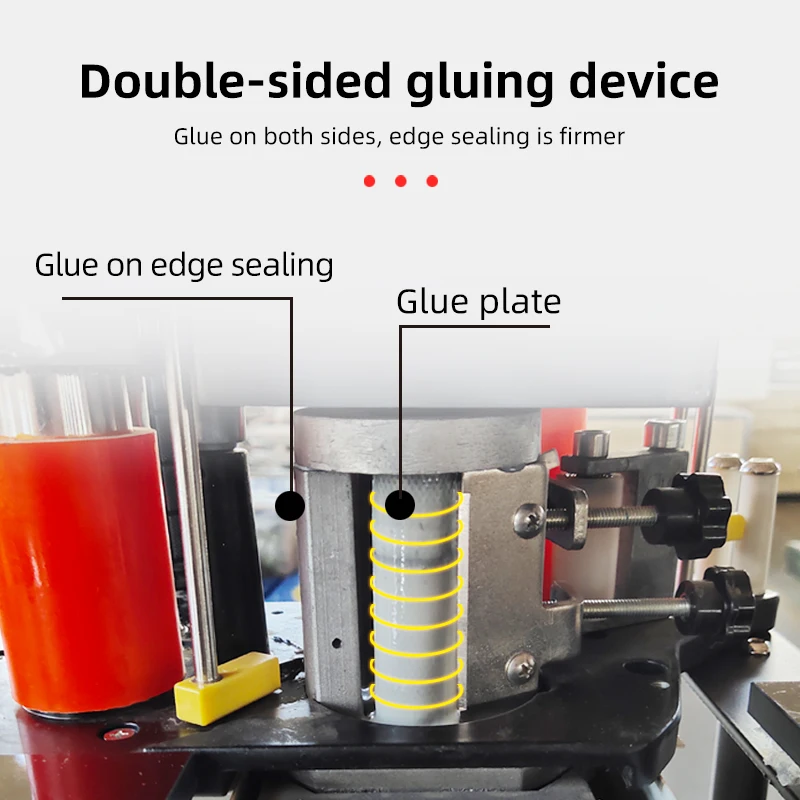

Glue Temperature Behavior Across Substrate Density
When particleboard density climbs above standard furniture grade, the thermal mass of the board pulls heat out of the glue film faster than the pot can replenish it. The 1000ml glue pot on this unit holds enough thermal reserve for typical workshop throughput, but operators running high-density substrates should reduce feed speed and allow additional preheat dwell. This is the kind of variable that a portable edge banding machine manufacturer must surface in the operation manual rather than leaving the buyer to discover through rejected batches [NEED_CITE: thermal behavior of hot-melt adhesives on high-density particleboard].
Reading the Spec Sheet Against Your Actual Production Reality
The 0.3–3mm edge banding thickness range covers melamine paper tape at the thin end through PVC and ABS at the upper boundary. Veneer strips fall within this window but demand careful temperature management since natural wood veneer chars before synthetic tapes soften. The 0–50mm edge height accommodates standard 18mm board stock as well as thicker solid wood panels used in worktop applications. Air pressure at 0.5–0.8 MPa is consistent with most workshop compressor outputs, though operators should verify their line holds steady pressure rather than cycling — pressure drops mid-band cause visible adhesion gaps. The 12kg product weight means one person can relocate the unit between benches or load it into a service vehicle for on-site installation work.
What Happens When the Wrong Entry-Level Machine Meets Production Volume
A joinery shop running three shifts on a portable unit designed for occasional use will burn through glue pot heating elements and feed roller bearings far sooner than expected. The machine does not fail catastrophically — it simply produces inconsistent edge adhesion that shows up only when the assembled cabinet rack under load. Operators compensate by slowing feed speed, which then creates a bottleneck the shop did not budget for [NEED_CITE: equipment duty cycle mismatches in small-scale furniture production].
Why Sourcing From One Manufacturer Matters at Scale
Every DW400 leaves the factory with a pre-shipment test record run on material matching the buyer’s stated substrate and tape combination. Voltage and plug configuration are confirmed in writing before production begins, not assumed from the destination country. The same manufacturer that builds this portable unit also produces full-function automatic edge banders, so a workshop that outgrows manual feed can source the next machine up without requalifying a new supplier. Four-stage quality control covers incoming component inspection through final dispatch verification. CE declaration of conformity and ISO 9001 certification back the build process, and OEM branding is available even on single-unit orders.
Documentation & Verification
- CE declaration of conformity matching your export market requirements
- Electrical schematic confirming ordered voltage, frequency, and plug type
- Factory test record on your specified panel material and edge tape
- Operation and maintenance manual in your agreed language
- Spare parts list with part numbers for glue pot elements and feed rollers
Installation, Commissioning & Support
- 220V or 380V single-phase supply on a dedicated circuit matching the ordered configuration
- Compressor line verified at 0.5–0.8 MPa stable pressure before first glue-up
- Glue pot loaded and temperature stabilized on your specified tape material before production runs
- Curved and straight edge technique demonstrated on your actual panel stock during commissioning
- Spare heating element and feed roller included in initial parts kit
Before You Request a Quotation
Send your typical panel material, thickness, and the edge banding tape brand or type you run most often. Confirm your workshop voltage and frequency — a photo of your existing machine nameplate or breaker panel helps eliminate assumptions. If you handle both straight and curved components, note the minimum radius you encounter so we can verify feed path clearance on this unit.
Frequently Asked Questions
Q: How do I confirm the correct voltage and plug type for my country before ordering?
A: Provide your local supply voltage, frequency in Hz, and a photo of an existing machine plug or breaker panel. We confirm the configuration in writing and include the matching electrical schematic with your shipment documentation so there is no guesswork when the unit arrives at your workshop.
Q: Which panel materials and edge tapes are compatible with this portable model?
A: The DW400 handles MDF, plywood, particleboard, and solid wood panels with ABS, PVC, melamine, or veneer edge banding tape from 0.3mm to 3mm thickness. Veneer requires lower glue temperatures to prevent scorching, and we include material-specific settings in the operation manual.
Q: When should I move from this portable unit to an automatic edge bander?
A: If your daily volume requires continuous feed operation across multiple shifts, or if your assembly tolerance demands consistent edge trimming and scraping beyond manual capability, an automatic model becomes justified. We configure both tiers under one manufacturer relationship.
Q: What documentation ships with the machine?
A: Every unit includes a CE declaration, ISO 9001 certificate, electrical schematic with confirmed voltage and plug type, factory test record on your material, operation manual in your chosen language, and a numbered spare parts list for reorder reference.
Q: Can I order one unit with OEM branding and a custom control panel language?
A: Yes. Custom logo application, control panel language configuration, and voltage adaptation are all available on single-unit orders. We confirm every specification in writing before production so the delivered machine matches your market requirements exactly.
