Edge banding machine

Plywood Industrial Bander Furniture Machinery Woodworking Multifunctional Edge Banding Machine

This product is currently out of stock and unavailable. SKU: Plywood Industrial Bander Furniture Machin-36334891 Category: Edge banding machine Description Additional information Table of ContentsDescriptionXZF450 45 degree full-automatic edge banding machine has 7 functions. including pre milling and gluing end trimming. trimming.Additional informationRelated productsSmall Manual Banding DW400 Portable Mini Band Polishinre G and Trimming Semi […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Description

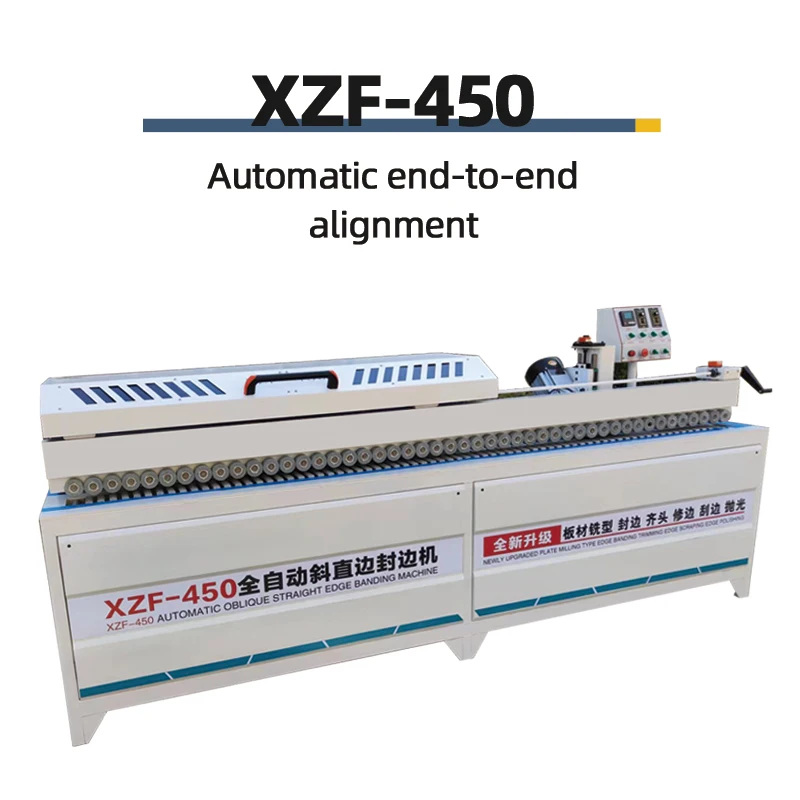

XZF450 45 degree full-automatic edge banding machine has 7 functions. including pre milling and gluing end trimming. trimming.

scraping and polishing. and dust suction. This machine is suitable for 45 degree and 90 degree edge banding of MDF. melamine
board. solid wood board. plywood. etc.
Beichen XZF450 Automatic edge banding machine is suitable for medium density fiber board. blockboard. wood panels. particleboard. plywood and other polymer doors.
straight edge trimming. disposable with double-sided adhesive tape cutting edge bonding edge pressing. block. chamfer. Tinker.
finishing. polishing and other functions of scraping edge. edge smooth. smooth. feel good sealing wire. flat and smooth. The
equipment operation is stable. reliable and durable. is especially suitable for large and medium-sized furniture. cabinets and
other furniture manufacturers plate using.
Product Paramenters
Model
XZF-450


Total power
9.5KW


Standard features
Plate milling. 30/45/60 degree edge banding. trimming. trimming. scraping and polishing. high-power vacuuming
Voltage
380V/415V
Minimum length of sheet
30CM
Minimum width of sheet
15CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Pre-milled motor
4KW


Edge power/speed
0.16KW 0-12M/min
Air source pressure
0.5-0.7Mpa
Transmission power/speed
180W 0-12M/min
Glue pot capacity
4000ml
Trimming power/speed
2.2KW*2
Vacuum power
550W
Polishing power/speed
0.4KW*2


Product Size
300*65*135CM
Product weight
430KG
Package Size
312*74*126CM


Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products. Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ? We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality. Q2:Can I choose the Plug? Yes.we have EU.USA.AU.UK plug for your country use Q3:Is it OK to print my logo on the product? Yes.Please inform us formally before our production and confirm the design firstly for the mass production. Q4.I do not know Chinese.will the operation panel in English or French or other? Yes.all our machine are with Chinese and English.If you want only English or Spanish or other. we also can customize to you Q5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world. also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries. Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe. Q7.What to do if l have any other specifications for the current? lf you have any different requirements.just contact us and we will meet you. Q8.lf I need a sample for pretest. do you sale sample for this inquiry ? Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation. Q9.Can you produce the products according to my own drawings? Yes. we can do OEM according to your requirement
