Multifunctional PVC Edge Banding Machine 45 Degree Oblique Straight Manual MDF Board Making Box Gluing Based Panels Scrape Clean
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

Multifunctional PVC Edge Banding Machine 45 Degree Oblique Straight Manual MDF Board Making Box Gluing Based Panels Scrape Clean

This product is currently out of stock and unavailable. SKU: Multifunctional PVC Edge Banding Machine 4-36309880 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Description DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machineThe Straight Bevel Edge banding machine with Large-scale gluing bearing. edge band slotting device. […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Description

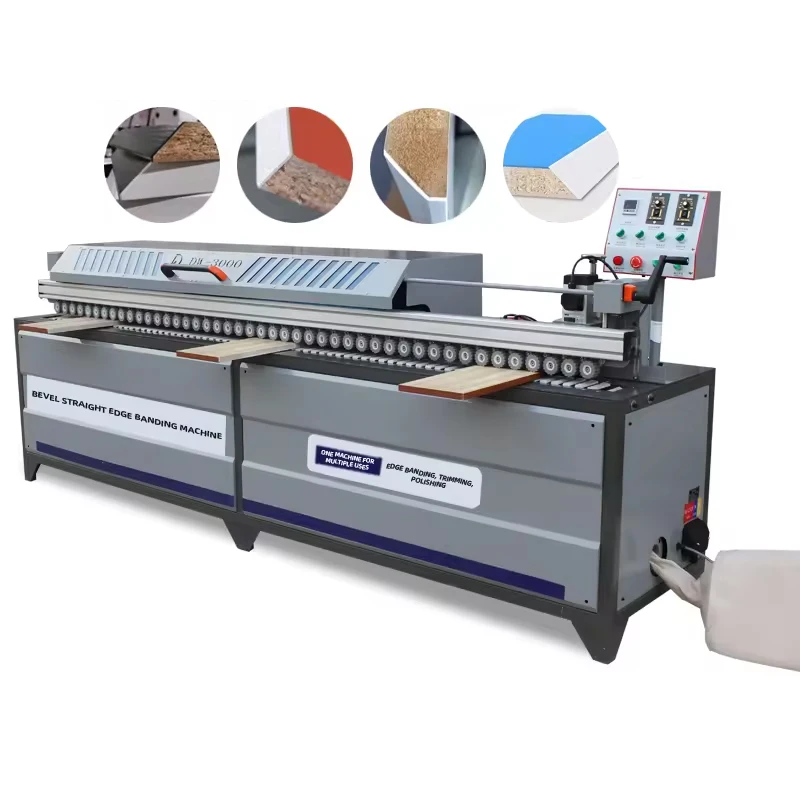

DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machine
The Straight Bevel Edge banding machine with Large-scale gluing bearing. edge band slotting device. slotting height can be adjusted. edge banding is more compliant. double cylinder feeding belt is more stable and not shaking. double heat gun design. heating edge banding is more obedient. 8 groups The angle of the oblique pressure wheel can be adjusted arbitrarily from 30 to 90. The 800W silent trimming motor. the industrial-grade polishing motor and the vacuuming motor are polished smoothly and cleanly. The DW3000 trimming motor is replaced with a spindle trimming motor. with a total of 3 spindle motors. With a flexible edge scraper to clean the glue line. the finish is better
Product Paramenters
Model
DW3000
Total power
11KW
Standard features
Plate milling. 30-90 degree edge banding. trimming. trimming. scraping and polishing. high-power vacuuming
Voltage
380V/415V
Minimum length of sheet
30CM
Minimum width of sheet
15CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Pre-milled motor
2.2KW
Heating power
2.2KW*2
Edge power/speed
160W 0-12M/min
Air source pressure
0.5-0.7Mpa
Transmission power/speed
180W 0-12M/min
Glue pot capacity
4000ml
Trimming power/speed
2.2KW*2
Vacuum power
550W
Polishing power/speed
0.4KW*2
Product Size
299*65*130CM
Product weight
430KG
Package Size
312*74*115CM
Both oblique and straight. edge trimming and polishing. double hot air design. feeding auxiliary slide. 8 sets of oblique pressure
wheels. automatic alignment. 45-degree pre-milling of the plate. edge banding with slots
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement
