Description
Precision-verified tolerance — every DW3000 fully automatic bevel and straight edge banding machine leaves the factory with a measured pre-milling and trimming test record, ensuring the ±0.02mm claim is documented before crating.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW3000 |
| Product Type | Fully Automatic Bevel and Straight Edge Banding Machine |
| Total Power | 11 kW |
| Voltage & Frequency | 380V / 415V (frequency to be confirmed per market) |
| Feed Speed | 0–12 m/min |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Panel Length | 30 cm |
| Minimum Panel Width | 15 cm |
| Pre-milling Motor | 2.2 kW |
| Trimming Motor | 2.2 kW × 2 (spindle trimming) |
| Polishing Motor | 0.4 kW × 2 |
| Heating Power | 2.2 kW × 2 (double heat gun) |
| Vacuum Power | 550 W |
| Edge Feeding Power | 160 W |
| Transmission Power | 180 W |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5–0.7 MPa |
| Bevel Angle Range | 30–90° (8 groups of oblique pressure wheels) |
| Standard Functions | Pre-milling, bevel & straight edge banding, slotting, trimming, scraping, polishing, high-power vacuuming |

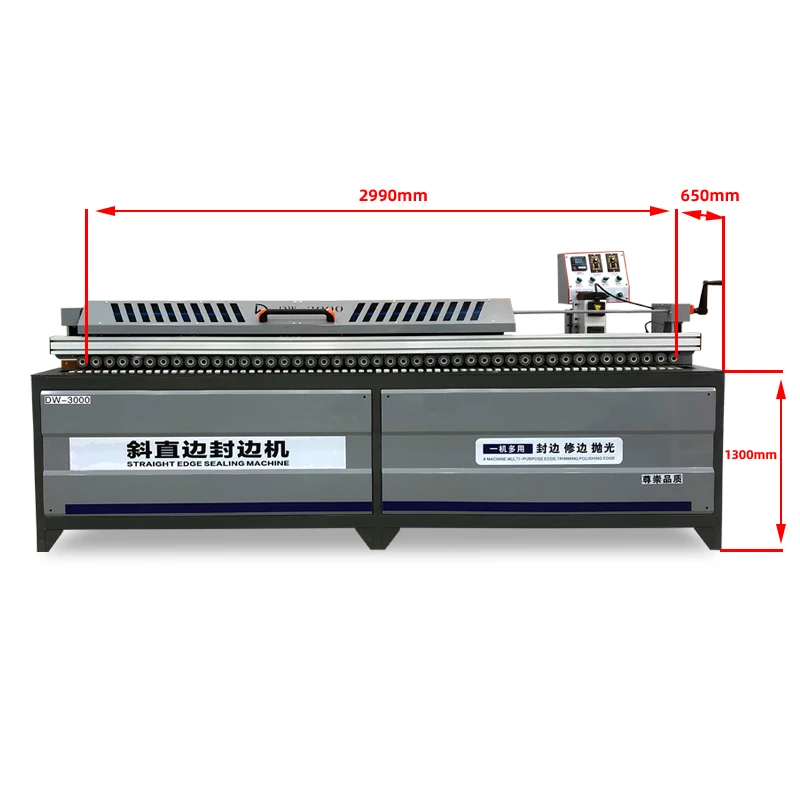

| Overall Dimensions (L×W×H) | 299 × 65 × 130 cm |
| Net Weight | 430 kg |
| Language Options | Chinese, English (customizable to Spanish or other languages) |
| Plug Options | EU, USA, AU, UK |
| Assembly State | Fully assembled |
Application Suitability
| Application | Material or Output |
|---|---|
| Kitchen cabinet door edge finishing | MDF and particleboard with PVC or veneer banding |
| Custom furniture panel processing | Plywood and solid wood panels requiring 45° bevel edges |
| Shelving and case goods production | Laminated boards needing straight edge banding with slotting |
| Mixed-profile workshop operations | Panels alternating between bevel and straight edge in one session |
Why the Voltage Question Should Come Before the Price on a Fully Automatic Bevel and Straight Edge Banding Machine manufacturer
A machine that cannot plug into your shop floor is a crate of expensive steel.
I once watched a cabinet factory lose nearly three weeks of production because a 45-degree edge bander arrived configured for a voltage standard that did not match the facility’s three-phase supply. The transformer retrofit delayed an entire kitchen run. When sourcing a Fully Automatic Bevel and Straight Edge Banding Machine manufacturer, confirming your local voltage and frequency before discussing anything else avoids this exact scenario [NEED_CITE: voltage and frequency standards by export market]. The DW3000 ships in 380V or 415V configurations, but the frequency must be locked to your grid — 50 Hz and 60 Hz are not interchangeable on induction motors without consequences to feed speed and trimming RPM.
Where the DW3000 Sits in the Complete Edge Banding Range
The Ruiqi catalogue spans entry-level manual-feed machines through to multi-station CNC lines, and the DW3000 occupies the full-function tier where bevel capability meets straight edge processing in a single pass. Workshops that produce both angled cabinet doors and standard shelving benefit from not duplicating floor space across two dedicated machines. This positioning matters when planning a production layout — the DW3000 handles the profile variety so downstream stations receive consistently banded panels regardless of edge geometry.
Adjustability That Covers Real Production Variety

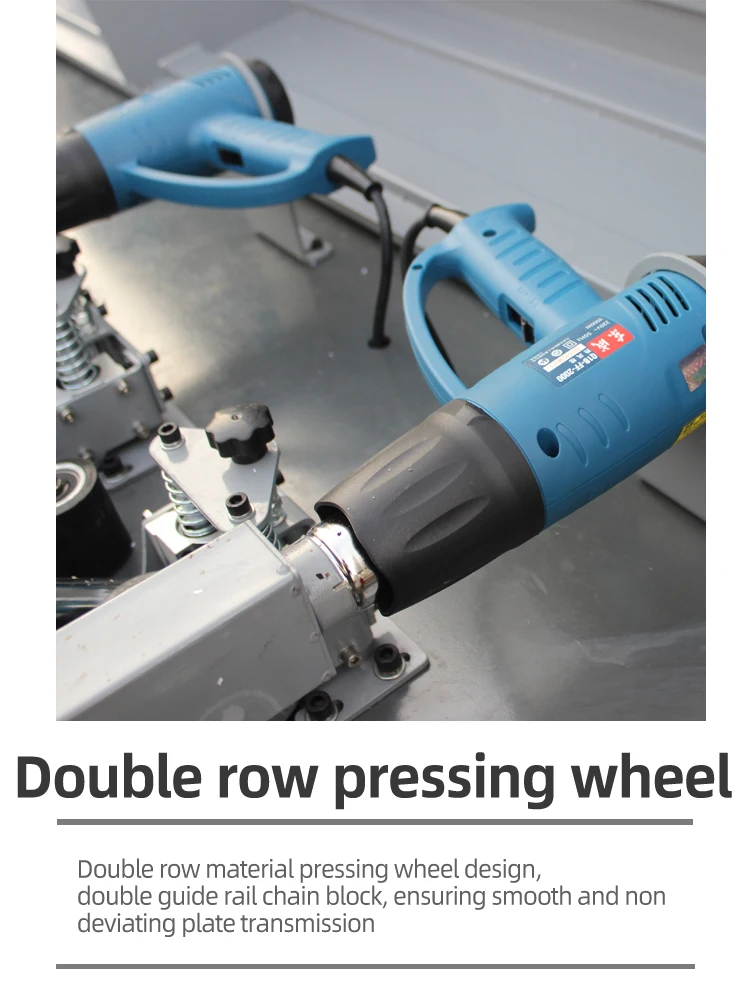

The eight groups of oblique pressure wheels adjust across a 30 to 90-degree range, which covers the majority of bevel profiles encountered in custom furniture and architectural millwork. Unlike fixed-angle machines that force operators to shim or improvise, the DW3000 lets the setter dial in the exact bevel and lock the pressure wheels for the run [NEED_CITE: CE machinery directive requirements for industrial woodworking equipment]. The double heat gun arrangement at 2.2 kW each ensures adhesive activation stays consistent even when feed speed approaches the upper end of the 12 m/min range.
Reading the Specs That Actually Affect Edge Quality

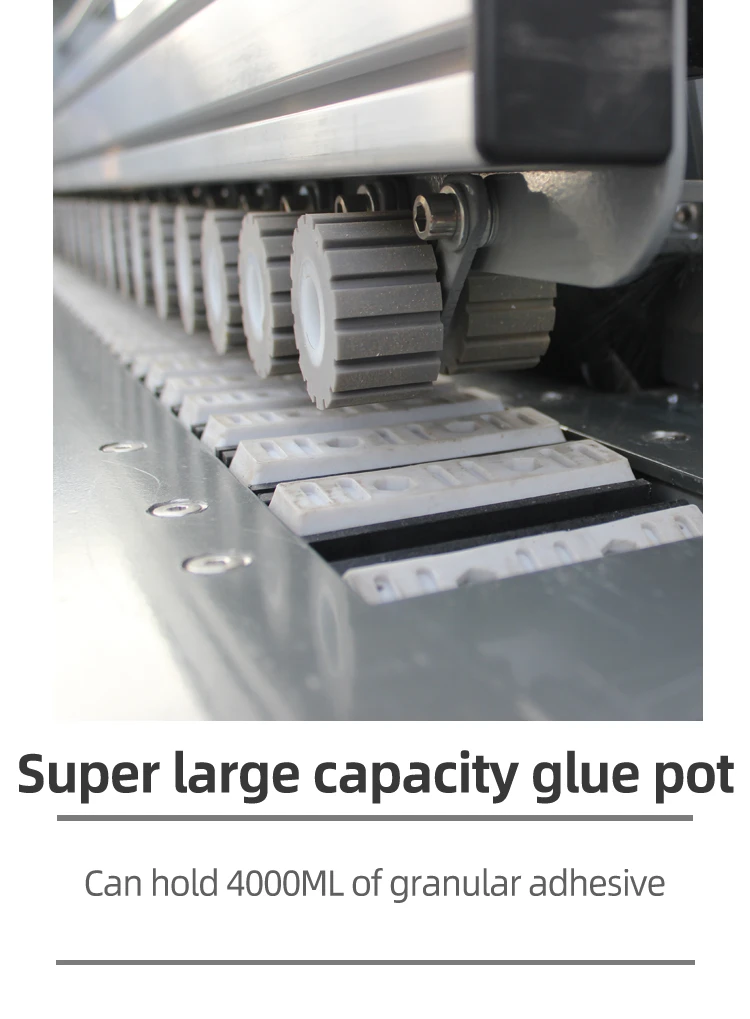

Pre-milling at 2.2 kW removes saw marks and sizing errors before the band meets the panel, which is the difference between a visible glue line and a clean joint on particleboard. The dual spindle trimming motors at 2.2 kW each handle both the top and bottom overhang in one pass, reducing the chance of chatter marks that show up under lacquer. The 4000 ml glue pot capacity supports extended runs without interruption for refill, important when a kitchen order involves hundreds of identical door fronts. Air pressure at 0.5–0.7 MPa drives the pneumatic actuators for pressure wheels and scraping — dropping below this range causes inconsistent scraping depth and leaves adhesive residue on the panel face.
The Hidden Cost of Skipping Configuration Checks
Ordering a bevel edge bander without confirming the control panel language means your operator faces an interface they cannot read, stalling commissioning while translation happens on the fly. Skipping the factory test record review leaves tolerance claims unverified — a machine rated for ±0.02mm may drift under sustained production if the pre-milling cutter was not aligned to the specific board thickness you run most often [NEED_CITE: woodworking machinery tolerance verification standards]. These are not theoretical concerns; they appear regularly when buyers treat the purchase as a catalogue click rather than an engineered configuration.
What Manufacturing Depth Means for This Machine
The DW3000 benefits from in-house precision grinding of critical components, meaning the pressure wheel shafts and trimming spindles are finished to tolerance under one roof rather than assembled from mismatched subcontractor parts. The four-stage quality control process — incoming material, in-process, finished product, and pre-shipment verification — catches alignment drift before the machine is crated. Voltage and plug customization is handled as a standard configuration step, not an afterthought. The patented cutting mechanisms developed for the Ruiqi edge banding family carry through to the DW3000’s trimming and scraping stations. Engineer-led configuration means the quotation you receive within 24 hours reflects your actual panel mix, not a generic default build.
Documentation & Verification
- CE declaration of conformity covering the DW3000 bevel and straight edge functions
- Machine specification sheet confirming your ordered voltage and plug type
- Factory test record with measured tolerance on your specified panel thickness
- Electrical schematic matching the as-built 380V or 415V configuration
- Operation manual in your confirmed language with spare parts list
Installation, Commissioning & Support
- Requires a dedicated three-phase circuit matching the confirmed 11 kW total draw at your local voltage
- Overall footprint of 299 × 65 cm needs clear infeed and outfeed zones for panels up to the minimum 30 cm length
- Arrives fully assembled — position, level, connect power and 0.5–0.7 MPa air supply, then run calibration panels
- First-run parameter setting covers glue temperature, feed speed ramp, and pressure wheel angle for your primary bevel profile
- Spindle trimming motors and polishing wheels are the primary wear items — spare parts list included with shipment
- Daily vacuum of the 550 W extraction port prevents adhesive dust buildup on the scraping station
What to Include in Your Inquiry
To receive an accurate configuration proposal, share the primary panel materials you process, the range of bevel angles your product line requires, and your facility’s confirmed voltage and frequency. If your operators need a control panel language beyond English or Chinese, specify this upfront. Mention any upstream sizing saws or downstream boring machines so the feed height and throughput can be matched across your line.
Frequently Asked Questions
Q: How does the DW3000 compare to entry-level models in the Ruiqi edge banding range?
A: Entry-level machines in the catalogue handle straight edge banding only, with fewer processing stations and lower feed speeds. The DW3000 adds bevel capability from 30 to 90 degrees, pre-milling, slotting, and dual spindle trimming — positioning it for workshops that need profile variety and higher daily panel volume without stepping to a full CNC line.
Q: What voltage and frequency configurations are available, and how is compatibility confirmed?
A: The DW3000 is built for 380V or 415V supply, with plug options for EU, USA, AU, and UK markets. Frequency must be confirmed to match your local grid before production begins. The electrical schematic and voltage confirmation document are included in the pre-shipment documentation package for your electrician’s review.
Q: Can the control panel language be customized beyond Chinese and English?
A: Yes. Spanish and other languages are available as custom options. The language requirement should be confirmed during the specification stage so the HMI is loaded and tested before the machine leaves the factory, avoiding commissioning delays on your floor.
Q: What maintenance do the spindle trimming motors and pressure wheels require?
A: The spindle trimming motors and oblique pressure wheel bearings are the primary wear points under sustained production. The spare parts list included with shipment identifies part numbers and replacement intervals. Daily cleaning of the vacuum extraction port and weekly inspection of pressure wheel alignment keep edge quality consistent.
Q: Is a factory visit or sample processing test available before ordering?
A: Factory visits are welcomed, and sample processing tests can be arranged using your own panel material and edge banding stock. The test output is documented in the factory test record, which ships with the machine so you have a baseline for comparison during commissioning at your facility.
