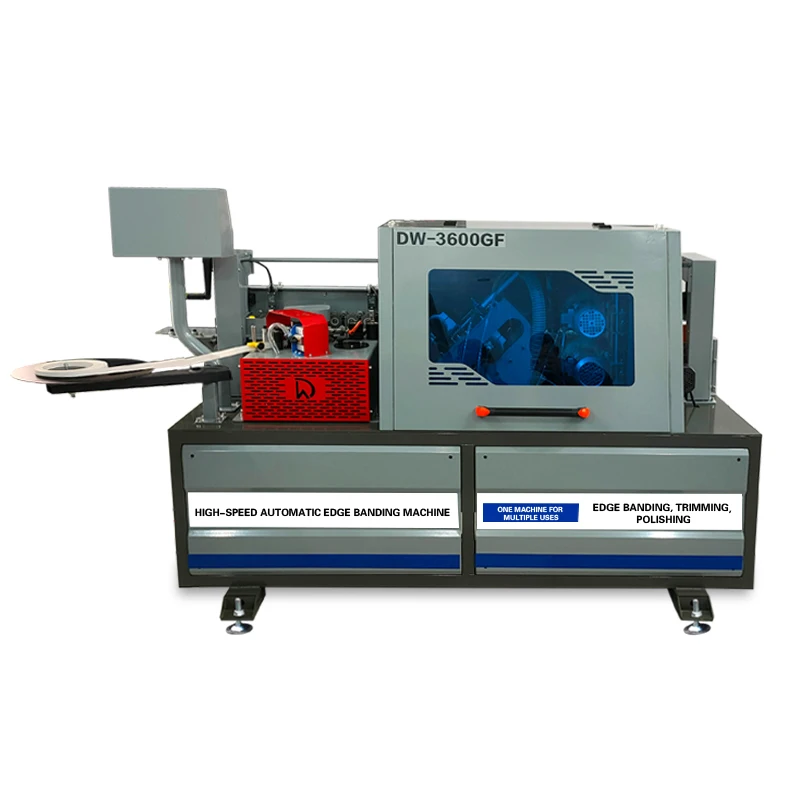

DW3600 Full Automatic Edge Bander Furniture Machinery Woodworking Edge Banding Machine
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Edge banding machine

DW3600 Full Automatic Edge Bander Furniture Machinery Woodworking Edge Banding Machine

This product is currently out of stock and unavailable. SKU: DW3600 Full Automatic Edge Bander Furnitur-36334966 Category: Edge banding machine Description Additional information Table of ContentsDescriptionAdditional informationRelated productsBeichen DW102 Automatic Wood Based Panels Machinery Woodworking Glue Sealing Edge Banding Machine Motor Bearing PLCDW102 High Speed Banding Machine Furniture Manufacturing Automatic Bevel 45 Degree Edge Bander […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Description
Product Paramenters
VOLTAGE :380V THREE-PHASE FOUR-WIRE
PRODUCT NUMBER: DW-3600GF
EQUIPMENT SIZE:2200*650*1250mm
TOTAL POWER:4.9KW
EDGE BANDING TYPE: STRAIGHT EDGE BANDING
TOTAL WEIGHT: 320KG
EDGE BAND HEIGHT :0-50MM
EDGE BAND THICKNESS: 0.3-3MM
MINIMUM LENGTH OF PLATE: 200MM
EDGE BANDING POWER I SPEED: 160W0-14m/min
TRANSMISSION POWER ISPEED: 180W0-14m/min
TRIMMING POWERISPEED: 800W*2 24000r/min
POLISHING POWER /SPEED: 400W*2
EQUIPMENT AIR PRESSURE: 0.4-0.6mpa
STANDARD FUNCTIONS: GLUING.TRIMMING.TRIMMING.FRONT AND REAR .SCRAPING.POLISHING .VACUUMING
Product Details
Details Images
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement
