Description
Full Range Scalability — The DW3000 sits within a complete family from entry-level to full-function pre-milling, so your workshop can scale production volume without switching equipment suppliers.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW3000 |
| Product Type | Fully Automatic Slant and Straight Edge Banding Machine with Pre-Milling |
| Total Power | 11 kW |
| Voltage & Frequency | 380V/415V (basis not stated in source — confirm frequency 50Hz/60Hz) |

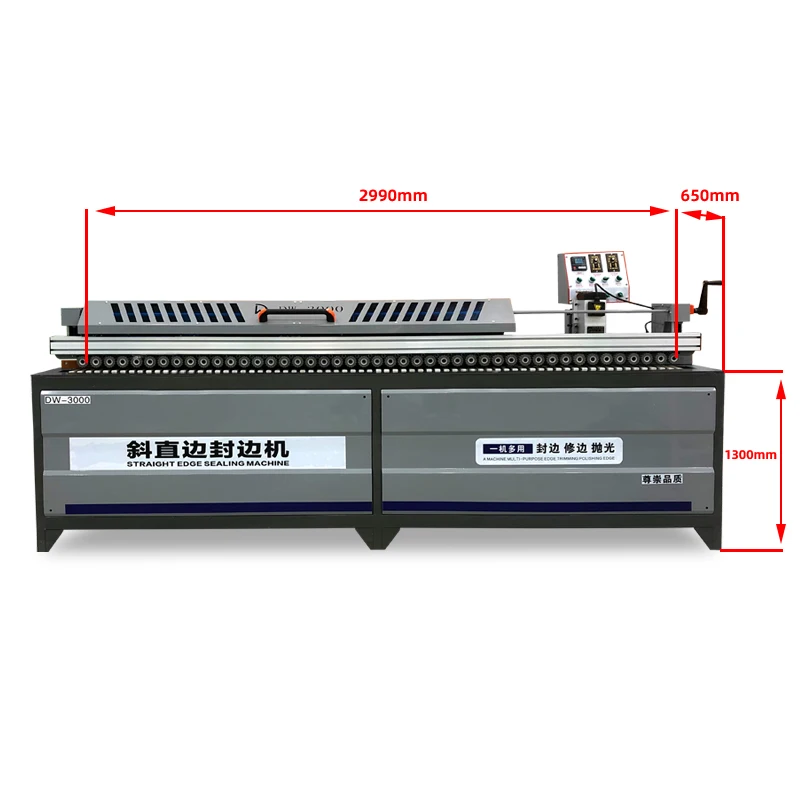

| Overall Dimensions (L×W×H) | 299 × 65 × 130 cm |
| Net Weight | 430 kg |
| Feed Speed | 0–12 m/min |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Pre-milling Motor | 2.2 kW |
| Heating Power | 2.2 kW × 2 (double heat gun) |
| Trimming Motor | 2.2 kW × 2 |
| Polishing Motor | 0.4 kW × 2 |
| Vacuum Motor | 550 W |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5–0.7 MPa |
| Oblique Pressure Wheels | 8 groups, adjustable 30–90° |
| Feeding System | Double cylinder feeding belt |
| Edge Banding Capability | Straight and 45° oblique edge |
| Language Options | Chinese and English standard; other languages customizable (basis not stated in source) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door and carcass edge banding | MDF and particleboard with PVC edge banding (0.3–3 mm) |
| Plywood furniture component finishing | Plywood panels with veneer or PVC edge material |
| Mixed straight and beveled edge production | Straight-edge panels and 45° slant-edge components on one line |
| Small-to-mid batch custom furniture runs | Panels ranging from 15 cm minimum width upward |
Why the Glue Line Shows on Some Panels but Not Others
Inconsistent adhesion usually traces back to heat delivery and pressure conformity, not the glue itself.
I spent years on workshop floors before moving into equipment specification, and the most frustrating calls are always about visible glue lines appearing on certain substrates while others come out clean. The culprit is rarely the adhesive formulation alone. Panels with different surface densities absorb heat differently; thicker PVC edge banding demands more thermal energy to reach bonding temperature. When a machine relies on a single heating zone, the operator ends up slowing feed speed on difficult materials just to maintain acceptable quality [NEED_CITE: thermal transfer requirements for PVC edge banding on varying substrate densities].

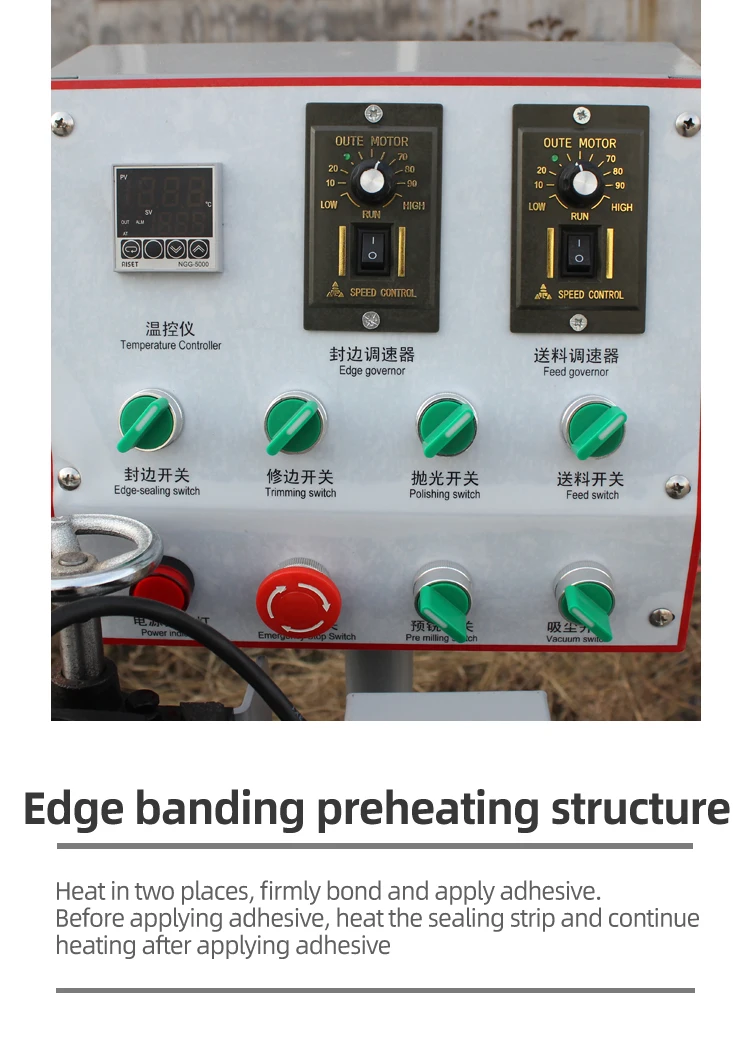

The DW3000 addresses this through a double heat gun configuration delivering 2.2 kW × 2 into the glue application zone, paired with eight groups of oblique pressure wheels adjustable from 30 to 90 degrees. That wheel array conforms to both straight profiles and beveled edges, applying even pressure regardless of edge geometry. When an edge banding machine manufacturer designs the thermal and pressure systems together rather than treating them as separate stations, the result is consistent bonding across MDF, particleboard, and plywood without the operator constantly chasing settings.
Where This Model Sits in a Scaling Workshop
A joinery shop starting with basic straight-edge work often outgrows its first machine within a few production seasons, once beveled components and thicker banding materials enter the order book. The DW3000 occupies a position in the Ruiqi range that covers both entry requirements and mid-tier production demands, handling 0.3 to 3 mm edge banding thickness in a single pass. For an edge banding machine for sale at this specification level, the ability to process 45-degree slant edges alongside standard straight edges means the machine remains productive when the product mix shifts.
Workshops evaluating their first fully automatic unit or replacing an underperforming semi-automatic setup find this configuration bridges the gap. The 0–12 m/min feed speed range gives operators room to dial back for thick veneer work or push forward on standard PVC runs, adapting to whatever the daily schedule requires.
How Pre-Milling Changes Downstream Assembly Accuracy
Panels that arrive at the assembly bench with edge banding already applied still need to fit together precisely, and any waviness or chip-out left by the saw cut transfers through the edge band into the visible joint. The pre-milling station on the DW3000, driven by a dedicated 2.2 kW motor, removes a controlled amount of material from the panel edge before the banding is applied. This creates a clean, flat reference surface regardless of the condition left by the upstream saw.
For cabinet makers running frameless construction where panels meet at butt joints, that milled surface directly affects how tight the finished joint appears [NEED_CITE: edge preparation requirements for frameless cabinet assembly tolerance]. When the edge band seats against a true surface rather than following saw blade undulations, the glue line becomes nearly invisible even on light-colored PVC materials.
Reading the Spec Sheet Beyond the Headline Numbers
Feed speed alone tells you little about real daily output; what matters is how the feeding system behaves at those speeds. The DW3000 uses a double cylinder feeding belt that stabilizes panels through the entire station sequence, preventing the lateral drift that causes edge offset on narrow components. The 15 cm minimum sheet width reflects this stability — narrower stock tends to wander on single-belt systems.

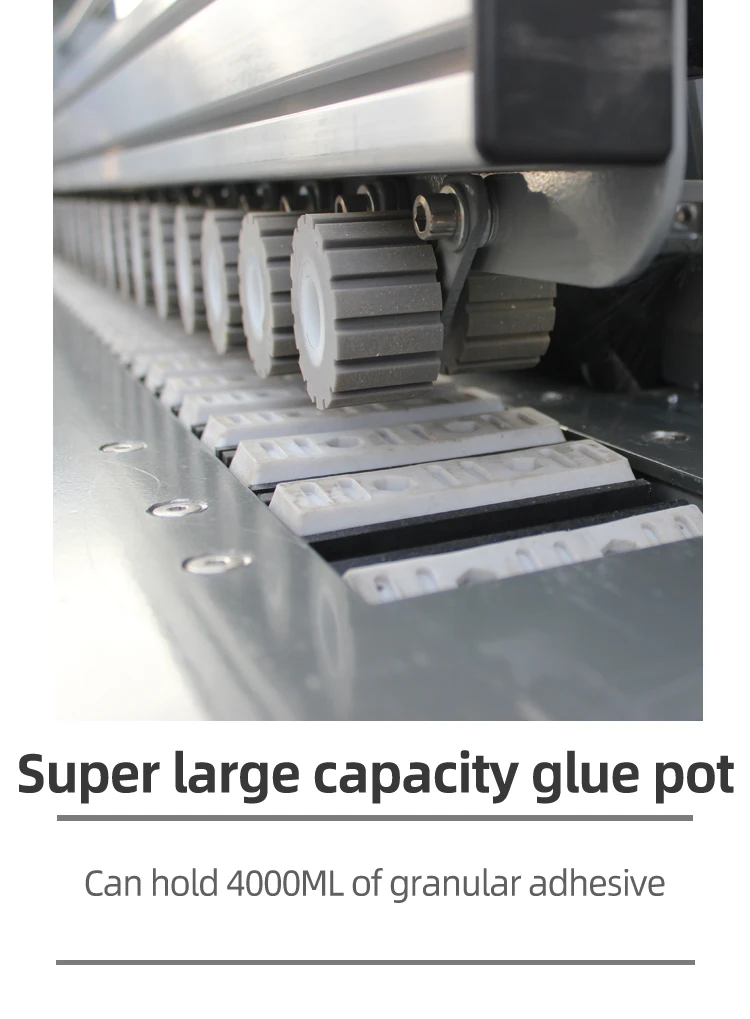

The 4000 ml glue pot capacity supports sustained production runs without frequent refill stops, while the 550 W vacuum motor at the trimming station captures the bulk of PVC and veneer debris before it reaches the polishing wheels. Edge banding quality depends as much on debris management as on cutting precision; embedded trimmings leave marks that rework cannot fix.
When a Machine Quoted on Spec Fails on Your Floor
Buying an edge bander based on catalog speed and motor power without confirming the material mix leads to a machine that performs well on test panels and poorly on your actual production. I have seen workshops receive equipment that could not hold tolerance on the specific PVC thickness they ran daily, because the pressure wheel configuration was set for a different banding range entirely [NEED_CITE: configuration mismatch between catalog specifications and actual material requirements in woodworking machinery procurement]. The DW3000’s eight-group adjustable wheel system and dual heating zones exist specifically because a single fixed setup cannot cover the range of materials a custom furniture factory actually processes.
What Manufacturing Depth Means for Your Order
The DW3000 carries a proprietary pre-milling mechanism covered by manufacturer patents, not a generic third-party station bolted onto a standard frame. Ruiqi’s four-stage quality control process covers incoming material inspection, in-process assembly checks, finished product testing, and pre-shipment verification, with documented records available at each stage. Voltage and frequency customization from 110V to 440V is handled as a standard configuration step rather than a special request, confirmed in writing before production begins. Control panel language is specified at order time, ensuring the operator receives a machine they can commission without translation guesswork. Every edge banding machine for sale from this line ships with a factory test record run on material parameters matching the buyer’s stated requirements.
Documentation & Verification
- CE declaration of conformity applicable to the DW3000 model series
- Machine specification sheet confirming motor configuration and tolerance for this unit
- Electrical schematic with voltage and frequency locked to your facility supply
- Factory test record on your specified panel thickness and edge banding material
- Operation manual in the agreed language with illustrated adjustment procedures
- Pre-shipment photograph set covering packing and container loading
Installation, Commissioning & Support
- Floor space requirement accounts for 299 cm length plus operator clearance on the feed and exit sides
- Dedicated 380V/415V circuit with confirmed frequency matching local supply before connection
- 430 kg net weight requires standard concrete floor; no special vibration isolation foundation needed
- Air supply at 0.5–0.7 MPa with dedicated regulator and moisture trap installed upstream
- First-run commissioning covers pre-milling depth, heat gun temperature calibration, and trimming alignment on your actual stock
- Spare parts list includes wear items for pressure wheels, trimming blades, and polishing pads
Before You Request a Quote
To configure the DW3000 for your actual production environment, share the primary panel materials and thickness range you process, the edge banding materials and thicknesses in regular use, and the local voltage and frequency at your facility. If you run both straight and beveled edge components, indicate the approximate mix so the pressure wheel setup is configured accordingly. Specify the control panel language your operators need, and note any upstream or downstream equipment the machine must integrate with in your current line layout.
Frequently Asked Questions
Q: How does the DW3000 compare to entry-level models in the Ruiqi edge banding range?
A: The DW3000 adds pre-milling, eight-group adjustable oblique pressure wheels, and a double heat gun configuration that entry-level models do not carry. It handles both straight and 45-degree bevel edge banding in one pass, making it suitable for workshops that process mixed component types and plan to scale beyond basic straight-edge work without replacing the machine.
Q: What voltage and frequency options are available for export markets?
A: Voltage is configurable from 110V to 440V, and frequency is confirmed at the quotation stage based on your local supply standard. The electrical schematic and machine wiring are completed to match the confirmed specification before production, ensuring the unit is ready to connect upon arrival without transformer additions.
Q: Can the same machine run both oblique and straight edge banding in production?
A: Yes. The eight pressure wheel groups adjust from 30 to 90 degrees to accommodate both profiles, and operators switch between straight and 45-degree bevel components by adjusting the wheel angle and pressure settings. No mechanical changeover or additional tooling is required between the two edge types.
Q: What pre-shipment verification documentation accompanies the DW3000?
A: Each unit ships with a factory test record documenting performance on material matching your order specifications, a machine specification sheet confirming all motor ratings and dimensions, an electrical schematic, and a pre-shipment photograph set. The CE declaration and ISO 9001 certificate documentation are included in the delivery package.
